LG PCRCUDT3 Manuel utilisateur
Installation Guide/User's Guide
Be sure to read the "Safety Precautions" before using the product.
Keep this manual in a place where anyone who uses the product can see it.
Please be careful when using this product and check it has not been altered in
any way beyond its default state to prevent the occurance of accidents
Model Type: Wi-Fi Modem (WLAN Dongle)
P/NO : MFL70260204
www.lg.com
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
PORTUGUÊS
MAGYAR
БЪЛГАРСKN
SRPSKI HRVATSKI SVENSKA NORSK
SLOVENŠČINA
LATVIEŠU VALODA
LIETUVIŲ KALBA
GAEILGE
МАКЕДОНСКИ
SHQIP ÍSLENSKA BOSANSKI
SUOMI DANSK
EESTI KEEL
MALTI
SLOVENČINA
TÜRKÇE
РУССКИЙ ЯЗЫК
中文
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
ΕΛΛΗΝΙΚΆ ČEŠTINA
NEDERLANDS
POLSKI
LIMBA ROMÂNĂ
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 1
2
TABLE OF CONTENTS
ENGLISH
Thank you for using our air conditioner featuring the LG SmartThinQ
application. Please only operate after reading the user guide to en-
able a more trouble free, prolonged operation
3BEFORE USE OR INSTALLATION
3Safety Precautions
4Precautions for Wi-Fi Modem Installation
4Note
5WI-FI MODEM INSTALLATION
5Components
5USB Extension Cable (Sold Separately) Model: PWYREW000
61Way/2Way Ceiling Cassette
84Way Ceiling Cassette
9Commercial Ceiling Type
10 Console Type
11 Commercial Standing Type
12 Floor-mounted Type
13 Ceiling Flush Duct
14 Air-to-Water Heat Pump Split type
15
16 APPLICATION INSTALLATION
16 LG SmartThinQ Application Installation
16 Note
18 CHECKLIST BEFORE REPORTING
FAILURE
18 Smartphone Wi-Fi Settings
19 Checklist Before Reporting Failure
20 SPECIFICATIONS
20 Open source software notice information
21 NOTICE
21 FCC Certification
22 IC Certification
24 Wireless LAN module specifications
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 2
3
BEFORE USE OR INSTALLATION
ENGLISH
Safety Precautions
The following safety precautions are intended to prevent unfore-
seen hazards or damage in advance by using the product safely
and correctly.
WARNING
Failure to observe these instructions could result in death or seri-
ous injury.
CAUTION
Failure to observe these instructions could result in personal in-
jury or property damage.
!
!
WARNING
When installing
• Please contact a service center or installation shop to install the
product.
- It may cause fire, electric shock, explosion or injury.
• Please contact a service centre or industry professional to in-
stall this product
- It may cause fire, electric shock, explosion or injury.
• Do not disassemble, repair or modify the product.
- It may cause fire or electric shock.
When using
• Do not place a heating device near the product.
- It may cause fire.
• Do not spill water inside the product.
- It may cause electric shock or failure.
• Do not direct an electrical short circuit to this product
- Giving a shock to the product may cause malfunction.
• Do not damage the product with a sharp and pointy object, etc.
- It may damage the parts and cause failure.
!
CAUTION
When using
• Do not clean with strong solvent-based detergent. Use a soft
cloth.
- It may cause fire or product deformation.
• Do not touch with wet hands or pull the connecting cable.
- It may cause electric shock or failure.
!
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 3
4
BEFORE USE OR INSTALLATION
ENGLISH
Precautions for Wi-Fi Modem Installation
Note
* Depending on your smartphone, some functions may not work.
* An environment of Android 4.1.2, iOS 9.1.1 or a later version is
recommended for the use of the application.
* The environment for the use of the application is subject to
change for usability/design improvement and content enhance-
ment.
* It may not work on a tablet.
• It must be installed by a professional installer.
• The wireless router should be installed within 10 meters.
It is recommended to be installed near the product.
• Install in a place free from electromagnetic interference.
It may cause malfunction of the product.
• If there is a wall or obstacle between the Wi-Fi modem and the
wireless router, communication issues may occur
• If it is attached to steel structures such as H beams, steel plates,
indoor cabinets, etc., communication issues may occur
• Depending on the installation situation, use a 10m extension cable
(sold separately), but do not connect more than 10m.
• Do not install the product in a place with high temperature or hu-
midity such as a kitchen or bathroom.
• Install at least 1cm away from the metal panel.
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 4
5
WI-FI MODEM INSTALLATION
ENGLISH
※Use a USB extension cable depending on the installation environ-
ment. USB extension cable includes ferrite core.
Name Quantity Appearance
Wi-Fi
Modem 1
USB Cable
(60cm) 1
Extension
Cable (50cm) 1
Manual 1
Double-sided
Tape 2
Name Quantity Appearance
USB
Extensio
n Cable
(10m)
1
Appearance Name
Driver
Components
USB Extension Cable (Sold Separately) Model: PWYREW000
Installation Parts Installation Equipment
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 5
6
WI-FI MODEM INSTALLATION
ENGLISH

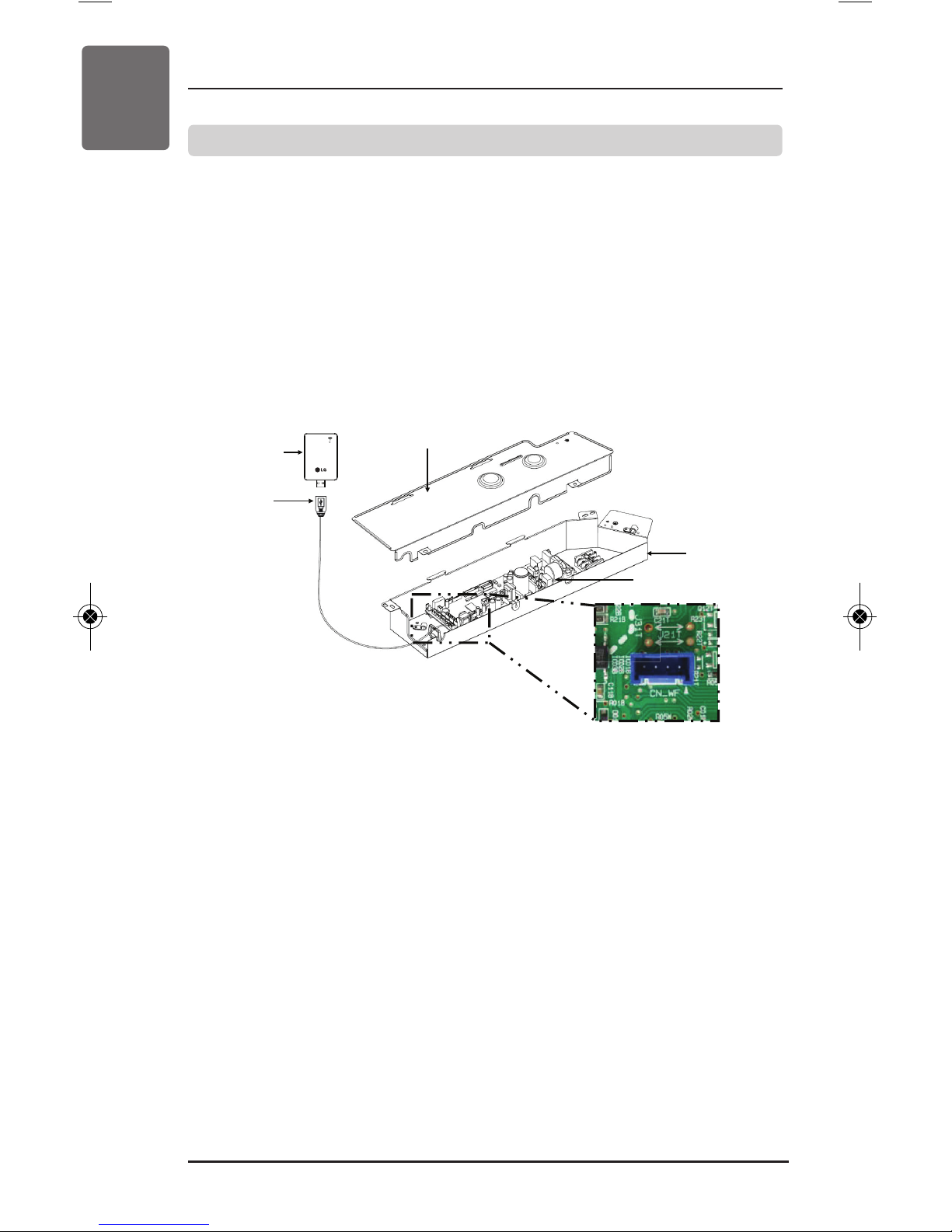

<Installation Example>
1Way/2Way Ceiling Cassette
1. Check if the indoor unit is turned off and the power of the outdoor
unit is turned off.
2. Open the control box of the indoor unit.
3. Connect the USB cable to the indoor unit PCB (CN_WF).
4. Connect the Wi-Fi modem to the USB cable.
5. Refer to the image below to install the Wi-Fi modem in the
marked position.
CN_WF
CN_WF
Wi-Fi
Modem
USB Cable
Control Box Cover
Control Box
Indoor Unit PCB
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 6
7
WI-FI MODEM INSTALLATION
ENGLISH
• Mounting position of the 1way cassette Wi-Fi modem
※Connect and install using the included USB extension cable
(50cm) according to the length of the product.
• Mounting position of the 2way cassette Wi-Fi modem
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 7
8
WI-FI MODEM INSTALLATION
ENGLISH
<Installation Example>
4Way Ceiling Cassette
1. Check if the indoor unit is turned off and the power of the outdoor
unit is turned off.
2. Open the control box of the indoor unit.
3. Connect the USB cable to the indoor unit PCB (CN_WF).
4. Connect the Wi-Fi modem to the USB cable.
5. Install the Wi-Fi modem on the flat ceiling near the indoor unit or
on the corner of the indoor unit panel. (Use the included double-
sided tape to fix it in place.)
CN_WFCN_WFCN_WF
Ceiling
100mm
Wi-Fi
Modem
USB Cable
Control Box Cover
Control Box
Indoor Unit PCB
CN_WF
CeilingCeiling
100mm100mm
Ceiling
100mm
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 8
9
WI-FI MODEM INSTALLATION
ENGLISH
<Installation Example>
Commercial Ceiling Type
1. Check if the indoor unit is turned off and the power of the outdoor
unit is turned off.
2. Open the control box of the indoor unit.
3. Connect the USB cable to the indoor unit PCB (CN-WF).
4. Connect the Wi-Fi modem to the USB cable.
5. Refer to the image below to install the Wi-Fi modem in the
marked position of the indoor unit side cover. (Use the included
double-sided tape to fix it in place.)
CN-WF
CN-WF
CN-WF
Wi-Fi
Modem
USB Cable
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 9
10
WI-FI MODEM INSTALLATION
ENGLISH
Console Type
1. Check if the power of indoor unit and the power of outdoor unit
are off as well.
2. Open the control box of indoor unit.
3. Connect the USB cable to the indoor unit PCB (CN_WF).
4. Connect Wi-Fi modem to the USB cable.
5. Referencing the following figure, install Wi-Fi modem at the
marked position on the front panel of indoor unit (Use the in-
cluded double-sided tape to fix the modem).
6. Fix the USB cable by hanging at the marked position.
CN_WF
Wi-Fi
Modem
USB Cable
<Installation Example>
1,MFL70260204,영영 17. 12. 20. 영영 1:51 Page 10
