ENGLISH

MONITOR SIGNAGE

MONITOR SIGNAGE MODELS

M4720C

M5520C

Please read this manual carefully before operating

your set and retain it for future reference.

OWNER’S MANUAL

Table of Contents

Accessories 3

Connecting the Stand 4

Connecting the Speakers 6

Install in Portrait Mode 8

Using the Remote Control 9

Name and Function of the Parts 11

Connecting to External Devices 12

When Connecting to your PC............................................................................................12

When using the LAN...........................................................................................................14

Daisy Chain Monitors .........................................................................................................15

VESA FDMI wall Mounting .................................................................................................16

Video Input ...........................................................................................................................17

Component Input (480i/480p/576i/576p/720p/1080i/1080p) ..........................................18

HDMI Input (480p/576p/720p/1080i/1080p) ......................................................................19

User Menus 20

Screen Adjustment options...............................................................................................20

OSD Menu ............................................................................................................................22

How to adjust the OSD (On Screen Display) screen .....................................................23

How to adjust the screen automatically ..........................................................................23

Adjusting the display image..............................................................................................24

Adjusting the audio function.............................................................................................30

Adjusting the timer function..............................................................................................31

Selecting the options .........................................................................................................32

Adjusts the tile options. .....................................................................................................34

Adjusts the USB options....................................................................................................36

Troubleshooting 50

Specifications 53

Controlling the Multiple Product A1

Without prior notice, optional accessories are subject to change to improve the performance of the product, and

new accessories may be added.

❖

Optional accessories (purchased separately) may vary depending on the model.

❖

Note that optional accessories may look different from those shown here.

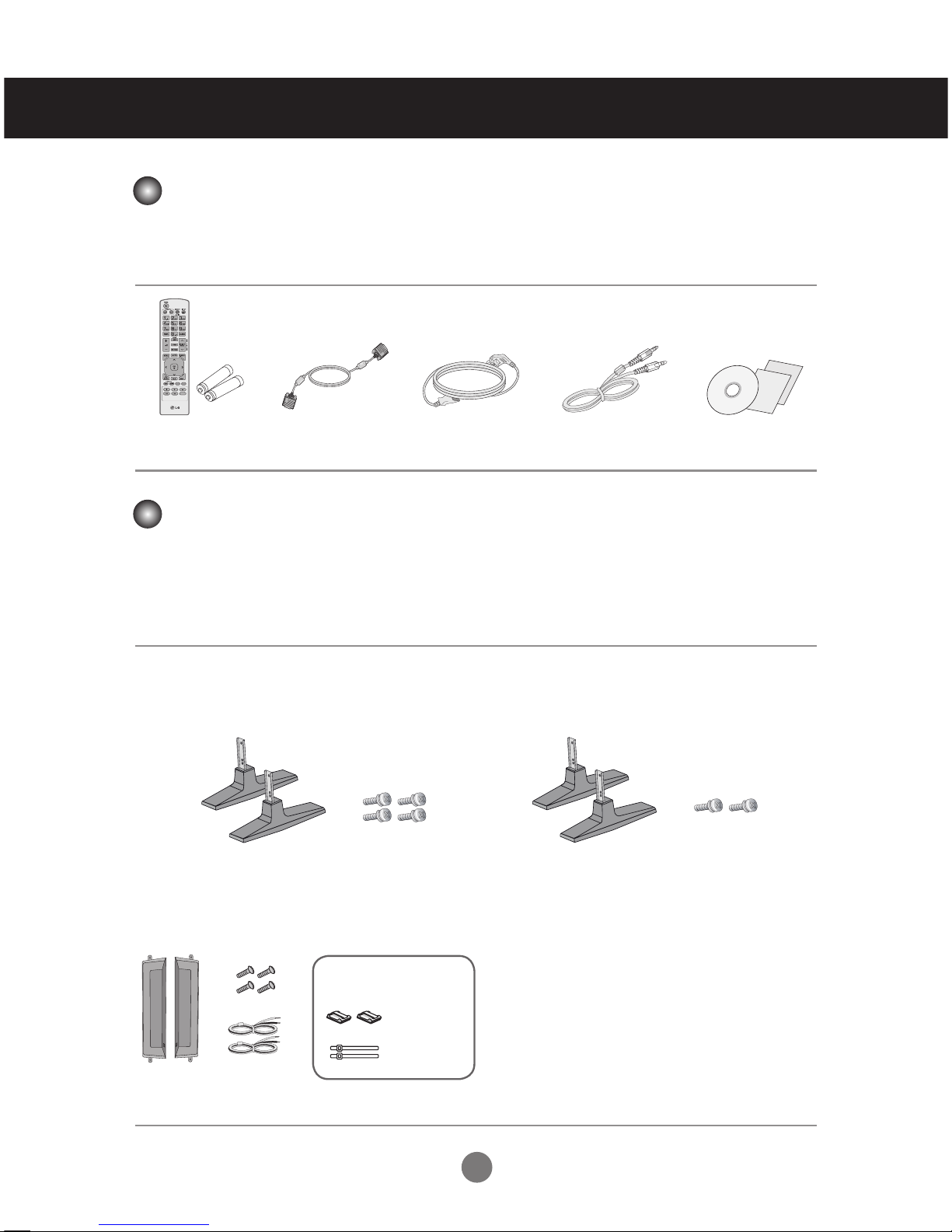

Thank you for your purchase. Please check the product as well as the accessories shown below

❖

Note that the accessories may look different from those shown here.

Speaker kit

❖

Applicable only for models that support the speakers.

Stand kit

❖

Applicable only for models that support the stand.

M4720C M5520C

Remote Control

/ Batteries

CD-ROM / Cards

D-Sub Signal

Cable

Speaker(2) Screws (4)

/ Cable (2)

Power Cable Audio Cable (PC)

Cable holder/Cable tie

They may not

be available

in some areas

or for some

models.

Accessories

Separate purchase

Accessories

Stand (2) Stand (2)

Screws (4) Screws (2)

Connecting the Stand

- Only on some models.

M4720C

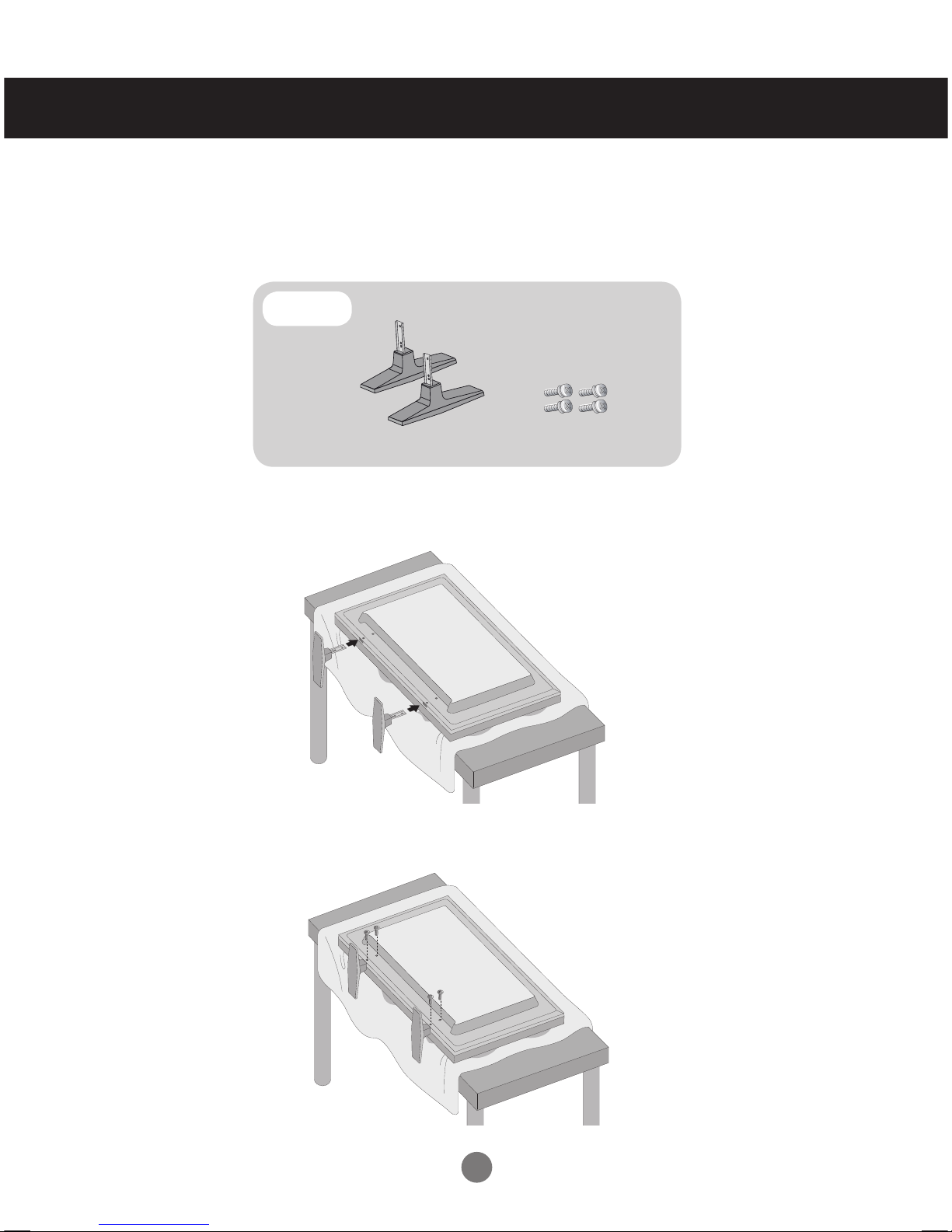

1. Take the parts for the stand out of the box and assemble them as shown in the picture.

Place a soft cloth on the table and put the product with the screen facing downward.

Connect the stand as shown in the following picture.

Use the screws to secure the stand on the rear side of the product as shown in the

diagram.

First, check if the following parts are all present.

Parts

Stand (2) Screws (4)

- Only on some models.

M5520C

1. Take the parts for the stand out of the box and assemble them as shown in the picture.

Place a soft cloth on the table and put the product with the screen facing downward.

Connect the stand as shown in the following picture.

Use the screws to secure the stand on the rear side of the product as shown in the

diagram.

Connecting the Stand

First, check if the following parts are all present.

Parts

Stand (2) Screws (2)

- Only on some models.

M4720C

Connecting the Speakers

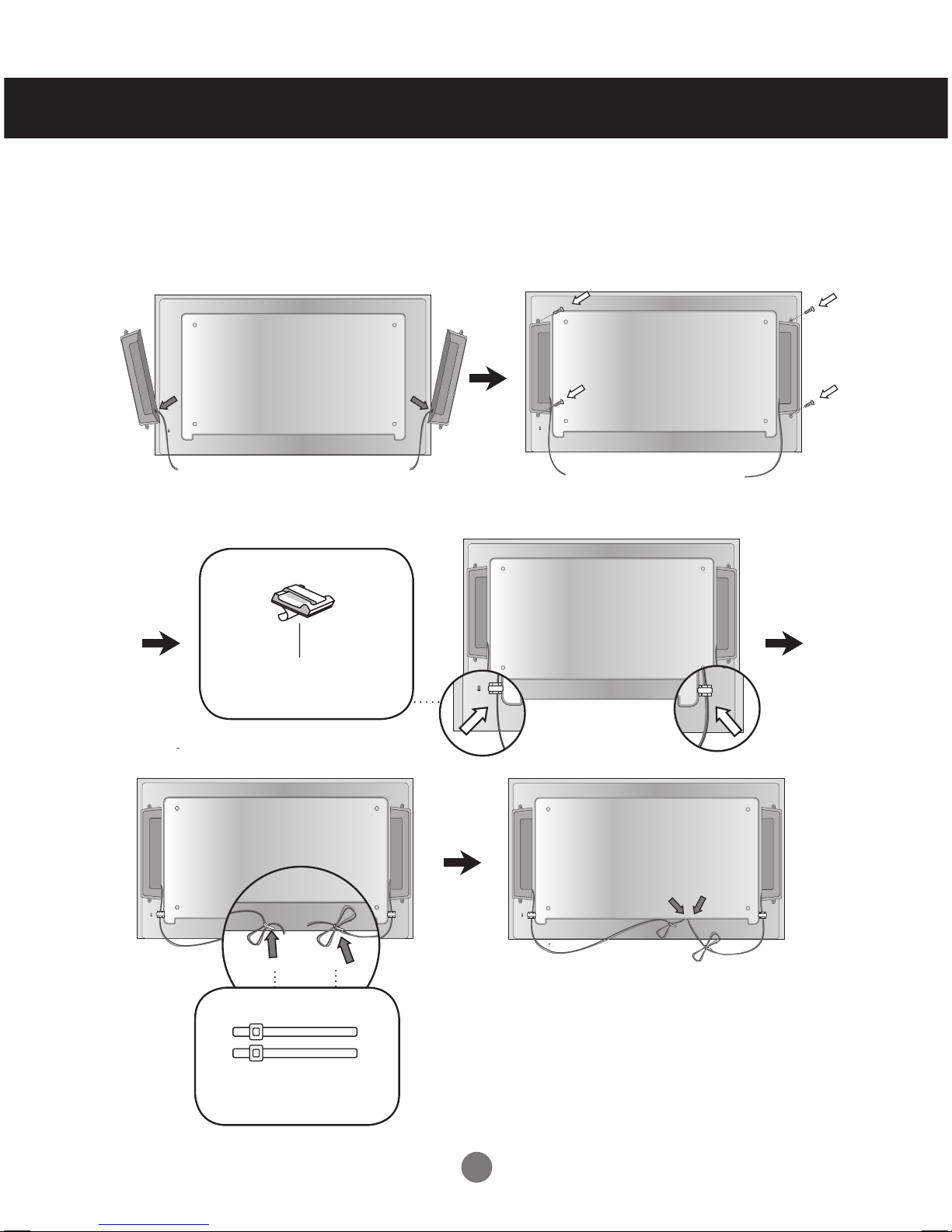

Mount the speakers onto the monitor using the screws provided as shown.

When the speakers are installed.

*Connect the speaker terminals noting

the correct polarity.

Remove the paper.

Cable holder

After installing your speakers, use holders and cable ties to organize the speaker cables.

* This feature is not available in all model.

Cable tie

* This feature is not available in all model.

- Only on some models.

M5520C

Connecting the Speakers

Unscrew the screws on the back of the product. Use them to mount the speakers on

both sides of the product as shown in the figure. (The screws provided with the speakers

are not allowed.)

When the speakers are installed.

*Connect the speaker terminals noting

the correct polarity.

Remove the paper.

Cable holder

After installing your speakers, use holders and cable ties to organize the speaker cables.

* This feature is not available in all model.

Cable tie

* This feature is not available in all model.

Install in Portrait Mode

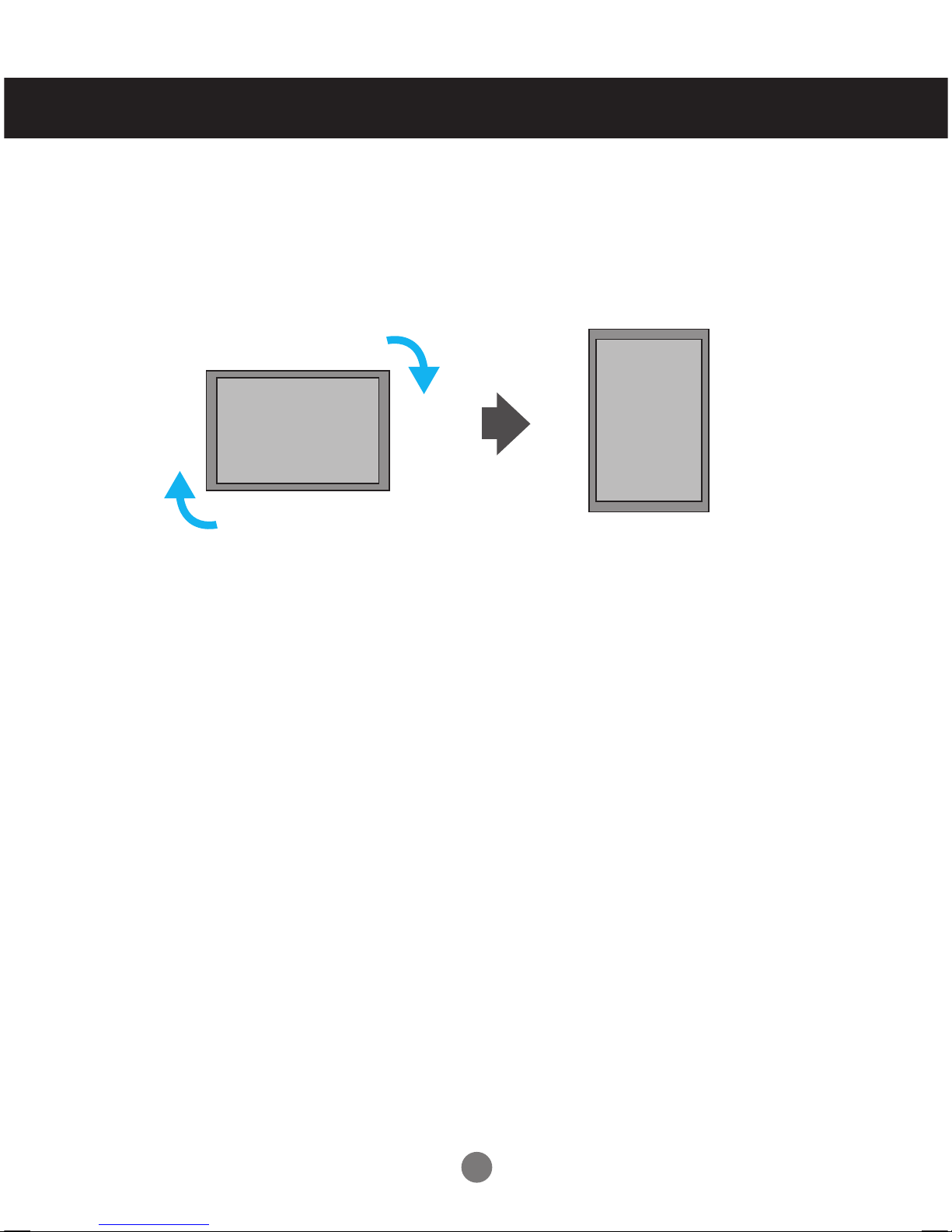

"When installing Portrait, rotate it clockwise based on its front."

- Only on some models.

Using the Remote Control

Name of the Remote Control Buttons

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

BACK TILE

ON OFF

EXIT

POWER

Power On / Off Button

- Switches the set on from standby or off to

standby.

Monitor On / Off Button

- Turn off the monitor and then turn it back on.

Number and Alphabet Buttons

- Type numbers.

- The alphabet selection is not applicable.

1/a/A Button

- This button selection is not applicable.

Volume Up/Down Button

- Adjusts the volume.

PSM Button

- Selects the Picture Status Mode.

MUTE Button

- Switches the sound on or off.

MENU Button

- Selects a menu.

- Clears all on-screen displays and returns to

Set viewing from any menu.

Up/Down/Left/Right Buttons

- Allows you to navigate the on-screen menus

and adjust the system settings to your

preferenc.

OK Button

- Accepts your selection or displays the

current mode.

BACK button

- Allows the user to move

return one step in an interactive application.

ID ON/OFF Button

- When the number of input ID is equal to the

number of ID Mode, you can control the

monitor which you want in the multi display

condition.

USB Menu control buttons

- Adjust the USB menu(Photo List, Music List

and Movie List ).

Energy Saving Button

- Adjust the Energy Saving mode of the SET.

INPUT Select Button

If you press the button once, the following

Input Signal Window will appear. Select the

signal type you want using the button.

Clear button

- This button selection is not applicable.

ARC Button

- Selects the Aspect Ratio Mode

Brightness Key

- Adjust the resolution and brightness by

pressing the Up and Down buttons on the

remote control.

- In USB mode, the OSD menu has the Page

function to move to the next file list.

AUTO Button

- Automatically adjusts picture position and

minimizes image instability.(RGB input only)

S.MENU Button (SuperSign Menu Key)

- This button selection is not applicable.

EXIT Button

- Clears all on-screen displays and returns to monitor

viewing from any menu.

TILE button

- Selects the TILE Mode

Using the Remote Control

1. Slide off the battery cover.

2. Insert the batteries with correct polarity ( + / - ).

3. Close the battery cover.

4. To remove the batteries, perform the installation actions

in reverse.

• Dispose of used batteries in the recycle bin to prevent

environmental pollution.

Inserting batteries into remote control.

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

BACK TILE

ON OFF

EXIT

POWER

AAA Type

Input List

AV Component RGB HDMI/DVI
