LG 32SE3KD Manuel utilisateur

www.lg.com

OWNER’S MANUAL

LG Digital

Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it

for future reference.

32SE3D

43SE3D

49SE3D

55SE3D

65SE3D

32SE3KD

43SE3KD

49SE3KD

55SE3KD

65SE3KD

43SH7DD

49SH7DD

55SH7DD

ENGLISH

TABLE OF CONTENTS

SAFETY PRECAUTIONS ................3

- Precautions In Installing the Product.....................3

- Precautions for using AC Adapter and

Electrical Power.................................................................5

- Precautions For Moving the Product.....................7

- Precautions For Using the Product.........................8

- Mounting on a Wall.........................................................9

LICENSES.................................... 10

ASSEMBLY AND PREPARATION ...11

- Optional Accessories....................................................12

- Parts and Buttons.........................................................14

- Connecting the Stand.................................................15

- Connecting the Speakers ..........................................17

- Using the IR Receiver...................................................20

- Portrait Layout................................................................21

- Attaching and removing the LG Logo

Bracket ................................................................................22

- Installing on a Wall........................................................24

REMOTE CONTROL .................... 26

- Displaying the Device Name Connected to an

Input Port...........................................................................28

- White Balance Adjust Menu....................................28

MAKING CONNECTIONS........... 29

- Connecting to a PC.......................................................29

- External Device Connection.....................................29

TROUBLESHOOTING.................. 31

PRODUCT SPECIFICATIONS...... 34

ENGLISH

WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may

cause radio interference.

SAFETY PRECAUTIONS

Please read these safety precautions carefully before using the product.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

WARNING

•Indoor Use Only.

Precautions In Installing the Product

WARNING

•Keep away from heat sources like electrical heaters.

- Electrical shock, fire, malfunction, or deformation may occur.

•Keep the packing anti-moisture material or vinyl packing out of the reach of children.

- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the

nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

•Do not put heavy objects on the product or sit upon it.

- If the product collapses or is dropped, you may be injured. Children must pay particular attention.

•Do not leave the power or signal cable unattended on the pathway.

- The passerby can trip or fall, which can cause electrical shock, fire, product breakdown, or injury.

•Install the product in a neat and dry place.

- Dust or moisture can cause electrical shock, fire or product damage.

•If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center.

- If you continue to use without taking proper measures, electrical shock or fire can occur.

•If you dropped the product or the case is broken, turn off the product and unplug the power cord.

- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center.

ENGLISH

•Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.

- It can cause injury to human, problem to product and damage the display.

•Do not let the product fall or drop when connecting it with an external device.

- This may cause injury and/or damage to the product.

•When connecting it to a game device, keep a distance of four times the diagonal measurement of the screen from the

device.

- If the product falls because of the short cable, this may cause injury and/or damage to the product.

•Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. To use

the product for a long period of time, use a screen saver on the PC or utilize the residual image prevention function

on the product, and when the product is not used, turn off the power. Burn-in and related problems are not covered

by the warranty on this product.

•Do NOT install this product on a wall where there is high risk of exposure to oil fumes or mist.

- This may damage product and cause it to fail.

CAUTION

•Make sure the product ventilation holes are not blocked. Install the product in a suitably wide place (more than

100 mm from the wall).

- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.

•Do not block the ventilation hole of the product by a tablecloth or curtain.

- The product can be deformed or fire can break out due to overheating inside the product.

•Install the product on a flat and stable place that has no risk of dropping the product.

- If the product is dropped, you may be injured or the product may be broken.

•Install the product where no EMI occurs.

•Keep the product away from direct sunlight.

- The product can be damaged.

•If you install the product in a place that does not meet the recommended conditions, this may cause serious damage

to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before

installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are

used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a

long period of time (airport and train station), failure to do so will invalidate the warranty.

•Do not install the product in an area with poor ventilation (e.g.on a bookshelf, in a closet) or outside and avoid placing

on cushions or carpets.

•In addition, do not install it where there are heating objects such as lighting equipment.

ENGLISH

Precautions for using AC Adapter and Electrical Power

WARNING

•If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the

power cord immediately and contact the service center.

- Otherwise, this may cause a fire or electric shock due to damage to the product.

•Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry

them before use.

- Otherwise, this may cause a fire or electric shock.

•Make sure to completely insert the power cord into the AC adapter.

- If loosely connected, the poor connection may cause a fire or electric shock.

•Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.

- The use of non-approved products may cause a fire or electric shock.

•When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.

- The power line can be damaged, which may cause electric shock or fire.

•Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter.

Be careful not to damage the power cord or AC adapter with sharp objects.

- Damaged power cords may cause a fire or electric shock.

•Never disassemble, repair or modify the power cord or AC adapter.

- This may cause a fire or electric shock.

•Make sure to connect the power cable to the grounded current.

- You may be electrocuted or injured.

•Use the rated voltage only.

- The product can be damaged, or you may be electrocuted.

•In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very

dangerous.

- It can cause electric shock.

•Do not connect several extension cords, electrical appliances, or electrical heaters to a single outlet. Use a power strip

with a grounding terminal designed for exclusive use with the computer.

- A fire can break out due to overheating.

•Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power

plug completely or wipe dust off.

- You may be electrocuted due to excess moisture.

ENGLISH

•If you don’t intend to use the product for a long time, unplug the power cable from the product.

- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

•Fix the power cable completely.

- If the power cable is not fixed completely, a fire can break out.

•Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected

to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input

terminal.

- You may be electrocuted.

•The appliance coupler is used as the disconnect device.

•Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily

accessible.

•As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the

unit is turned off.

CAUTION

•Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.

- This may cause a fire.

•Do not unplug the power cord while the product is in use.

- Electrical shock can damage the product.

•Use only the power cord supplied with the unit. If you use another power cord, make sure that it is certified by the

applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact

the manufacturer or the nearest authorized repair service provider for a replacement.

ENGLISH

Precautions For Moving the Product

WARNING

•Make sure to turn off the product.

- You may be electrocuted or the product can be damaged.

•Make sure to remove all cables before moving the product.

- You may be electrocuted or the product can be damaged.

•Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged

product can cause electric shock or fire. Contact an authorized the service center for repair.

•Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to

carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.

CAUTION

•Do not shock the product when moving it.

- You may be electrocuted or the product can be damaged.

•Do not dispose the product-packing box. Use it when you move.

ENGLISH

Precautions For Using the Product

WARNING

•Do not disassemble, repair or modify the product at your own discretion.

- Fire or electric shock accident can occur.

- Contact the service center for check, calibration or repair.

•When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

•Keep the product away from water.

- Fire or electric shock accident can occur.

•Do not shock or scratch the front and sides of the screen with metallic objects.

- Otherwise, it may cause damage to the screen.

•Avoid high temperatures and humidity.

CAUTION

•Do not put or store inflammable substances near the product.

- There is a danger of explosion or fire due to careless handling of the inflammable substances.

•When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not

clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not

use chemicals such as benzene, paint thinners, or alcohol.)

•Take a rest from time to time to protect your vision.

•Keep the product clean at all times.

•Take a comfortable and natural position when working with a product to relax the muscles.

•Take a regular break when working with a product for a long time.

•Do not press strongly upon the panel with a hand or sharp object such as nail, pencil, or pen, or make a scratch on it.

•Keep the proper distance from the product.

- Your vision may be impaired if you look at the product too closely.

•Set the appropriate resolution and clock by referring to the User’s Guide.

- Your vision can be impaired.

•Use authorized detergent only when cleaning the product. (Do not use benzene, thinner, or alcohol.)

- Product can be deformed.

•Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over

the apparatus (e.g. on shelves above the unit).

•Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace, and

electric heaters.

•Do NOT place non-rechargeable batteries in charging device.

•Using headsets (earphones) for a long time or listening loudly can cause damage to your hearing.

ENGLISH

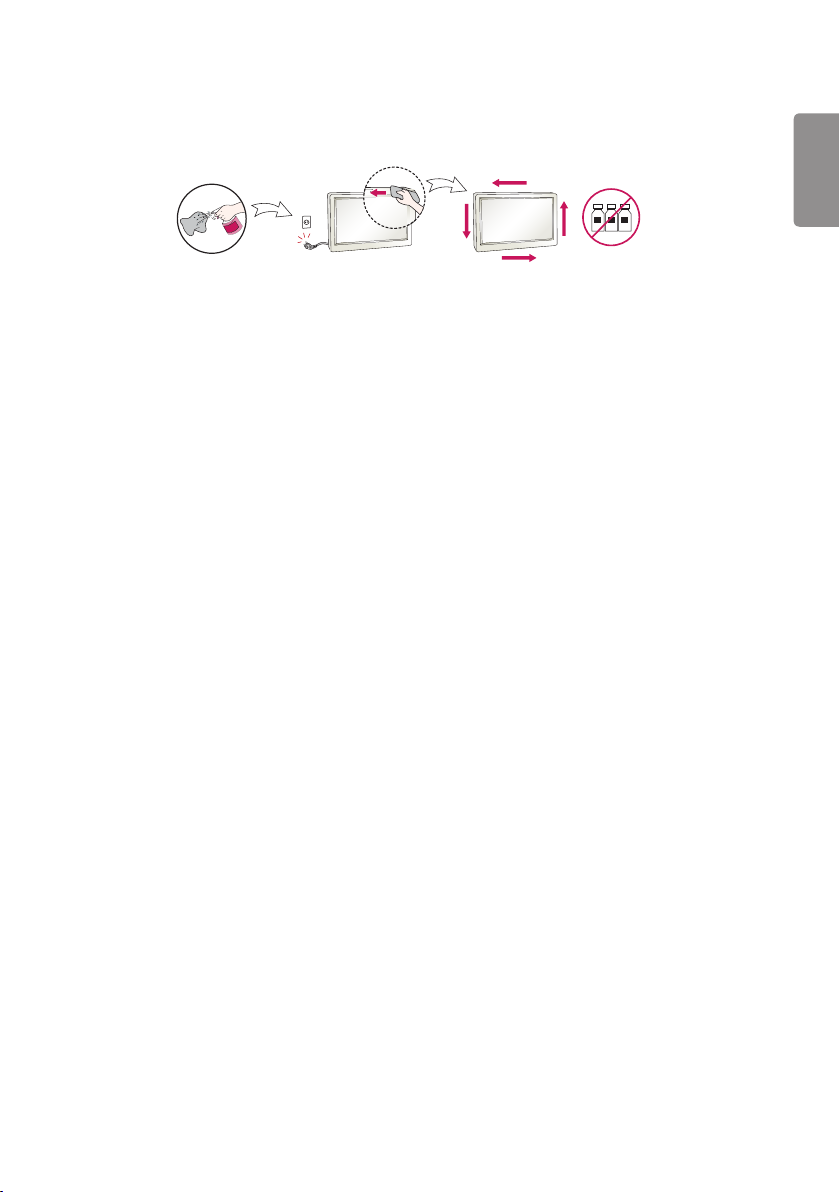

•Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much

moisture may cause staining.

WATER CHEMICALS

•Do not use products using high voltage around the Monitor. (e.g., a bug zapper)

- Monitor may have malfunction as its electrical shock.

Mounting on a Wall

•Do NOT install this product by yourself as you may injure yourself or cause damage to product. Please contact service

personnel authorised by manufacturer.

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD

section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents]

Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are

trademarks of Dolby Laboratories.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LG Affichage numérique

Manuels Affichage numérique populaires d'autres marques

SMART-AVI

SMART-AVI SIGNAGEPRO Manuel utilisateur

KeyWest Technology

KeyWest Technology BREEZE Manuel utilisateur

XtendLan

XtendLan XL-DSP-183C Manuel utilisateur

Dynascan

Dynascan DS861LR4 Manuel utilisateur

Classic Exhibits

Classic Exhibits SEGUE DESIGNS MOD-1363 Manuel utilisateur

protech

protech KT-7290 Manuel utilisateur

WebDT

WebDT 515A Instructions de montage

Samsung

Samsung IWJ Series Manuel utilisateur

EVERI

EVERI Enrollment Kiosk Manuel utilisateur

NCR

NCR SelfServ 90 Manuel

ViewSonic

ViewSonic EP4602 Manuel utilisateur

ViewSonic

ViewSonic EP3202r Manuel utilisateur

Samsung

Samsung OM46N Manuel utilisateur

Viessmann

Viessmann 6336 Manuel utilisateur

Osram

Osram Traxon Manuel d'instructions d'installation

Philips

Philips Signage Solutions Series BDL4990VL Manuel utilisateur

ViewSonic

ViewSonic EP5012-L Manuel utilisateur

Philips

Philips CRD01/00 Manuel utilisateur
