LG 86UH5J Manuel utilisateur
2
ENGLISH
TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
- Checking the Optional Accessories.........................4
- Learning the Buttons......................................................5
GETTING READY ...........................6
- Connecting the IR Sensor ............................................6
- Portrait Layout...................................................................7
- Mounting and Removing the LG Logo
Bracket ...................................................................................8
- Kensington Lock Device .............................................10
CHECKING BEFORE
INSTALLATION ........................... 11
- Installation Orientation ..............................................11
- Installation Location.....................................................12
- Wall Mount Holder .......................................................13
PRECAUTIONS FOR USE............ 14
- Dust.......................................................................................14
- Afterimage ........................................................................14
PRODUCT SPECIFICATIONS...... 16
LICENCE...................................... 22
3
ENGLISH
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Visit https://partner.lge.com to download the latest SuperSign software and manual.

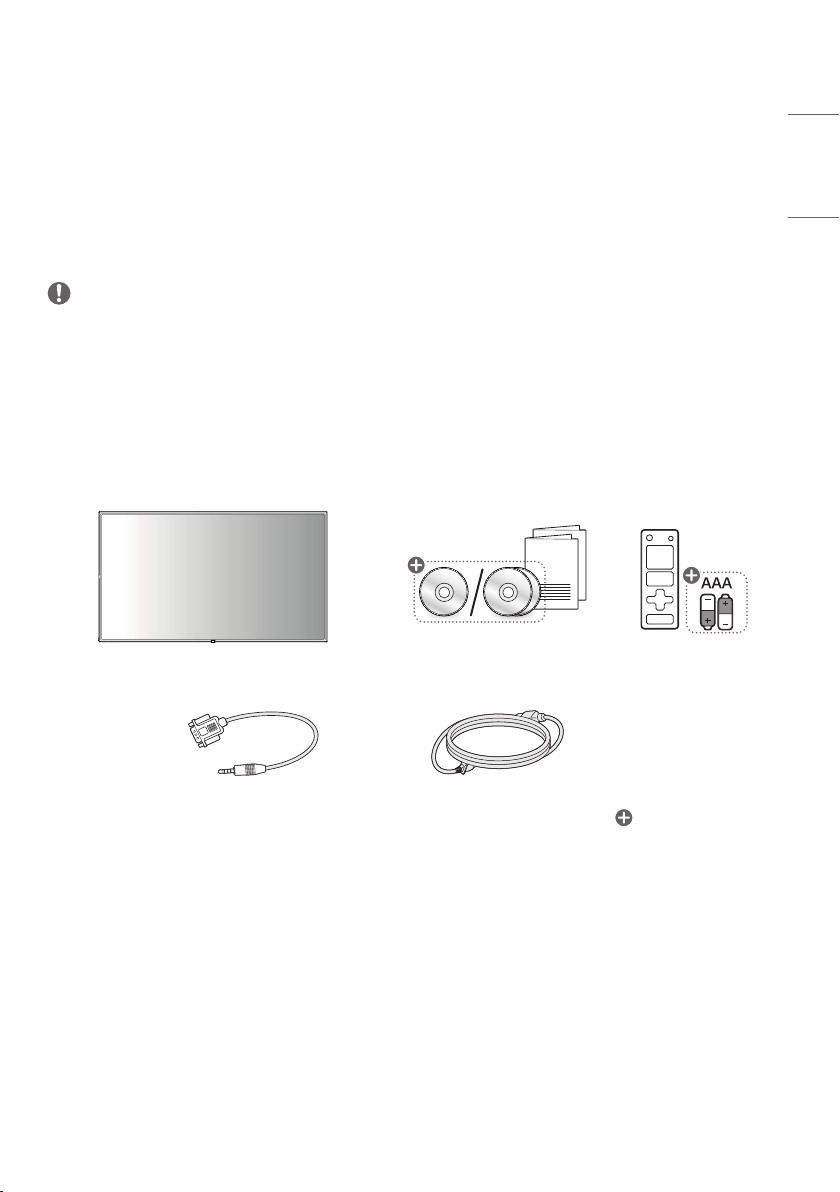

Checking the Accessories
Depending on country
4
ENGLISH
Checking the Optional Accessories
In order to improve product performance, optional accessories are subject to change without prior notice.
The illustrations in this manual may differ from the actual product and its accessories.
Refer to the product manual for the components of the optional accessories.

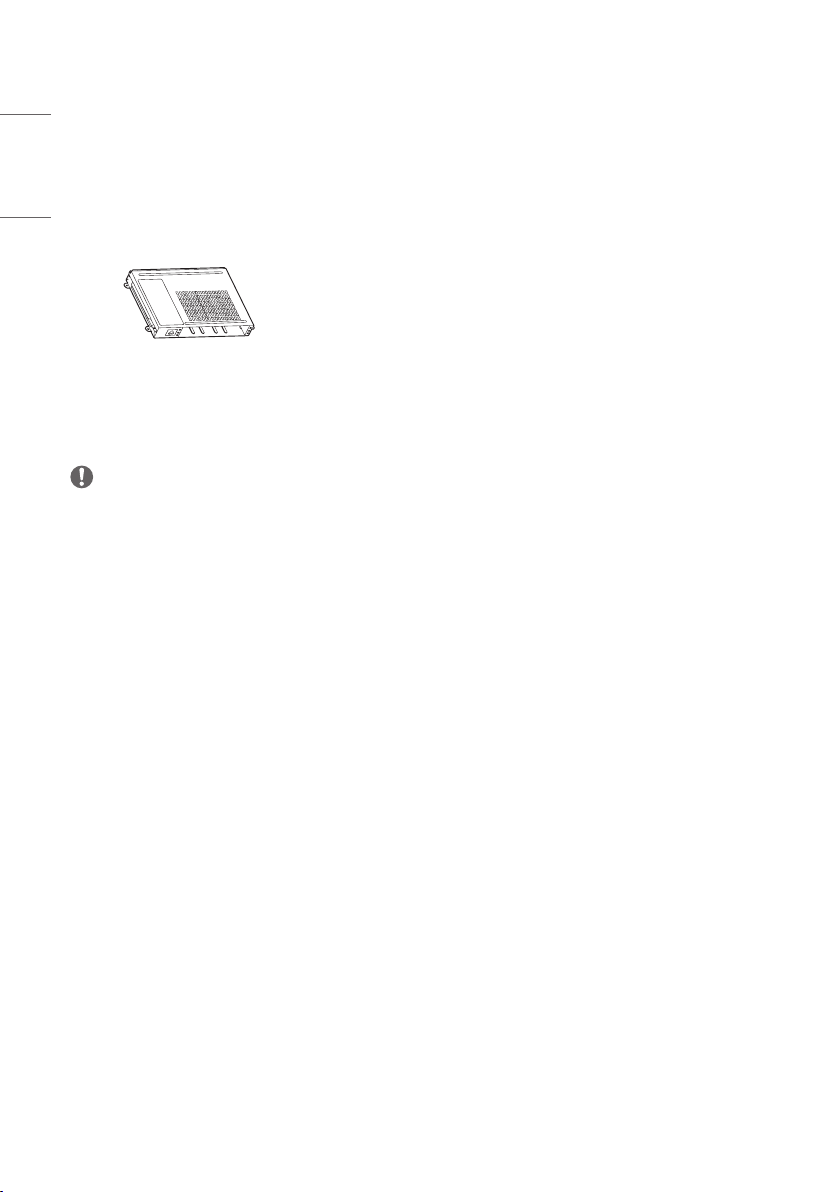

KT-OPSF
NOTE
•Before you attach the OPS (Open Pluggable Specification) PC, connect the cable to the port.
5
ENGLISH

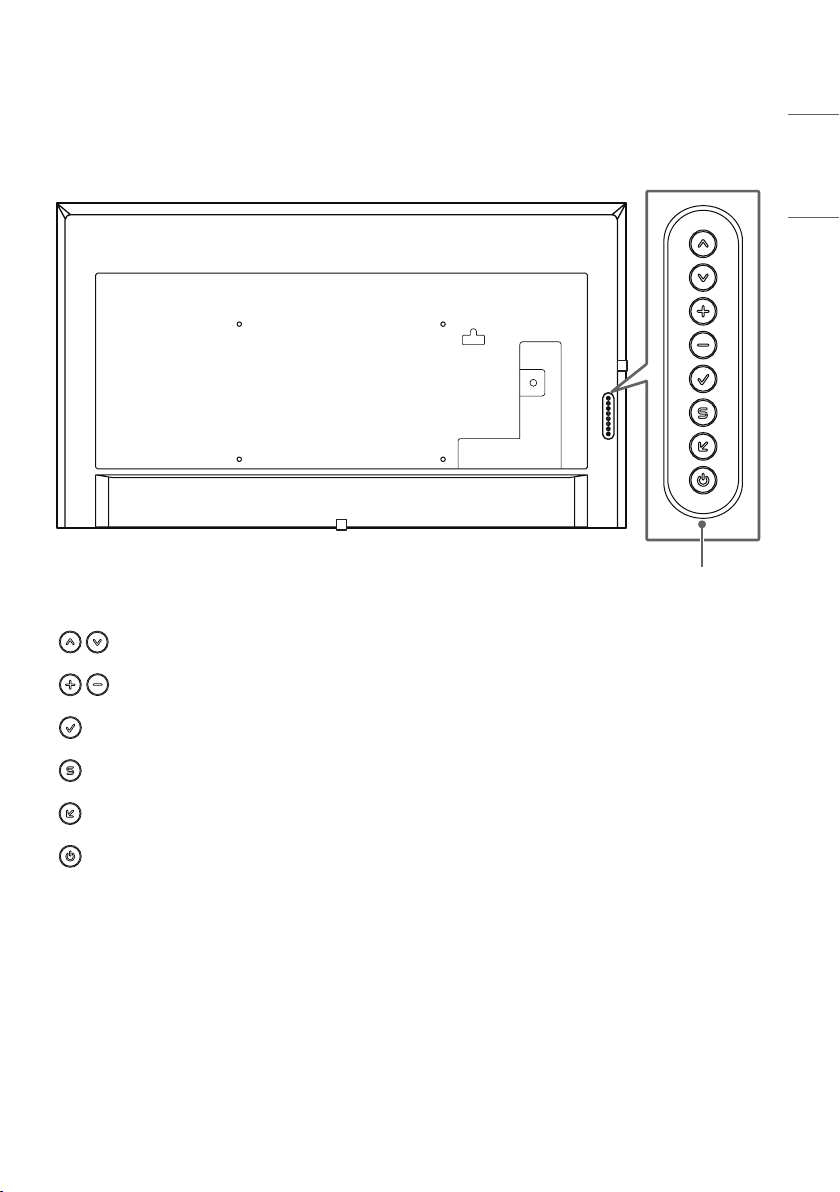

Learning the Buttons
The illustrations may differ depending on the model.
Buttons
•: Adjusts up and down.
•: Moves left and right.
•: Displays the current signal and mode.
•: Accesses the main menus, or saves your input and exits the menus.
•: Change the input signal.
•: Turns the power on or off.
6
ENGLISH
GETTING READY
Connecting the IR Sensor
When you connect the cable to the product, the feature for receiving remote control signals is activated. Rotate the IR
sensor according to the screen orientation (Landscape/Portrait).
- The image may be different according to the model.
Basic installation
(Front) (Rear)
Landscape scene
(Front) (Rear)
7
ENGLISH

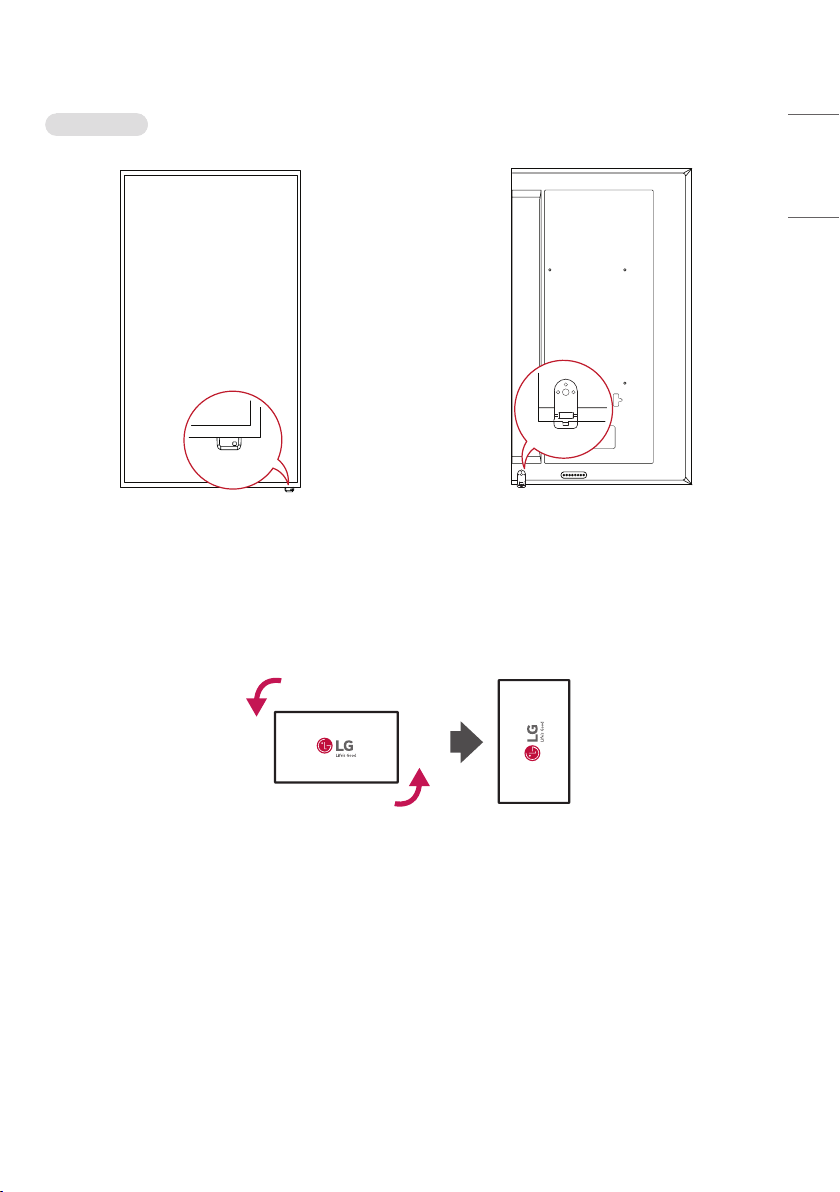

Portrait scene
(Front) (Rear)
Portrait Layout
When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).
8
ENGLISH
Mounting and Removing the LG Logo Bracket
- Applies only to some models.
- The illustrations may differ depending on the model.

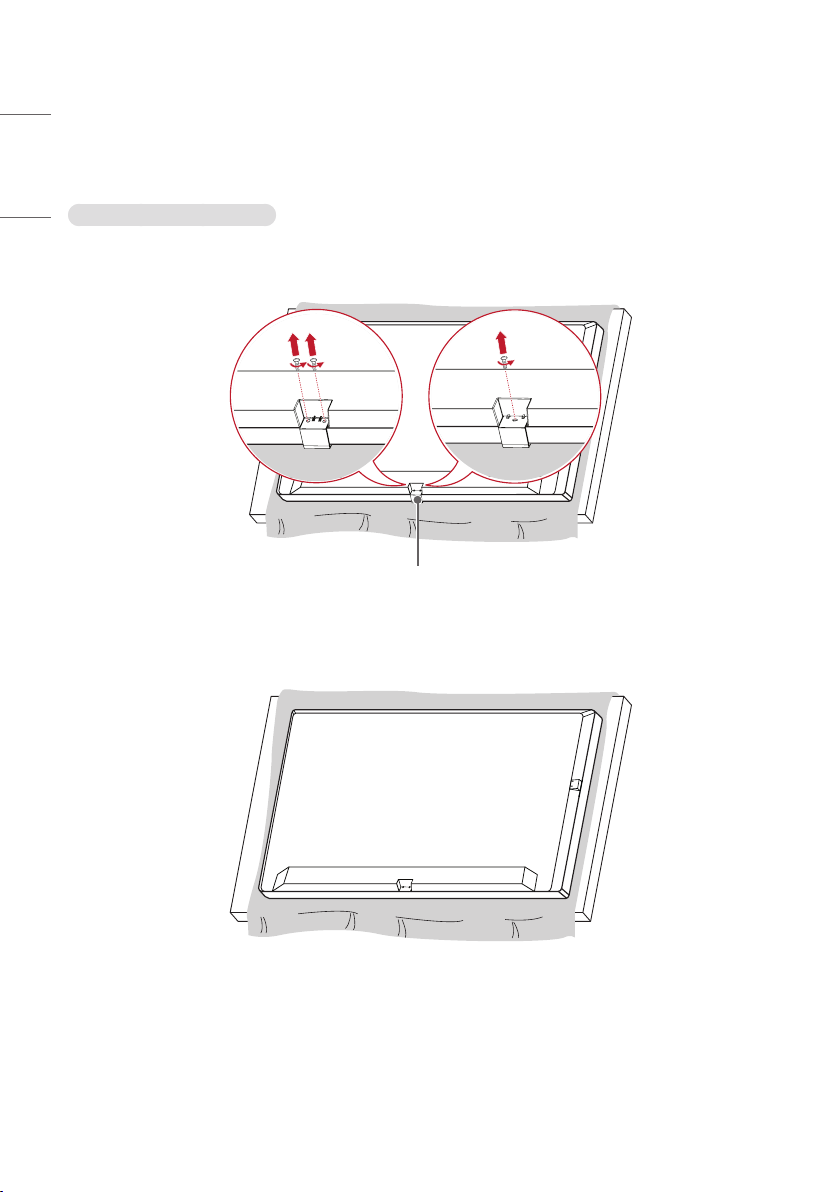

Removing the LG Logo Bracket
1 Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Remove the screws that
secure the LG Logo Bracket to the bottom of the rear side of the monitor using a screwdriver.
LG Logo Bracket
or
2 After removing the screw, remove the LG Logo Bracket. When re-attaching the LG Logo Bracket, repeat the process
in reverse order.
9
ENGLISH
Attaching the LG Logo Bracket on the right side
1 Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Remove the screws that
secure the LG Logo Bracket to the bottom of the rear side of the monitor using a screwdriver.
LG Logo Bracket
or
2 After removing the screw, remove the LG Logo Bracket. Attach the LG Logo Bracket with the screws, aligning it
with the hole on the right side.
or
10
ENGLISH

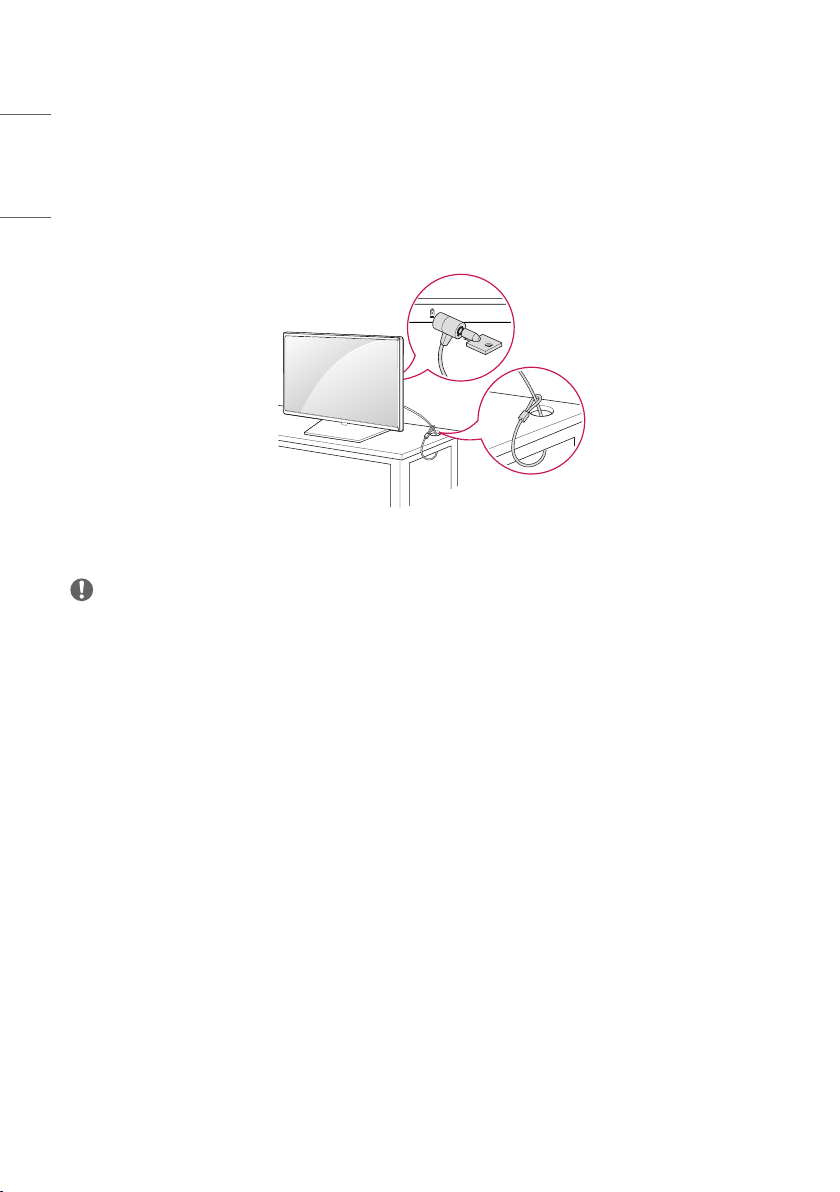

Kensington Lock Device
(This feature applies only to some models.)
The Kensington lock device connector is located on the back of the monitor. For more information on installation and
use, refer to the user manual provided with the locking device.
Connect the Kensington security system cable between the monitor and a table.
NOTE
•The Kensington lock device is an optional specification.
•This is a general illustration of installation and may look different from the product held by the customer.
