LG 55LV77A Guide de démarrage rapide
2
ASSEMBLING AND PREPARING
ENG
ENGLISH
ASSEMBLING AND PREPARING
Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
Remote Control
and Batteries
Power Cord IR Receiver RS-232C Cable
DP Cable
M4 x L6
Screws (8 ea) M6 x L10
Screws (4 ea)
CD (Owner's Manual) /
Cards
Mounting Cable Tie (2 ea)
(For Cable Arrangement)
Tiling Guide(4 ea)
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
SuperSign SW & Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your
model.
NOTE
3
ASSEMBLING AND PREPARING
ENG
ENGLISH
Dimensions (Width x Height x Depth) / Weight
To View the Owner’s Manual
Insert CD-ROM in Computer.
CD-ROM will open automatically.(for Windows only)
If it does not run automatically, it is available to see the below sequence.
My computer ➙Digital_LG(CD-ROM) ➙Index.htm Open
My computer ➙Digital_LG(CD-ROM) ➙Manual ➙Owner's Manual Open
H
WD
1213.4 mm x 684.2 mm x 88.5 mm / 23 kg
4
ASSEMBLING AND PREPARING
ENG
ENGLISH
Do not Clamp
Do not drop from clamping.
2 Persons needed for transport
Load with care.
PRECAUTION IN MOVEMENT
Adhere to the warning signs printed on the Box.
Do not drop from stacking.
4 Persons needed for transport
Do not transport horizontally.
Do not drop from carrying.
This way up/ Fragile/ Keep away from rain/ Stacking limit 4.
Do not tumble the Set box sideward down.
Do not place the product on the top of a box.
Do not lean on the product.
- The illustration may look different from the actual product.
5
ASSEMBLING AND PREPARING
ENG
ENGLISH
Move the Set as a team of 2 persons. When you move
the bare Set, please use one hand on grabbing the
handle and the other support under the Set.
PRECAUTION IN HANDLING Precaution
10 cm
10 cm
10 cm10 cm
20 cm
1Remove the L-bracket on the corner of the Set be-
fore installation. When moving the Set, re-assemble
the L-bracket.
2Be careful not to collide the sets with the floor or with
each other. Install in the space with enough airflow.
6
ASSEMBLING AND PREPARING
ENG
ENGLISH

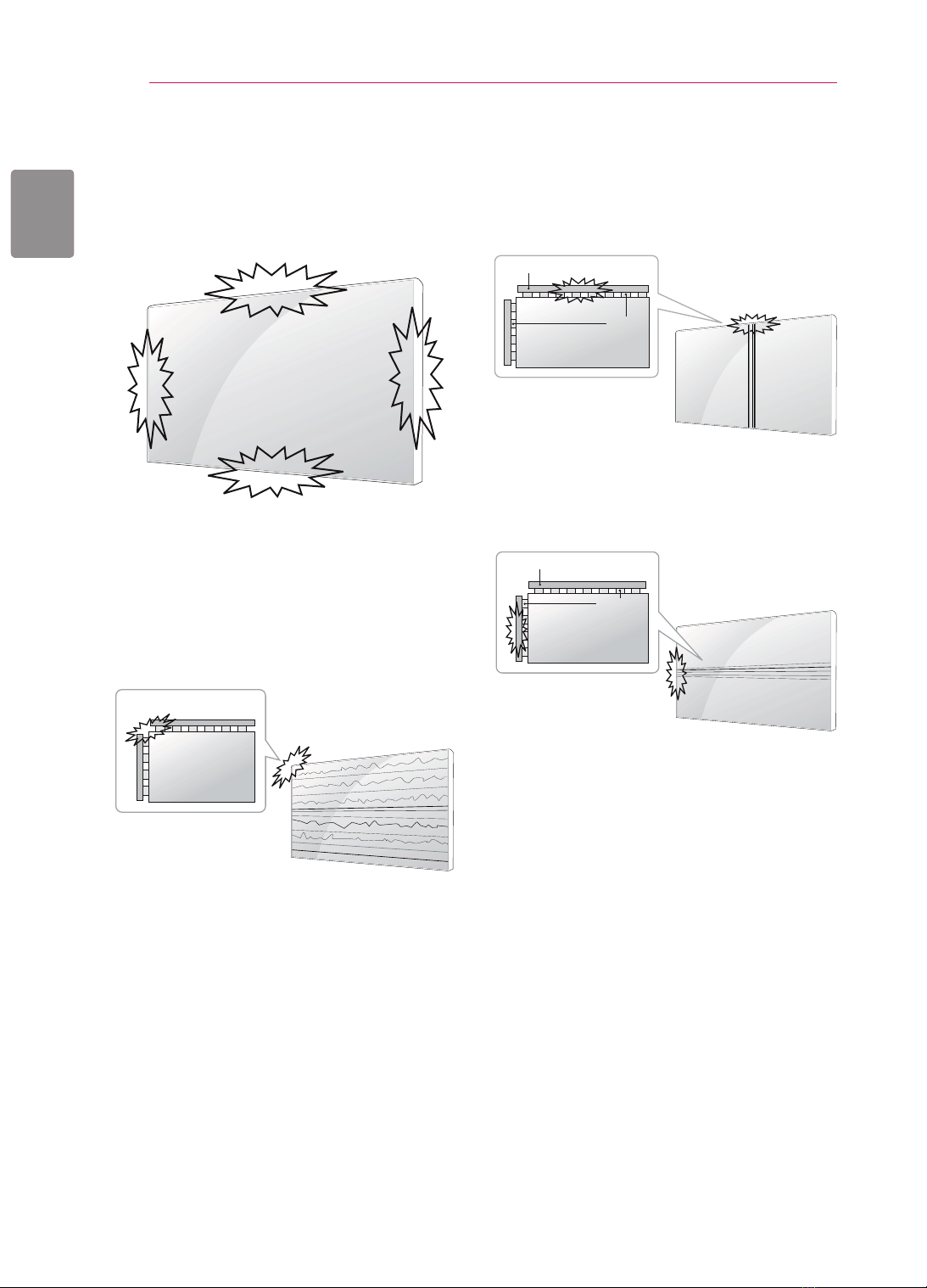

Causes & Phenomena of the
Line Defect
The line defect would occur on your Set if you strike on
the edge of the Set.
LOG (LINE ON GLASS) DEFECT
COF (CHIP ON FILM) DEFECT
COF Cable
Source PCB
COF Cable
Source PCB
1 Shock on Module Top Side ➙Top COF Crack ➙
Vertical Line Defect
2Shock on Module Left Side ➙Left COF Crack ➙
Horizontal Line Defect
1Shock on Module Left/Top Corner ➙Left/Top LOG
Crack ➙Horizontal Line Defect
7
ASSEMBLING AND PREPARING
ENG
ENGLISH
Installing the Product
1 Cut Packing Strap of the Box.
3Open the Box and remove the top packing.
5Open the Poly Bag.
4Remove the Upper Box.
6Undress the Poly Bag.
2Cut Tape on the Box.
- The illustration may look different from the actual product.
8
ASSEMBLING AND PREPARING
ENG
ENGLISH
7Lift up the Set using the SIDE/BACK Handle.
9With one hand under the set and the other hand grabbing the set, move the set.
10 Lay the back of the Set down on the table.
8Remove Bottom packing when lifting up the Set.
9
ASSEMBLING AND PREPARING
ENG
ENGLISH
11 Use the cushion or Pad when you lay the face of the Set downward.
12 Connect IR receiver to use remocon. And then, connect power cord.
1
2
10
ASSEMBLING AND PREPARING
ENG
ENGLISH
How to Mount the Set
Tiling Displays
Example of 2 x 2 tiling
How to Join Sets
The load applied to each set should be
supported by the wall mount plate or the wall
using a VESA wall mount (600 x 400).
The load applied to each set should be
supported by the wall mount plate using a
VESA wall mount. (Each set must be firmly
mounted to the wall mount plate or the wall.)
You may mount the set without using
the tiling guide; this does not affect the
performance of the device.
Loosen the screws on the set to install the
tiling guides. (The screws are enclosed with
the other components in the box, including
the tiling guides.)
NOTE
Set 4 joined to the rest of the sets
(2 x 2 tiling)
1Join other sets using screws for fixing the
VESA wall mount in the same way as above.
2After joining the sets, use the tiling guide to
adjust the gap between the sets.
3Now the 2 x 2 tiling is complete. You can tile in
various combinations, such as 3 x 3.
When you connect Monitor sets for
multivision, you may find that the screen
color is not the same across all the Monitor
sets. If you want to adjust the screen color
manually, please refer to the Installation
Manual.
When you install multiple Monitor sets onto a
wall, attach the IR Receiver to all the sets, or
use an RS-232C cable to connect them and
then attach the IR Receiver to the first set.
CAUTION
Screws for attaching the
VESA wall mount (M6)
600
400
≤ 6 mm
Screws (15-M4)
