TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
CHECKING BEFORE
INSTALLATION ..............................4
- Installation Orientation .................................................4
- Installation Location........................................................5
PRECAUTIONS FOR USE...............8
- Dust..........................................................................................8
- Afterimage ...........................................................................8
PRODUCT SPECIFICATIONS...... 10
LICENCE...................................... 13
3
ENGLISH
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Visit http://partner.lge.com to download the latest SuperSign software and manual.

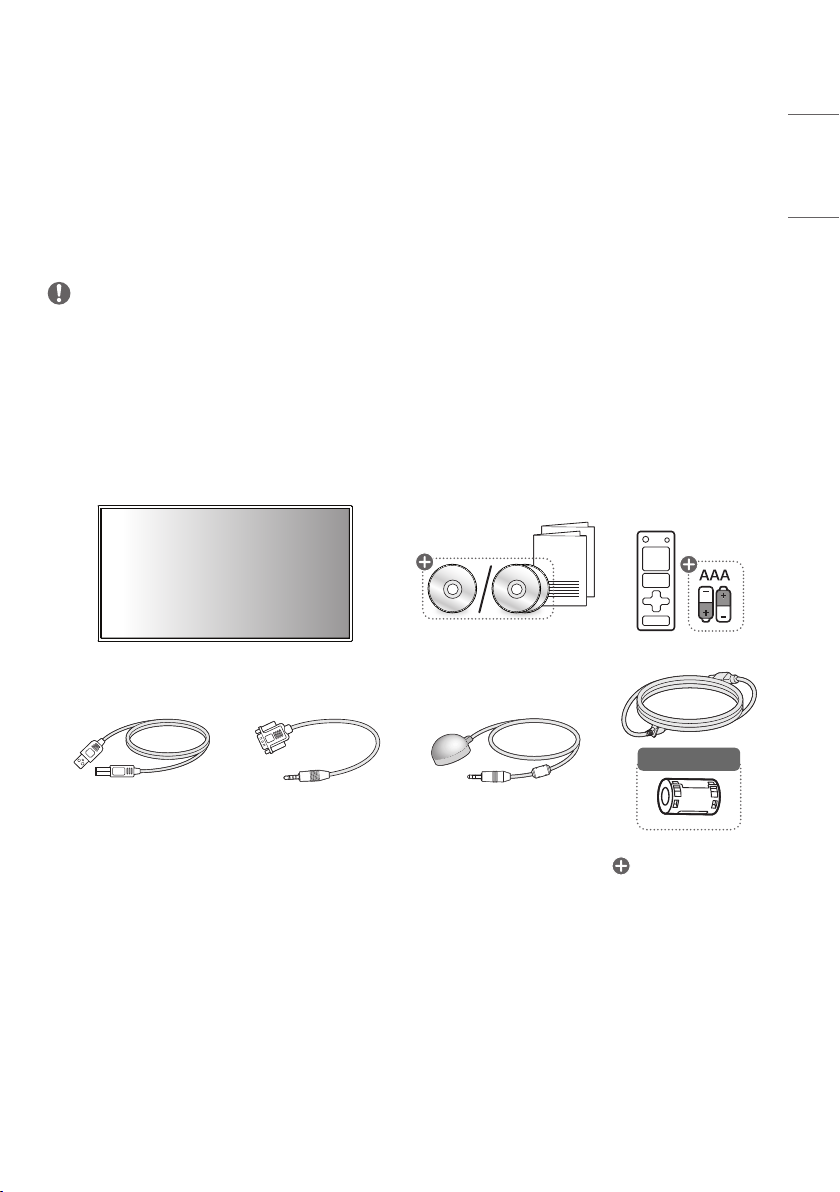

Checking the Accessories
43/55TNF5J
: Depending on country
4
ENGLISH
CHECKING BEFORE INSTALLATION
We are not responsible for product damage caused by failure to follow the guide.
Installation Orientation
Using Vertically

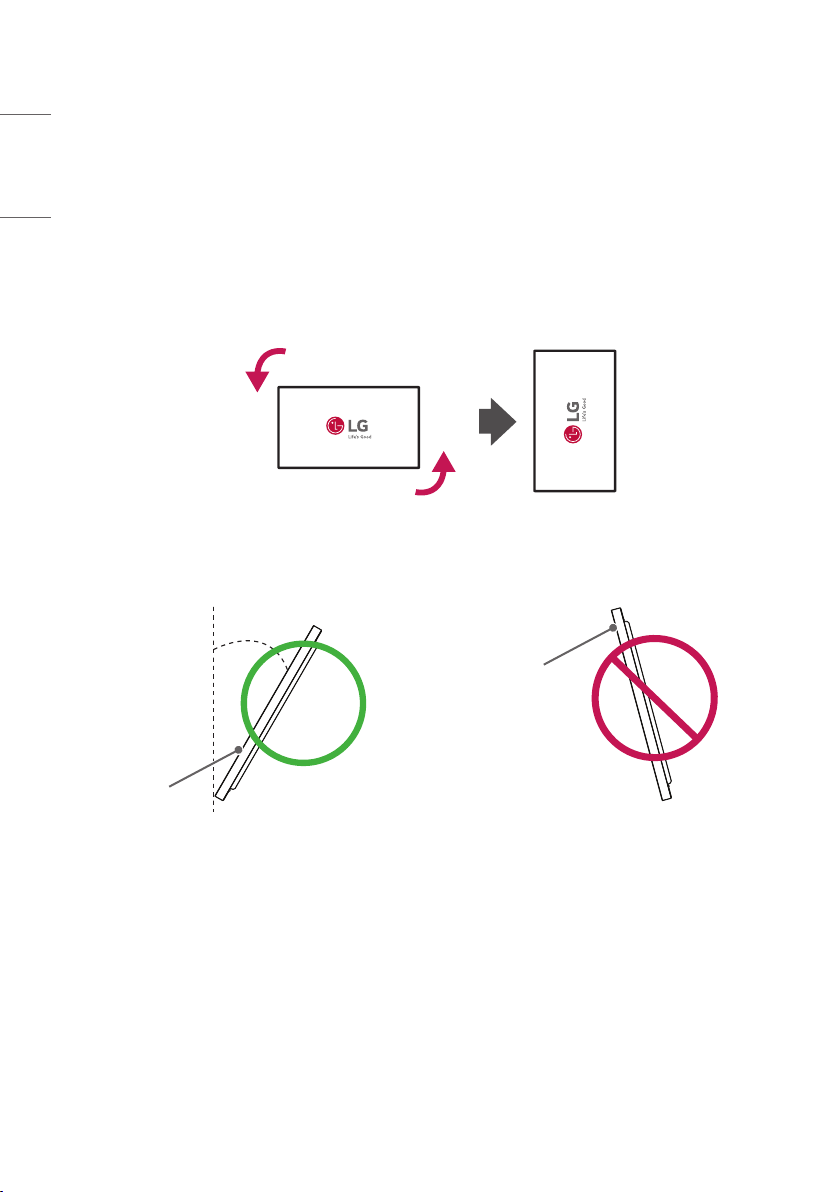

When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen.
Tilt Angle
0~45°
Panel
0~45°
Panel
When installing the monitor, it may be tilted upward at an angle of up to 45 degrees.
5
ENGLISH
Installation Location
We are not responsible for product damage caused by failure to follow the guide.
This product is used as a built-in product installed inside the enclosure.
-The product warranty will be void if it is used with the front panel exposed to direct sunlight.
-Wear work gloves when installing the product.
-Installing the product with bare hands may cause injury.
Indoor
Installing the monitor in the enclosure
If installing the product inside the enclosure, install the stand (optional) on the rear side of the product.
When installing the product using the stand (optional), attach the stand securely to the monitor to ensure it does not
fall.
VESA Mount Hole
A
B
Model VESA Dimensions
(A x B) (mm)
Standard
Dimensions
Length (Maximum)
(mm) Quantity
32TNF5J 200x200 M6 21.0 4
43TNF5J 200x200 M6 15.5 4
55TNF5J 300x300 M6 14.0 4
6
ENGLISH

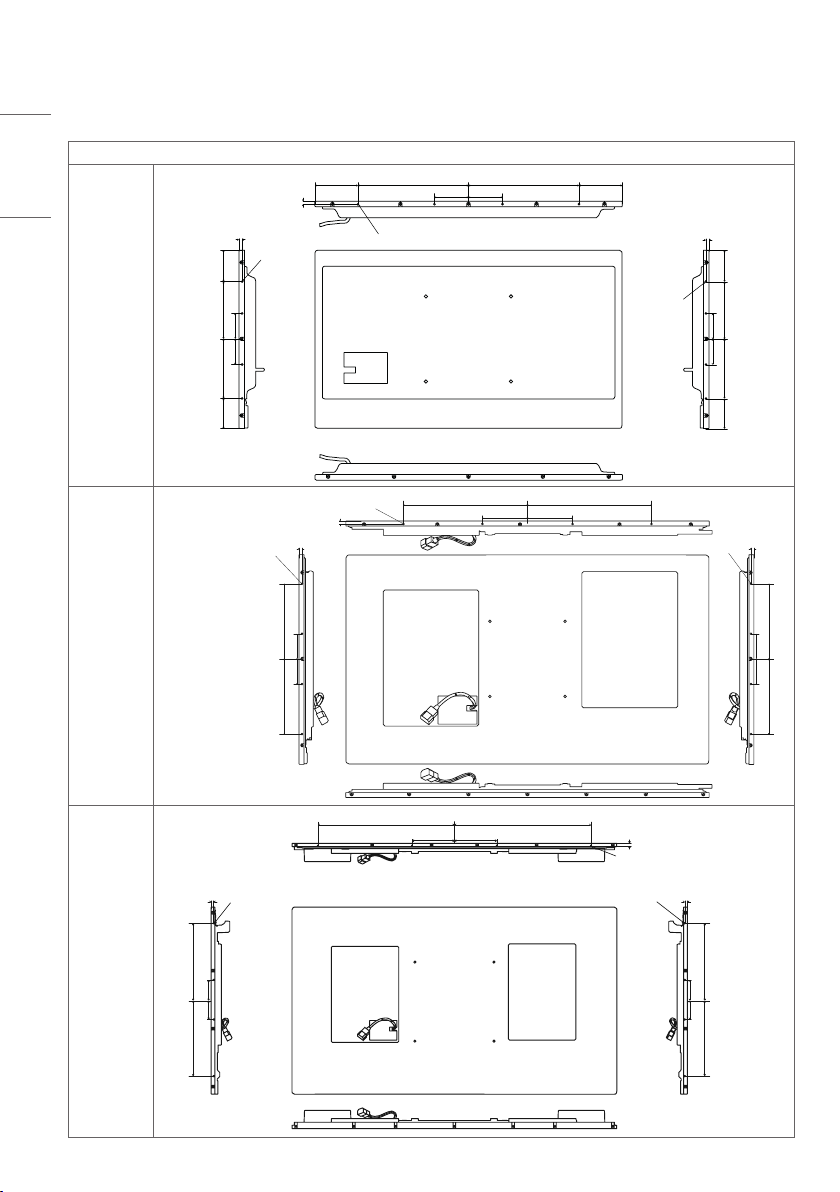

Side Mount Hole
Unit: mm
32TNF5J
101.5 260 260 101.5
80 80
4-M4 Mounting Hole
7.4
7.6
70.6 73.7
140 135
60 60
4-M4
Mounting
Hole
7.6
70.6 73.7
140 135
4-M4
Mounting
Hole
60 60
43TNF5J
67 67
200 200
4-M4 Mounting
Hole
8.1
67 67
200 200
4-M4 Mounting Hole 8.1
120 120
330 330
4-M4 Mounting Hole
8.1
55TNF5J
4-M4 Mounting Hole
161 161
518 518
4-9.3
4-M4 Mounting Hole
4-9.3
78.5
71.5
286.5 293.5
4-M4 Mounting Hole 4-9.3
78.5
71.5
286.5 293.5
7
ENGLISH
Model Standard
Dimensions
Length
(Maximum) (mm) Quantity etc.
32TNF5J M4 4.5 12 Top/Left/Right (4EA each)
43TNF5J M4 4.5 12 Top/Left/Right (4EA each)
55TNF5J M4 4.0 12 Top/Left/Right (4EA each)
1 Use the side screw holes when mounting the panel.
2 Screw tightening torque: 5~7 kgf
3 The screw length can be longer, depending on the enclosure shape and thickness of the material.
CAUTION
•Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.
•If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.
•Damage to the monitor by tightening the screws too tightly may void your warranty.
•Use screws and wall mount plates conforming to VESA standards. Breakage or personal injury due to use or misuse
of inappropriate components is not covered by the warranty of this product.
•When installing the product, be careful not to apply strong force to the lower part.
A
B
NOTE
•Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.
•For more information on installation, please refer to the user manual for the wall mount.
8
ENGLISH
PRECAUTIONS FOR USE
The Wake-up feature for sleep mode is not supported in this model.
Dust
The warranty will not cover any damage caused by using the product in an excessively dusty environment.
Afterimage
•After-image appears when the product is turned off.
- Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen-
saver function.
- Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause
an afterimage. This is normal due to the display characteristics of this product.
•When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between
the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time
and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called
an afterimage.
•Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed
for a long time. The following are operational recommendations for reducing the occurrence of afterimages when
using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better
for preventing afterimages.
•Recommended Usage Condition
9
ENGLISH

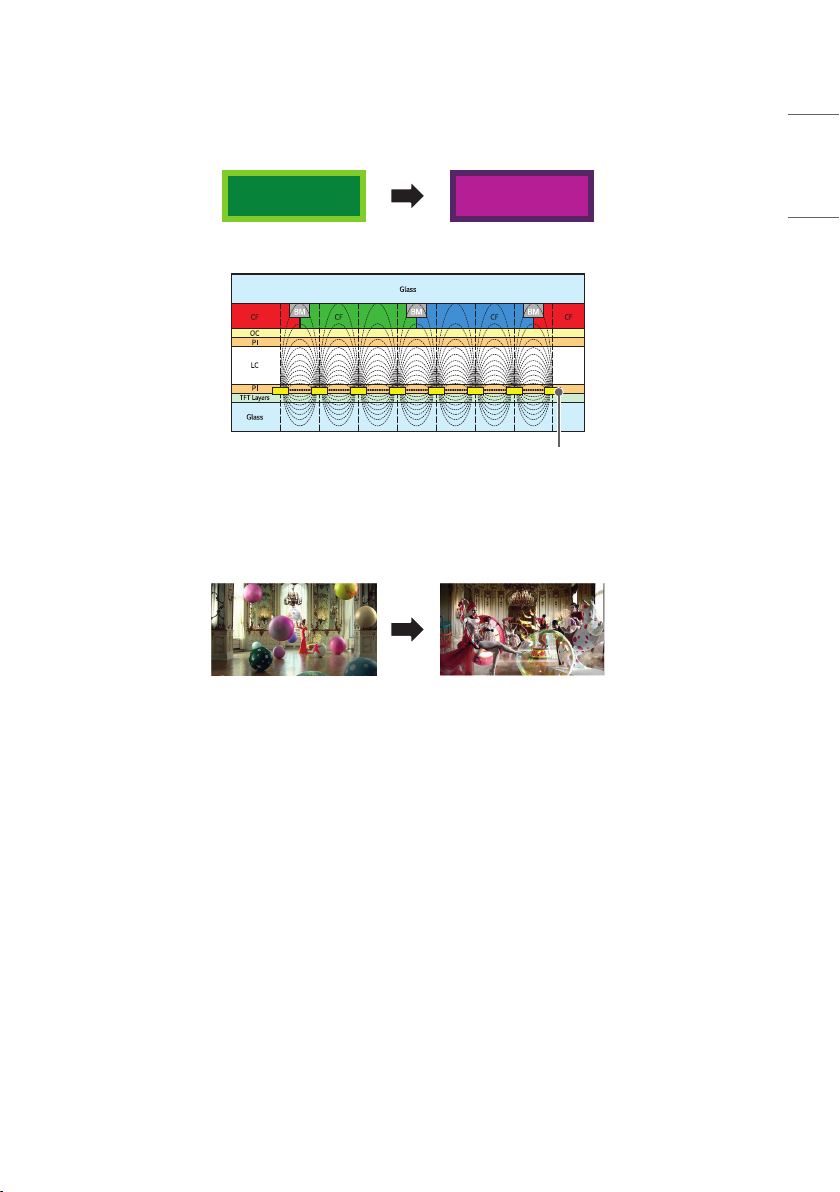

1 Change the background colour and text colour at equal intervals.
- Afterimages occur less when the colours to be changed are complementary to one another.
AA
ITO or MoTi Pixel Layer
2 Switch the screen at equal time intervals.
- Take caution, and ensure that text or images from before the screen change are not left in the same location after
the screen change.
10
ENGLISH
PRODUCT SPECIFICATIONS
Without prior notice, all product information and specifications contained in this manual are subject to change to
improve the performance of the product.
32TNF5J
Input/Output Ports
Embedded battery Applied
Resolution Recommended Resolution 1920x1080@60Hz(HDMI1, HDMI2)
Max Resolution
Power Voltage 100-240 V ~ 50/60 Hz 0.6 A
Environmental
Conditions
Operating Temperature
Operating Humidity
0°C to40°C
10% to 80% (Condition for preventing condensation)
Storage Temperature
Storage Humidity
-20°C to60°C
5% to 85% (Condition for preventing condensation)
* Product box packaging storage conditions
Power
Consumption
On Mode 55W(Typ.)
Sleep Mode / Standby Mode ≤0.5W
43TNF5J
Input/Output Ports
Embedded battery Applied
Resolution Recommended Resolution 3840 x 2160 @ 60 Hz (HDMI1, HDMI2)
Max Resolution
Power Voltage 100-240 V ~ 50/60 Hz 1.1 A
Environmental
Conditions
Operating Temperature
Operating Humidity
0°C to40°C
10% to 80% (Condition for preventing condensation)
Storage Temperature
Storage Humidity
-20°C to60°C
5% to 85% (Condition for preventing condensation)
* Product box packaging storage conditions
Power
Consumption
On Mode 95 W (Typ.)
Sleep Mode / Standby Mode ≤0.5W
