LG 55VH7J Manuel utilisateur
2
ENGLISH
TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
- Checking the Optional Accessories.........................4
- Learning the Buttons......................................................5
GETTING READY ...........................6
- Storage Method for Panel Protection...................6
- Connecting the IR Sensors..........................................8
- Kensington Lock Device ................................................9
CHECKING BEFORE
INSTALLATION ........................... 10
- Installation Orientation ..............................................10
- Installation Location.....................................................11
- Wall Mount Holder .......................................................12
- Safety and Precaution Guide for Installation ..14
- Tiling Displays ..................................................................15
PRECAUTIONS FOR USE............ 18
- Dust.......................................................................................18
- Afterimage ........................................................................18
PRODUCT SPECIFICATIONS...... 20
LICENCE...................................... 23
3
ENGLISH
This product is not intended for household use.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Visit http://partner.lge.com to download the latest SuperSign software and manual.
Checking the Accessories
x 4 x 8 x 4
(M4 x L6) (M6 x L14)
x 2
Depending on country
4
ENGLISH
How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the
ferrite core once.
2 Place the ferrite core close to the monitor.
Checking the Optional Accessories
In order to improve product performance, optional accessories are subject to change without prior notice.
The illustrations in this manual may differ from the actual product and its accessories.
Refer to the product manual for the components of the optional accessories.
KT-OPSF
NOTE
•Before you attach the OPS kit, connect the cable to the port.
5
ENGLISH
Learning the Buttons
The illustrations may differ depending on the model.
•: Change the input signal.
•: Accesses the main menus, or saves your input and exits the menus.
•: Adjust the up and down.
•: Moves left and right.
•: Displays the current signal and mode.
•: Turns the power on or off.
6
ENGLISH
GETTING READY
Storage Method for Panel Protection
Correct Method
1 If the product needs to be set upright, hold both sides of the product, and tilt backward carefully for. Do not let the
panel to touch the floor.
Panel
2 When laying down the product, lay a cushion on a flat floor. Put the product on it with the panel of the product
facing down.
Cushion
Panel
3 If there is not a cushion available, ensure the floor is clean and then lay the product down carefully with the panel
facing either upward or downward. At this time, be careful for objects not to fall on the panel.
Panel
7
ENGLISH
Incorrect Method
1 If the product is tilted onto the bezel, the bottom of the panel may be damaged.
Panel
2 If the product is tilted toward the corner of the panel, the bottom of the panel may be damaged.
Panel
8
ENGLISH

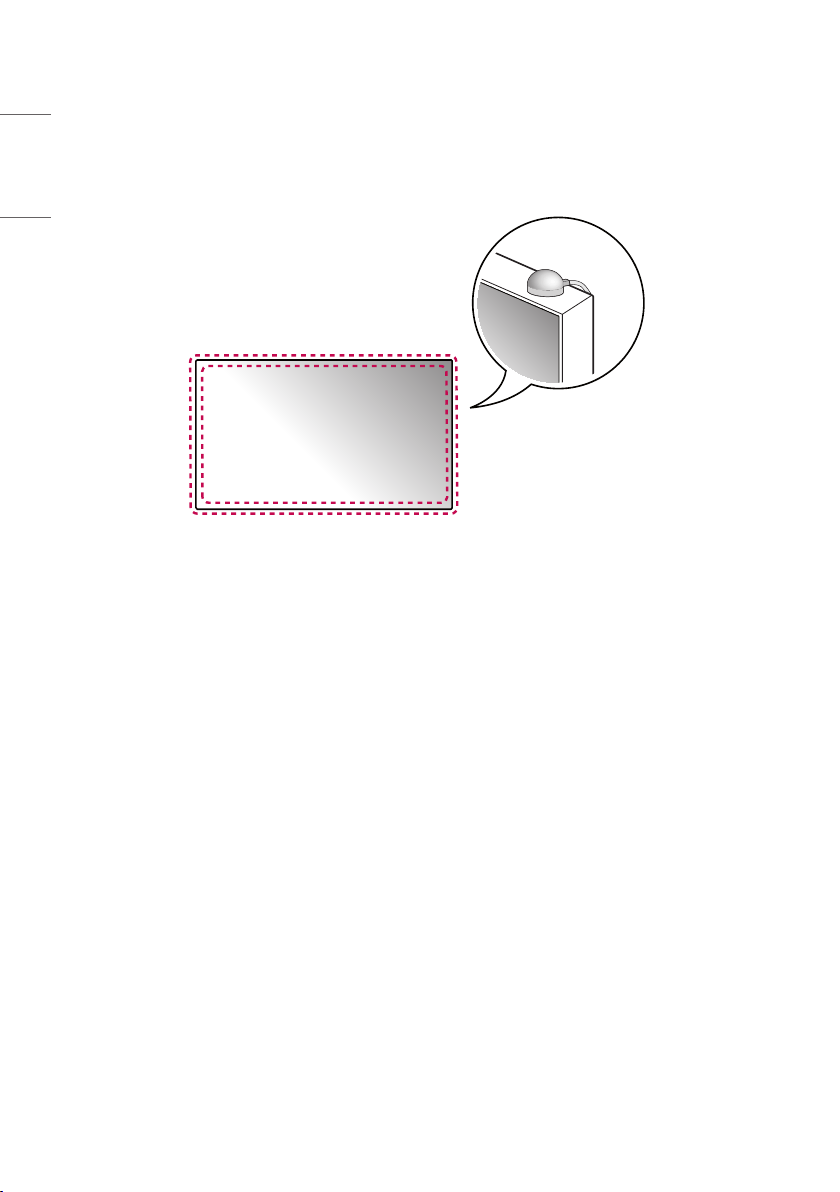

Connecting the IR Sensors
This allows a remote control sensor to be placed in a custom location.
Then that display can control other displays via an RS-232C cable.
9
ENGLISH
Kensington Lock Device
(This feature applies only to some models.)
The Kensington lock device connector is located on the back of the monitor. For more information on installation and
use, refer to the user manual provided with the locking device.
Connect the Kensington security system cable between the monitor and a table.
NOTE
•The Kensington lock device is an optional specification.
•This is a general illustration of installation and may look different from the product held by the customer.
10
ENGLISH
CHECKING BEFORE INSTALLATION
We are not responsible for product damage caused by failure to follow the guide.
Installation Orientation
Using Vertically
When installing vertically, rotate the monitor 90 degrees clockwise while facing the front of the screen.
Tilt Angle
40 mm
15˚
Ceiling, Floor Orientation
