LG 43UL3G Manuel utilisateur

LG Digital Signage

(MONITOR SIGNAGE)

Afchage dynamique numérique LG

(AFFICHAGE SUR MONITEUR)

Señalización digital LG

(MONITOR DE SEÑALIZACIÓN)

43UL3G 50UL3G

55UL3G 65UL3G

75UL3G 86UL3G

75UL3G-B 75UL3G-M

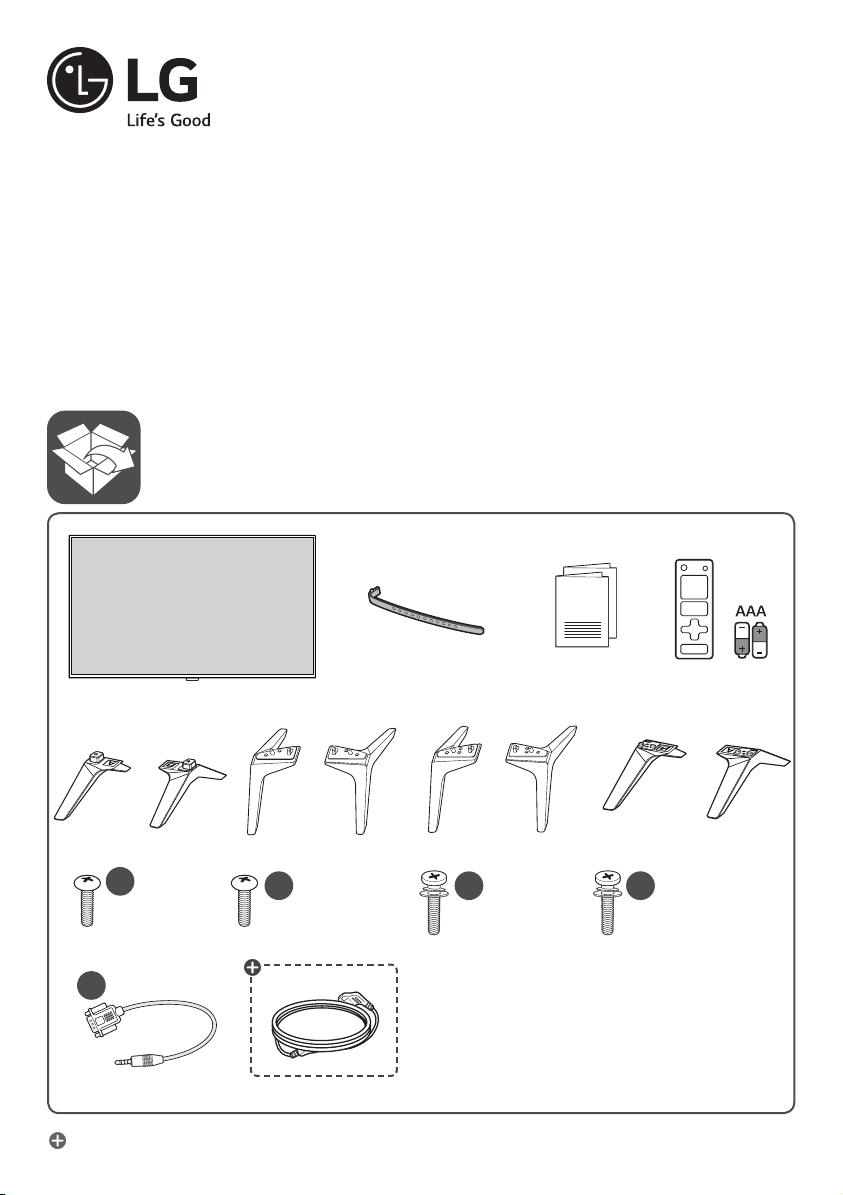

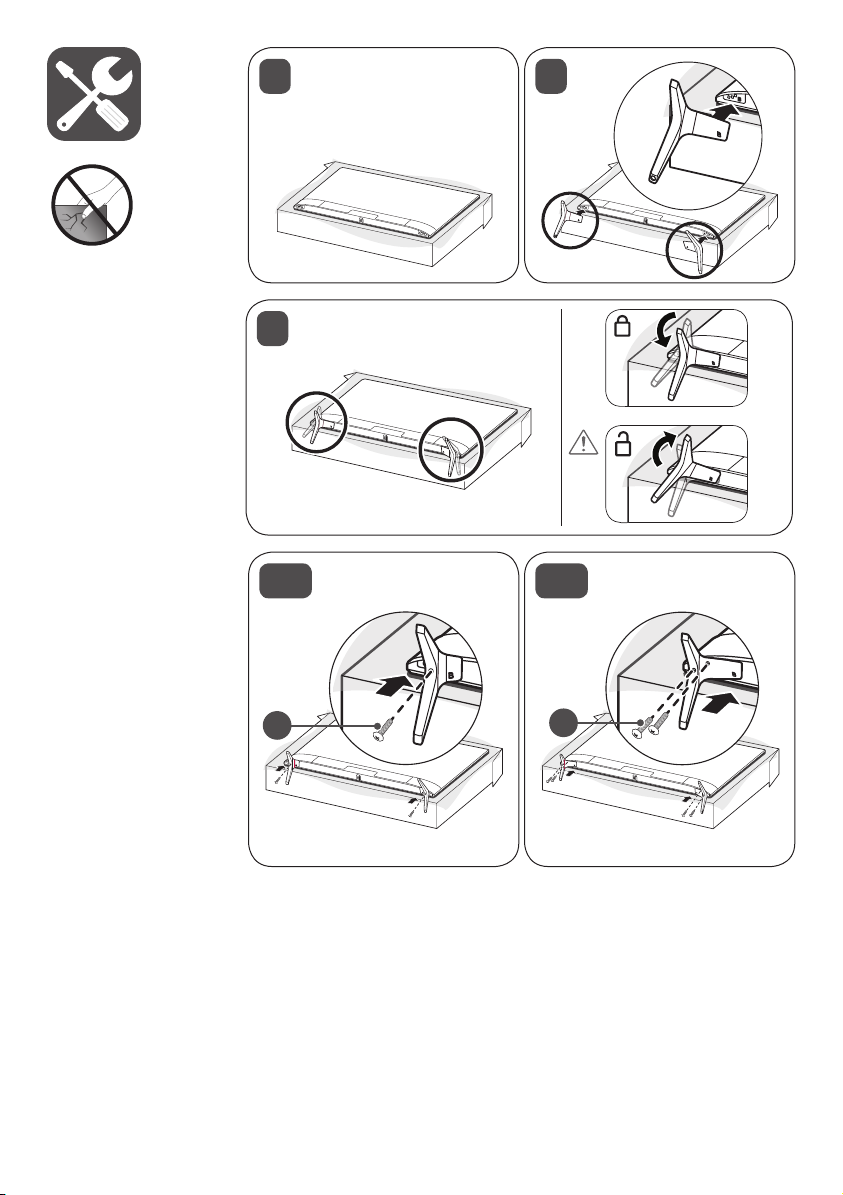

12 14 16 20

x 6

(M4 x L30)

75UL3G/ 86UL3G

75UL3G-M/ 75UL3G-B

75UL3G/ 86UL3G

75UL3G-M/ 75UL3G-B

x 6

(M4 x L20)

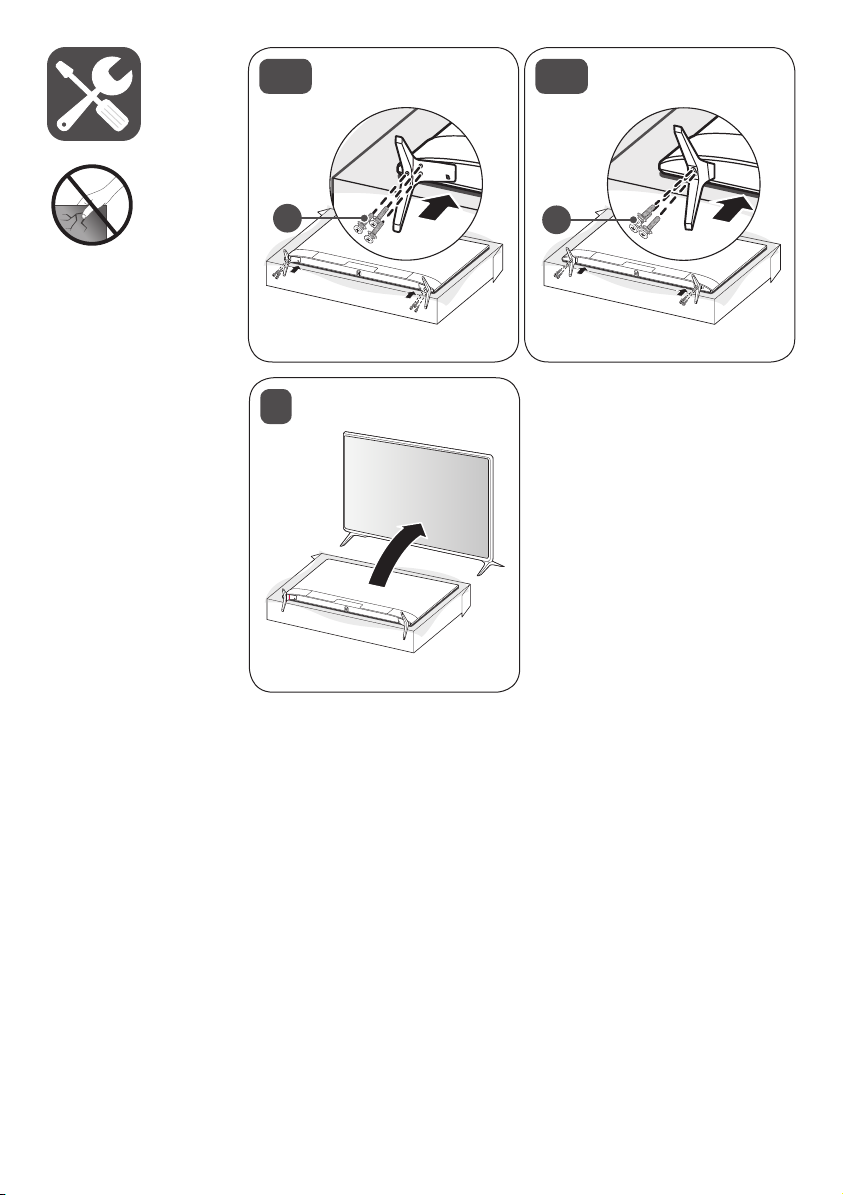

65UL3G

12 14 16 20

65UL3G

50UL3G/ 55UL3G

12 14 16 20

x 4

(M4 x L16)

50UL3G/ 55UL3G

43UL3G

x 2

(M4 x L16)

43UL3G

ENGLISH Installation Guide

Please read this manual carefully before operating your set and retain it for future reference.

FRANÇAIS Guide d’installation

Veuillez lire ce manuel attentivement avant d’utiliser l’appareil et conservez-le pour pouvoir vous y reporter

ultérieurement.

ESPAÑOL Guía de instalación

Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

Printed in Korea

Depending upon country / Selon le pays / Según el país

ʣwww.lg.com/id-manual

ʣSuperSign : http://partner.lge.com

ENGLISH

Dimensions

(Width x Height x

Depth) / Weight

43UL3G

Head 973 mm x 572 mm x 85.0 mm / 8.0 kg

(38.3 inches x 22.5 inches x 3.3 inches / 17.6 lbs)

Head + Stand 973 mm x 623 mm x 216 mm / 8.1 kg

(38.3 inches x 24.5 inches x 8.5 inches / 17.8 lbs)

50UL3G

Head 1130 mm x 663 mm x 86.3 mm / 11.3 kg

(44.4 inches x 26.1 inches x 3.3 inches / 24.9 lbs)

Head + Stand 1130 mm x 722 mm x 231 mm / 11.5 kg

(44.4 inches x 28.4 inches x 9.0 inches / 25.3 lbs)

55UL3G

Head 1244 mm x 726 mm x 87.1 mm / 14.3 kg

(48.9 inches x 28.5 inches x 3.4 inches / 31.5 lbs)

Head + Stand 1244 mm x 786 mm x 231 mm / 14.5 kg

(48.9 inches x 30.9 inches x 9.0 inches / 31.9 lbs)

65UL3G

Head 1463 mm x 850 mm x 87.8 mm / 21.3 kg

(57.5 inches x 33.4 inches x 3.4 inches / 46.9 lbs)

Head + Stand 1463 mm x 914 mm x 269 mm / 21.6 kg

(57.5 inches x 35.9 inches x 10.5 inches / 47.6 lbs)

75UL3G

75UL3G-M

75UL3G-B

Head 1693 mm x 978 mm x 88.8 mm / 34.6 kg

(66.6 inches x 38.5 inches x 3.4 inches / 76.2 lbs)

Head + Stand 1693 mm x 1048 mm x 345 mm / 35.4 kg

(66.6 inches x 41.2 inches x 13.5 inches / 78.0 lbs)

86UL3G

Head 1943 mm x 1118 mm x 93.3 mm / 44.2 kg

(76.4 inches x 44.0 inches x 3.6 inches / 97.4 lbs)

Head + Stand 1943 mm x 1188 mm x 345 mm / 45.0 kg

(76.4 inches x 46.7 inches x 13.5 inches / 99.2 lbs)

FRANÇAIS

Dimensions

(largeur x hauteur x

profondeur) / Poids

43UL3G

Ecran 973 mm x 572 mm x 85,0 mm / 8,0 kg

(38,3 po x 22,5 po x 3,3 po / 17,6 lb)

Ecran + socle 973 mm x 623 mm x 216 mm / 8,1 kg

(38,3 po x 24,5 po x 8,5 po / 17,8 lb)

50UL3G

Ecran 1 130 mm x 663 mm x 86,3 mm / 11,3 kg

(44,4 po x 26,1 po x 3,3 po / 24,9 lb)

Ecran + socle 1 130 mm x 722 mm x 231 mm / 11,5 kg

(44,4 po x 28,4 po x 9,0 po / 25,3 lb)

55UL3G

Ecran 1 244 mm x 726 mm x 87,1 mm / 14,3 kg

(48,9 po x 28,5 po x 3,4 po / 31,5 lb)

Ecran + socle 1 244 mm x 786 mm x 231 mm / 14,5 kg

(48,9 po x 30,9 po x 9,0 po / 31,9 lb)

65UL3G

Ecran 1 463 mm x 850 mm x 87,8 mm / 21,3 kg

(57,5 po x 33,4 po x 3,4 po / 46,9 lb)

Ecran + socle 1 463 mm x 914 mm x 269 mm / 21,6 kg

(57,5 po x 35,9 po x 10,5 po / 47,6 lb)

75UL3G

75UL3G-M

75UL3G-B

Ecran 1 693 mm x 978 mm x 88,8 mm / 34,6 kg

(66,6 po x 38,5 po x 3,4 po / 76,2 lb)

Ecran + socle 1 693 mm x 1 048 mm x 345 mm / 35,4 kg

(66,6 po x 41,2 po x 13,5 po / 78,0 lb)

86UL3G

Ecran 1 943 mm x 1 118 mm x 93,3 mm / 44,2 kg

(76,4 po x 44,0 po x 3,6 po / 97,4 lb)

Ecran + socle 1 943 mm x 1 188 mm x 345 mm / 45,0 kg

(76,4 po x 46,7 po x 13,5 po / 99,2 lb)

ESPAÑOL

Dimensiones

(ancho x alto x

profundidad) / Peso

43UL3G Cabezal 973 mm x 572 mm x 85,0 mm / 8,0 kg

Cabezal + Soporte 973 mm x 623 mm x 216 mm / 8,1 kg

50UL3G Cabezal 1 130 mm x 663 mm x 86,3 mm / 11,3 kg

Cabezal + Soporte 1 130 mm x 722 mm x 231 mm / 11,5 kg

55UL3G Cabezal 1 244 mm x 726 mm x 87,1 mm / 14,3 kg

Cabezal + Soporte 1 244 mm x 786 mm x 231 mm / 14,5 kg

65UL3G Cabezal 1 463 mm x 850 mm x 87,8 mm / 21,3 kg

Cabezal + Soporte 1 463 mm x 914 mm x 269 mm / 21,6 kg

75UL3G

75UL3G-M

75UL3G-B

Cabezal 1 693 mm x 978 mm x 88,8 mm / 34,6 kg

Cabezal + Soporte 1 693 mm x 1 048 mm x 345 mm / 35,4 kg

86UL3G Cabezal 1 943 mm x 1 118 mm x 93,3 mm / 44,2 kg

Cabezal + Soporte 1 943 mm x 1 188 mm x 345 mm / 45,0 kg

Alimentación CA 120 V~ 50/60 Hz

Consumo de potencia nominal

43UL3G 120 W

50UL3G 140 W

55UL3G 160 W

65UL3G 195 W

75UL3G

75UL3G-M

75UL3G-B

240 W

86UL3G 325 W

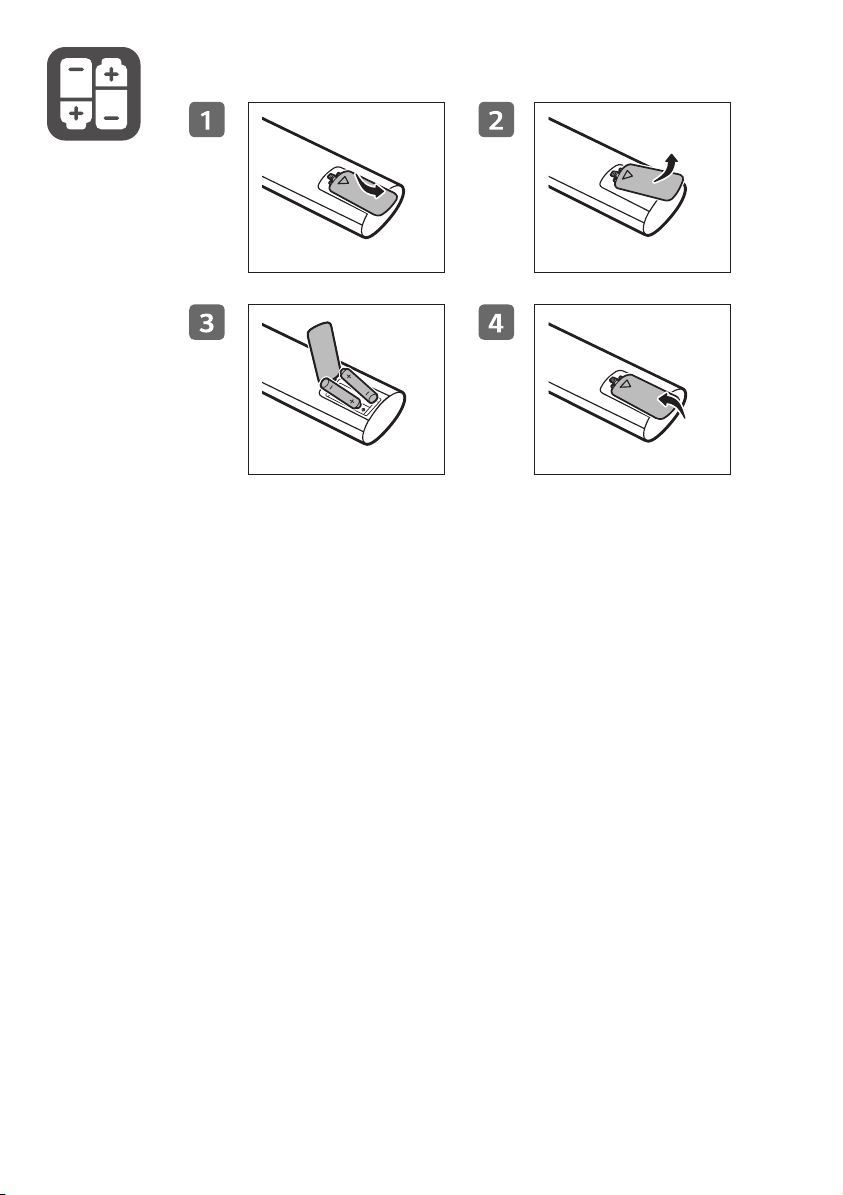

1 2

4-B4-A

50UL3G/ 55UL3G

43UL3G

4-D

75UL3G/ 86UL3G

75UL3G-M/ 75UL3G-B

4-C

65UL3G

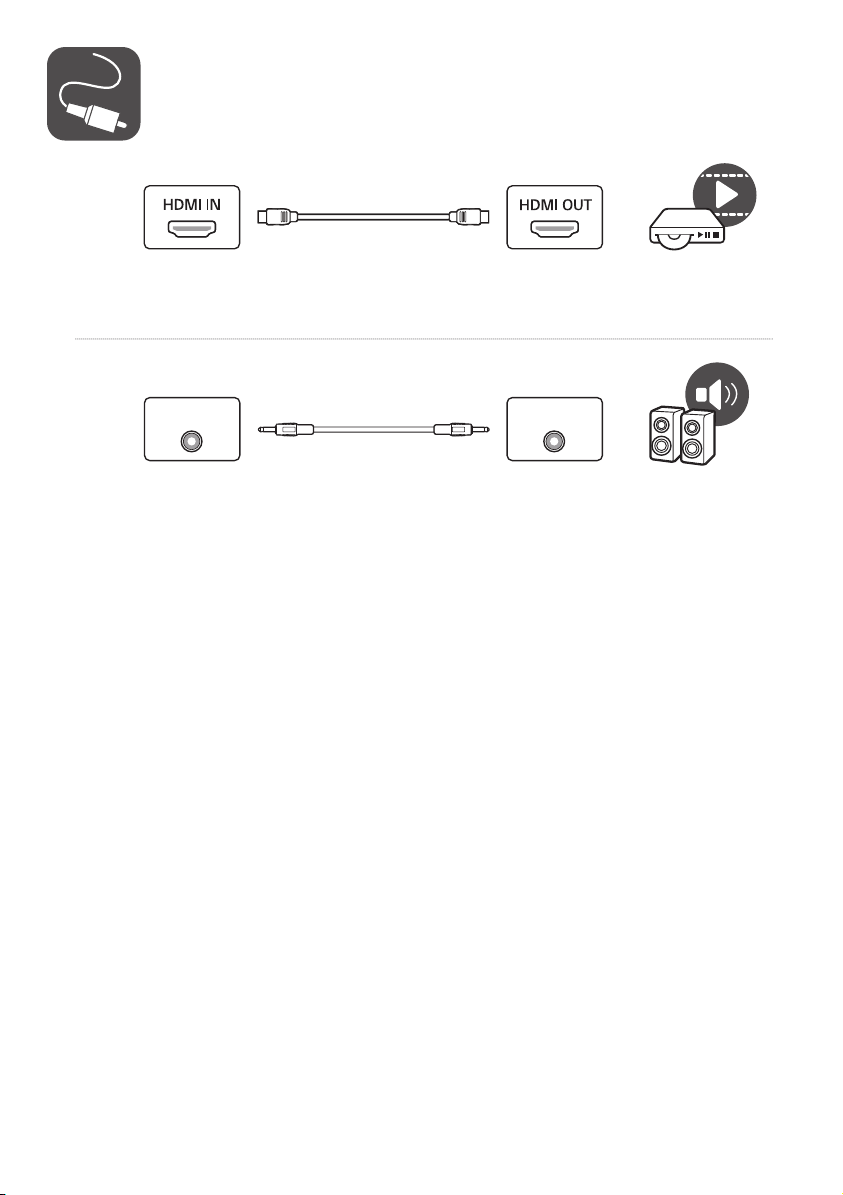

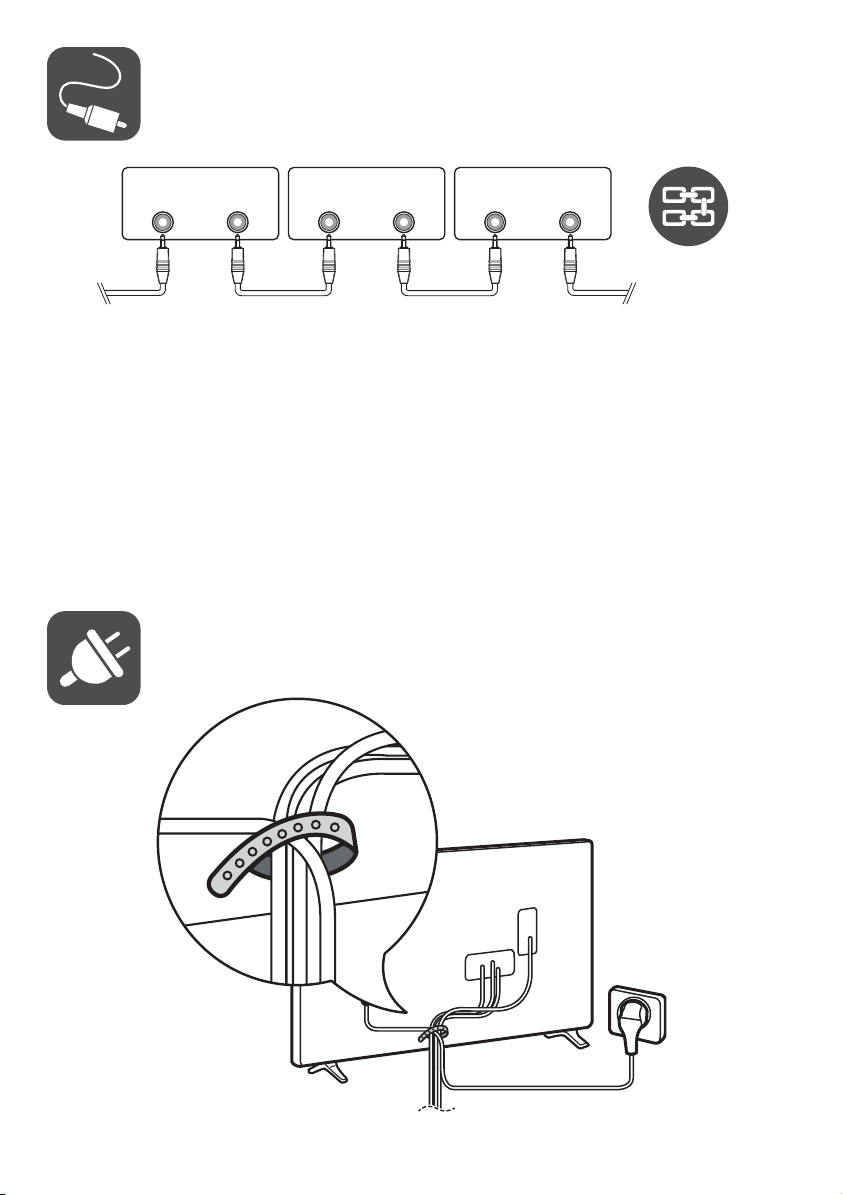

AUDIO OUT AUDIO IN

DVI IN DVI OUT

DVI IN

AUDIO IN

DVI OUT

AUDIO OUT

DP OUTDP IN DP OUTDP IN DP OUTDP IN

DVI IN DP OUT DP OUTDP IN DP OUTDP IN

DP OUT

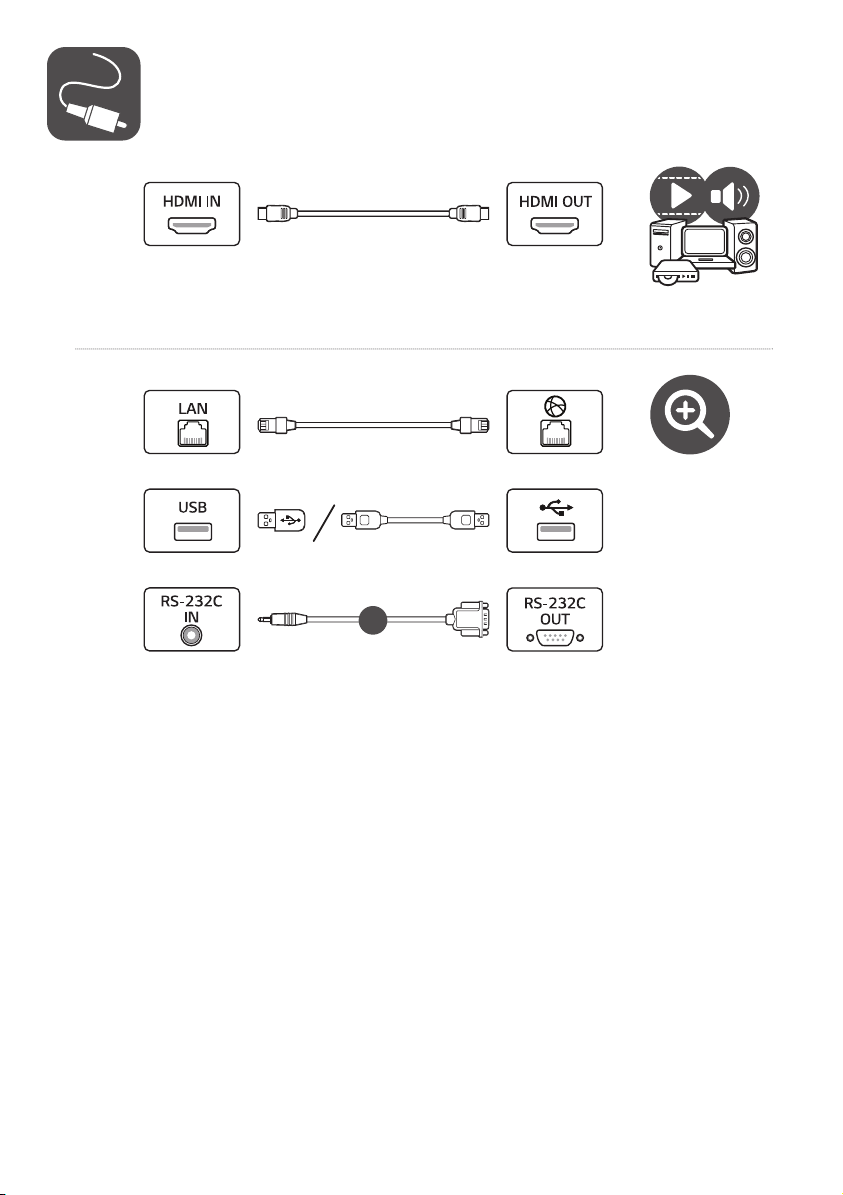

HDMI IN DP OUTDP IN DP OUTDP IN

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

LAN OUT

LAN IN LAN OUT

LAN IN

AUDIO OUT AUDIO IN

DVI IN DVI OUT

DVI IN

AUDIO IN

DVI OUT

AUDIO OUT

DP OUTDP IN DP OUTDP IN DP OUTDP IN

DVI IN DP OUT DP OUTDP IN DP OUTDP IN

DP OUT

HDMI IN DP OUTDP IN DP OUTDP IN

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

LAN OUT

LAN IN LAN OUT

LAN IN

AUDIO OUT AUDIO IN

DVI IN DVI OUT

DVI IN

AUDIO IN

DVI OUT

AUDIO OUT

DP OUTDP IN DP OUTDP IN DP OUTDP IN

DVI IN DP OUT DP OUTDP IN DP OUTDP IN

DP OUT

HDMI IN DP OUTDP IN DP OUTDP IN

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

LAN OUT

LAN IN LAN OUT

LAN IN

AUDIO OUT AUDIO IN

DVI IN DVI OUT

DVI IN

AUDIO IN

DVI OUT

AUDIO OUT

DP OUTDP IN DP OUTDP IN DP OUTDP IN

DVI IN DP OUT DP OUTDP IN DP OUTDP IN

DP OUT

HDMI IN DP OUTDP IN DP OUTDP IN

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

LAN OUT

LAN IN LAN OUT

LAN IN

AUDIO OUT AUDIO IN

DVI IN DVI OUT

DVI IN

AUDIO IN

DVI OUT

AUDIO OUT

DP OUTDP IN DP OUTDP IN DP OUTDP IN

DVI IN DP OUT DP OUTDP IN DP OUTDP IN

DP OUT

HDMI IN DP OUTDP IN DP OUTDP IN

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

LAN OUT

LAN IN LAN OUT

LAN IN
