Lexmark Pro800 Manuel utilisateur

1Unpack printer

Notes:

•Place the printer near the computer

during setup. If you're setting up on

a wireless network, then you may

move the printer after setup is

complete.

•Do not attach the USB cable until

prompted to do so.

•The packaged printhead is shipped

inside the printer.

•Contents may vary by model and

region.

2Remove tape and packing material from all areas of the

printer

Lexmark Pro800 Series Installation

3Open printer and remove packaged printhead

4Close printer

5Pull paper tray completely out of printer

Lexmark Pro800 Series Installation

6Move paper guides to the sides

7For A4 or Legal, extend paper tray

8Load paper and adjust paper guides

Note: Do not load paper past the

maximum height indicator line as shown

in step 2.

Lexmark Pro800 Series Installation

9Insert paper tray

10 Connect power cord only

Note: DO NOT attach the USB cable yet.

CAUTION—POTENTIALINJURY: Read the safety information included with this product before connecting

power or making any cabling connections.

11 Make sure printer is on

Lexmark Pro800 Series Installation

12 Follow prompts on the printer control panel

1Follow the prompts on the printer

control panel.

2After following the prompts, click

Continue below.

13 Install printhead and ink cartridges

If you need to install the printhead and

cartridges, click Continue.

If not, you can close this window.

14 Open printer and remove any tape from latch

Note: The carriage moves to the

printhead installation position as shown.

Lexmark Pro800 Series Installation

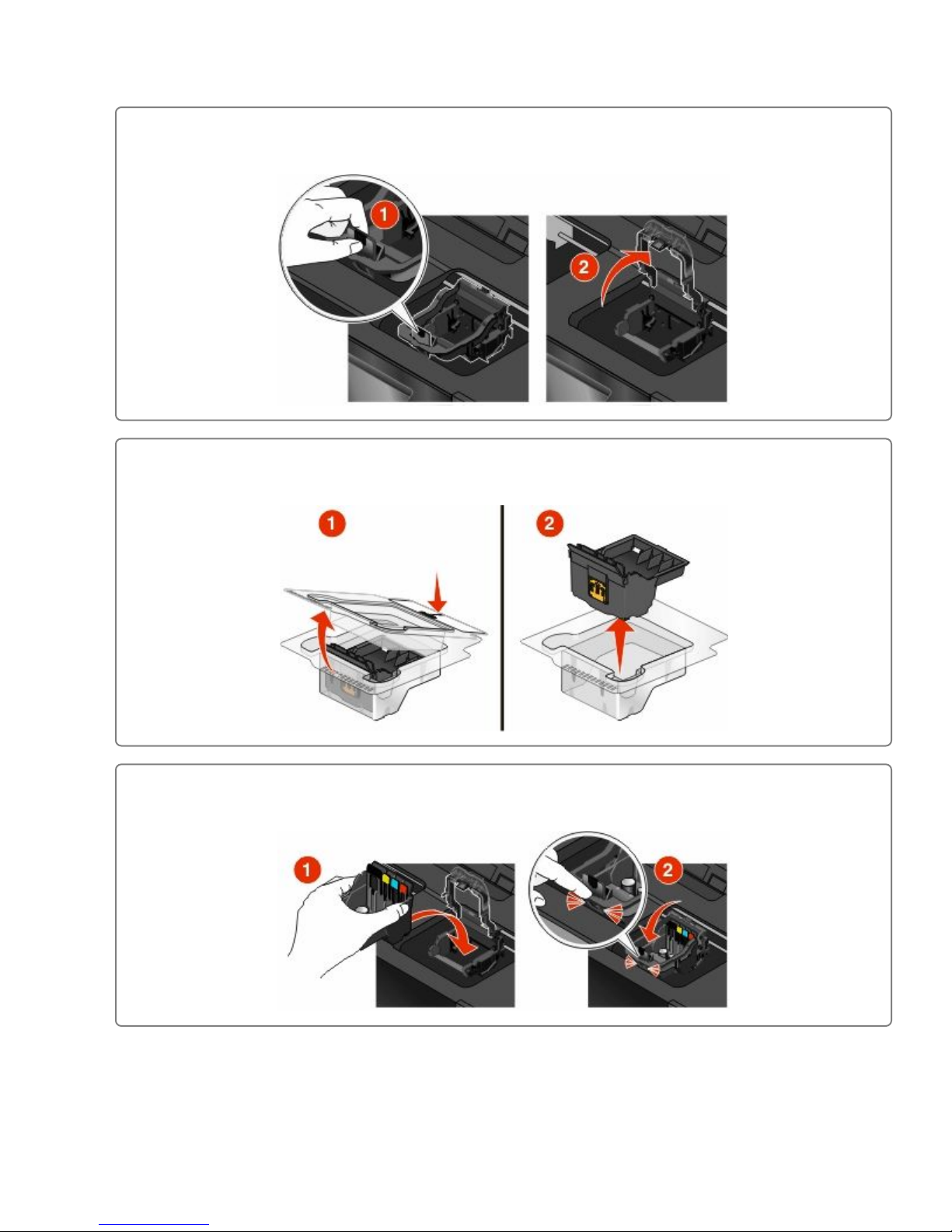

15 Squeeze and lift latch

16 Remove printhead from disposable container

17 Insert printhead and close latch until it clicks

Lexmark Pro800 Series Installation

18 Close printer

19 Open printer

Note: The printhead moves to the

cartridge installation position as shown.

20 First, insert each color ink cartridge. Then, use two hands

to install black cartridge.

Lexmark Pro800 Series Installation

21 Close printer

22 Flip and extend exit tray paper stop

Notes:

•Extend the paper exit tray for

A4/Legal.

•The paper stop holds paper as it exits

the printer.

23 Touch OK to print alignment page

Notes:

•Do not remove the page until

printing stops. The alignment page

may take a while to print and will

move in and out during the process.

•Streaks on the alignment page are

normal and not an indication of a

problem.

•The alignment page that prints may

differ from the one shown.

•Recycle the alignment page.

Lexmark Pro800 Series Installation
