Lexmark CS410 series Guide de configuration

Printing guide

Get the most from the printer by properly loading the trays and properly setting the types and sizes of media.

Loading the 250 and 550‑sheet tray

The printer has one 250-sheet tray (Tray 1) with an integrated manual feeder. The 250-sheet tray, the 650-sheet duo tray, and

the 550-sheet tray support the same paper sizes and types and are loaded in the same way.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all trays

closed until needed.

1Pull out the tray completely.

Note: Do not remove trays while a job is printing or while Busy appears on the display. Doing so may cause a jam.

2If the paper is longer than letter‑size paper, then push the length guide tab at the back of the tray to extend it.

Printing guide

Page 1 of 8

3Squeeze the length guide tab, and then slide the guide to the correct position for the size of the paper being loaded.

Note: Use the size indicators on the bottom of the tray to help position the guide.

4Squeeze and slide the width guide to the correct position for the size of the paper being loaded.

Note: Use the paper size indicators on the bottom of the tray to help position the guides.

5Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level surface.

Printing guide

Page 2 of 8

6Load the paper stack with the recommended printable side faceup.

7Place the paper guides securely against the edges of the paper.

8Insert the tray.

9From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the tray.

Note: Mixing paper sizes or types in a tray may cause jams.

Loading the 650‑sheet duo tray

The 650‑sheet duo tray (Tray 2) consists of a 550‑sheet tray and an integrated 100‑sheet multipurpose feeder. The tray is loaded

in the same way as the 250‑sheet tray and the optional 550‑sheet tray, and supports the same paper types and sizes. The only

differences are the look of the guide tabs and the location of the paper size indicators.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays

closed until needed.

Printing guide

Page 3 of 8

1Length guide tab

2Paper size indicator

3Width guide tab

Loading the multipurpose feeder

1Push the multipurpose feeder latch to the left.

Printing guide

Page 4 of 8

2Open the multipurpose feeder.

3Pull the multipurpose feeder extender.

Note: Guide the extender gently so that the multipurpose feeder is fully extended and open.

4Prepare the paper for loading.

•Flex sheets of paper back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level

surface.

•Hold transparencies by the edges. Straighten the edges on a level surface.

Note: Avoid touching the printable side of transparencies. Be careful not to scratch them.

•Flex a stack of envelopes back and forth to loosen them. Straighten the edges on a level surface.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick

adhesives. These envelopes may severely damage the printer.

Printing guide

Page 5 of 8

5Locate the maximum paper fill indicator and tab.

Note: Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper guides.

1Width guide tab

2Maximum paper fill indicator

3Width guide

4Feeder extender

5Paper size indicator

6Load the paper, and then adjust the width guide to lightly touch the edge of the paper stack.

•Load paper, card stock, and transparencies with the recommended printable side facedown and the top edge entering

first.

Printing guide

Page 6 of 8

•Load envelopes with the flap side up and against the right side of the paper guide.

Notes:

•Do not load or close the multipurpose feeder while a job is printing.

•Load only one size and type of paper at a time.

•Paper should lie flat in the multipurpose feeder. Make sure the paper fits loosely in the multipurpose feeder and is not

bent or wrinkled.

7From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the tray.

Loading the manual feeder

The standard 250‑sheet tray has an integrated manual feeder that can be used to print on different types of paper one sheet at

a time.

1Load a sheet of paper into the manual feeder:

•Printable side facedown for one-sided printing

•Printable side faceup for two‑sided (duplex) printing

Note: There are different ways for loading letterhead depending on the mode of printing.

One‑sided printing using a letterhead Two‑sided printing using a letterhead

ABC

Printing guide

Page 7 of 8

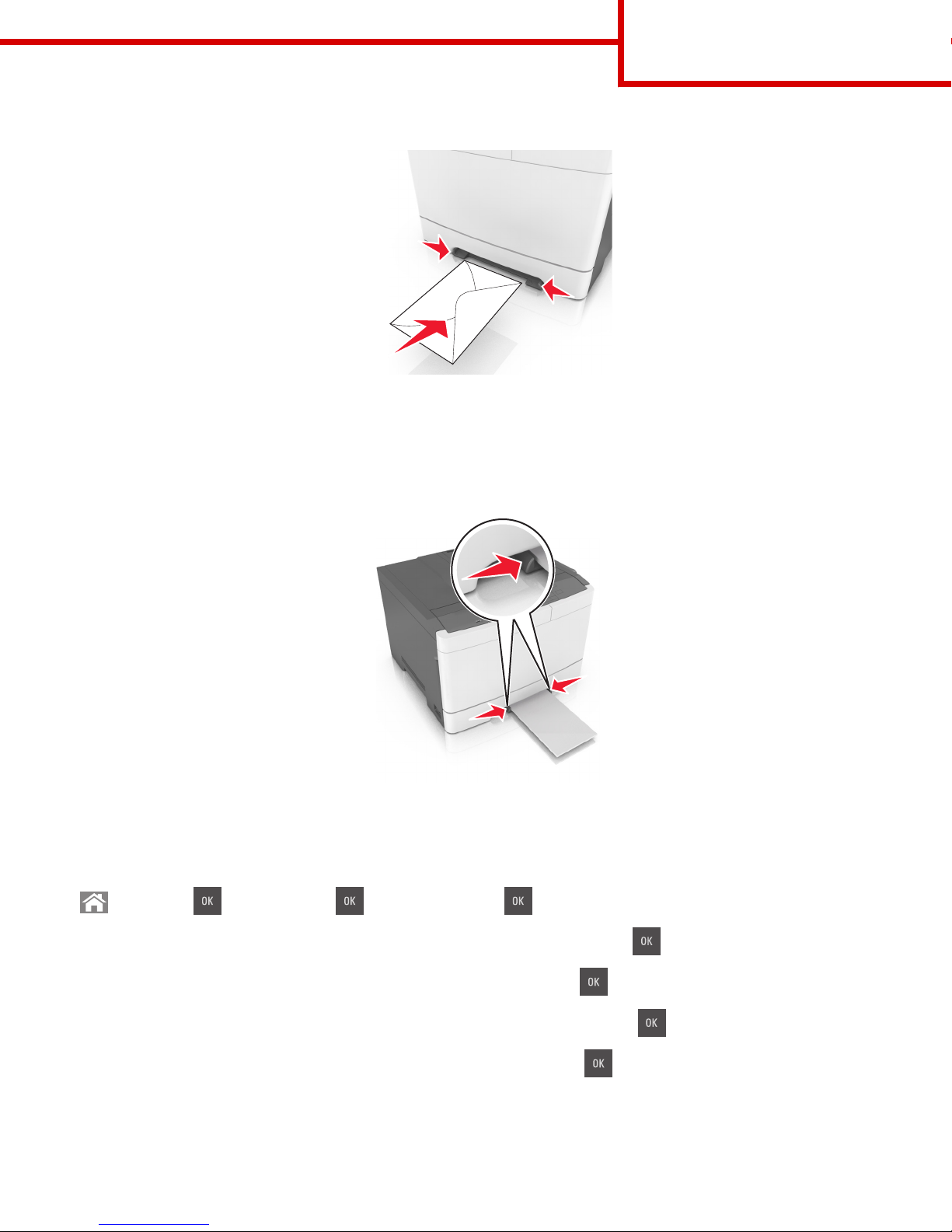

•Load envelope with the flap side up and against the right side of the paper guide.

2Feed paper into the manual feeder only to the point where its leading edge can contact the paper guides.

Note: To achieve the best possible print quality, use only high‑quality media designed for laser printers.

3Adjust the paper guides to the width of the paper loaded.

Warning—Potential Damage: Do not force the paper into the feeder. Forcing the paper may cause jams.

Setting the paper size and type

1From the printer control panel, navigate to:

> Settings > > Paper Menu > > Paper Size/Type >

2Press the up or down arrow button to select the tray or feeder size, and then press .

3Press the up or down arrow button to select the paper size, and then press .

4Press the up or down arrow button to select the tray or feeder type, and then press .

5Press the up or down arrow button to select the paper type, and then press .

Printing guide

Page 8 of 8
