Lexmark Color Jetprinter Z12 Manuel utilisateur

Lexmark Z12

Color Jetprinter TM

User’s Guide for Windows 95 and Windows 98

Edition: January 2000

The following paragraph does not apply to any country where such provisions are inconsistent with

local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF

ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to

the information herein; these changes will be incorporated in later editions. Improvements or changes in the

products or the programs described may be made at any time.

References in this publication to products, programs, or services do not imply that the manufacturer intends to

make these available in all countries in which it operates. Any reference to a product, program, or service is not

intended to state or imply that only that product, program, or service may be used. Any functionally equivalent

product, program, or service that does not infringe any existing intellectual property right may be used instead.

Evaluation and verification of operation in conjunction with other products, programs, or services, except those

expressly designated by the manufacturer, are the user’s responsibility.

Lexmark, Lexmark with diamond design, and ColorFine are trademarks of Lexmark International, Inc., registered

in the United States and/or other countries. Color Jetprinter is a trademark of Lexmark International, Inc.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the

Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and

Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,

Lexington, KY 40550.

Contents

•

iii

Contents

Printing 1

Step 1: Insert the appropriate print cartridge 1

Step 2: Load the print media 2

Step 3: Customize the printer settings 4

Step 4: Print your document 6

Maintaining your printer 7

Using the Control Program 7

Improving print quality 8

Preserving print cartridges 12

Troubleshooting 13

Printer prints slowly or doesn’t print 14

Paper misfeeds or jams 16

Document prints with mistakes or poor quality 17

Problems with transparencies or envelopes 19

Error messages and flashing lights 20

Appendix 21

Installing printer software 21

Uninstalling printer software 22

Printing from DOS 22

Statement of Limited Warranty 22

Warranty 22

Electronic emission notices 24

•

Contents

Energy Star 25

Power supply 25

Safety information 25

Printer parts 26

Index 27

Printing

•

Printing

For information about setting up your printer, refer to the

setup sheet. See page 26 for a diagram of the printer parts.

Printing with your printer is as easy as:

1Insert the appropriate print cartridge (see next section).

2Load the print media (see page 2).

3Customize the printer settings (see page 4).

4Print your document (see page 6).

Step 1: Insert the appropriate print cartridge

Your printer uses one cartridge at a time: either a black

cartridge or a color cartridge. Your printer came with a color

cartridge, Lexmark part number 17G0060. You may also

purchase a black cartridge, Lexmark part number 17G0050.

•

To print your

entire

document using the cartridge already

installed in the printer, select

Automatic

from the

Document/Quality

tab of the Printer Properties.

•

To print the black pages of your document

separate

from

the color pages, select

Color Sort

from the

Document/Quality

tab of the Printer Properties.

The black pages print with the black cartridge, and the

pages containing color print with the color cartridge. The

printer sorts the pages into those two types, prints all the

pages of one type, and then prompts you when it’s time to

change the cartridge.

See pages 4 and 5 for information on selecting

Automatic

Color Sort

in the Printer Properties.

•

Chapter 1

Step 2: Load the print media

Note:

See page 3 for instructions on loading banner paper.

1Place the media against the right side of the sheet feeder.

Follow these guidelines when loading print media:

2Squeeze the tab on the paper guide and slide the paper guide

to the left edge of the media.

Load up to: Make sure:

100 sheets of plain paper

•

The print side is facing you.

10 envelopes

•

The print side is facing you.

•

The envelopes are loaded vertically against the

right side of the sheet feeder.

•

The stamp location is in the upper left corner.

10 greeting cards, index

cards, or postcards

•

The print side is facing you.

•

The cards are loaded vertically against the right side of the sheet feeder.

25 transparencies

•

The rough sides of the transparencies are facing you (smooth side down).

25 iron-on transfers

•

You follow the instructions on the packaging to load the iron-on transfers.

20 sheets of banner paper

•

You follow the directions for printing banners on page 3.

100 sheets of custom size

paper

•

The print side is facing you.

•

Your paper size fits within these dimensions:

Width: 76 mm to 216 mm (3.0 in. to 8.5 in.)

Length: 127 mm to 432 mm (5.0 in. to 17.0 in.)

Paper guide

Sheet feeder

Paper alignment

marks

Printing

•

Printing

Loading banner paper

Use banner paper recommended for inkjets only. We do not

recommend using continuous form paper for dot matrix

printers.

Although the paper support holds up to 20 sheets of banner

paper, load only the number of sheets needed to make your

banner. For example, if your banner is 12 sheets long, load

only 12 sheets.

1Remove any paper from the sheet feeder.

2Load the banner paper:

3Slide the paper guide to the edge of the banner paper.

4Continue with “Step 3: Customize the printer settings” on

page 4.

5After your banner prints, remove the banner paper and

return the paper support to the upright position.

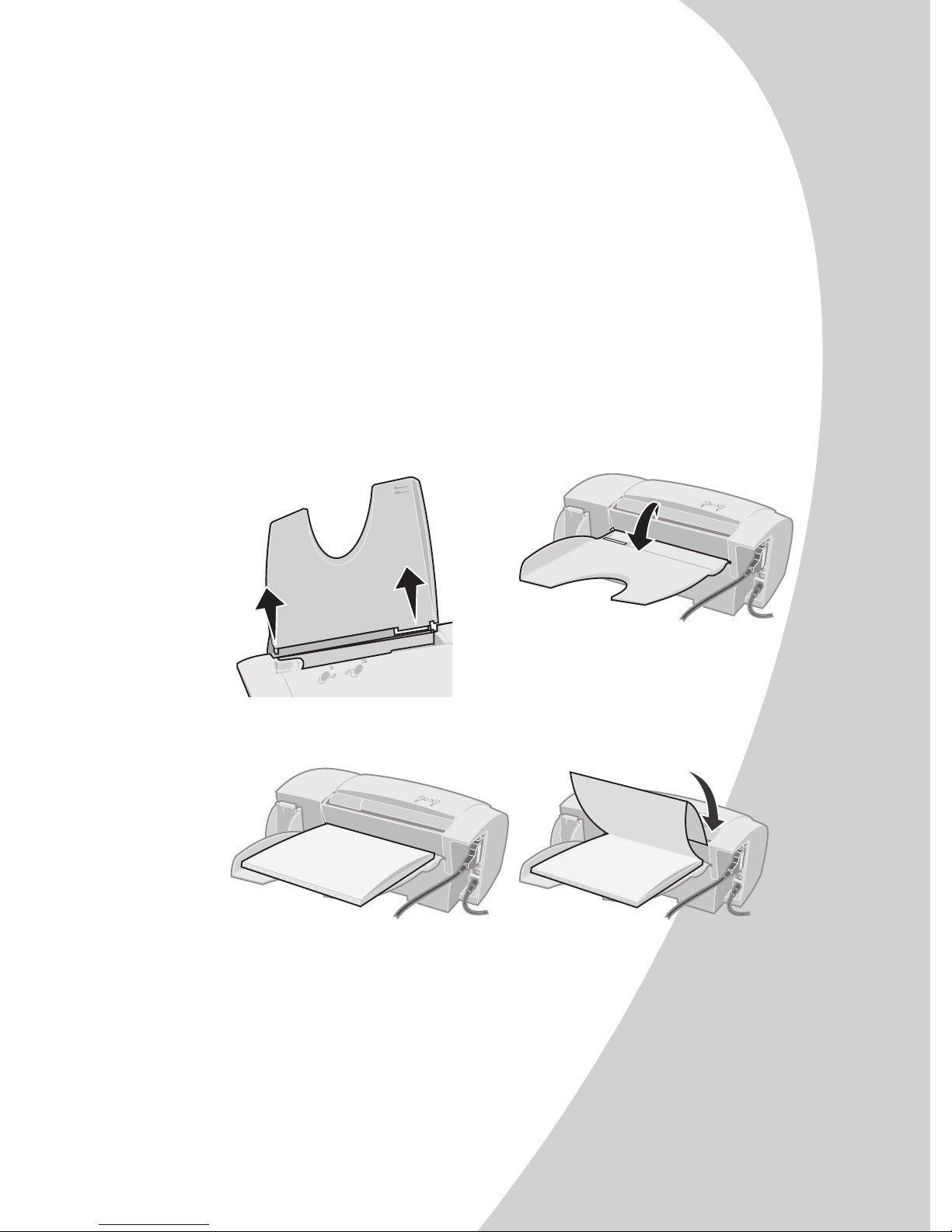

Insert the leading edge of the first

page into the sheet feeder.

Pull the paper support up

slightly to unlock the front tabs.

Tilt the paper support back until it

locks in the horizontal position.

Place your stack of banner paper on

the paper support.

•

Chapter 1

Step 3: Customize the printer settings

Your printer software includes several applications that let you

perform printing tasks. One of these applications is called the

Printer Properties

Opening the Printer Properties from an

application

This lets you change printer settings ONLY for the documents you

are currently creating in your software application.

1Open the application’s File menu.

2Choose Print (or Printer) Setup.

3In the Printer Setup dialog box, click the Properties,Option,

or Setup button (depending on the application).

4Change settings as needed. See page 6 for more information.

Opening the Printer Properties from Windows

When you open the Printer Properties from Windows, the settings

apply to ALL documents, unless you change them later from the

application.

1From the Start menu, select Settings, and then select

Printers.

2From the Printers folder, right-click the printer icon for your

printer.

3Select Properties from the sidebar menu.

4Change settings as needed. See page 6 for more information.

Printing

•

Printing

The Printer Properties application includes two tabs:

Paper

and

Document/Quality

. Each tab contains settings for

operating your printer and its software.

Click the...

Paper tab to:

•Select a paper size.

•Select a page orientation.

•Set the number of copies to print.

•Reverse the printing order of your document

pages. The first page of your document will be

on top of the stack in the paper exit tray.

•Collate your document.

Document/Quality tab to:

•Select color settings for the type of document

you are printing. For more information, see

page 1.

•Select a paper type.

•Select a print quality setting.

•Reset the default settings.

•Select Web Smoothing when you are

printing from the internet to print images with

greater clarity.

•Find out which version of the printer software

you are using.

Click the Help button on either

tab in the Printer Properties to

access the printer driver Help.

•

Chapter 1

Customizing printer settings for specialty

papers

The Printer Properties settings were initially set to the default

settings. Use the default settings for printing on plain paper. To

change your printer settings for printing on specialty papers, use

the following table.

Step 4: Print your document

1From your application’s File menu, click Print.

2From the Print dialog box, click OK or Print (depending on the

application).

When you

are printing

on:

Click this

Printer

Properties tab: To make these selections:

Envelopes Paper From the Paper Size area, scroll to select the appropriate envelope size.

Note:

Your application may override the settings in Printer Properties.

Greeting cards,

index cards, or

postcards

Paper

Document/Quality

•

Select the appropriate Paper Size setting.

•

From the Paper Type area, select

Greeting Card Stock

Transparencies Document/Quality

•

From the Paper Type area, select

Transparency

•

Select

Normal 600dpi

High 1200dpi

Print Quality.

Note:

When printing transparencies, remove each transparency as it

exits from the printer and allow it to dry before stacking.

Iron-on

transfers

Document/Quality From the Paper Type area, select

Iron-On Transfer

Note:

Many software applications accept iron-on transfers differently.

We recommend printing your document on plain paper before printing

it on an iron-on transfer.

Banner paper Paper From the list of Paper Sizes, select

Banner

Banner A4

Custom size

paper

Paper

•

From the list of Paper Sizes, scroll to select

Custom

•

Enter the dimensions for your custom paper size.

Autres manuels pour Color Jetprinter Z12

Table des matières

Autres manuels Lexmark Imprimante

Lexmark

Lexmark MS810 Series Guide de référence rapide

Lexmark

Lexmark C925 Manuel utilisateur

Lexmark

Lexmark Color Jetprinter Z53 Manuel utilisateur

Lexmark

Lexmark Multifunction Laser Mode d’emploi

Lexmark

Lexmark MS810de Manuel technique

Lexmark

Lexmark MX611 Series Manuel

Lexmark

Lexmark W850n Manuel utilisateur

Lexmark

Lexmark S400 Series Manuel utilisateur

Lexmark

Lexmark C950 Series Manuel technique

Lexmark

Lexmark 2050 Color Jetprinter Manuel utilisateur

Lexmark

Lexmark 13P0150 - C 750dtn Color Laser Printer Manuel utilisateur

Lexmark

Lexmark 34A0050 Manuel utilisateur

Lexmark

Lexmark 21B0807 - P 915 Color Inkjet Printer Manuel utilisateur

Lexmark

Lexmark CS796de Manuel utilisateur

Lexmark

Lexmark Color Jetprinter 810 Series Instructions d'utilisation

Lexmark

Lexmark Optra Optra S Manuel utilisateur

Lexmark

Lexmark 5000 Series Manuel utilisateur

Lexmark

Lexmark C792 Family Manuel utilisateur

Lexmark

Lexmark MS810 Series Guide de configuration

Lexmark

Lexmark 2200 Series Manuel utilisateur

Lexmark

Lexmark 22W0024 Manuel utilisateur

Lexmark

Lexmark 4098-001 Manuel utilisateur

Lexmark

Lexmark Optra T522 Manuel utilisateur

Lexmark

Lexmark E460DN - Taa Govt Compliant Guide de configuration

Manuels Imprimante populaires d'autres marques

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur
