Lexmark X820E Manuel utilisateur

www.lexmark.com

Setup Guide

August 2001

X820e MFP, X7500 MFP Option

Edition: August 2001

The following paragraph does not apply to any country where such provisions are inconsistent with local law:

LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of expressome states do not allow disclaimer of express

or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes will be incorporated in later editions. Improvements or changes in the products or

the programs described may be made at any time.

Comments about this publication may be addressed to Lexmark International, Inc., Department F95/032-2, 740 West740 West

New Circle Road, Lexington, Kentucky 40550, U.S.A. In the United Kingdom and Eire, send to Lexmark Internationalhe United Kingdom and Eire, send to Lexmark International

Ltd., Marketing and Services Department, Westhorpe House, Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use3RQ. Lexmark may use

or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

You can purchase additional copies of publications related to this product by calling 1-800-553-9727. In the United727. In the United

Kingdom and Eire, call 0628-481500. In other countries, contact your point of purchase.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make

these available in all countries in which it operates. Any reference to a product, program, or service is not intended toAny reference to a product, program, or service is not intended to

state or imply that only that product, program, or service may be used. Any functionally equivalent product, program, or

service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification of

operation in conjunction with other products, programs, or services, except those expressly designated by the

manufacturer, are the user’s responsibility.

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United

States and/or other countries. ScanBack is a trademark of Lexmark International, Inc.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by theCTED RIGHTS. Use, duplication or disclosure by the

Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and

Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,ware clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,

Lexington, KY 40550.KY 40550.

Step 1: Set up your printerour printer . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Modifying your high capacity feeder or base cabinet . . . . . . . .1

Selecting a location for your MFP . . . . . . . . . . . . . . . . . . . . . . .3

Step 2:2: Set up the scanner standcanner stand . . . . . . . . . . . . . . . . . . . . 4

Unpacking the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Assembling the standbling the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Step 3: Install the control unitll the control unit . . . . . . . . . . . . . . . . . . . . . . . 6

Step 4: Mount the power supplyunt the power supplysupply . . . . . . . . . . . . . . . . . . . . . 8

Step 5:5: Attach the stand to the printernd to the printer . . . . . . . . . . . . . . . . 9

Attaching the optional finisher . . . . . . . . . . . . . . . . . . . . . . . . . .9

Step 6: Install the scannerstall the scanner . . . . . . . . . . . . . . . . . . . . . . . . . 100

Unpacking the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Installing the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Step 7: Attach cables and cordsnd cords . . . . . . . . . . . . . . . . . . . . 11

Step 8:ep 8: Complete the hardware setuphe hardware setupp . . . . . . . . . . . . . . . . 13

Installing the printer operator panel cover . . . . . . . . . . . . . . .13

Attaching the Quick Reference . . . . . . . . . . . . . . . . . . . . . . . .14

Turning on the control unit and printer . . . . . . . . . . . . . . . . . .15

Step 9: Configure your MFPyour MFP . . . . . . . . . . . . . . . . . . . . . . . . 166

Setting the IP addressP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Configuring Scan to E-mailmail . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Configuring Fax Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Registering with a Windows NT domain serverT domain server . . . . . . . . . . .18

Step 10: Verify setupp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Making a test copypy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Sending a test fax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Sending a test e-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Sending a network print job to the MFPwork print job to the MFP . . . . . . . . . . . . . . . . .20

Troubleshootingeshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

If you need more helpf you need more help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Maintaining your MFPur MFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cleaning the touch screench screen . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Cleaning the scanner bed . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Cleaning the scanner rollers . . . . . . . . . . . . . . . . . . . . . . . . . .22

Cleaning the scanner pick pads . . . . . . . . . . . . . . . . . . . . . . .24

Lexmark Document Distributorxmark Document Distributorument Distributorbutor . . . . . . . . . . . . . . . . . . . . . 25

vii

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Emission notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Telecommunications notices . . . . . . . . . . . . . . . . . . . . . . . . .288

viii

Set up your printer

Your printer supports either an optional

high capacity feeder or an optional base

cabinet. You need one of these options

for your printer to fit properly into the

stand.

Whether you have a printer that you

need to set up, or you already have an

installed printer, you need to modify your

high capacity feeder or base cabinet.

Modifying yourur

high capacity feedery feeder

or base cabinetcabinet

If you haven’t set up your printer yet,

unpack the high capacity feeder or base

cabinet and remove any packing

materials. Be sure to remove any foam

and tape from inside. Save the carton

and packing materials if you need to

repack the option later.

You need a Phillips screwdriver to modifyPhillips screwdriver to modify

and install the high capacity feeder.

Note: If you prefer not to disassemble

the printer, use a 7/32 socket wrench to

reach under the base cabinet and

remove the stabilizer feet.zer feet.

If you have already set up your printer,

you need to disassemble it and remove

the high capacity feeder or base cabinet.

Refer to “Removing printer parts”on the

printer publications CD for information on

how to do this.

2Set up your printer

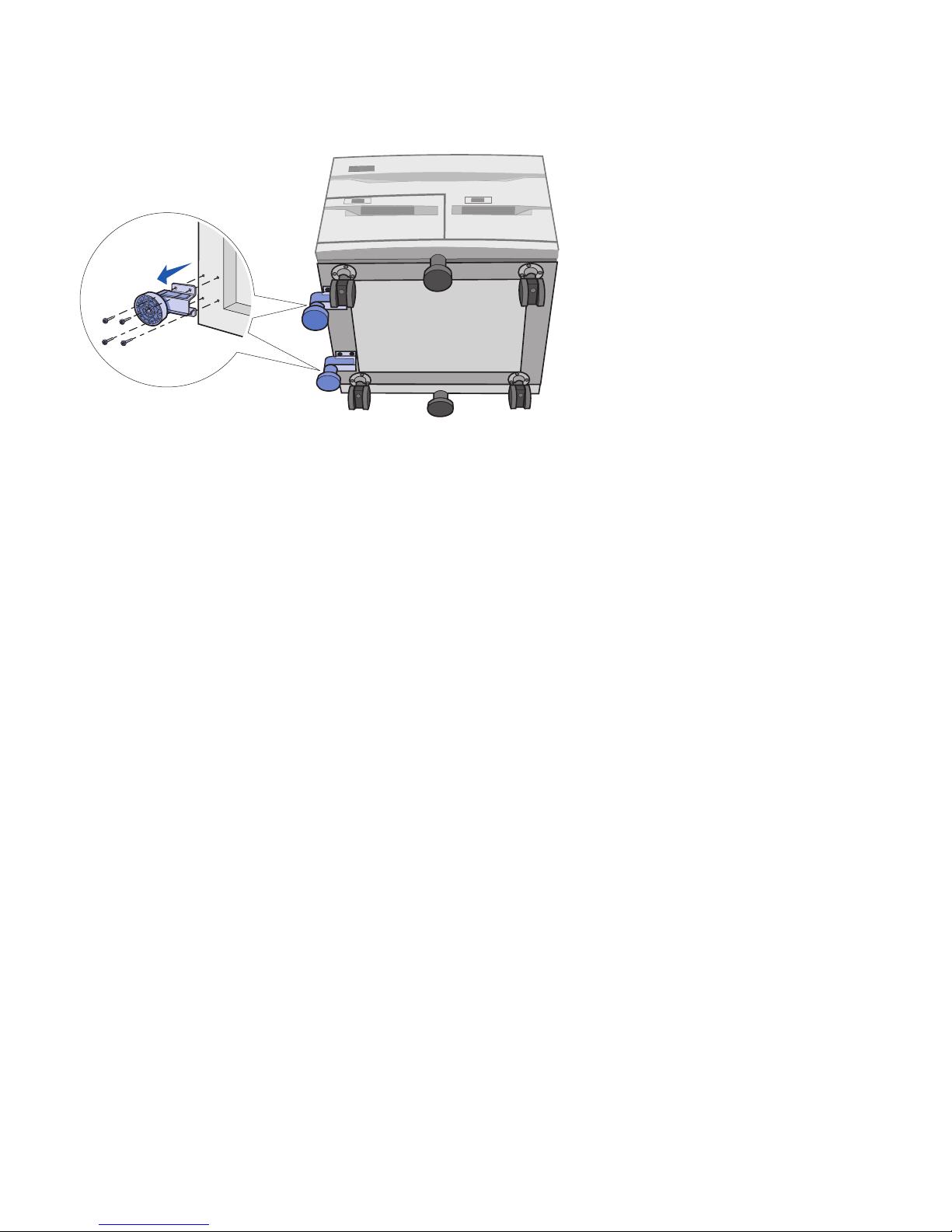

1Place the high capacity feeder or

base cabinet on its back.

2Remove the four screws attaching

the two stabilizer feet as shown.

Remove the stabilizer feet.

3Return the high capacity feeder or

base cabinet to its upright

position.

4Set up the drawer or high capacity

feeder, your printer, and any other

paper handling options except an

optional finisher. If you have a

finisher, attach it later. ForFor

instructions on how to install these

items, refer to your printer Setup

Guide.

5Verify the printer hardware setup

by printing the menu settings

page.

6Unplug all power cords, fax and

phone cables, and network cables

from their electrical outlets. This

includes all cords and cables

attached to a computer, printer,

scanner, and any other

peripherals connected to an

outlet.
