Levolor InMotion Manuel utilisateur

Remote

Control

Guide

Top-Down/

Bottom-Up

and

Day/Night

Table of Contents

Product Overview

Shade Styles ....................................................... 1

Product Positioning ............................................ 1

Top-Down/Bottom-Up and Day/Night Shades...... 2

Remote Overview

Remote Control.................................................. 3

Battery Installation ........................................... 4

Wall Holder ........................................................ 5

Programming

Getting Started .................................................. 6

Favorite Position .................................................7

Operating Mode ................................................. 8

Motor Speed ...................................................... 9

Travel Limits .....................................................10

Operation

Operating Instructions .................................... 11

Additional Information

Troubleshooting ...............................................12

Warranty ...........................................................12

Customer Service ............................................12

Speciﬁcations ...................................................13

Declarations ......................................................13

Remote Control Guide

Thank you for choosing LEVOLOR®InMotion™ motorized

window coverings. This product has been custom built

for you from the highest quality materials. To avoid errors

and save valuable time, please read these instructions to

ensure you are properly programming your new remote.

Visit LEVOLOR.com/InMotionSupport for additional

information.

Remote Control Guide

Product Overview

Shade Styles

This remote is designed to control Top-Down/Bottom-Up

and Day/Night lift style shades.

Product Positioning

Each shade comes with predeﬁned position limits that can

be adjusted as needed.

Upper Limit

This is the highest position available which provides the

best view and protects product from damage.

Lower Limit

This is the lowest position available which fully covers the

window and matches the length requested at time of order.

Favorite Position

This is the preset position that is saved on the shade. At the

factory, the favorite position is set with the bottom rail fully

lowered and the middle rail 50% lowered. Send to Favorite

Position by holding the stop button.

Headrail Headrail

Middle

Rail

Middle

Rail

Bottom

Rail

Bottom

Rail

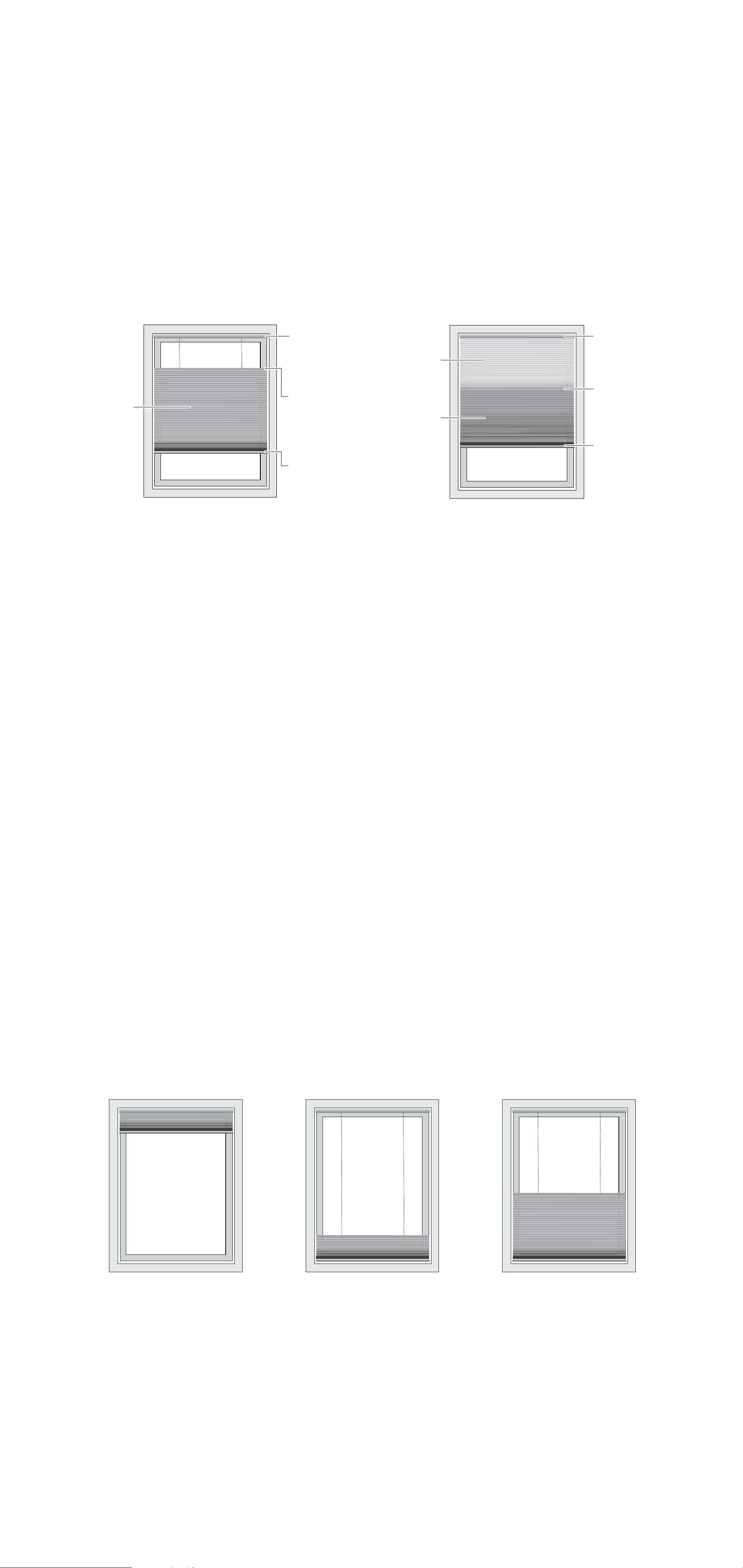

Top-Down/Bottom-Up Day/Night Shade

Upper limit Lower Limit Favorite

One

Fabric

Panel

Fabric

Panel A

Fabric

Panel B

Home

Remote Control Guide

Product Overview

Top-Down/Bottom-Up and Day/Night Shades

Programming

Programming button, charging port, and indicator

light are located in the shade’s right headrail end cap.

Programming button does not act as a manual control and

the shade will not move when the button is pressed.

During setup, the shade will conﬁrm programming by

jogging, with a slight down and up movement.

Charging

Magnetic charging insert comes installed in shade. For easy

charging, attach the magnetic charging adapter to the

micro-USB charging cable and power adapter before

connecting to the headrail to charge. For standard

charging, remove the magnetic charging insert from

the headrail and use the micro-USB charging cable and

power adapter.

Indicator light will flash red when battery is low, flash green

during charging, and remain green when fully charged.

NOTE: Before installation, fully charge shade.

Programming Button

Micro-USB Charging Port

Indicator Light

Magnetic Charging Standard Charging

Magnetic

Charging

Insert

Magnetic

Charging

Adapter

Micro-USB

Charging

Cable

Home

Remote Control Guide

Remote Overview

Remote Control

The LEVOLOR InMotion remote has 15 available channels

and each channel can control up to 20 shades at once.

This remote is designed to control Top-Down/Bottom-up

and Day/Night style shades.

LCD Display

Bottom Rail - Up Middle Rail - Up

Stop (Hold to send

to favorite position)

Bottom Rail - Down Middle Rail - Down

Higher

Channel

Lower

Channel

(0 controls

all channels)

2 AAA Batteries

(included)

Screw

(Install after programming)

Switch

Front View

Back View

(Bottom Rail)

Home

Remote Control Guide

Remote Overview

Battery Installation

Gently press down on cover and slide to remove.

Install 2 AAA batteries (included). Align batteries as

shown below.

Program your remote, replace the back cover and

install closure screw.

Install (2) AAA

Batteries

As Shown

Install Screw

Remove

Back

Cover

Replace

Back

Cover

Home

Remote Control Guide

Remote Overview

Wall Holder

Provide a home for LEVOLOR remotes with the

remote holder.

Tools Needed to Mount Remote Holder

•Power drill

•3⁄32” drill bit

•Phillips screwdriver

•Pencil

Remote Holder Mounting Instructions

Choose location and mark wall plate placement.

If you are mounting onto wood, use a 3⁄32” drill bit

to drill pilot hole. If you are mounting onto drywall,

use the included drywall anchor.

Attach the wall plate to the wall using the screw

provided; ensure the curved edge is on top.

Slide mounting disc over wall plate and snap

into place.

Place remote on mounting disc and gently slide

downward to seat remote onto holder.

Slide remote upward to remove from holder.

Wall Plate

(Install Curved

Edge to Top)

Mounting

Surface

Mounting

Disc

Home

Remote Control Guide

Programming

Getting Started

During programming, shades will jog by moving slightly

down and up.

Certain programming functions will aﬀect all shades on

the selected channel such as – favorite position, travel

limits, operating mode, and motor speed. To program an

individual shade, pair to its own channel or put all other

shades into sleep mode. Put shades to sleep by pressing

the programming button for 6 seconds until the motor

jogs x 2. Wake shades by pressing the programming

button for less than 1 second.

Select a Channel

Use channel 0 to control all channels together.

Press the

button on the remote to select a lower

channel.

Press the +button on the remote to select a higher

channel.

Hide Unused Channels

Select a channel other than 0, then press and hold

the

and +buttons simultaneously until remote

control displays “C” then “15”, then release buttons.

Press the

or +buttons until the number of visible

channels needed is shown (between 1 and 15).

Press the stop button to conﬁrm selection. The

screen will display “o” once to conﬁrm selection.

NOTE: Repeat steps 1-3 to unhide channels.

Home

Remote Control Guide

Programming

Pair Remote to Shade

Use the

and +buttons to select the channel to pair.

Press and hold the programming button on the

motor (about 2 seconds) until the motor jogs x 1.

In the next 10 seconds, press and hold the stop

button on the remote until the motor jogs x 2.

NOTE: Repeat steps 1-3 to unpair remote.

Favorite Position

To send to favorite position, press and hold the stop button.

Favorite position is preset, but can be reset to ﬁt your

needs. To create a new favorite position, you must ﬁrst

delete the existing favorite position.

This procedure will set the favorite position on all shades

assigned to a channel.

Delete Favorite Position

Use the

and +buttons to select the channel to

delete the favorite from.

Press one P2 button in the battery compartment of

the remote until motor jogs x 1.

Press and hold the stop button on the remote

until the motor jogs x 1.

Press and hold the stop button on the remote

again, until the motor jogs x 1.

Set Favorite Position

Use the up and down buttons to move shade to

the desired position.

Press one P2 button in the battery compartment of

the remote until motor jogs x 1.

Press and hold the stop button on the remote

until the motor jogs x 1.

Press and hold the stop button on the remote

again, until the motor jogs x 2.

Home

Remote Control Guide

Programming

Operating Mode

This procedure will set the operating mode on all shades

assigned to a speciﬁc channel.

All shade motors can be set to two diﬀerent operating modes.

Continuous Mode (Default setting)

Recommended for cellular shades.

Motor continues to move after a short press of the up or

down buttons until the stop button is pressed or until

the limit is reached.

Press and hold (about 5 seconds) the left up and 

down buttons simultaneously until the motor jogs x 1.

Press and hold (about 2 seconds) the stop button

until the motor jogs x 2.

Intermittent Mode

Motor moves a small amount after a short press of the

up or down buttons and continues to move after a

long press of the up or down buttons until the stop

button is pressed or the limit is reached.

Press and hold (about 5 seconds) the left up and 

down buttons simultaneously until the motor jogs x 1.

Press and hold (about 2 seconds) the stop button

until the motor jogs x 1.

Home
