LevelOne WBR-6012 Manuel utilisateur

LevelOne

User Manual

Ver. 1.0

WBR-6012

300Mbps Wireless Router

Safety

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or

modifications to this equipment may cause harmful interference unless the

modifications are expressly approved in the instruction manual. The user could

lose the authority to operate this equipment if an unauthorized change or

modification is made.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 class B for ITE, the essential protection requirement of

Council Directive 89/336/EEC on the approximation of the laws of the Member

States relating to electromagnetic compatibility.

CE Marking Warning

Hereby, Digital Data Communications, declares that this product is in

compliance with the essential requirements and other relevant provisions of

Directive 1999/5/EC.

The CE-Declaration of Conformity can be downloaded at:

http://www.levelone.eu/support.php

General Public License

This product incorporates open source code into the software and therefore

falls under the guidelines governed by the General Public License (GPL)

agreement.

Adhering to the GPL requirements, the open source code and open source

license for the source code are available for free download at

http://global.level1.com.

If you would like a copy of the GPL or other open source code in this software

on a physical CD medium, LevelOne (Digital Data Communications) offers to

mail this CD to you upon request, for a price of US$9.99 plus the cost of

shipping.

Table of Contents

Chapter 1 Introduction........................................................................... 5

1.1 Packing List................................................................................. 5

1.2 Spec Summary Table................................................................. 5

1.3 Hardware Configuration............................................................. 7

1.4 LED indicators............................................................................. 8

1.5 Button Definition ......................................................................... 8

1.6 Procedure for Hardware Installation........................................ 9

Chapter 2 Making Configuration........................................................ 11

2.1 Login to Configure from EZsetup........................................... 18

2.2 Login to Configure from Wizard ............................................. 18

2.3 System Status........................................................................... 22

2.4 Advanced................................................................................... 23

Appendix A FAQ and Troubleshooting............................................. 75

What can I do when I have some trouble at the first time?...... 75

How do I connect router by using wireless?............................... 77

IPAddress 192.168.1.1

Password admin

Wireless Mode Enable

Wireless SSID LevelOne

Wireless Security None

iio

Congratulations on your purchase of this outstanding Wireless Broadband Router. This

product is specifically designed for Small Office and Home Office needs. It provides a

complete SOHO solution for Internet surfing, and is easy to configure and operate even for

non-technical users. Instructions for installing and configuring this product can be found in this

manual. Before you install and use this product, please read this manual carefully for fully

exploiting the functions of this product.

1.1 Packing List

WBR-6012

Power Adapter

RJ-45 LAN Cable

Quick Installation Guide

CD Manual/QIG

Antenna

1.2 Spec Summary Table

Device Interface

Ethernet WAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 1

Ethernet LAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 4

Antenna 2 dBi fixed antenna 2

WPS

Button/Wireless On For WPS connection and Enable “Wireless

Function” 1

Reset Button Reset to Factory Default setting 1

LED Indication Status / WAN / LAN1 ~ LAN4/ WiFi ●

Power Jack DC Power Jack, powered via external DC 5V/1A

switching power adapter 1

Wireless LAN (WiFi)

Standard IEEE 802.11b/g/n-lite compliance ●

SSID SSID broadcast or in stealth mode ●

Channel Auto-selection, manually ●

Security WEP, WPA, WPA-PSK, WPA2, WPA2-PSK ●

WPS WPS (Wi-Fi Protected Setup) ●

WMM WMM (Wi-Fi Multimedia) ●

Functionality

Ethernet WAN PPPoE, DHCP client, Static IP ●

WAN Connection Auto-reconnect, dial-on-demand, manually ●

One-to-Many NAT Virtual server, special application, DMZ, Super

DMZ(IP pass-through) ●

NAT Session Support NAT session (10000) ●

SPI Firewall IP/Service filter, URL blocking. ●

DoS Protection DoS (Deny of Service) detection and protection ●

Routing Protocol Static route, dynamic route (RIP v1/v2) ●

Management SNMP, UPnP IGD, syslog, DDNS ●

Administration Web-based UI, remote login, backup/restore

setting ●

Performance NAT up to 90Mbps and Wireless up to70Mbps

Environment & Certification

Package

Information Device dimension156x110x22 (mm) ●

Operation Temp. Temp.: 0~40oC, Humidity 10%~90%

non-condensing ●

Storage Temp. Temp.: -10~70oC, Humidity: 0~95%

non-condensing ●

EMI Certification CE/FCC compliance ●

RoHS RoHS compliance ●

*Specifications are subject to change without prior notice.

1.3 Hardware Configuration

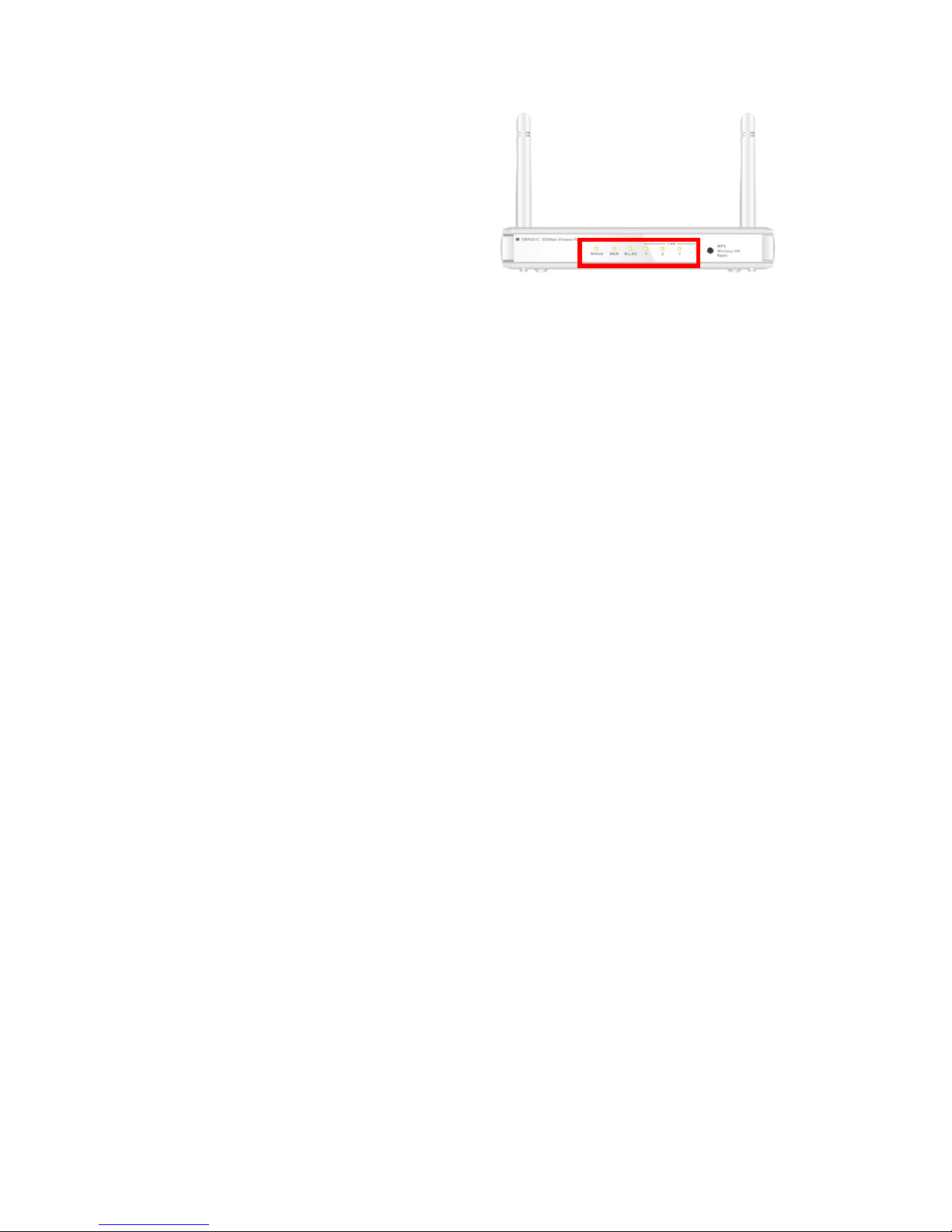

LED Indicators

Power LED

Power JACK

WAN PORT

LAN PORT

Antenna

LAN LED

WiFi LED

WAN

LED

3 in1 Button:1.WPS 2.Wireless ON 3.Reset

1.4 LED indicators

LED status Description

Status Green in flash Device status is working.

WAN LED

Green RJ45 cable is plugged

Green in flash Data access

LAN LED Green RJ45 cable is plugged

Green in flash Data access

WiFi LED

Green WLAN is on

Green in flash Data access

Green in fast flash Device is in WPS PBC mode

Green in dark Wi-Fi Radio is disabled

1.5 Button Definition

Description

WPS

When Wireless is On, press this button (about 1 sec) to execute

WPS function.

Wireless On

When Wireless is off, Press this button(about 5 sec) to enable

"Wireless Radio".

Reset

1. Press this button then Power on the device

2. Press about 5 second, the device will reset to default then Status

LED flashes per sec in Normal status.

Notice: If Status LED flashes very fast, it means to press this button

too long and please try again.

1.6 Procedure for Hardware Installation

Step 1 Insert the Ethernet cable into LAN

Port:

Insert the Ethernet patch cable into LAN port

on the back panel of Router, and an available

Ethernet port on the network adapter in the

computer you will use to configure the unit.

Step 2 Insert the Ethernet patch cable into

Wired WAN port:

Insert the Ethernet patch cable form DSL

Modem into Wired WAN port on the back panel

of Router.

Step 3. Power on Router:

Connect the power adapter to the receptor on

the back panel of your Router.

Step 4. Complete the setup.

When complete, the Status LED will flash.
