LevelOne WBR-3601 Manuel utilisateur

WBR-3601

11g Wireless ADSL2+ Modem Router

Quick Installation Guide

English

Package Contents

WBR-3601

Power Adapter (12V AC, 1A)

RJ-11 ADSL / Telephone Cable

RJ-45 LAN Ethernet Cable

CD-ROM with Manual / Utility

Quick Installation Guide

If any of the above items are missing, please contact your retailer

or distributor.

Before you begin, please have your ISP’s username and

password details ready.

Default Settings

IP Address

192.168.0.1

User/Password

admin / password

Wireless Mode

Enable

Wireless SSID

WBR-3601

Security

None

English

Installation

1. Connect the ADSL activated Telephone line

2. Connect the Computer LAN cable to an available LAN port.

3. Plug in the Power Adapter

4. Press the Power ON switch on the rear of the router.

5. Wait until the PWR and ADSL Link lights remain lit green (not

blinking) and the relevant LAN is lit.

Note: If the ADSL Link light continues to blink, it means that that router cannot find

an active ADSL connection. Please contact your Internet Service Provider for

support.

6. Installation is now complete. You can now begin to set up the

device.

Setup

1. Start your WEB browser. In the Address box, enter the

following:

http://192.168.0.1

2. When prompted, use the following username and password.

User Name: admin

Password: password

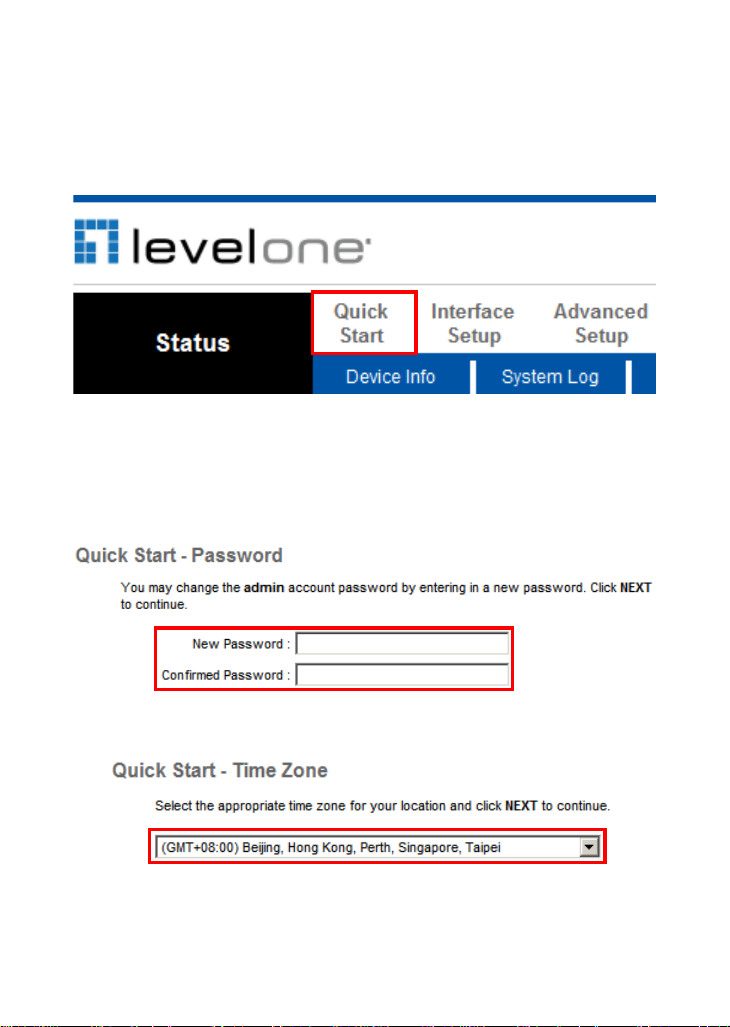

3. The first time you connect to the WBR-3601, you should run

the Quick Start Wizard to configure the ADSL and Internet

Connection. Click Quick Start on the menu.

4. Please create a new password for the router.

Leaving it as default could be a security risk.

5. Select your Time Zone.

6. There are many ways to connect to your Internet Service

Provider. Please refer to the table below to ensure your

choices are correct.

In all cases, you will be required to enter the VPI and VCI

settings. This must be provided to you by your Internet Service

Provider.

Connection Type

Data required.

Dynamic IP Address

Usually, none.

Static (Fixed) IP

Address

IP Address allocated to you, and

related information, such as Network

Mask, Gateway IP address, and DNS

address.

PPPoE, PPPoA

a) User name and password are

always required.

b) If using a Static (Fixed) IP address,

you need the IP address and related

information (Network Mask, Gateway

IP address, and DNS address)

Bridge Mode

The authentication process is not done

by the WBR-3601, but by another

device or PC. Note that the router and

firewall functions do not apply under

this mode.

7. When the Quick Start Wizard is complete, click “Next” to save

the settings and restart the router. You will be required to enter

your new password.

Click “Close” to exit the Quick Start Wizard.

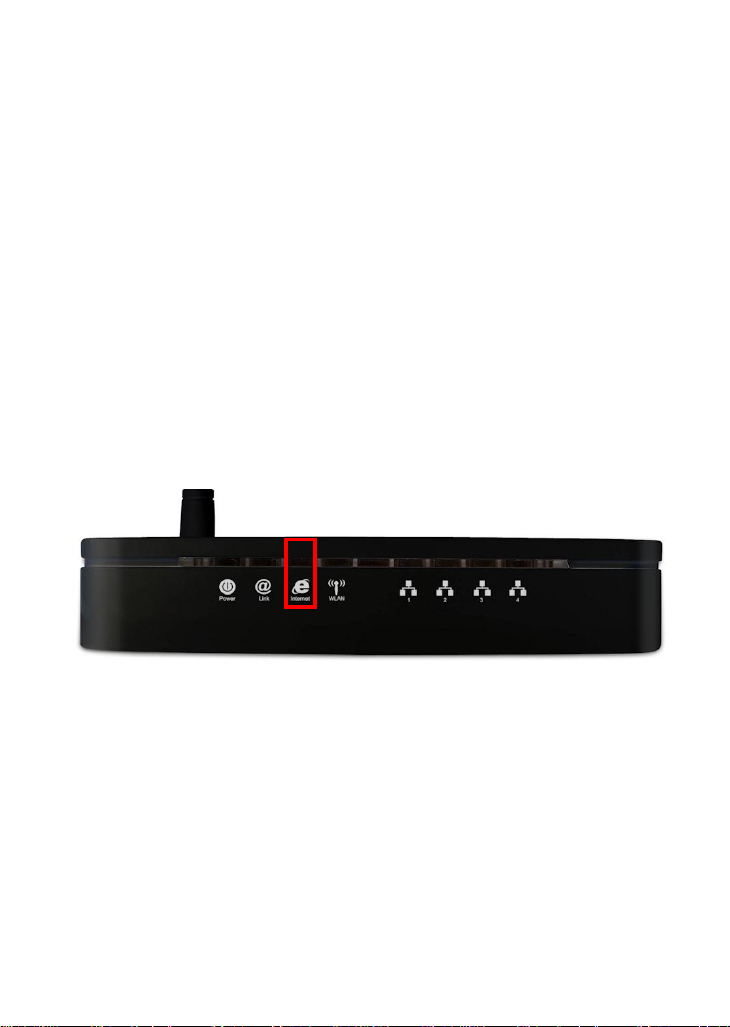

8. If successful, the Internet light should now be on.

Now you can access the Internet.

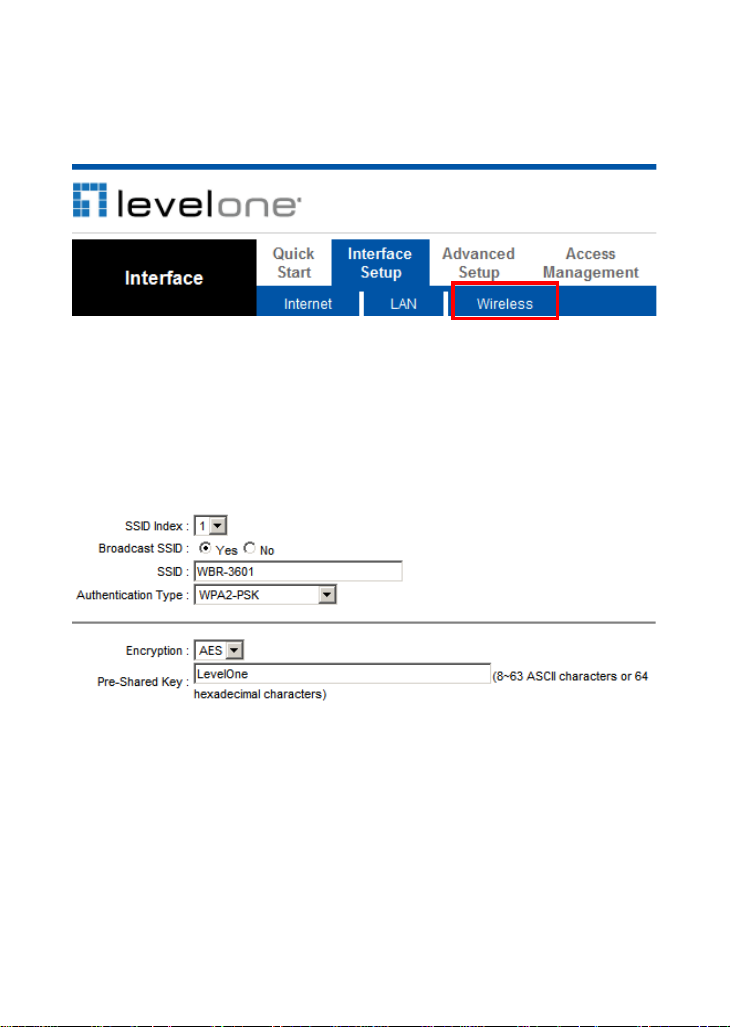

9. Finally, to set up your wireless settings, please click “Interface

Setup” and then “Wireless”.

10.Here you can select your Wireless ID (SSID) and the security

encryption.

Note: LevelOne recommends WPA2-PSK (AES) for maximum security.

11.Congratulations! Setup of WBR-3601 is now complete.
