LevelOne FCS-0051 Instructions d'utilisation

Fixed Network Camera

Hardware User Manual

FCS-0051

Ver. 2014/05/05

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions ...........................................................................5

Introduction 6

List of Models....................................................................................6

Package Contents.............................................................................6

Physical Description ........................................................................7

Basic Connections ...........................................................................8

Accessing the Camera 9

Configure the IP Addresses.............................................................9

Using DHCP Server to Assign IPAddresses..................................9

Using the Default Camera IPAddress.......................................... 11

Access the Camera.........................................................................13

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

Hardware Manual

Safety Instructions

Don’t open the housing of the product

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual

Introduction

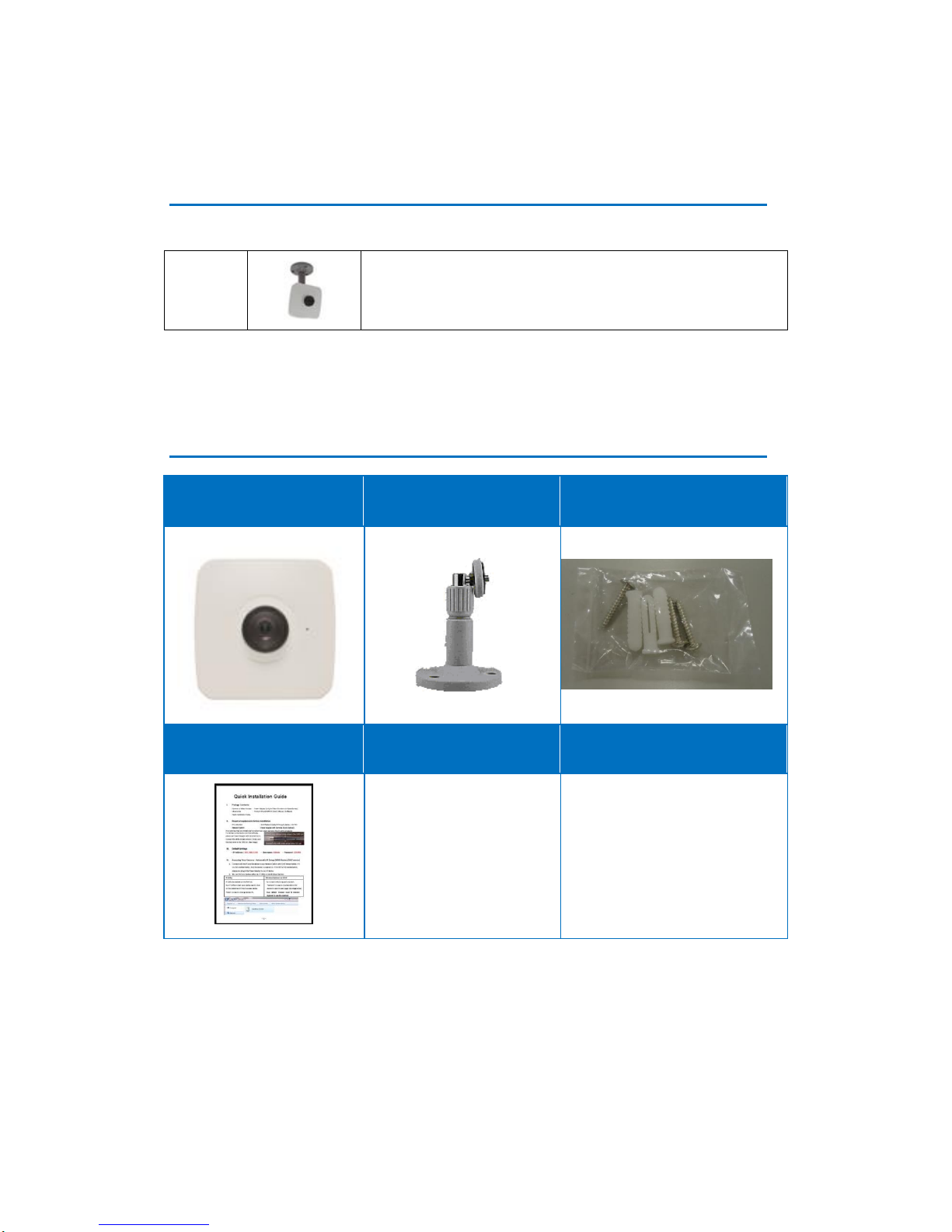

List of Models

This hardware manual contains the following models:

FCS-0051

Fixed Network Camera, 5-Megapixel, PoE 802.3af, WDR

Package Contents

Camera

Bracket

Mounting Screw Kit

Quick Installation Guide

Hardware Manual

Physical Description

Item

Description

Memory Card Slot

Insert a memory card into this slot for local recording purposes.

NOTE: Supports microSDHC and microSDXC cards.

Built-in Microphone

Connects to audio input devices, such as a microphone with

built-in amplifier, etc.

NOTE: The microphone must have a built-in amplifier.

Connecting an ordinary microphone will dwarf sounds and will

result in inaudible recording.

Audio Output

Connects to audio output devices, such as a speaker, etc.

Reset Button

The purpose of reset button is to restore the factory default

settings of the camera, including administrator’s password.

The reset button can be used for following purposes:

1. The administrator’s password has been forgotten and

therefore the camera cannot be accessed.

2. In case of IP address, mask, or allow/deny filter related

issues, resulting with inability to modify these settings.

3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Using a pointed object, such as a paper clip, press and hold the

reset button for at least 5 seconds.

Ethernet Port

Connects to a network using a standard Ethernet cable.

Hardware Manual

Basic Connections

Follow the procedures below to connect the IP device to the respective apparatuses.

Please use a PoE (Power over Ethernet) supported switch or injector:

1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45

connector.

2) Connect your PoE Switch / Injector to PC with another CAT5 / CAT6 network cable.

Hardware Manual

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC

have to be within the same network segment. In most cases, it means that they both should

have very similar IP addresses, where only the last number of the IP address is different from

each other. There are 2 different approaches to IP Address management in Local Area

Networks –by DHCP Server or Manually.

Using DHCP Server to Assign IP Addresses

If you have connected the computer and the camera into the network that has a DHCP server

running, then you do not need to configure the IP addresses at all –both the camera and the

PC would request a unique IP address from DHCP server automatically. In such case, the

camera will immediately be ready for the access from the PC. The user, however, might not

know the IP address of the camera yet. It is necessary to know the IP address of the camera in

other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network

search, built in the Windows system –just by pressing the “Network” icon, all the cameras of

the local area network will be discovered by Windows thanks to the UPnP function support of

our cameras.

In the example below, we successfully found the camera that we had just connected to the

network.

Hardware Manual

By double-clicking with the left mouse on the camera model, it is possible to automatically

launch the default browser of the PC with the IP address of the target camera filled in the

address bar of the browser already.

If you work with our cameras regularly, then there is even a better way to discover the

cameras in the network –by using IP Utility. The IP Utility is a light software tool that can not

only discover the cameras, but also list lots of valuable information, such as IP and MAC

addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple

devices at the same time.

The IP Utility can be downloaded for free from our website.

With just one click, you can launch the IP Utility and there will be an instant report as follows:

You can quickly see the camera model in the list. Click on the IP address to automatically

launch the default browser of the PC with the IP address of the target camera filled in the

address bar of the browser already.
