LevelOne FCS-1081 Manuel utilisateur

LevelOne

FCS-1081 / FCS-1081A

PoE IP Camera

User Manual

Ver:2.3.0-0812

Before You Use This Product

The use of surveillance devices may be prohibited by law in your country. The Network

Camera is not only a high-performance web-ready camera but also can be part of a

flexible surveillance system. It is the user’s responsibility to ensure that the operation of

such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the list in

the "Package Contents" chapter. Take notice of the warnings in “Quick installation

guide” before the Network Camera is installed, then carefully read and follow the

instructions in the “Installation” chapter to avoid damages due to faulty assembly and

installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those

who have basic network knowledge. The “Troubleshooting” chapter in the Appendix

provides remedies to the most common errors in set up and configuration. You should

consult this chapter first if you run into a system error.

The Network Camera is designed for various applications including video sharing, general

security/surveillance, etc. The “How to Use” chapter suggests ways to best utilize the

Network Camera and ensure proper operations.

For paragraphs preceded by the reader should use caution to understand completely the

warnings. Ignoring the warnings may result in serious hazards or injuries.

ATTENTION

1. All operation please refer to the instruction.

2. Please don’t place the product on unstable desk or bracket.

3. Please avoid any liquid permeate inside of the machine in case damage the product.

4. Before wiring, please follow all electronic safety standards, and using the

recommendable power supply adapter.

5. Do not let the camera aim at sun or other lighting objects no matter the camera is

operating or not, otherwise it might damage the CCD camera permanently.

6. When the product is out of order, please do not try to fix it by yourself, please refer to

the trouble shooting section of this instruction to figure out the problems in advance.

If the problem is not found, please contact us or our authorized dealers directly.

7. All the features and functions are subject to change without notice. Please visit

www.level1.com for the latest ones.

Table of Contents

Before You Use This Product .......................................................................... 2

Package Contents............................................................................................2

Hardware Installation .......................................................................................2

Software Installation.........................................................................................4

Install “IP CamLocator” ................................................................................... 4

Install “IP CamSecure” .................................................................................... 5

How to Use IP CamLocator..............................................................................7

Initial use IP Cam Locator............................................................................... 7

Configuration of Main Console........................................................................ 7

How to Access to the Network Camera..........................................................30

Initial accessing the network camera .............................................................30

Setting............................................................................................................34

Trouble shooting sheet...................................................................................69

Technical Parameters ....................................................................................70

Streaming Video/Audio Solution.....................................................................71

GNU GENERAL PUBLIC LICENSE...............................................................72

Package Contents

FCS-1081 / FCS-1081A

Fixed Lens

Camera Stand

CD Manual/Utility

Quick Installation Guide

Hardware Installation

Depending on the user’s application, an Ethernet cable may be needed.

The Ethernet cable should meet the specs of UTP Category 5 and not

exceed 100 meters in length.

Connect the power adapter jack to the Network Camera before

plugging in to the power socket. This will reduce the risk of accidental

electric shock.

Since FCS-1081/FCS-1081A is a PoE IP camera, it could work without attaching to power outlet as long as

it connects to PoE switch.

The Network Camera will first detect Ethernet. Until the Network Camera is connected to Network, the LED

will become green and flash. Operating in the Network mode, the green LED will flash every second as

heartbeat to indicate alive.

To install in Ethernet

Make sure the Ethernet is firmly connected to a switch hub. After attaching the Ethernet cable plug in the

power adapter if users want to have a redundant power. If the LED turns out to be steady green after

self-test, go to next paragraph “Software Installation”.

To adjust the camera setting

Consult with the dealer of the peripherals for correct installation.

The Network Camera provides the auto iris lens connector. If the

auto iris lens is used, the dip should be adjusted to AI option. And

you also have to select VIDEO drive or DC drive lens by select

correct iris mode. The pin assignment of the auto iris lens connector

is as follows.

Video Drive DC Drive

1. 12V, Power Source 1. DAMP -

2. Not used 2. DAMP +

3. IRIS 3. DRIVE +

4. Ground 4. DRIVE -

BLC / OFF Back Light Control

AES / AI Auto Electronic Shutter or Auto-Iris lens

DD / VD DC drive or VIDEO drive auto-iris lens

LEVEL Brighten or darken the video image

To adjust the lens

There is a fixed lens free bundled. Whereby revolving the lens, it can be focused on. However, users shall

loosen or tighten the gray loop by using the wrench attached in the package.

1.Unscrew it first

2. Loosen or tighten

the gray loop.

Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and

"Administrator" refers to the person who can configure the Network Camera and grant user

access to the camera.

At the end of the hardware installation, the Administrator must place the product software CD

into the CD-ROM drive of the PC running in MS Windows. An auto-run program will pop up (If

the program is not on auto-run, go to the root directory of the software CD and click on

“autorun.exe”).

Install “IP CamLocator”

Click on “Install Software” item, after the window contains changed, click on “IP

CamLocator” to run installation program.

Upon IP CamLocator’s start up, this program searches for LevelOne’s products on the same

LAN. After searching, LevelOne Video Servers or Network cameras will be located by the IP

CamLocator. There may be several entries shown in the window. The Administrator may

differentiate the Network cameras with the model number and MAC address.

The IP addresses shown in the "IP Address" field reflect those on the local network. They

may be from the DHCP server. If there is no DHCP server, the camera will try to find a free

IP address (this takes from 15 second to 3 minutes, depending on the LAN status). The

method of finding IP address is seeking from 192.168.0.2, to 192.168.0.254. If any of the

address inside this range is free, the Network Camera will be assigned to this IP address, and

its subnet mask would be 255.255.255.0.

Install “IP CamSecure”

Click”Install Software”

Click”IP CamSecure” and follow the onscreen instruction or refer to the user’s manual to

complete installation.

Custom Setup Type:

You may install the system to the directory of your

preference and choose which feature(s) you want to

install to the PC.

Hint: You may, for instance, install only Playback

and/or LiveView on the PC at home or other remote

site from which you do not install the camera but are

going to watch them remotely.

How to Use IP CamLocator

This chapter introduces how to monitor the image from the camera using IP CamLocator.

The LevelOne video server and Network camera can be used with Microsoft web browsers

and IP CamLocator in Windows operation systems. This document focuses on introducing IP

CamLocator.

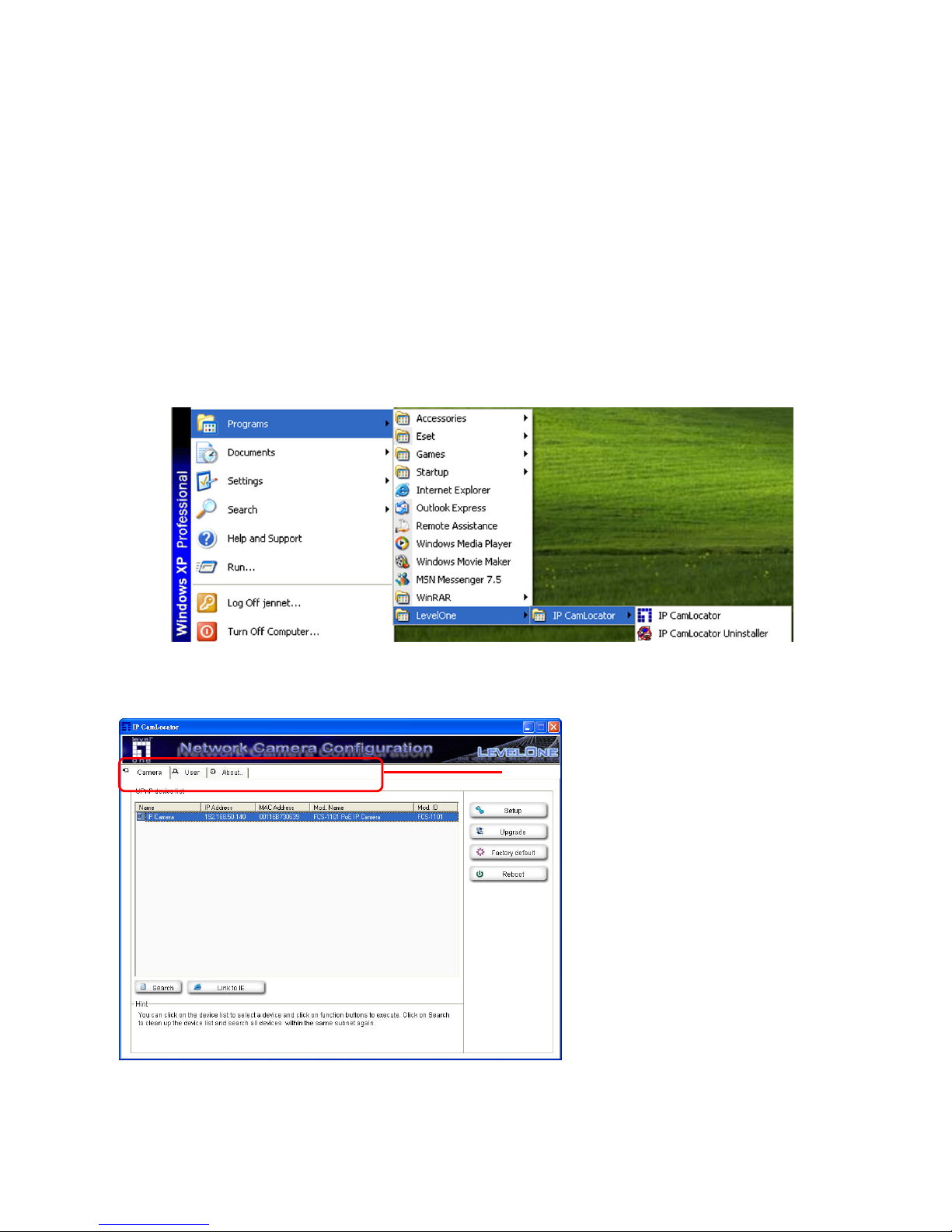

Initial use IP Cam Locator

Click Start -> Program Files -> LevelOne -> IP Cam Locator -> IP Cam Locator.

Configuration of Main Console

Main Menu
