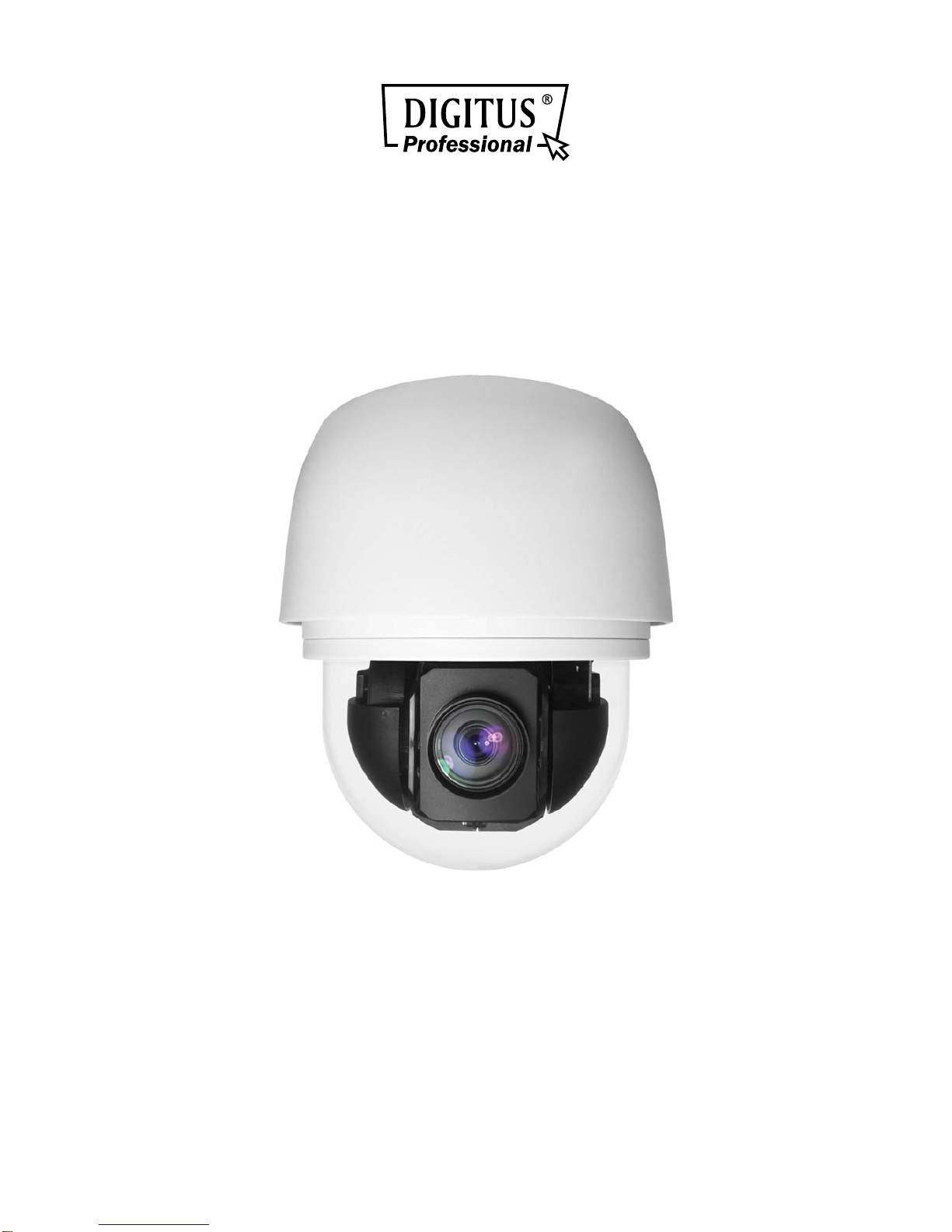

Digitus DN-16085-1 Manuel utilisateur
Full HD WDR
Speed Dome IP Camera
User’s Manual
DN-16085-1
Ver. 1.0
1
Table of Contents
1.Overview.................................................................................................................................. 2
1.1Features........................................................................................................................ 2
1.2Package Contents......................................................................................................... 3
1.3Dimensions.................................................................................................................... 4
1.4 Connectors....................................................................................................................5
2.Camera Cabling....................................................................................................................... 6
2.1Power Connection......................................................................................................... 7
2.2Ethernet Cable Connection........................................................................................... 7
2.3Alarm I/O Connection.................................................................................................... 8
2.4Audio I/O Connection.................................................................................................... 8
3.System Requirements ............................................................................................................ 9
4.Access Camera..................................................................................................................... 10
5.Setup Video Resolution........................................................................................................ 13
Appendix B: Delete the Existing DC Viewer............................................................................... 14
Appendix C: Setup Internet Security .......................................................................................... 15
2
1. Overview
The Full HD WDR Speed Dome IP Camera (DN-16085-1) transmits digital video
and audio data using wire connection. Live video can be monitored and
recorded from window-based computer via network.
The video encoder supports Real-time H.264 Full HD resolution. Simultaneous
Quad Codecs, H.264 Baseline / Main / High Profile, MJPEG, are available for
various network applications via speeding or limited bandwidth. Better image
quality and high resolution are delivered by IP support. It eliminates the
“combing” effect due to scene change and performs more stabilized image.
With IP solution, multiple and authorized users can view the immediate image
from any location through network even using a standard web browser. It
enables users to access and remote the camera without at specific locations.
1.1 Features
Sony Progressive Scan CMOS Sensor
18x / 20x / 30x Optical Zoom
12x Digital Zoom
Ultra Wide Dynamic Range (>96dB)
Dual Streams, Full HD 1080P Real-time + D1 Real-time
Noise Reduction
Electronic Image Stabilizer
IP66 International
ONVIF Support
3
1.2 Package Contents
Please check the box contains the items listed here. If any item is missing or
has defects, DO NOT install or operate the product and contact the dealer for
assistance.
Full HD Speed Dome
IP Camera
with Outdoor Mounting Kit
M3 Standard Screw (x1)
M3 Security Screw (x1)*
M5 Standard Screw (x1)
M5 Security Screw (x1)*
Waterproof Rubber
Quick Guide
CD: Operation Manuals
Optical Cover
Lubricant
Security Torx*
*For vandal proof cover only.
4
1.3 Dimensions
5
1.4 Connectors
Refer to the diagrams below for the positions of the default button and various
connectors of the camera. Definition of the default button and the connectors
are given as follow.
Pin Connector Definition
1 Alarm I/O Alarm I/O connection
2 Default Button Press the button with one figure for at least 20 seconds
to restore the system.
3 Audio I/O Audio I/O connection
4 RJ-45 For network and PoE+ connections
5 Power (AC 24V) Power connection
6 microSD Card Slot Insert the microSD card into the card slot to store videos
and snapshots. Do not remove the microSD card when
the camera is powered on.
NOTE: It is not recommended to record with the microSD card for 24/7
continuously, as it may not be able to support long term continuous data
read/write. Please contact the manufacturer of the microSD card for
information regarding reliability and life expectancy.
6
2. Camera Cabling
For indoor models, please refer to the following sections to connect cables. For
outdoor models, please read the notice below first, and then refer to the
following sections for cable connections.
Notice for Outdoor Model
The outdoor models are being IP66-rated to prevent water from entering the
camera. However, water might still enter the camera if it is being improperly
installed. Please make sure the warnings below are strictly followed when
installing the camera.
Place all cables and the adaptor in dry and well-waterproofed
environments, e.g. waterproof boxes. The purpose is to prevent moisture
accumulation inside the camera and moisture penetration into cables.
While running cables, slightly bend the cables to a U-shaped curve to
make a low point (as demonstrated in the figures below). The purpose is
to prevent water from entering the camera along the cables from above.
The cable entry hole of the outdoor mounting kit (indicated in the figure
below) needs to be sealed to avoid water from entering the camera.
7
2.1 Power Connection
To power up the camera, connect the AC 24V power adaptor to the power
connector of the camera and the power outlet. Please refer to the diagram and
the pin definition table below for connection. Alternatively, users can use High
Power over Ethernet (PoE+) to power up the camera if an IEEE 802.3at 60W
PoE+ switch is available. Refer to the section below for Ethernet cable
connection.
Pin Definition
1 AC 24V 1
2 GND
3 AC 24V 2
2.2 Ethernet Cable Connection
To have best transmission quality, cable length shall not exceed 100 meters.
Connect one end of the Ethernet cable to the RJ-45 connector of the camera,
and plug the other end of the cable to the network switch or PC.
NOTE: In some cases, Ethernet crossover cable might be needed when
connecting the camera directly to the PC.
Check the status of the link indicator and activity indicator LEDs. If the LEDs are
unlit, please check the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
8
2.3 Alarm I/O Connection
The camera supports 4 digital alarm inputs and 2 digital alarm outputs.
Please refer to the diagram and the pin definition tables below for alarm I/O
connection.
Pin Definition Pin Definition
1 Alarm Out NO 1 7 Alarm Out COM 2
2 Alarm Out NC 1 8 GND
3 Alarm Out COM 1 9 Alarm In 4
4 GND 10 Alarm In 3
5 Alarm Out NO 2 11 Alarm In 2
6 Alarm Out NC 2 12 Alarm In 1
2.4 Audio I/O Connection
Please refer to the diagram and the pin definition table below for audio I/O
connection.
Pin Definition
1 Audio Out
2 GND
3 Audio In
9
3. System Requirements
To perform the camera via web browser, please ensure the PC is in good
network connection, and meet the system requirement as described below.
Items Minimum Requirement
Personal Computer
1. Intel® Pentium® IV, 3 GHz or higher, Intel® Core2 Duo,
2 GHz or higher
2. 1 GB RAM or more
3. AGP graphics card 64 MB RAM, DirectDraw
Operating System Windows VISTA / Windows XP / Windows 7
Web Browser Internet Explorer 6.0 or later, Firefox, Chrome, Safari
Network Card 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer ActiveX control plug-in for Microsoft IE
