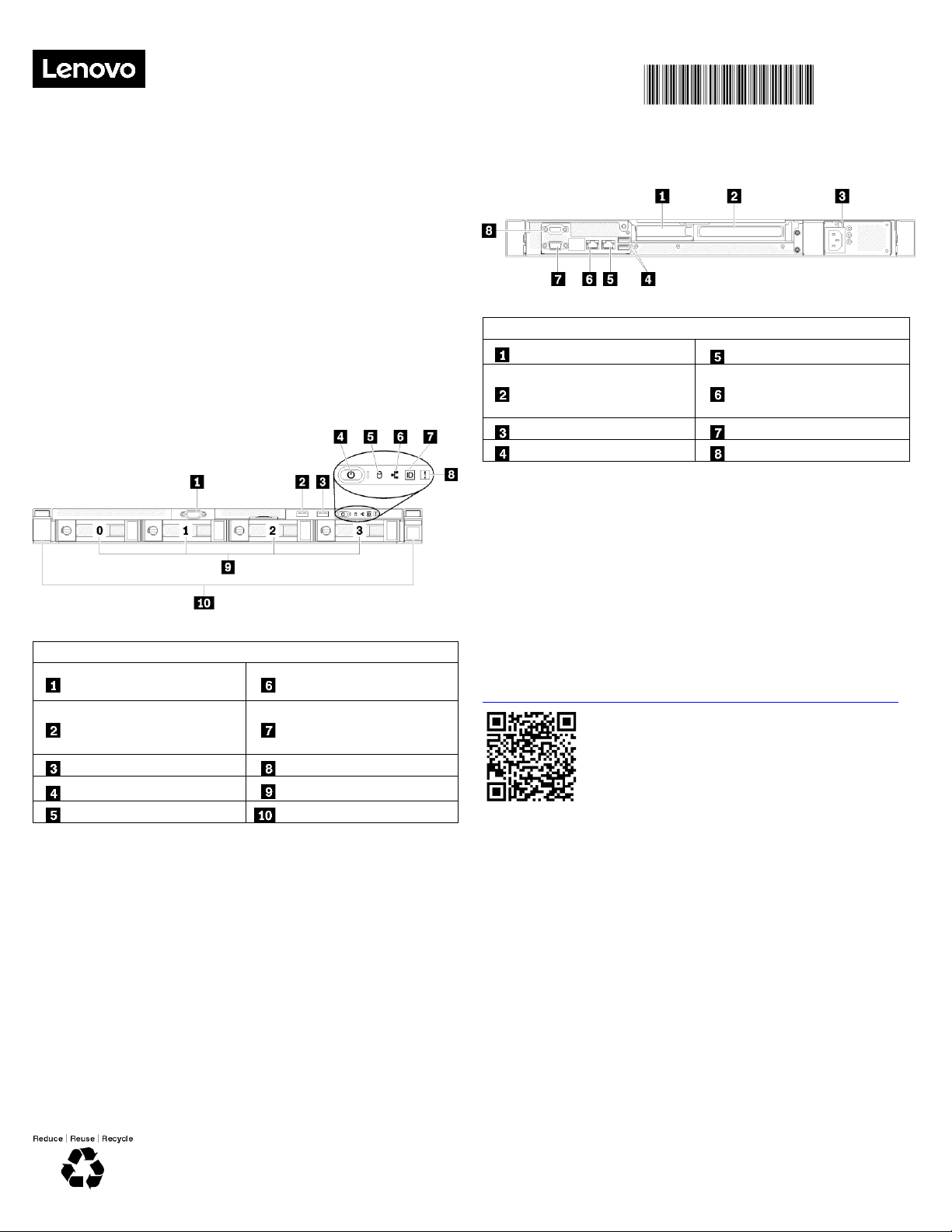

Lenovo ThinkSystem SR150 Manuel utilisateur

ThinkSystem SR150

Type 7Y54

Quick Start

PN: SP47A31791

Printed in China

Your shipping box contains the following items:

SR150

Material box, including printed documentation

If any item is missing or damaged, contact your place of purchase.

Ensure that you retain your proof of purchase and packing material.

They might be required to receive warranty service.

First glance

Server front view:

Server front view

VGA connector

Network activity LED

(green)

USB 2.0 with Lenovo

XClarity Controller

management

Identification button/LED

(blue)

USB 3.1 Gen1 connector

System error LED (yellow)

Power button/LED (green)

Simple-swap drive bays

Drive activity LED (green)

Rack release latches

Note 1: Depending on the configuration, the illustrations above might

differ slightly from your server.

Server rear view:

Server rear view

PCIe slot 1

LAN connector 2

PCIe slot 2

LAN connector 1 with

Lenovo XClarity Controller

management

Server power connector

VGA connector

USB 3.1 Gen1 connectors

Serial connector

Setting up the System

1. Install the required solution components.

2. Install the server into the rack.

See the Rack Installation Guide provided with the rail kit.

3. Connect the cables.

4. Connect the management controller to the network.

5. Power on the server.

6. Configure the system.

For detailed information about installing hardware options and

configuring the system, see the following website:

http://thinksystem.lenovofiles.com/help/topic/7Y54/introduction.html

Technical specifications

Dimensions and weight

Height: 43.0 mm (1.7 inches)

Width:

With rack handles: 481.7mm (18.9 inches)

Without rack handles: 434.4 mm (17.1 inches)

Depth: 497.8 mm (19.6 inches)

Weight (depending upon configurations)

Maximum: 12.3 kg (27.1 lbs)

Note 2: The depth is measured from the front

mounting flange of the rack to the rear of the

server.

Processor

Your server comes with one Intel®multi-core processor from

Core™, Pentium®, Celeron®, or Xeon®E processor family

Memory

Minimum: 8GB

Maximum: 128 GB

DIMM types:

Single-rank (dual-rank), error correcting code (ECC),

double-data-rate 4 (DDR4) unbuffered DIMM (UDIMM)

Slots: Four DIMM slots

Storage bays

Depending on the configuration, server supports up to four

drives or two simple-swap drives:

Four 2.5/3.5-inch SATA/SAS drives installed in drive bay

0-3.

Two 2.5/3.5-inch SATA drives installed in drive bay 0-1.

Networking

Supports up two Ethernet connectors

LAN connector 1 can be set to access Lenovo XClarity

Controller

Where to go for support

Link

QR Code

Lenovo Press

(Product guides and white

papers)

https://lenovopress.com/

Lenovo Datacenter Systems

Forums

https://forums.lenovo.com/t5/

Datacenter-Systems/ct-

p/sv_eg

Lenovo Support –SR150

(including drivers and

software)

http://support.lenovo.com.cn/

EsWeb/

Lenovo Product Security

Advisories

http://support.lenovo.com/us/

en/product_security/home

Lenovo Server Proven

(Compatibility information)

https://static.lenovo.com/us/

en/serverproven/index.shtml

Second Edition (February 2020)

LIMITED AND RESTRICTED RIGHTS NOTICE: If

data or software is delivered pursuant to a General

Services Administration (GSA) contract, use,

reproduction, or disclosure is subject to restrictions

set forth in Contract No. GS‐35F‐05925.
