Lenovo ThinkSystem SD530 Manuel utilisateur

Lenovo ThinkSystem SD530 Compute Node Type 7X21

Lenovo ThinkSystem D2 Enclosure Type 7X20

Quick Start

PN: SP47A24250

Printed in China

In the box

Your shipping box contains the following items:

SD530 Compute Node Type 7X21

D2 Enclosure Type 7X20

Note: There will be one to four nodes per enclosure in the box

depending on your purchase.

Material box, including items such as power cords, printed

documentation and slide-rail installation kit.

If any item is missing or damaged, contact your place of purchase.

Ensure that you retain your proof of purchase and packing material.

They might be required to receive warranty service.

First glance

Note: Your solution might look slightly different from the illustrations.

Enclosure front view: Node bays

Node front view: Six 2.5-inch hot-swap drive model

Node front view: Four 2.5-inch hot-swap drive model

Enclosure rear view: Eight low-profile PCIe 3.0 x8 cards

Enclosure rear view: Four low-profile PCIe 3.0 x16 cards

Installing the solution

To install the solution, do the following:

1. Install the required solution components.

2. Install the enclosure into the rack.

See the Rack Installation Guide that was provided with the rail kit.

3. Connect the cables.

4. Turn on the compute nodes.

5. Connect the management controller to the network.

6. Configure the system.

For detailed information about installing hardware options and

configuring the system, see the following website:

http://thinksystem.lenovofiles.com/help/index.jsp

Technical specifications

Dimensions and weight

2U enclosure

Height: 87.0 mm (3.5 inches)

Depth: 891.5 mm (35.1inches)

Width: 488.0 mm (19.3 inches)

Weight:

•

Minimum (with one node): 22.4 kg (49.4 lbs)

•

Maximum (with four nodes): 55.0 kg (121.2 lbs)

Node

Height: 41.0 mm (1.7 inches)

Depth: 562.0 mm (22.2 inches)

Width: 222.0 mm (8.8 inches)

Weight:

•

Minimum: 3.5 kg (7.7 lbs)

•

Maximum: 7.5 kg (16.6 lbs)

Node processor

Intel Xeon®

Node memory

Minimum: 8GB

Maximum:

512 GB (16 x 32 GB RDIMM)

1,024 GB (16 x 64 GB LRDIMM)

Type: PC4-21300 (dual-rank), 2666 MT/s, errorcorrecting code

(ECC), double-data-rate 4 (DDR4) registered DIMM (RDIMM)

or load reduced DIMM (LRDIMM)

Slots: 16 DIMM slots

Node expansion bays (depending on the

model)

Four 2.5-inch hot-swap SAS/SATA HDD/SSD bays

Six 2.5-inch hot-swap SAS/SATA HDD/SSDbays

Four 2.5-inch hot-swap SAS/SATA HDDbays + Two 2.5-inch

hot-swap SAS/NVMe drive bays

First Edition (August 2017)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is

delivered pursuant to a General Services Administration “GSA” contract,

use, reproduction, or disclosure is subject to restrictions set forth in

Contract No. GS‐35F‐05925.

Where to go for support

Link

QR Code

Lenovo Press

(Product guides and white

papers)

https://lenovopress.com/

Lenovo System x Server

forums

https://forums.lenovo.com/t5/

Datacenter-Systems/ct-

p/sv_eg

Lenovo Support –D2

Enclosure (including drivers

and software)

https://support.lenovo.com/p/

servers/d2_enc

Lenovo Support –SD530

Compute Node (including

drivers and software)

https://support.lenovo.com/p/

servers/sd530

Lenovo Product Security

Advisories

http://support.lenovo.com/us/

en/product_security/home

Lenovo Server Proven

(Compatibility information)

http://support.lenovo.com/us/

en/serverproven

Autres manuels pour ThinkSystem SD530

Ce manuel convient aux modèles suivants

Autres manuels Lenovo Serveur

Lenovo

Lenovo Converged HX Series Instructions d'installation et d'entretien

Lenovo

Lenovo ThinkServer TD230 Manuel de la liste des pièces

Lenovo

Lenovo ThinkServer RS110 Manuel utilisateur

Lenovo

Lenovo ThinkSystem ST250 V2 Manuel utilisateur

Lenovo

Lenovo ThinkServer TD100 Manuel utilisateur

Lenovo

Lenovo ThinkServer TD100 Manuel utilisateur

Lenovo

Lenovo ThinkServer RD210 Manuel de la liste des pièces

Lenovo

Lenovo ThinkServer TD200x Manuel utilisateur

Lenovo

Lenovo BladeCenter H Manuel utilisateur

Lenovo

Lenovo ThinkServer RD350 Manuel du propriétaire

Lenovo

Lenovo ThinkServer TD100x Manuel utilisateur

Lenovo

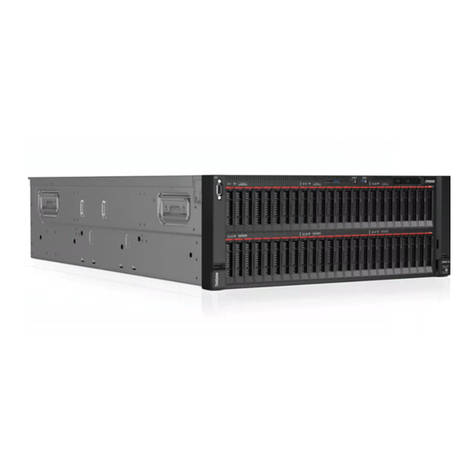

Lenovo ThinkSystem SR860 V2 Manuel utilisateur
