Lenovo Ideacentre Y720 Cube Manuel utilisateur

Y720-15IKB

Read the safety notices and important tips in the

included manuals before using your computer.

Lenovo Y720

User Guide

First Edition (December 2016)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General

Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set

forth in Contract No. GS-35F-05925.

For details, refer to Guides & Manuals at hp://support.lenovo.com.

Regulatory Notice

Before using the product, be sure to read Lenovo Safety and General Information Guide ﬁrst.

The features described in this guide are common to most models. Some features may not

be available on your computer or your computer may include features that are not

described in this user guide.

Some instructions in this guide may assume that you are using Windows®10. If you are

using another Windows operating system, some operations may be slightly diﬀerent. If

you are using other operating systems, some operations may not apply to you.

Notes

•

The illustrations in this manual may diﬀer from the actual product. Please refer to the

actual product.

•

- To view compliance information go to: hp://www.lenovo.com/compliance

To download environmental information go to: hp://www.lenovo.com/ecodeclaration

The latest electronic compliance and environmental information are available from the

Lenovo compliance information Web sites.

•

Contents

Chapter 1. Getting to know your computer .................................................................................... 1

Top view......................................................................................................................................................... 1

Left-side view ................................................................................................................................................ 5

Right-side view.............................................................................................................................................. 8

Bottom view................................................................................................................................................... 9

Chapter 2. Starting to use Windows 10......................................................................................... 10

Configuring the operating system for the first time.............................................................................. 10

Operating system interface........................................................................................................................ 10

Putting the computer to sleep or shutting it down................................................................................ 12

Task and desktop management................................................................................................................ 14

Connecting to a wireless network ............................................................................................................ 15

Get Started app............................................................................................................................................ 15

Chapter 3. Recovery system .......................................................................................................... 16

Lenovo OneKey Recovery System............................................................................................................ 16

Reset this PC................................................................................................................................................ 17

Chapter 4. Troubleshooting............................................................................................................ 18

Frequently asked questions....................................................................................................................... 18

Troubleshooting.......................................................................................................................................... 21

Trademarks...................................................................................................................................... 25

Chapter 1. Getting to know your computer

Top view ------------------------------------------------------------------------------------------

Attention:

•Do not open the display panel beyond 135 degrees. When closing the display panel, be careful not to leave

pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel

may be damaged.

Note: The dashed areas indicate parts that are not visible externally.

12 2

Chapter 1. Getting to know your computer

aIntegrated camera Use the camera for video communication or taking photos.

bBuilt-in microphone Captures sound which can be used for video conferencing, voice

narration, or audio recording.

cComputer display Provides brilliant visual output.

dWireless LAN antennas Connect to a wireless LAN adapter to send and receive wireless radio

signals.

eSpeakers Provide audio output.

fPower button Press this button to turn on the computer.

gNumeric keypad For details, see “Using the keyboard” on page 3.

hTouchpad The touchpad functions as a conventional mouse.

Touchpad: To move the pointer on the screen, slide your fingertip over

the pad in the direction in which you want the pointer to move.

Touchpad buttons: The functions of the left/right side correspond to that

of the left/right mouse button on a conventional mouse.

Note: You can enable/disable the touchpad by pressing Fn + F6.

Chapter 1. Getting to know your computer

Using the keyboard

Numeric keypad

The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press

the Num Lock key.

Function key combinations

Through the use of the function keys, you can change operational features instantly. To use this

function, press and hold Fn ; then press one of the function keys .

Chapter 1. Getting to know your computer

The following describes the features of each function key.

Fn + F1: Mutes/unmutes the sound.

Fn + F2: Decreases the volume level.

Fn + F3:Increases the volume level.

Fn + F4: Enables/disables the microphone.

Fn + F5: Refreshes the desktop or the currently active window.

Fn + F6: Enables/disables the touchpad.

Fn + F7: Enables/disables Airplane mode.

Fn + F8: Enables/disables the integrated camera.

Fn + F9: Locks the screen.

Fn + F10:

Toggles the display between the computer and an external device.

Fn + F11: Decreases the display brightness.

Fn + F12: Increases the display brightness.

Fn + C: Enables/disables the scroll lock.

Fn + S: Activates the system request.

Fn + : Activates the Pgup key function.

Fn + : Activates the Pgdn key function.

Fn + : Activates the home key function.

Fn + : Activates the end key function.

Fn + Space

(on select models): Adjusts the keyboard backlight (off dim bright off).

Chapter 1. Getting to know your computer

Left-side view --------------------------------------------------------------------------------

Kensington mini security

slot

For attaching a Kensington MiniSaver™ Mobile (or compatible) lock.

Note: Lock is not supplied. When purchasing a lock, choose one that utilizes the Cleat™ locking

mechanism and verify its compatibility with the slot before purchase. A lock utilizing the T-Bar™

locking mechanism is not compatible with the Kensington mini security slot.

bAC power adapter jack Connects to the AC power adapter.

cBattery status indicator

Indicator Indicator

status

Charge

status Meaning

Battery

(solid white) Charging The battery has more than 80% charge.

(solid amber) Discharging The battery has between 5% and 20% charge.

Blinking

slowly

(white)

Charging

The battery has between 20% and 80% charge. When

the battery reaches 80% charge, the light will stop

blinking. However, charging will continue until the

battery is fully charged.

Blinking

slowly

(amber)

Charging

The battery has between 5% and 20% charge. When the

battery charge reaches 20%, the blinking color will

change to white.

Blinking

quickly

(amber)

Charging/

Discharging The battery has less than 5% charge.

Off Discharging The battery has more than 20% charge.

dRJ-45 port Connects the computer to an Ethernet network.

Note: For details, see “Connecting network cables” on page 6.

eUSB port Connects to USB devices.

Note: For details, see “Connecting USB device” on page 7.

fCombo audio jack Connects to headsets.

Notes:

•The combo audio jack does not support conventional microphones.

•The recording function might not be supported if third-party headphones or headsets are connected,

due to different industry standards.

1 2 43 5 6

Chapter 1. Getting to know your computer

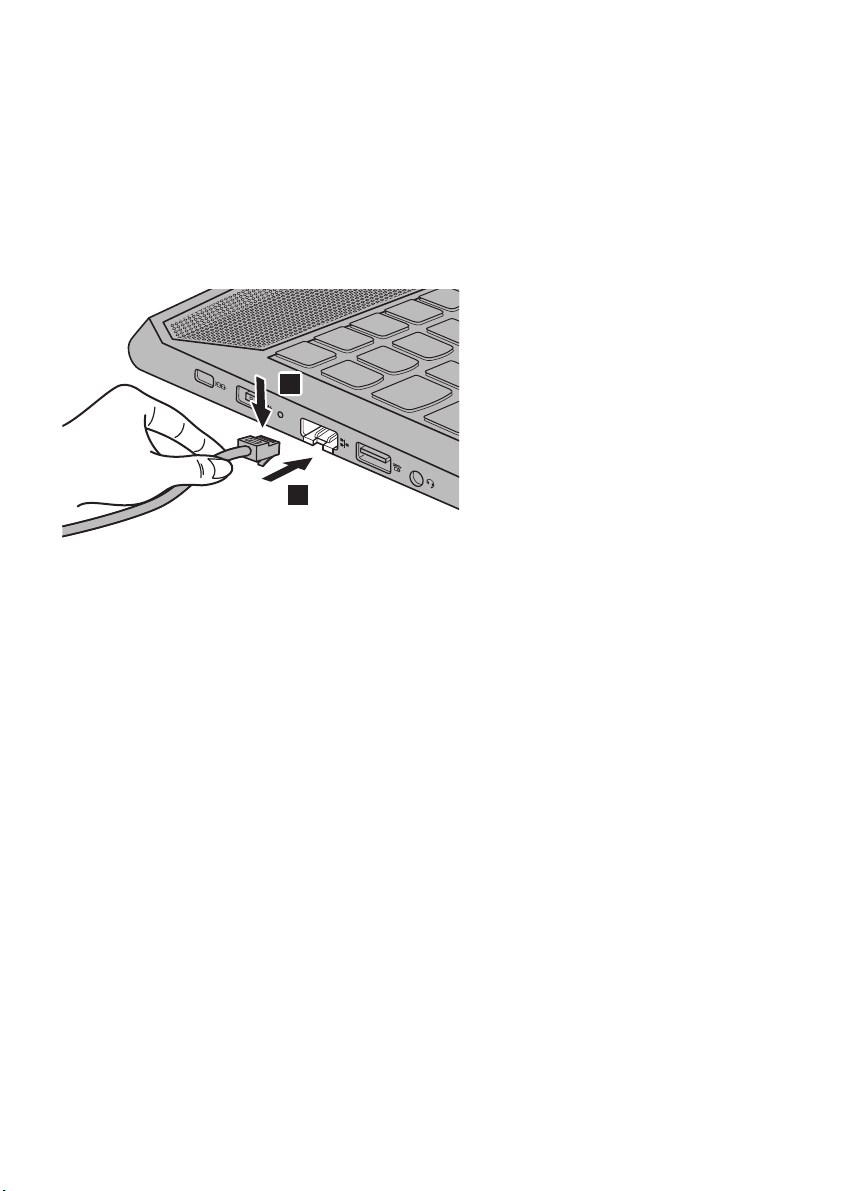

Connecting network cables

To insert a network cable, do the following:

1Hold one connector of the network cable to press the RJ-45 cover down gently .

2Insert the connector into the RJ-45 port .

Software configuration

Consult your Internet Service Provider (ISP) for details on how to configure your computer.
