Leica MZ16 A Manuel utilisateur

Leica MZ16 A

User manual

Leica MZ16 A – Contents

Contents

Page

Safety note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Overview

Components, connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operating controls and functions . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System operation

Starting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Selection (OPT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Motor zoom, control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Calibrating the motor zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Reference circle for measurements . . . . . . . . . . . . . . . . . . . . . . . 14

Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Leica MZ16 A – User manual 3

Thank you for your confidence in our products. We hope you

will enjoy the high-quality and powerful products from Leica

Microsystems.

In developing our instruments, we have placed great weight on

simple, self-explanatory directions. In order to utilize all the

benefits of your new stereomicroscope, we suggest studying

this user manual in detail. Should you have any questions,

please consult your local Leica representative. You will find the

address of the closest local representative as well as valuable

information about products and services from Leica Microsys-

tems on our homepage www.leica-microsystems.com

We are gladly at your service. Customer service is a big thing

with us. Not only before the sale, but afterwards as well.

Leica Microsystems (Switzerland) Ltd

Business unit Stereomicroscopy

www.stereomicroscopy.com

Your instrument is supplied with a printed user manual in

English. Additional languages and information can be

found on the interactive CD-ROM. User manuals and

updates are available for download on our homepage at

www.stereomicroscopy.com.

This user manual describes the special functions of the motor-

ized Leica MZ16 A stereomicroscope. The safety regulations,

mounting of the Leica MZ16 A to stands, binocular tubes,

accessories, etc. as well as the handling and the optical data

can be found in the user manual for Leica M stereomicro-

scopes, M2-105-0. If you purchased a motor focus system with

your Leica MZ16 A, please read the user manual M1-267-1.

Please read this manual and the user manual for Leica M

stereomicroscopes, M2-105-0, before commissioning the

instrument. Please observe the safety notes, in particular the

safety regulations for electrically operated equipment.

The

user

manual

Dear User

Components

4Leica MZ16 A – Overviews

Overview

147

Leica MZ16 A – Overviews

1 Stand (transmitted light or incident light with suitable

illumination)

2 Optics carrier Leica MZ16 A

3 ErgoTubus™

4 Wide-field eyepieces for spectacle wearers

5 Objective nosepiece with 2 objectives

(or an interchangeable objective, see the figure on page 5)

6 Motor focus system

(or manual coarse/fine drive, see the figure on page 5)

7 Manual control for motor zoom with connector

for motor focus manual control

8 Manual control for motor focus

9 Transformer (not illustrated)

For assembly and installation of the Leica MZ16 A refer to the

user manual for Leica M stereomicroscopes, M2-105-0

Power supply required.

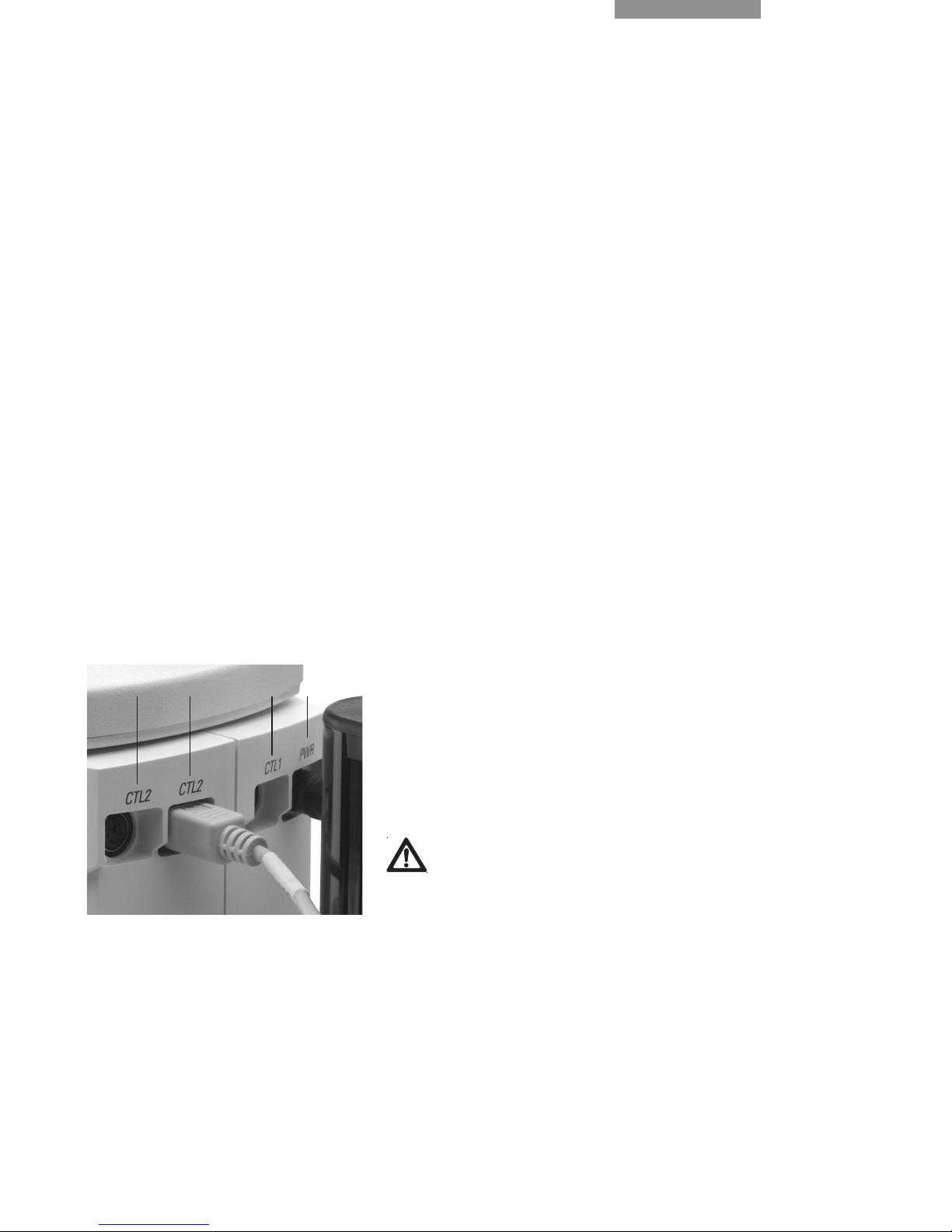

10 PWR: power supply connection

11 CTL1: Connection for motor zoom foot switch

and/or PC interface kit (with Y-cable)

12 CTL2: Connection for motor zoom manual control or empty

13 CTL2: Connection for motor zoom manual control or empty

Supply through power supply of motor focus, no other power

supply is required.

10 PWR: empty

14 CTL1: Connection for motor zoom foot switch and/or PC

interface kit (with Y-cable)

12 CTL2: Connection for motor zoom manual control or empty

13 CTL2: Connection for short connecting cable to motor focus

14 Short connection for motor zoom manual control:

motor focus manual control

For equipment with motor focus, is imperative that the

cable holder is affixed (glued) onto the motor focus and

the short connecting cable from the manual control of the

motor zoom is clamped underneath it. Otherwise the

cable could be squeezed between stop and motor focus

during focusing.

The connection to a PC requires a standard PC with RS-232

interface and a Leica PC interface kit. The individual functions

and commands are described in a separate user manual

supplied with the PC interface kit.

Components

Connections

without motor focus

Connections

with motor focus

Connection to PC

13 12 11 10

6Leica MZ16 A – Operating controls and functions

Operating controls and functions

911 10

Leica MZ16 A – Operating controls and functions

1 Up/down key for motor zoom and selection in menu

2 Display with function keys

3 Double-iris diaphragm for adjusting the depth of field

4 ErgoTubus™ with variable viewing angle from 10°–50°

5 Adjustable eyepiece tubes for adjusting the interpupillary

distance from 52–76 mm

6 Knurled rings to adjust diopters from +5 to –5

7 Adjustable eyecups

8 Manual focusing drive

(or motor focus system, see figure on page 4)

8a Inside coarse drive

8b Outside fine drive

8c Adjustable ring for adjusting ease of movement

OPT Selection of eyepiece and objective factors /

coaxial illumination / acoustic signal

SEL Confirm and display the selection

CAL Calibrate motor zoom

REF Display diameter of reference circle for measurements

9 Handwheel for precise zooming

10 Red key: Saving / Traveling / Canceling of stored zoom

positions

11 Black key: Toggling between quick and fine

adjustment

For details and description see the user manual M1-267-1.

Stereomicroscope

Display function keys

Manual control of motor

zoom

Manual control

motor zoom

Manual control

motor focus

Starting up

Display

Factory settings

Keys

8Leica MZ16 A – System operation

System operation

Attach the power supply to the supply.

When the power cable is removed from the supply, the selec-

tion under OPT, the calibration and the diameter of the refer-

ence circles are maintained. The zoom positions saved with the

manual control are canceled.

Display at power-on:

• init and software version (e.g. SW V1.3):

The unit is being initialized. (Beep)

• MZ16 A initialization concluded (2 beeps)

• Actual magnification

Objective 1.0×

Eyepiece 10×

Coaxial illumination no

CAL C dist. (reference distance)

REF FOV (field of view diameter)

Acoustic signal on

▲▼

Function 1: Motor zoom up/down:

Function 2: in the Selection Key menu

OPTic

• Select eyepiece and objective factors

• Coaxial illumination (yes/no)

• Acoustic signal (on/off)

SELect

Confirm and display the selection

CALibration

Calibrating the motor zoom

REFerence

Display diameter of reference circle for measurements

SEL + CAL (simultaneously)

Travel to the calibrated zoom position

SEL (press for approx. 2 seconds)

Reset user settings to factory settings

Display: def. val.

Leica MZ16 A – System operation

Selection of eyepiece / objective /

coaxial illumination / acoustic signal

OPT

Select eyepiece factor ▲▼

Confirm and display the selection SEL (beep)

Select objective factor ▲▼

Confirm and display the selection SEL (beep)

Coaxial illumination yes/no ▲▼

Confirm and display the selection SEL (beep)

Acoustic signal (beep) on/off ▲▼

Confirm and display the selection SEL (beep)

10 Leica MZ16 A – System operation

Motor zoom

The motor zoom 16:1 is used for ergonomic zooming with key,

manual control, foot switch or computer control. In addition to

continuous zooming, 11 fixed ratchet steps can be traveled very

quickly. Furthermore, 5 individual zoom positions can be saved

and traveled with the manual control. Compared to a manual

magnification changer, the motor zoom offers the following:

– Ergonomically better

– Uniform simple operation

– More flexibility for the user

– Leaves the hands free

– Saves time during repetitive tasks.

A zoom button is located on both sides of the optics carrier.

▲▼

Triangle pointing to user: Motor zoom up / Triangle pointing to

stand column: Motor zoom down

– Constant pressure: Zoom travels continuously up/down.

Precise fine adjustment with handwheel.

– Short click: Motor zoom advances from ratchet step to

ratchet step. Overall, 11 additional ratchet steps can be

traveled in addition to the upper and lower zoom position.

– Double-click: Motor zoom travels to the highest/lowest

magnification at maximum speed.

Use the handwheel for

ergonomic and precise

fine adjustment.

Left rotation – down,

right rotation – up.

Key

Handswitch
