Overview of the instrument

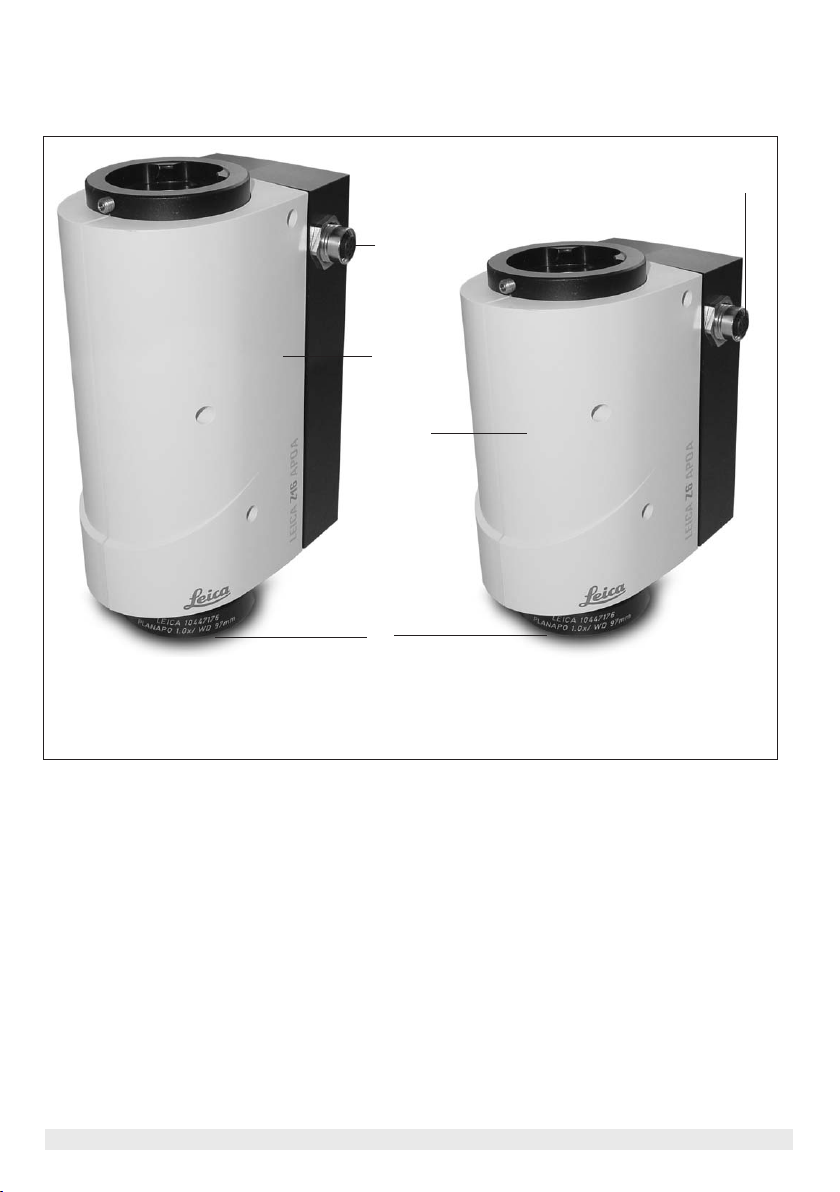

Fig. 1 Motorized Leica Z16 APO A and Z6 APO A zoom systems with integrated, motorized

fine focusing, integrated, motorized iris diaphragm and planapochromatic objective.

1Leica Z16 APO A zoom system

2Leica Z6 APO A zoom system

3Planapochromatic objective

4M12 device connection (Lumberg)

Leica Z6 APO A & Z16 APO A – User manual 3

Dear User,

Thank you for your faith in our product. We hope

your work with it is both enjoyable and successful.

The Leica Z6 APO A and Z16 APO A from Leica

Microsystems are the only fully apochromatically

corrected motorized zoom systems on the market,

and are superior to other zoom systems in con-

trast, image sharpness, color fidelity and image

precision. The Leica Z6 APO A and Z16 APO A are

exceptionally well suited to high-precision inspec-

tions throughout the entire manufacturing

process, all the way to the integration of them into

machine vision systems, as well to scientific and

medical applications.

Both zoom systems feature motorized zoom, iris

diaphragm and fine focusing. This allows for

automating many inspection and documentation

tasks and repeating them via PC control. Further-

more, you can create complete single measure-

ment and testing stations tailored to your custom

needs. The new zoom systems include the widest

line of accessory products to meet every imagin-

able examination, training, and documentation

task. With compatible stands, illuminators, binocu-

lar tubes and video/phototubes, motorized focus,

modern CCD cameras, and much more, the

Leica Z6 APO A and Z16 APO A are suitable for

video inspection, measurement, documentation

and analysis tasks in the QA lab, just as they are

suited for biology, geology, histology, criminology

and training.

In developing our instruments, we place great

value on simple, self-explanatory operation. How-

ever, please take the time to read the user manual

and the operating safety information to become

familiar with the advantages and options of your

Leica Z6 APO A and Z16 APO A zoom systems, so

that you can use them optimally and safely.

Should you have any questions, please consult

your local Leica representative. You will find the

address of the closest local representative as well

as valuable information about products and ser-

vices from Leica Microsystems on our homepage at

www.leica-microsystems.com

We are gladly at your service. Customer service is

a big thing with us. Not only before the sale, but

afterwards as well.

Leica Microsystems (Switzerland) Ltd

Stereo & Macroscope Systems

www.stereomicroscopy.com

4 Leica Z6 APO A & Z16 APO A – User manual

Contents

Page

1. Safety concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1 The user manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1.1 Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1.2 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 Zoom systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 Assembly of zoom system and objective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3 Tubes, carriers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.3.1 Camera assembly with AS video/phototube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.3.2 Camera assembly with A video/phototube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.3.3 Camera assembly with Y tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.3.4 Camera assembly with Y tube and HD video/phototube . . . . . . . . . . . . . . . . . . . . . 18

2.3.5 Assembly of binocular tubes on Y tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.4 Attachment to stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.4.1 Incident and transmitted light stands with column 500 mm . . . . . . . . . . . . . . . . . . 23

2.4.2 Swinging-arm stands, OEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.4.3 Swinging-arm stand ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

2.4.4 Large swinging-arm stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.5 OEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.6 Adaptation to reprocopy stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.7 Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

2.8 Control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

2.9 Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.1 Zoom systems, operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.2 Starting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

3.2.1 Disconnecting from the power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

3.3 Motorized functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Leica Z6 APO A & Z16 APO A – User manual 5

3.4 UMC handheld controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4.1 Changing button assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.4.2 Zoom (change magnification): Z and ZW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

3.4.3 Fine focusing: FF and FFW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4.4 Focusing with motor focus: F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

3.4.5 Iris diaphragm: I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4.6 Storing current positions: Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.5 Foot switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

3.6 Working with a binocular tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.6.1 Adjusting diopter settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4. Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.1.1 Dimensions of zoom systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

4.1.2 Dimensions of objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

4.1.3 Dimensions of tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

4.1.4 Dimensions of carriers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

4.1.5 Dimensions of adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

4.2 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

4.3 Electrical connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.4 Visual optical data with Y tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

4.5 Expansion diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Contents

6 Leica Z6 APO A & Z16 APO A – Safety concept

1. Safety concept

1.1 The user manual

Included with your Leica Z6 APO A and Z16 APO A

zoom systems is an interactive CD-ROM with all

pertinent user instructions in German, English,

French, Spanish, Italian, Portuguese, Dutch, Dan-

ish, Swedish, Finnish, and Greek. Keep it in a safe

place, and readily accessible to the user. User

manuals and updates are also available for you to

download and print from our web site at

www.stereomicroscopy.com.

This operating manual describes the special func-

tions of the Leica Z6 APO A and Z16 APO A zoom

systems and contains important instructions for

their operational safety, maintenance, and acces-

sories. The Leica Z6 APO A and Z16 APO A are

zoom systems which can be expanded in a modu-

lar system, allowing an almost unlimited range of

individual equipment configurations. The identical

modules, such as stands, binocular tubes, acces-

sories, etc. are described in User Manual M2-105-0

for Leica M stereomicroscopes, which also con-

tains additional safety instructions pertaining to

accessories and electrical accessories, as well as

care instructions.

Special manuals are provided for the following

accessories:

– User Manual M2-267-1 for the motorized focus

system.

– User Manual M2-216-2 for the Leica HL RC™

transmitted-light base

– User Manual M2-416-2 for UMC handheld

controller

Before installing, operating or using the

instruments, read the user manuals listed above.

In particular, please follow all safety instructions.

To maintain the unit in its original condition and to

ensure safe operation, the user must follow the

instructions and warnings contained in these user

manuals.

1.1.1 Diagrams

(1.5) Numbers in parentheses within the descrip-

tions pertain to diagrams and the items in the dia-

grams. Example (1.2): Figure 1is found on Page 2

and item 2 is the zoom system Leica Z6 APO A.

Leica Z6 APO A & Z16 APO A – Safety concept 7

1.1.2 Symbols used

Warning of a danger

This symbol indicates especially important infor-

mation that, if not observed,

– can cause hazards to personnel,

– can lead to functional disturbances and dam-

aged instruments.

Warning of hazardous electrical voltage

This symbol indicates especially important infor-

mation that, if not observed,

– can cause hazards to personnel,

– can lead to functional disturbances and dam-

aged instruments.

Danger due to hot surface

This symbol warns against touching hot surfaces,

e.g. those of light bulbs.

Important information

This symbol indicates additional information or

explanations that intend to provide clarity.

Action

This symbol refers to actions described in the

text that are to be carried out.

Explanatory notes

• This symbol indicates additional notes and

explanations provided in the text.

1.2 Safety instructions

Description

The Leica Z6 APO A and Z16 APO A zoom systems

are optical systems with 6.3:1 or 16:1 motorized

magnification changer and a central beam path.

The most precise information can be obtained

thanks to the parallax free observation. Measure-

ments, adaptation tasks and evaluations become

more precise; more high-quality information is

obtained in photography and image processing.

The vertical beam path, combined with motorized

functions, is predestined for digital imaging with

multi-focus programs. Polarized optical examina-

tions provide true polarization colors, and the

geometric layers of flat, highly reflective objects

such as wafers appear without distortion when

using coaxial illumination.

Leica Z6 APO A and Z16 APO A feature an exten-

sive accessories program in a modular design,

such as objective, carrier, video/phototubes,

stands, binocular tubes, eyepieces and much

more (see expansion diagram p. 46).

Permitted uses

With the motorized Leica Z6 APO A and Z16 APO A

zoom systems and the apochromatic objectives,

entire objects can be inspected and documented

without distortion and sequences of operation can

be automated. As high-performance optical equip-

ment, they lend themselves to use with measure-

ment and testing systems including vision tech-

nology systems, and for high-end laboratory work-

stations.

8 Leica Z6 APO A & Z16 APO A – Safety concept

Non-intended use

If the Leica Z6 APO A or Z16 APO A, its components

or accessories are used other than as described in

the user manual, injury or property damage may

occur. Never:

– install other plugs or cables.

– change, rebuild or take apart parts, if not

specifically instructed to do this in the manual.

– allow unauthorized persons to open parts.

– use the Leica Z6 APO A and Z16 APO A for

examining, or operating on the human eye.

The devices and accessories described in this

operating manual have been tested for safety and

potential hazards. The responsible Leica affiliate

must be consulted whenever the device is altered,

modified or used in conjunction with non-Leica

components that are outside of the scope of this

manual.

Unauthorized alterations to the device or noncom-

pliant use shall void all rights to any warranty

claims!

Responsibilities of the person(s) in charge of

instrument

Ensure that

– the Leica Z6 APO A and Z16 APO A and acces-

sories are operated, maintained and repaired

by authorized and trained personnel only.

– the operating personnel has read, understands,

and is observing these instructions as well as

those listed on page 6, and, in particular, the

safety instructions.

Place of use

– The Leica Z6 APO A and Z16 APO A may only be

operated in closed, dust-free rooms at +10˚ C to

+40˚ C. Ensure that the room is free of oil and

chemical fumes and extreme humidity.

– Electrical components must be assembled at

least 10 cm away from the wall and from flam-

mable substances.

– Large temperature fluctuations, direct sunlight

and vibrations should be avoided. These condi-

tions can distort measurements and micro-

graphic images.

– Optical systems in warm and warm-damp

climatic regions require special care in order

to prevent the build up of fungus.

Disposal

The products described here must be disposed

off in accordance with applicable local laws and

regulations.

Legal requirements

Adhere to general and local regulations relating to

accident prevention and environmental protec-

tion.

Conformity with European Community directive

The Leica Z6 APO A and Z16 APO A and their

accessories are constructed based on the state of

the art of technology and are provided with an EU

Declaration of Conformity.

Leica Z6 APO A & Z16 APO A – Safety concept 9

Health risks

Workplaces with optical systems facilitate

and improve the viewing task, but they also

impose high demands on the eyes and holding

muscles of the user. Depending on the duration of

uninterrupted work, asthenopia and muscu-

loskeletal problems may occur. For this reason,

appropriate measures for reduction of the work-

load must be taken:

– optimal arrangement of workplace, work

assignments and work flow (changing tasks

frequently).

– thorough training of the personnel, giving

consideration to ergonomic and organization

aspects.

The ergonomic optics concept and the design of

Leica optics systems aim to limit the strain on the

user to the lowest possible level. If you wish to

equip your zoom system with one of our binocular

tubes, we offer ErgoTubes®and ErgoModules®,

which compensate for the varying design heights

of the equipment, accessories and working dis-

tances, and for the variation of human height of its

users. If you have problems with the viewing con-

figuration, ask your Leica consultant for the most

ergonomic Leica solutions.

Direct contact with eyepieces is a potential

transmission method for bacterial and viral infec-

tions of the eye. Users should be made aware of

the potential risk of infection. The risk can be kept

to a minimum by using personal eyepieces for

each individual or detachable eyecups.

Repairs and servicing

– Only Leica Microsystems-trained service tech-

nicians, or technical specialists assigned by

the person in charge of the instrument, are

permitted to carry out repairs.

– Only original Leica Microsystems spare parts

may be used.

– Unplug the power cable before opening voltage

carrying parts.

Touching the live circuit can cause injury.

Transport

– Use the original packaging for shipping or

transporting the zoom systems and their acces-

sory components.

– In order to prevent damage from vibrations,

disassemble all moving parts that (according to

the user manual) can be assembled by the cus-

tomer and pack them separately. These include

the objective, video/phototube, carrier, binocu-

lar tube, eyepieces, etc.

Integration in third-party products

When installing Leica products into third-party

products, note the following: The manufacturer of

the complete system or its dealer is responsible

for following all applicable safety instructions,

laws and guidelines.

10 Leica Z6 APO A & Z16 APO A – Assembly

06.04

10 447 204

10 447 109

10 447 128

10 447 170

10 447 175

Planapo

10 445 352

11 506 084

10x

11 506 057

20x

10 447 179

10 447 085

10x

10 447 086

20x

10 447 206

10 411 597 100mm

10 441 787 150mm

10 431 692 175mm

10 382 162 200mm

Achromat

10 445 198

10 445 156

10 411 589

Achromat

10 447 083

10 447 177

0.5x

10 446 360

0.8x

10 447 176

10 447 178

10 315 306

10 422 564

0.32x

10 422 563

0.5x

10 445 201

0.63x

HR DM

Z6 APO A

10 446 368

Z16 APO A

10 446 369

10 446 172

10 382 172

f = 400mm

35 000 011

f = 800mm

35 000 013

f = 1200mm

Achromat

LWD

10 447 080

10 446 182

10 446 260 RS 232

Distribution box

2. Assembly

Diagram 1: Zoom systems, objectives and accessories

Autres manuels pour Z6 APO

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Leica Microscope

Leica

Leica FluoCombi III Manuel utilisateur

Leica

Leica DM300 Manuel utilisateur

Leica

Leica Stellaris 8 FALCON Guide d'installation

Leica

Leica SP8-X Manuel utilisateur

Leica

Leica M205A Manuel

Leica

Leica ZOOM 2000 Manuel utilisateur

Leica

Leica M620 F20 Manuel utilisateur

Leica

Leica DM6000 M Manuel utilisateur

Leica

Leica TCS SP5 X Manuel utilisateur

Leica

Leica EZ5 Manuel utilisateur

Leica

Leica SP8 AT CIAN Manuel de la liste des pièces

Leica

Leica ATC 2000 Manuel utilisateur

Leica

Leica MS5 Manuel utilisateur

Leica

Leica PROVEO 8 Manuel utilisateur

Leica

Leica DM6B Manuel utilisateur

Leica

Leica DM750 M Manuel utilisateur

Leica

Leica M Manuel utilisateur

Leica

Leica BM E Manuel utilisateur

Leica

Leica DM750 M Manuel utilisateur

Leica

Leica ES2 Manuel utilisateur

Leica

Leica DM5500 B Manuel utilisateur

Leica

Leica M525 OH4 Manuel utilisateur

Leica

Leica ICC50 E Manuel utilisateur

Leica

Leica M125 Manuel utilisateur

Manuels Microscope populaires d'autres marques

Thermo Scientific

Thermo Scientific Nicolet iN10 Mode d’emploi

National

National DC3-163 Manuel utilisateur

KERN Optics

KERN Optics OPE-1 Manuel utilisateur

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manuel utilisateur

Prior

Prior Lux POL Manuel utilisateur

Opitec

Opitec Smartscoop 115615 Manuel utilisateur

KERN

KERN OPO-1 Manuel utilisateur

Topcon

Topcon SP-1P Manuel utilisateur

Motic

Motic PA43 Manuel utilisateur

MshOt

MshOt MZ62 Manuel utilisateur

KERN Optics

KERN Optics OZR-5 Manuel utilisateur

VWR

VWR VisiScope 384 Series Manuel utilisateur

Nikon

Nikon ECLIPSE E200 POL Manuel utilisateur

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

Olympus

Olympus SZ61 Manuel utilisateur

AO Cycloptic Manuel utilisateur

Celestron

Celestron 44345 Manuel utilisateur
