Leica DNA03 Manuel utilisateur

Leica

DNA03/DNA10

Quick Guide

Version 1.0

English

DNA03/DNA10, Important Information about your Instrument

1 Important Information about your Instrument

Read and follow the User Manual on the accompanying DVD before using the

product.

Keep for future reference!

Intended use • Electronic and optical height and distance measurements to a staff.

• Angle measurement with the horizontal circle.

• Recording measurements.

• Calculations using measuring programs.

The product must not be disposed with household waste.

Conformity to

national regulations

For products which do not fall under R&TTE directive:

Hereby, Leica Geosystems AG, declares that the product/s is/are in

compliance with the essential requirements and other relevant provi-

sions of the applicable European Directives. The declaration of

conformity can be consulted at

http://www.leica-geosystems.com/ce.

DNA03/DNA10, Instrument Components 3

2 Instrument Components

Instrument

components

part 1 of 2

a) Hand grip with aiming sight

b) Card compartment cover

c) Battery compartment

d) Button to unlatch card compart-

ment cover

e) Lever to unlatch battery

f) Horizontal circle

g) Foot screws

h) Base plate

i) Keyboard

j) Ocular

k) Display

l) Circular level

m) On/off button

003736_001

DNA03/DNA10, Instrument Components

Instrument

components

part 2 of 2

a) Light duct for circular level

b) Plug stopper for crosshair adjust-

ment knob

c) Objective

d) Focussing drive

e) Endless horizontal drive (bi-direc-

tional)

f) Measuring button

g) RS232 serial interface with external

power supply

003736_001

DNA03/DNA10, Instrument Components 5

Keyboard Instrument

a) Fixed keys

b) Fixed keys 2nd level

c) Entry keys

d) Enter key

e) Navigation keys

f) Circular level

g) On/off key

003738_001

abc

defg

DNA03/DNA10, Technical Data

3 Technical Data

Environmental

specifications

Temperature

Protection against water, dust and sand

IP53 (IEC 60529)

Humidity

Up to 95 %.

No condensation.

Operating temperature [°C] Storage temperature [°C]

-20 to +50 -40 to +70

DNA03/DNA10, Care and Transport 7

4 Care and Transport

Care and transport • Carry the product in its original container or carry the tripod with its legs splayed

across your shoulder, to protect the product against shock and vibration.

DNA03/DNA10, Operation

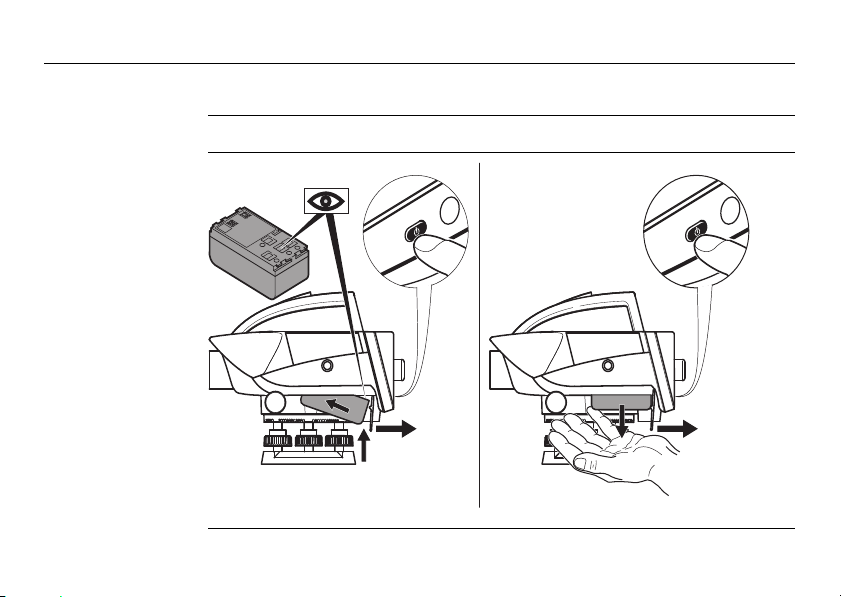

5 Operation

The battery must be charged before using it for the first time.

Turning on and off

the instrument

003739_001

OFF

DNA03/DNA10, Operation 9

Total Quality Management: Our commitment to total customer satisfaction.

Leica Geosystems AG, Heerbrugg, Switzerland, has been

certified as being equipped with a quality system which

meets the International Standards of Quality Management

and Quality Systems (ISO standard 9001) and Environmental

Management Systems (ISO standard 14001).

Ask your local Leica Geosystems dealer for more information about our TQM program.

Leica Geosystems AG

Heinrich-Wild-Strasse

CH-9435 Heerbrugg

Switzerland

Phone +41 71 727 31 31

www.leica-geosystems.com

796093-1.0.0en

Original text

Printed in Switzerland
