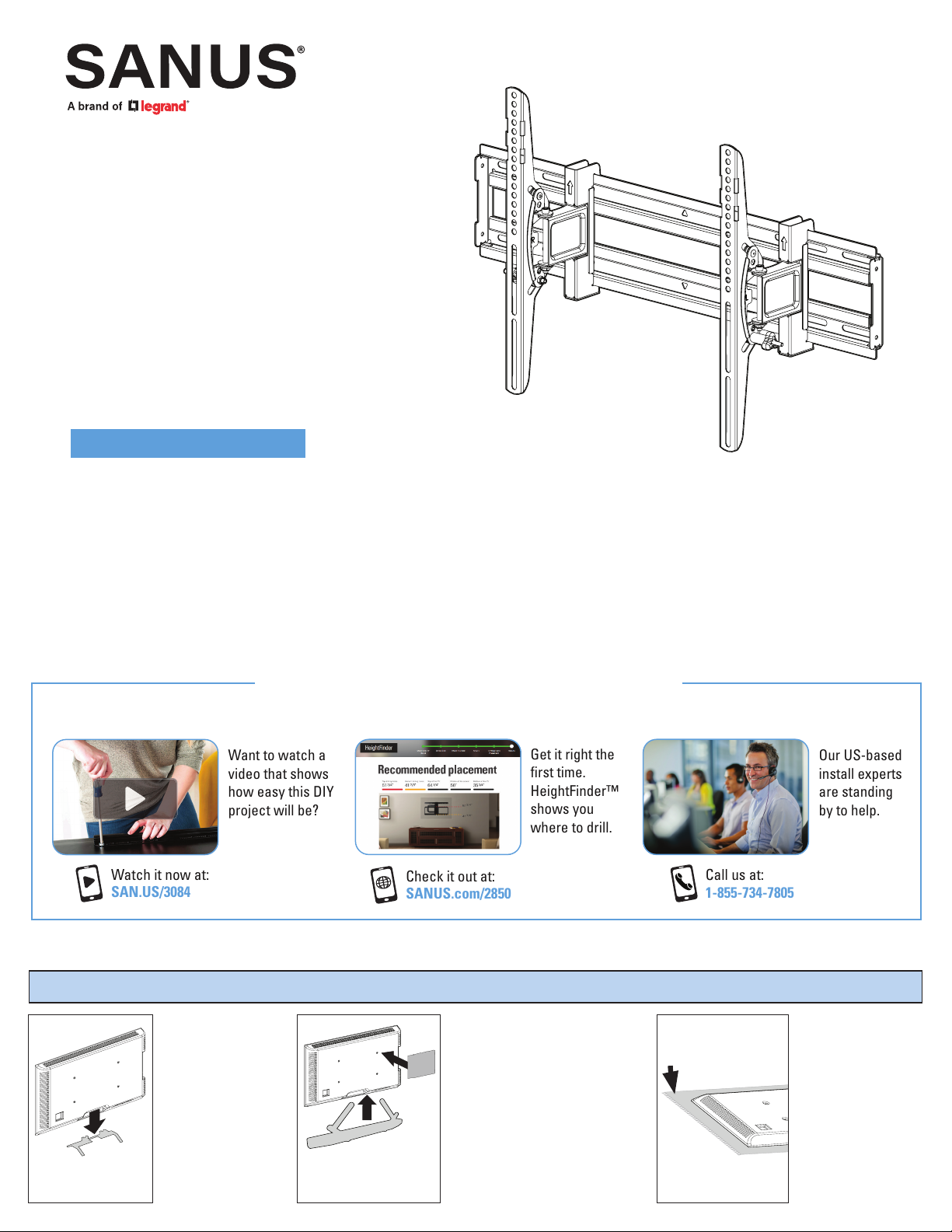

LLT

INSTRUCTION MANUAL

BEFORE YOU BEGIN

Remove the

stand

from your TV —

if attached.

Install any accessories

you may have purchased, if they

requireTV removal prior to assembly.

Note that the TV is removable for

future accessory purchases.

Protect the face

of your TV when

laying it down for

installation.

Our US-based

install experts

are standing

by to help.

Call us at:

1-855-734-7805

Get it right the

ﬁrst time.

HeightFinder™

shows you

where to drill.

Check it out at:

SANUS.com/2850

Want to watch a

video that shows

how easy this DIY

project will be?

Watch it now at:

SAN.US/3084

WE’RE HERE TO HELP

Para Español ver página 12

IMPORTANT SAFETY INSTRUCTIONS

– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete* or concrete block*, and steel studs*,

—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

*For information on how to use this product with concrete or steel stud walls contact Customer Service and ask about the mounting kit.

●This product is designed for INDOOR USE ONLY

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

TV Weight Limit

(including accessories)

DO NOT EXCEED

Tools Needed

Wall

Construction

ONLY install on these

acceptable wall types.

Pencil Level Tape Screwdriver

Tape Measure Electric Drill Socket Wrench

Call Customer Service

Unsure

If your TV (plus accessories) weighs MORE,

this mount is NOT compatible.

Visit SANUS.com or call customer service to

ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

110 lb

(49.8 kg)

Wood Stud Install

Steel Stud Install

Concrete Install

Awl Awl

Stud

Finder Stud

Finder

7/32 in.

(5.5 mm)

Wood

1/2 in.

(13 mm)

Steel

Drill Bit Drill BitHammerDrill Bit

3/8 in.

(10 mm)

Concrete

1/2 in.

(13 mm)

Drywall alone will NOT hold

the weight of your TV

CAUTION:

DO NOT

install in

drywall alone

steel studs

wood studs Solid concrete

or concrete

block

ACCEPTABLE

Steel stud kit #SSMK1 is

required [NOT INCLUDED]

Call Customer Service

Concrete kit #CMK1 is

required [NOT INCLUDED]

Call Customer Service

ACCEPTABLEACCEPTABLE

Dimensions

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts

are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts and Hardware

5/16 x 2¾in.

5/16 in.

10-32 x 1¼in.

2.5mm

22mm

5mm

M8 x 20mm

M6 x 20mmM6 x 12mm

M4 x 12mm

M6 x 35mm

M4 x 35mm

M8 x 16mm M8x30 mm

M8 x 40mm M8 x 50mm

Parts and Hardware for STEP 1

TV Brackets

TV Screws

(qty. 4 each)

[Only one size ﬁts your TV]

Washers

(qty. 4 each) Spacers

(qty. 4 each)

[If necessary]

M4 M4

M6/M8

CAUTION: Avoid potential

personal injury or property damage!

The TV brackets

contain potential

pinch points during

operation.

Keep fingers away

from pinch points

when retracting the

TV. (arrows)

(qty. 1)

NOTE: Not all hardware included will be used.

NOTE: Illustrations may vary slightly from your actual parts.

23.6in

600mm

MAX VESA

15.7in

400mm

MAX VESA

3.9in

100mm

MIN VESA

3.94in

100mm

MIN VESA

27.2in

690mm

19.3in

489mm

23.9in

608mm

4.0in

100mm

12.8in

324mm

25.4in

645mm

29.3in

745mm

16.5in

419mm

6.0in

152mm

2.8in

70mm

10deg

12 deg

5.1in

128mm

3.94in

100mm

4.0in

101mm

22.1in

562mm

3.94in

100mm

TV INTERFACE

WALL PLATE

TOP VIEW - EXTENDED

3-D

SIDE VIEW - EXTENDED

SIDE VIEW RETRACTED

FRONT VIEW - RETRACTED

FULLY ASSEMBLED MOUNT

NOTE: During operation, your TV shifts

2.28 in. (58 mm) when retracted or extended.

To help fine-tune the placement of your TV,

the wall plate includes slotted holes and the

TV brackets

can be located

anywhere

along the

wall plate. EXTENDED

RETRACTED

2.28 in. (58 mm)

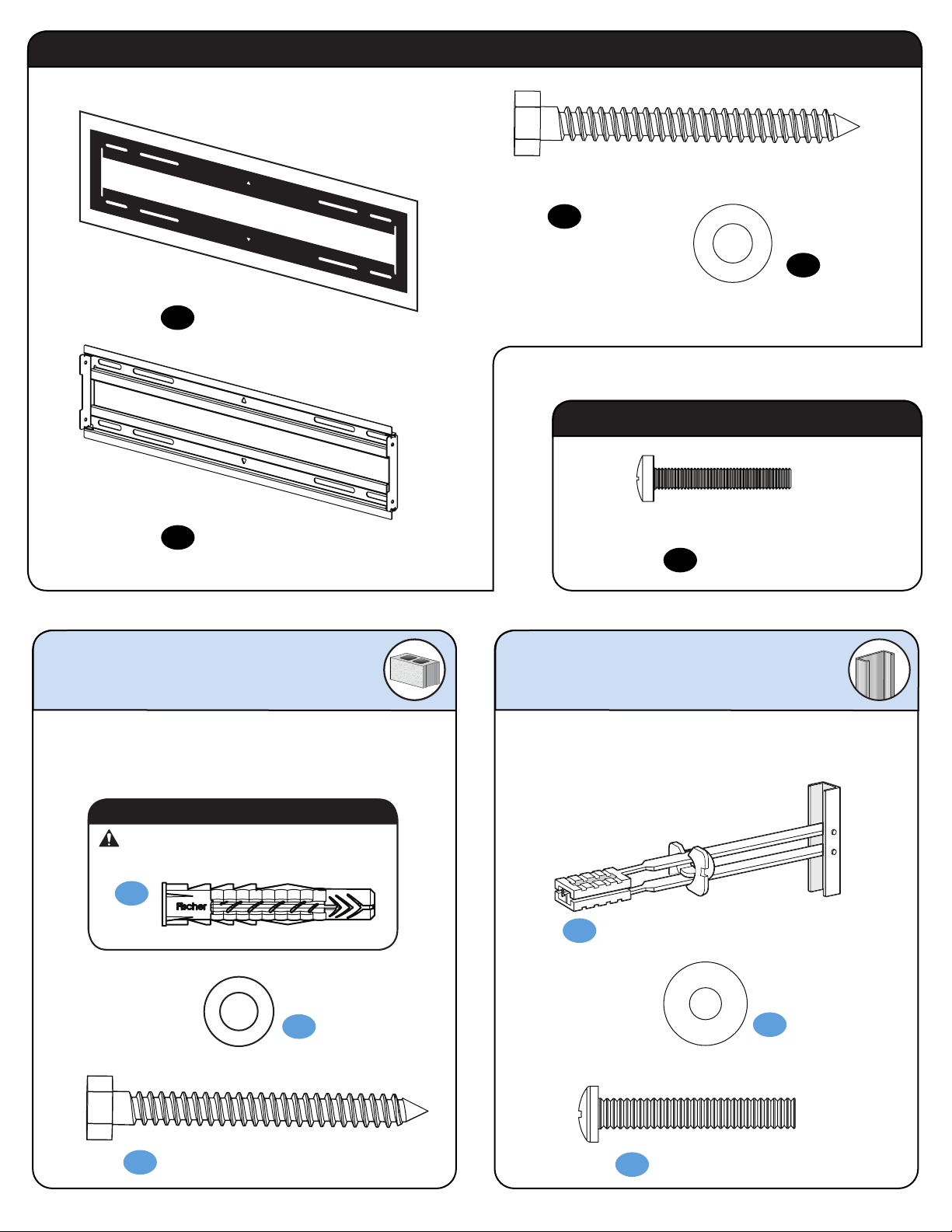

Parts and Hardware for STEP 2

Hardware for STEP 3

5/16 x 2¾in.

5/16 in.

10-32 x 1¼in.

2.5mm

22mm

5mm

M8 x 20mm

M6 x 20mmM6 x 12mm

M4 x 12mm

M6 x 35mm

M4 x 35mm

M8 x 16mm M8x30 mm

M8 x 40mm M8 x 50mm

Wall Plate Template

Wall Plate

Lag Bolts

Lag Bolt Washer

Locking Screw

06 (qty. 1)

07 (qty. 1)

08 (qty. 4)

09 (qty. 4)

10 (qty. 2)

1/4-20 x 1¾ in.

1/4-20 SnapToggle BB

1/4 in.

5/16 x 2¾ in.

5/16 in.

Fischer UX10 x 60R

Concrete Anchors

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

Lag Bolts

Washer

Hardware for STEP 2B

Concrete Installation

[Concrete Kit #CMK1 is NOT INCLUDED]

Hardware for STEP 2C

Steel Stud Installation

[Steel Stud Kit #SSMK1 is NOT INCLUDED]

Contact Customer Service at 1-855-734-7805

and ask about the SSMK1 Steel Stud Anchor Kit.

Contact Customer Service at 1-855-734-7805

and ask about the CMK1 Concrete Anchor Kit.

Anchor

Washer

Screw

C2 (qty. 4)

C3 (qty. 4)

(qty. 4)

S1 (qty. 4)

S2 (qty. 4)

S3 (qty. 4)

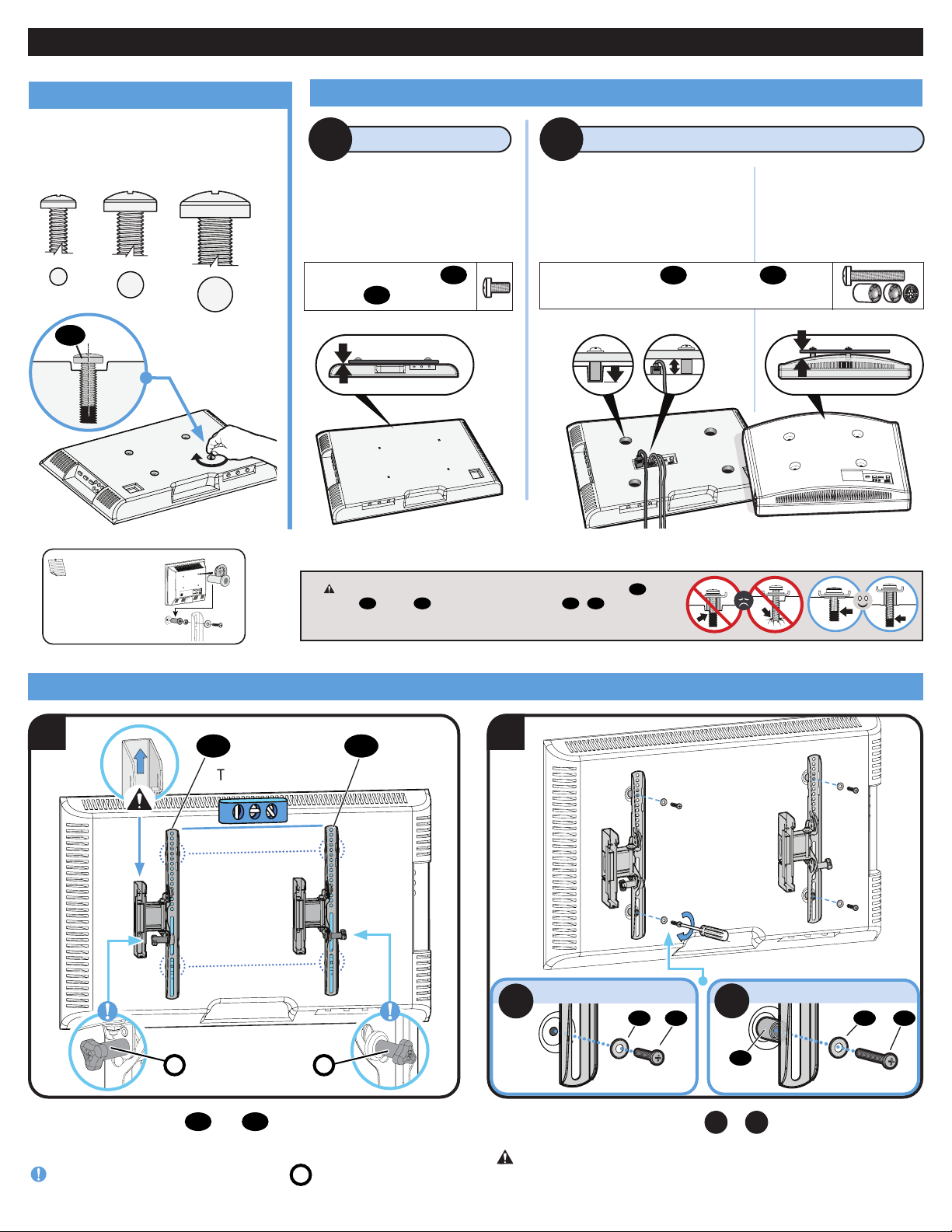

STEP 1 Attach TV Bracket to TV

1.3 Attach TV Brackets to Your TV

Inset Holes Cables Rounded Back

1.2 Select TV Screw Length and Spacers

• Flat Back TV

[TV brackets

lay ﬂat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting ﬂat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed.

Use long TV screws 01 and spacers 03 to

create extra space between the TV and TV bracket.

1.1 Select TV Screw Diameter

Only one screw size ﬁts your TV.

M4 M6 M8

CAUTION: Verify adequate thread engagement with your screw 01 ,

washer 02 , spacer 03 combination AND TV bracket 04 / 05 .

— Too short will not hold your TV. — Too long will damage your TV.

NOTE: If your TV

included inset spacers

or adapters, use them

UNDER the mount

hardware.

NO SPACER SPACER NEEDED

Position the TV brackets 04 and 05 over your TV hole pattern as

shown - making sure the brackets are level.

IMPORTANT:The tilt tension knobs Tshould be oriented to

the outside edges.

Install using the screw combination Aor Byou selected for your TV.

CAUTION: Avoid potential personal injuries and property damage!

DO NOT use power tools for this step. Tighten the screws only enough

to secure the TV bracket to the TV. DO NOT overtighten the screws.

TOP OF TV

0202 01 01

04 05

CAUTION: Avoid potential personal injury or property damage!

●Drywall covering the wall must not exceed 5/8 in. (16 mm)

●Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)

●Minimum horizontal space between fasteners: 16 in. ( 406 mm)

●Stud center must be verified

IMPORTANT: Drill into the center of the stud.

Go to STEP 3 on PAGE 9.

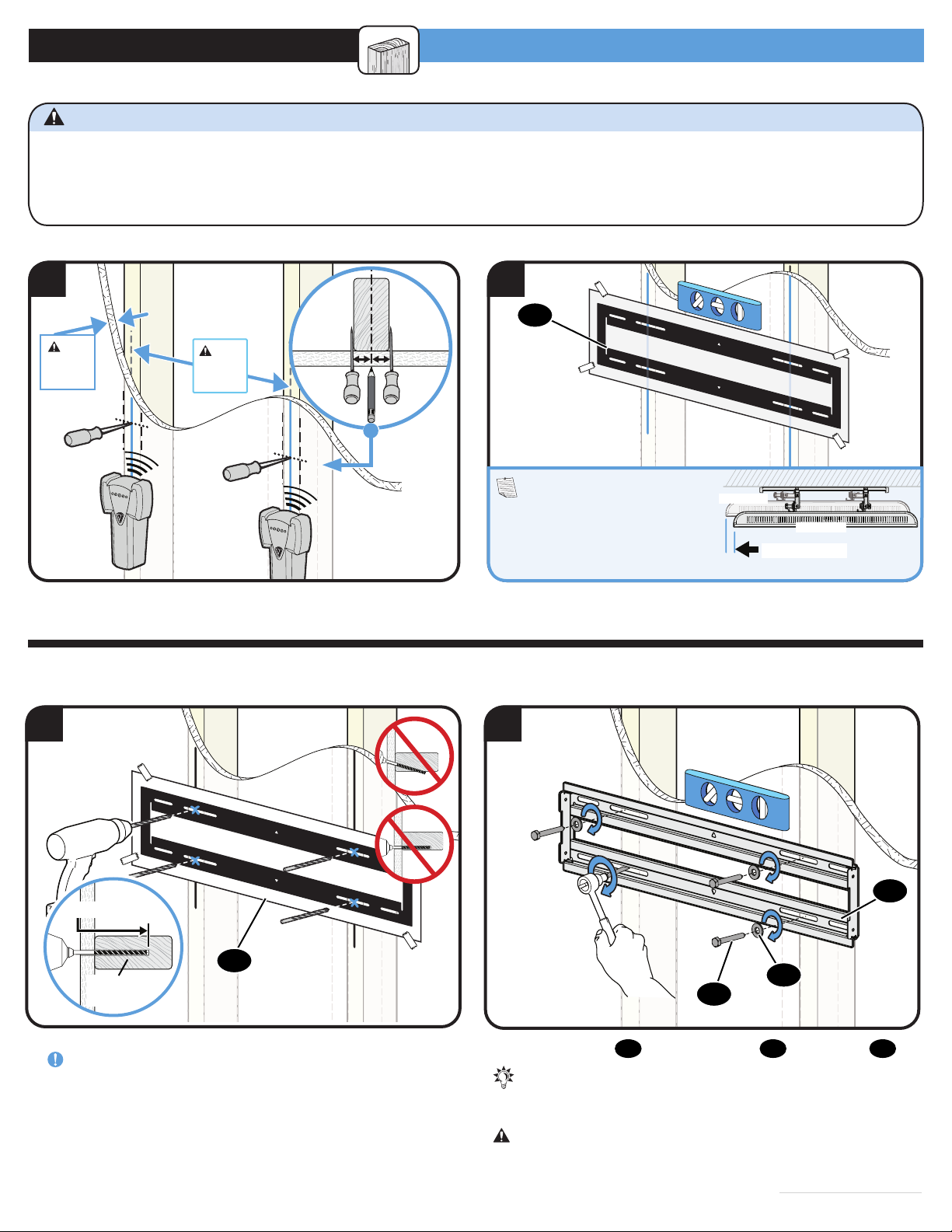

STEP 2A Attach Wall Plate Wood Stud Installation

Min.

16 in.

(406 mm)

EXTENDED

2.28 in. (58 mm)

RETRACTED

NOTE: During operation, your TV

shifts 2.28 in. (58 mm) when retracted

or extended. The wall plate and TV

brackets have built-in adjustments to

help fine-tune your TV placement.

Max.

5/8 in.

(16 mm)

3 4

2 ¾in. (70 mm)

7/32 in.

(5.5 mm) 08

Install the wall plate 07 using four lag bolts 08 and washers 09 .

TIP: Use the slotted holes for fine-tuning your placement.

Tighten all lag bolts only until they are pulled firmly against the wall plate.

CAUTION: Improper use could reduce the holding power of the

lag bolt. DO NOT over-tighten the lag bolts.

CAUTION: Avoid potential personal injury or property damage!

●Mount wall plate 07 directly onto concrete surface (no wall covering)

●Minimum solid concrete thickness: 8 in. (203 mm)

●Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)

●Minimum horizontal space between fasteners: 16 in. (406 mm)

CAUTION: Be sure the anchors C1

are seated flush with the concrete surface.

CAUTION: Never drill into the mortar between blocks.

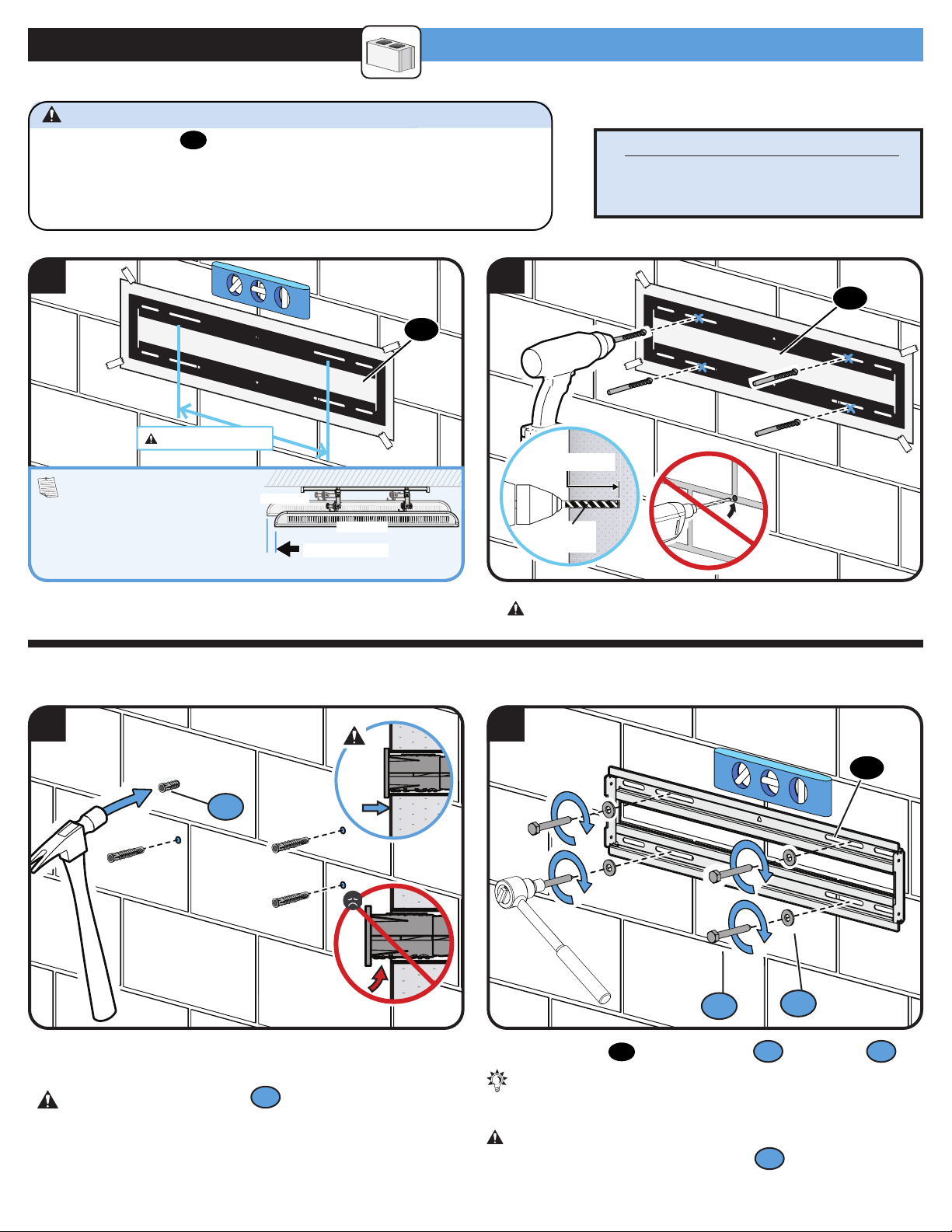

Solid Concrete or Concrete Block Installation

STEP 2B Attach Wall Plate

Concrete Install Kit #CMK1 is not included

(see page 4) Contact Customer Service

at 1-855-734-7805 to inquire about the

additional hardware.

1 2

3/8 in.

(10 mm)

3 in. (75 mm)

EXTENDED

2.28 in. (58 mm)

RETRACTED

NOTE: During operation, your TV

shifts 2.28 in. (58 mm) when retracted

or extended. The wall plate and TV

brackets have built-in adjustments to

help fine-tune your TV placement.

002862.eps

Min. 16 in. (406 mm)

3 4

C3 C2

Install the wall plate 07 using four lag bolts C3 and washers C2 .

TIP: Use the slotted holes for fine-tuning your placement.

Tighten all lag bolts only until they are pulled firmly against the wall plate.

CAUTION: Improper use could reduce the holding power of the

lag bolt. DO NOT over-tighten the lag bolts C3 .

Go to STEP 3 on PAGE 9.

S1 S1

CAUTION: Be sure cap Pis seated against the drywall surface.

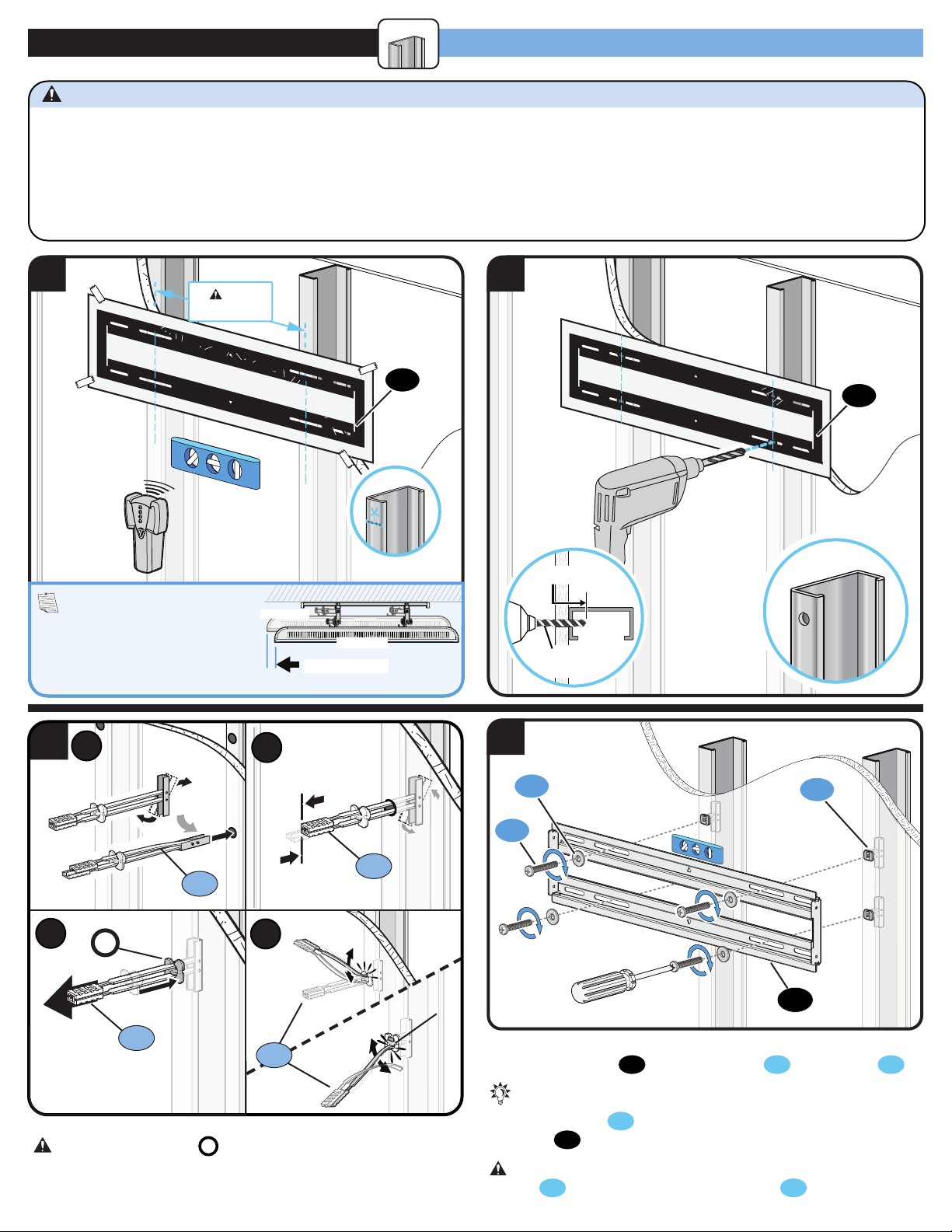

Steel Stud Installation

STEP 2C Attach Wall Plate

CAUTION: Avoid potential personal injury or property damage!

●Studs must be at least 2x4 in. / 25 ga.

●If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount

●Drywall must be a minimum of 1/2 in. (13 mm) thick on each side of the studs, and a minimum clearance of 1 ⅞in. (48 mm) behind the wall is required

●Pilot holes MUST be drilled to a depth of 1 in. (25 mm), using a 1/2 in. (13 mm.) diameter drill bit

●This product must be centered on the studs

●Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural Members [362 S 125 18, C-Shape, S - Stud Section]

●Drywall must be secured to studs with screws 12 in. (304.8 mm) on center

1 in. (25 mm)

1/2 in.

(13 mm)

Min.

16 in. (406 mm)

EXTENDED

2.28 in. (58 mm)

RETRACTED

NOTE: During operation, your TV

shifts 2.28 in. (58 mm) when retracted

or extended. The wall plate and TV

brackets have built-in adjustments to

help fine-tune your TV placement.

Install the wall plate 07 using four screws S3 and washers S2 .

TIP: Use the slotted holes for fine-tuning your placement.

Tighten all screws S3 only until they are pulled firmly against the

wall plate 07 .

CAUTION: Improper use could reduce the holding power of the

screws S3 . DO NOT over-tighten the screws S3 .

STEP 3 Hang TV onto Wall Plate

CAUTION: Avoid potential personal injury!

TV brackets 04 and 05 contain potential pinch

points during operation. Keep fingers away from

pinch points when retracting the TV. (arrows)

NOTE: The TV brackets (TV)

can be positioned anywhere

along the wall plate to counteract

the 2.28 in. (58 mm) offset during

TV operation (extend/retract).

See PAGE 3 for offset details.

HEAVY! You may need assistance with this step.

Extend the TV brackets 04 and 05 as shown Align the ends of TV brackets 04 and 05 with your TV.

0405

IMPORTANT: BEFORE MOVING YOUR TV, SECURELY

tighten down screws 10 to properly install the assembly.

Rest the TV (brackets 04 and 05 ) against the wall plate 07 .

Install locking screws 10 to secure TV to wall plate 07 .

CAUTION: Avoid potential personal injuries or property damage!

Screws 10 must be installed to secure arms to wall plate 07 .

Periodic tightening may be required.

04 05

0504

Determine where on the wallplate you want to position your TV.

Hang your TV by fitting the hooks of BOTH TV brackets 04 and 05

over the top edge of the wall plate 07 .

IMPORTANT: Ensure BOTH TV brackets are connected.

TILT ADJUSTMENT

TV Adjustments

Manage Cables

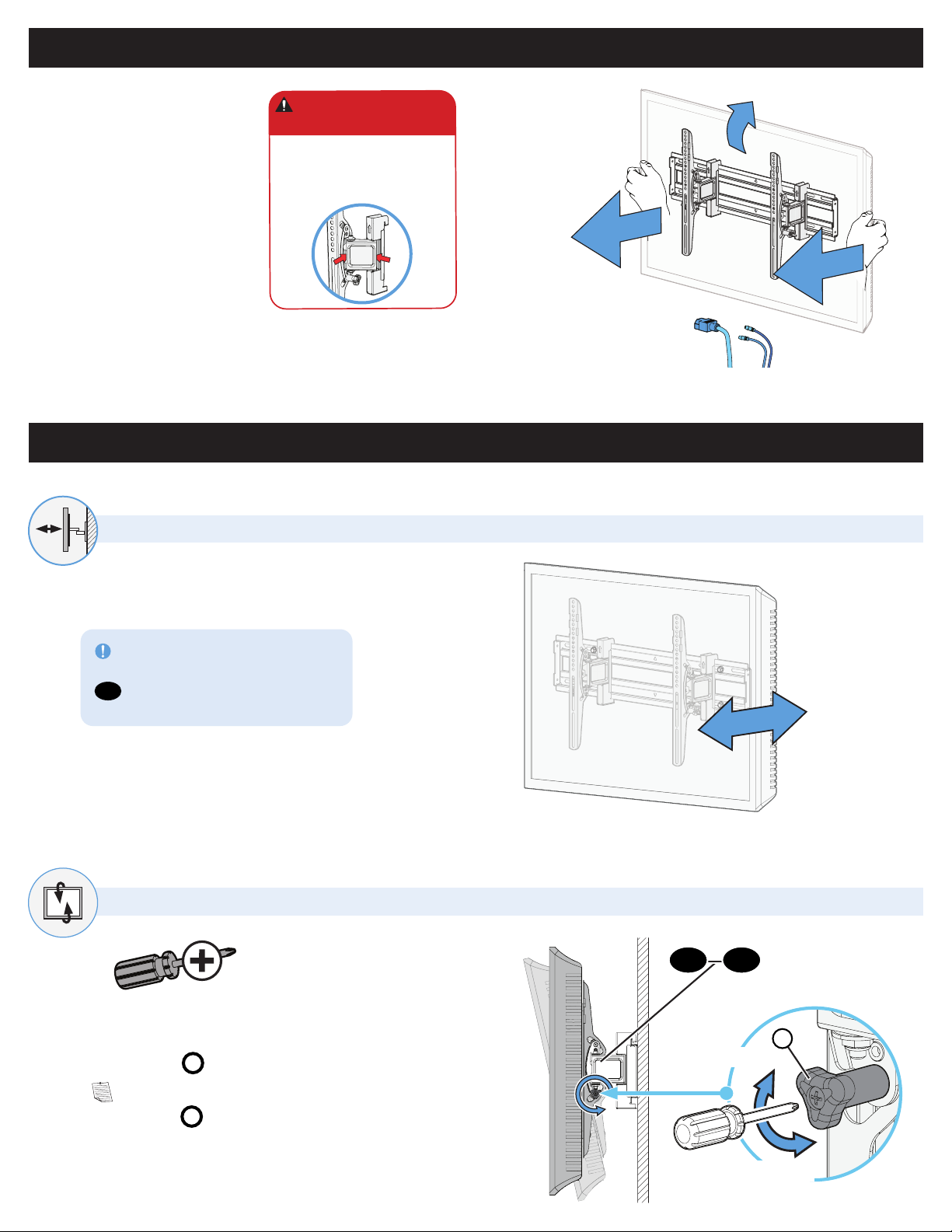

EXTEND / RETRACT -- ONLY IF NECESSARY

Move your TV to various positions,

as needed to attach your cables,

then adjust the TV as desired.

CAUTION:

Avoid potential personal injury!

The TV brackets contain potential

pinch points during operation.

Keep fingers away from pinch points

when retracting the TV. (see arrows)

If your TV doesn't extend or retract properly,

remove your TV (See PAGE 11, then reinstall

following STEP 3 on PAGE 9.

IMPORTANT: BEFORE MOVING

YOUR TV, securely tighten down screws

10 shown on PAGE 9, STEP 3, to

properly install the assembly.

0504

Your TV should adjust easily when moved, then stay

in place. If your TV is too loose or too tight, adjust side

tension knobs T.

NOTE: Once your TV is in place, tighten the side

tension knobs Tto prevent unwanted movement.

Tighten

Loosen

Table des matières

Langues :

Autres manuels LEGRAND Support TV

LEGRAND

LEGRAND SANUS SAL-IWP1 Manuel utilisateur

LEGRAND

LEGRAND CP Electronics MWS3A-DBB Manuel utilisateur

LEGRAND

LEGRAND SANUS VODLF125-B2 Manuel utilisateur

LEGRAND

LEGRAND CHIEF CSPBPTA Manuel utilisateur

LEGRAND

LEGRAND SANUS BIWLF128-B3 Manuel utilisateur

LEGRAND

LEGRAND SANUS BSF316 Manuel utilisateur

LEGRAND

LEGRAND SANUS VODLT1-B2 Manuel utilisateur

LEGRAND

LEGRAND SANUS LLF225 Manuel utilisateur

LEGRAND

LEGRAND CHIEF PACFCB Manuel utilisateur

LEGRAND

LEGRAND sanus accents ALF325-B1 Manuel utilisateur

LEGRAND

LEGRAND SANUS VIWLF128-B2 Manuel utilisateur

LEGRAND

LEGRAND CHIEF ConferenceSHOT Thinstall TA210K Manuel utilisateur

LEGRAND

LEGRAND Sanus VLFS820-B2 Manuel utilisateur

LEGRAND

LEGRAND SANUS ACCENTS AMF319-B1 Manuel utilisateur

LEGRAND

LEGRAND Middle Atlantic Forum Manuel utilisateur

LEGRAND

LEGRAND SANUS SMF421-B2 Manuel utilisateur

LEGRAND

LEGRAND SANUS ELITE BLFS420 Manuel utilisateur

LEGRAND

LEGRAND CHIEF RMF3 Manuel utilisateur

Manuels Support TV populaires d'autres marques

Ergotron

Ergotron Neo Flex Cantilever UHD Manuel utilisateur

StarTech.com

StarTech.com FPCEILBTB Manuel utilisateur

VonHaus

VonHaus 05/038 Manuel utilisateur

Techlink

Techlink ECHO TV Manuel utilisateur

Sandstrom

Sandstrom SSTVMC12X Manuel utilisateur

Sony

Sony SU-WL700 Mode d’emploi

ICW

ICW SCACC18 Manuel utilisateur

LG WM-L640V Manuel utilisateur

Gembird

Gembird WM-65ST-01 Manuel utilisateur

ERARD

ERARD FiTUP XXL 035320 Manuel utilisateur

PEERLESS

PEERLESS PLCK-1 Mode d’emploi

Kanto

Kanto RCF180 Manuel utilisateur

GEM

GEM GEM GP001 Manuel utilisateur

Gladiator Joe

Gladiator Joe GJ0A0053 Manuel utilisateur

Vivotek

Vivotek AM-105 Manuel utilisateur

Vivo

Vivo VESA STAND-VAD1B Manuel utilisateur

AmazonBasics

AmazonBasics B07QG3LMG4 Manuel utilisateur

Secura

Secura QLF210 Manuel utilisateur
