LEGRAND Galion 2 824 26 Manuel utilisateur

87045 Limoges Cedex

Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88

Technical data sheet: F02853EN/01 Updated: 27/11/2019 Created: 30/11/2018

GalionTM

45A DP switches Cat. No(s): 2 824 26/26m/27/27m/28/29

K8/31D45AN-HK

1. USE

High capacity double pole switches for the control of fixed appliances

eg. cooker ovens units, shower or air-conditioning units, Version

available with LED “power on” indicator.

(Supplied with M3.5 screws for BS boxes. Flush mounting or Surface

mounting.)

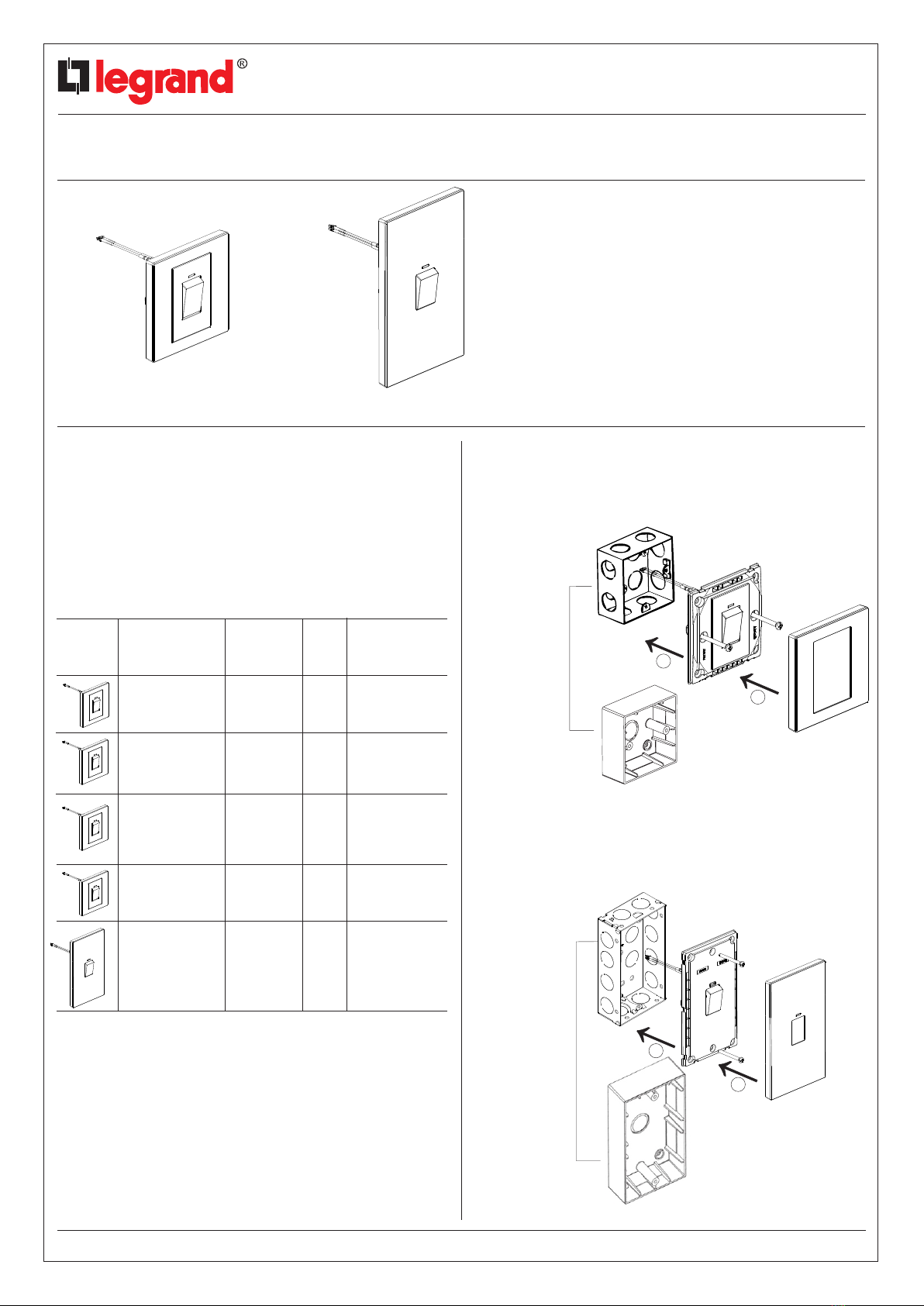

3. PREPARATION

3.1 General preparation for 1G swith

2. RANGE

Colours

- Front: white/rose golden/champagne/dark silver

- Rear: white/rose golden/champagne/dark silver

X XXX XX White

X XXX XX-C Matt black

X XXX XX-C1 Rose golden

X XXX XX-C2 Champagne

X XXX XX-C3 Dark silver

2 824 26/26m/27/27m 28

K8/31D45AN-HK

2 824 29

Designation

45A DP switch wi

-th LED indicator

45A DP switch wi

-th LED indicator

with red rocker

45A DP switch wi

-th LED indicator

with red rocker

45A DP Switch

cooker marking

2G Vertical

1W 45A DP

switch

125

150

125 45 A - 250VAC

45 A - 250VAC

2 824 26

2 824 27

2 824 28

2 824 29

Cat. No. Weight

(g)

Characteristics

1/2

- Flushing

mounting

box:

- Surface

mounting

box:

CONTENTS

1. Use.......................................1

2. Range...................................1

3. Pr ep aration .. ....... ....... .. ....... 1

4. Overall dimensions.................2

5. Connection...........................2

6. Technical characteristics......2

7. Cleaning.................................2

8. Conformity - Approvals..................2

3.2 Preparation for 2G vertical switch

- Flushing

mounting

box:

- Surface

mounting

box:

K8/31D45AN

-HK

5. CONNECTION

5.1 Terminals

Terminal capacity: 2 ×6

1 ×10

Recommended screwdriver size: 4 mm flat blade

Recommended stripping length: 20 mm

5.2 Circuit diagrams

mm²

2/2

45A DP switches

GalionTM

Cat. No(s): 2 824 26/26m/27/27m/28/29

K8/31D45AN-HK

Technical data sheet: F02853EN/01 Updated: 27/11/2019 Created: 30/11/2018

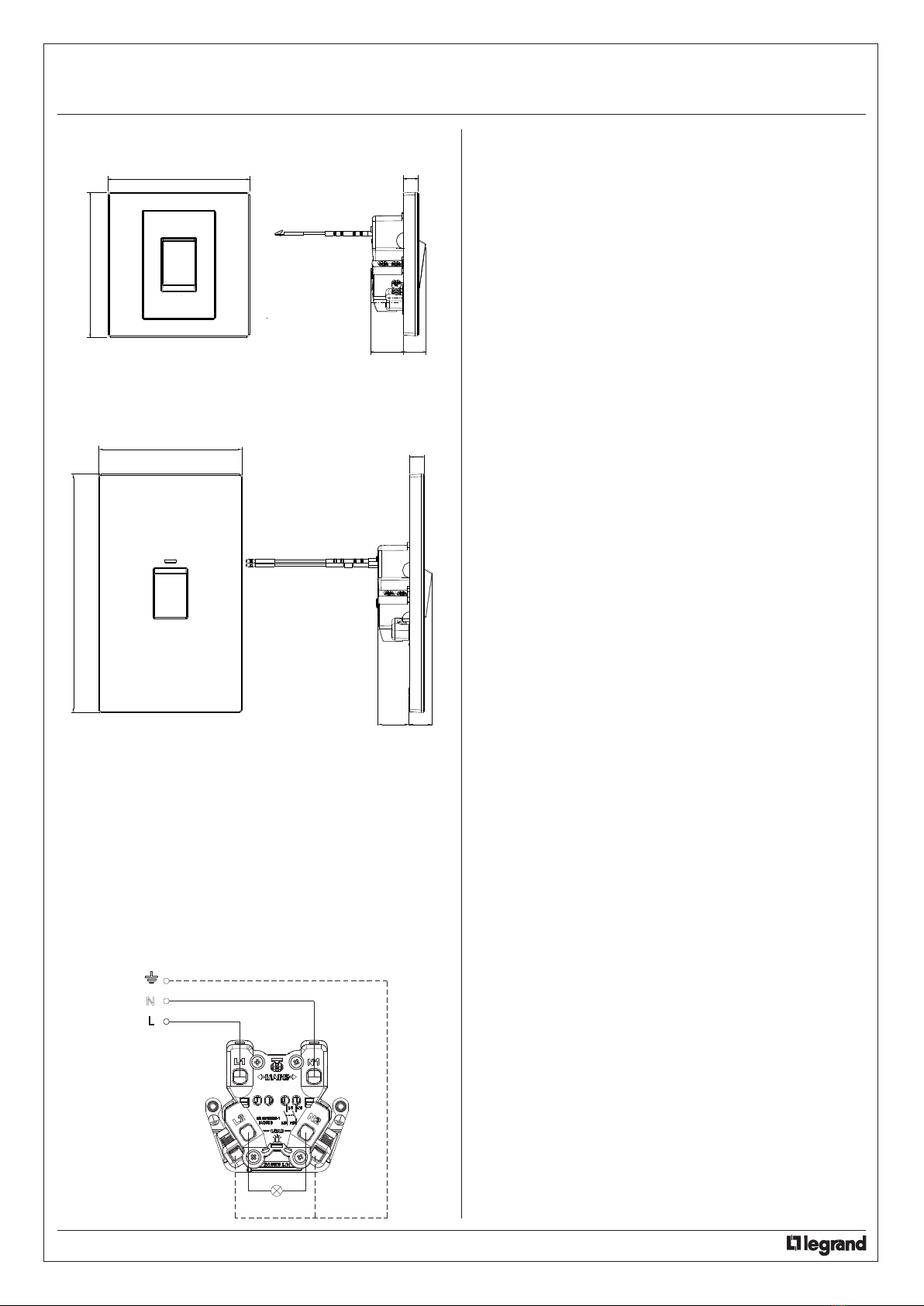

4. OVERALL DIMENSIONS

Profile Size: 86×88 mm

Distance of installation hole: 60.3 mm

Profile Size: 88×146 mm

Distance of installation hole: 120.6 mm

86 9.1

9.1

14.3

146

6. TECHNICAL CHARACTERISTICS

6.1 Material characteristics

Cover, Plate:

Rocker: Polycarbonate

Frame: Polycarbonate

Base: Polyamide

Self-extinguishing:

+ 850° C / 30 s for insulating parts holding live parts in place

+ 650° C / 30 s for other parts made of insulating materials

6.2 Electrical characteristics

Voltage: 250VAC

Current: 45A

6.3 Climatic characteristics

Storage temperatures: -10℃ to +70℃

Operating temperatures: -5℃ to +50℃

6.4 Mechanical characteristics

Impact test: IK04

Protection against liquids: IP20

7. CLEANING

Surface cleaning with a soft, slightly damp cloth.

Do not use: acetone, tar remover, trichloroethylene

8. CONFORMITY - APPROVALS

Conform to BS EN 60669-1; MS/IEC 60669-1

Polycarbonate

LOAD

20 13.5
