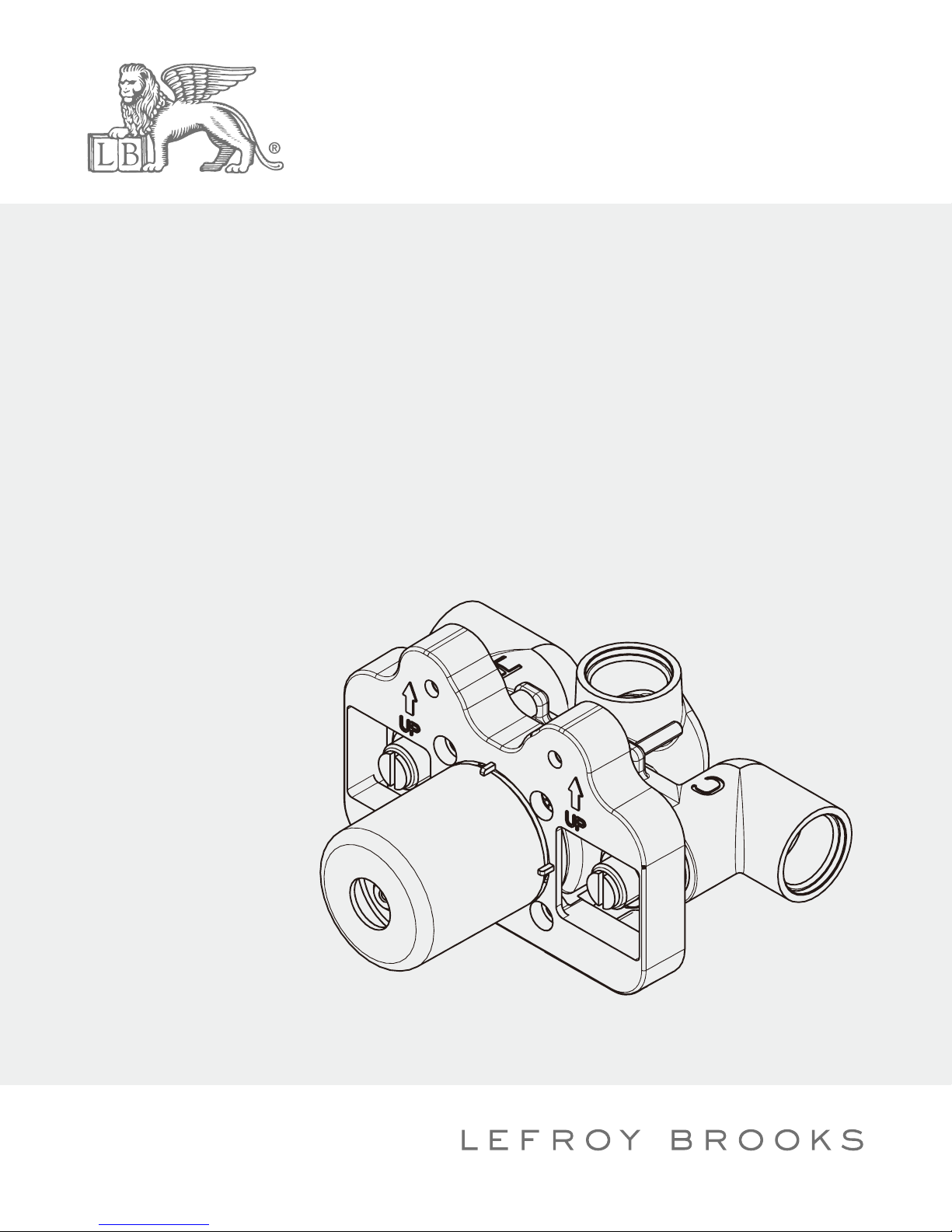

INSTALLATION INSTRUCTIONS

M1-4200

SINGLE HANDLE THERMOSTATIC ROUGH, TO SUIT M1-4400, M1-4401, X1-2008,

X1-2009, CW-4075 & CB-4075

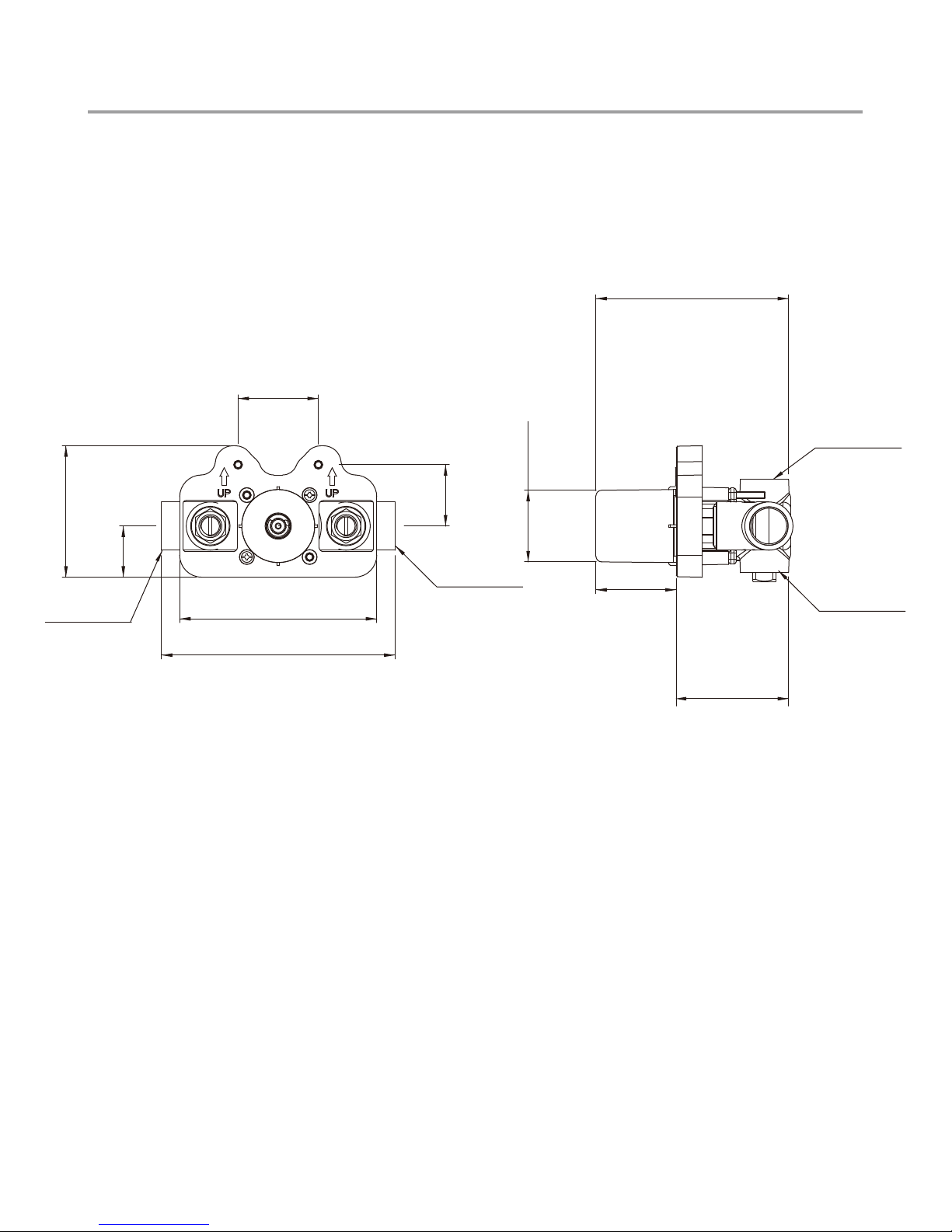

Dimensions

in Inches (& Millimetres)

Whilst every effort is made to ensure accuracy, design and dimensions are subject to

change without notice as part of the company’s product development process.

3/4-14NPT

6 5/16"

5 5/16"

3 1/2"

1 3/8"

3 1/8"

5 3/16"

1 15/16"

1 5/8"

2 3/16"

(160mm)

(135mm)

(90mm)

(35mm)

(132mm)

(49mm)

(42mm)

(55mm)

(80mm)

Please note:

When there is a difference in water pressure between

hot and cold supplies to the mixing valve, the pressures

should by equalized by a plumber in accordance with

best practice and legislation.

What you need to know

Prior to beginning installation. turn off the cold and

hot water lines and open the old faucet to release

built-up pressure.

Overtightening nuts may cause damage.

Wrap all threaded connections with pipe tape

available at your local plumbing supply store.

Always wrap in a clockwise direction. The fittings

should be installed by a state-licenced plumber.

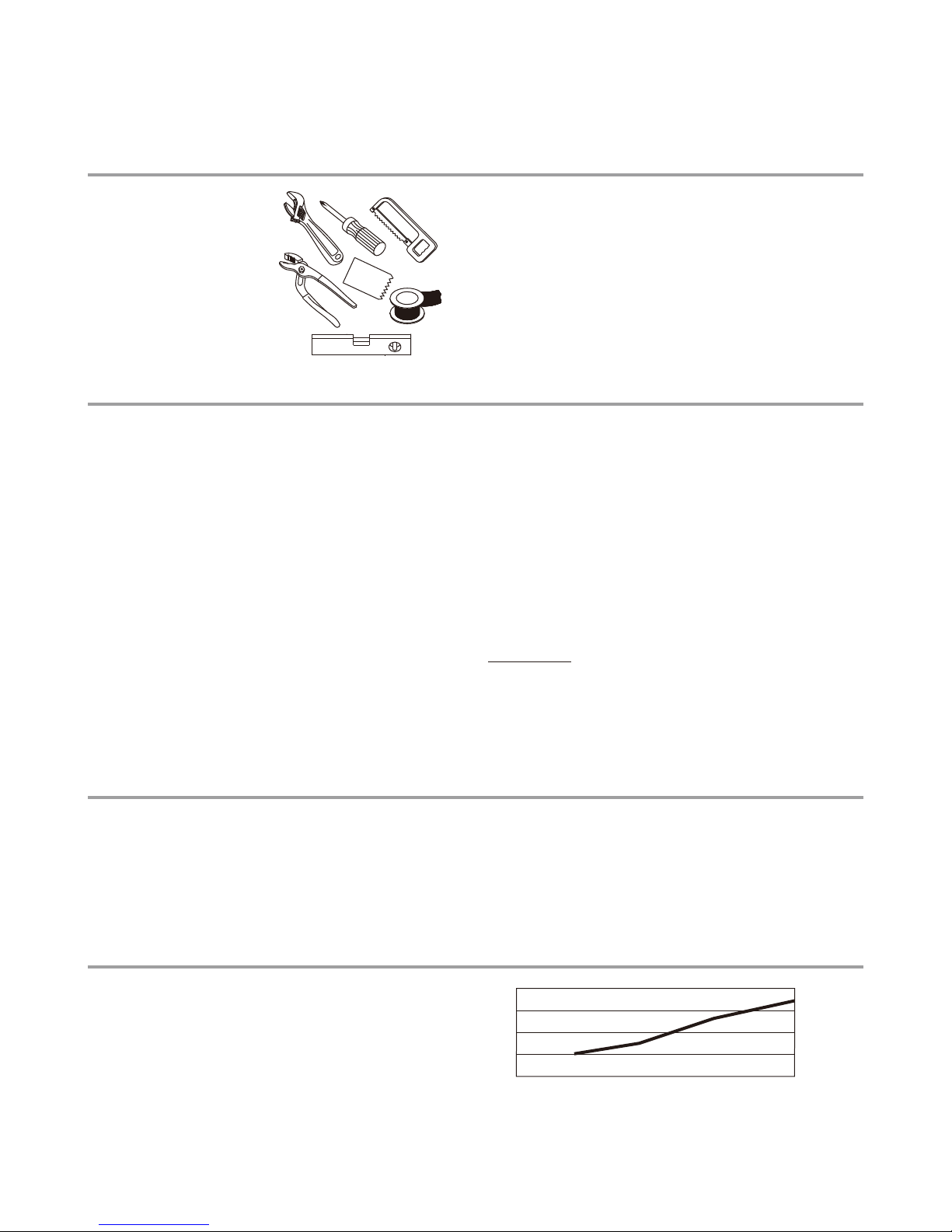

Adjustable Wrench

Groove Joint Pliers

Hacksaw

Phillips Screwdriver

Pipe Tape

Spatula

Spirit Level

Your new bathroom faucet is designed for years

of trouble-free performance.

Keep it looking new by cleaning it periodically with

a soft cloth. Avoid abrasive cleaners, wire wool and

harsh chemicals as these will dull the finish and

void your warranty.

If you are soldering during faucet installation,

remove cartridges, seats, gaskets and washers

prior to applying flame, otherwise you will void

the warranty.

Cover drain openings to avoid losing small parts.

When cutting or soldering pipe, use safety glasses

to protect your eyes.

Correct installation may vary depending on previous faucet installation. All necessary supplies required for

faucet installation are not included, but may be found where plumbing supplies are sold. It is suggested that

IAPMO and/or CSA approved plumbing supplies are used during installation.

Tools: Maintenance

Safety Tips

Things You May Need

Important Points

IAPMO/cUPC Listed

Meets A112.18.1

Meets ASSE 1016

Standards

Standards Flow Rate

20 40 60 80PSI

Hot supply

Outlet

Cold supply

For rectangular trim plates: M1-4400, M1-4401,

X1-2008, X1-2009

Note: Plaster guard

wall surface

80mm-105mm

Keep a distance of 7mm at least from the

wall surface to the front of the plaster guard

so that the trim kit CW-4075, CB-4075 can

be fitted successfully.

For round trim plates: CW-4075, CB-4075

wall surface

87mm-112mm

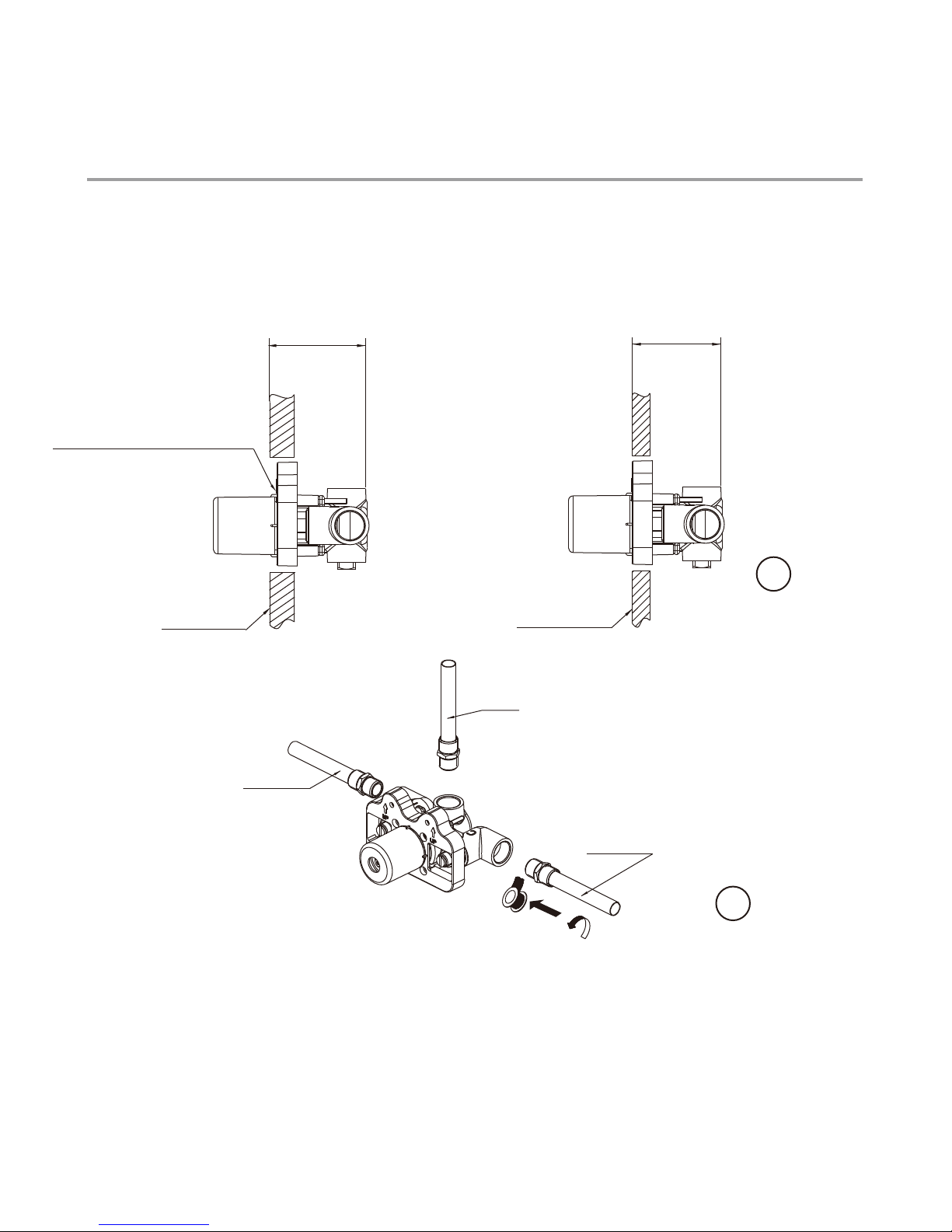

Steps 1-2

Installation Procedure

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

Position valve into the wall as the figure

instructed.

Connect Water Supply Piping.

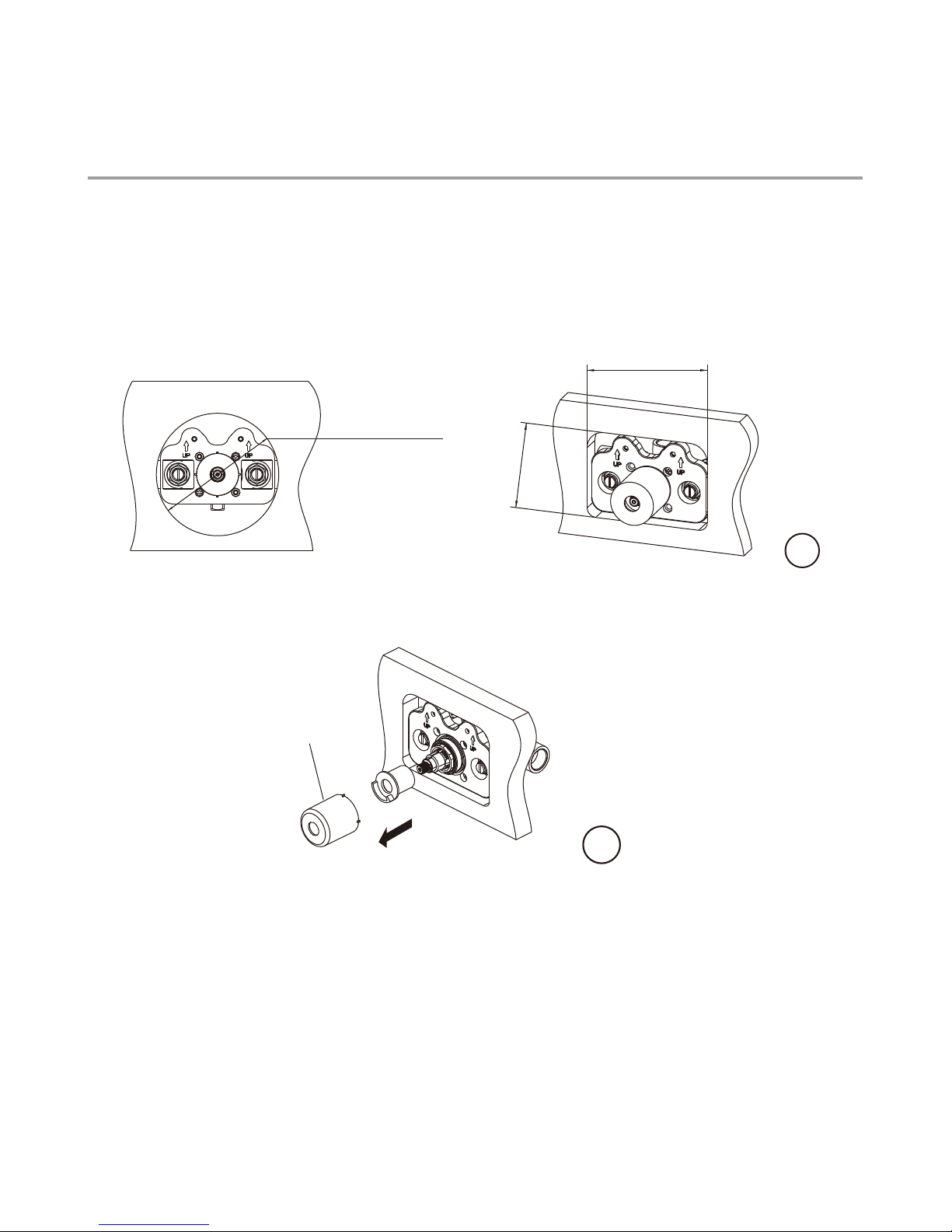

Steps 3-4

Installation Procedure

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

For rectangular trim plates: M1-4400, M1-4401,

X1-2008, X1-2009

For round trim plates: CW-4075, CB-4075

Protective cap

4Throw away the protective caps only when

the building construction is completed and

you are ready to fit the trim kit. Take out

the stopper.

136mm~140mm

100mm~110mm

3Cut a hole on the wall surface for fitting

the trim kit. The hole dimension is as

shown in figure 3.

Ø145mm-Ø150mm

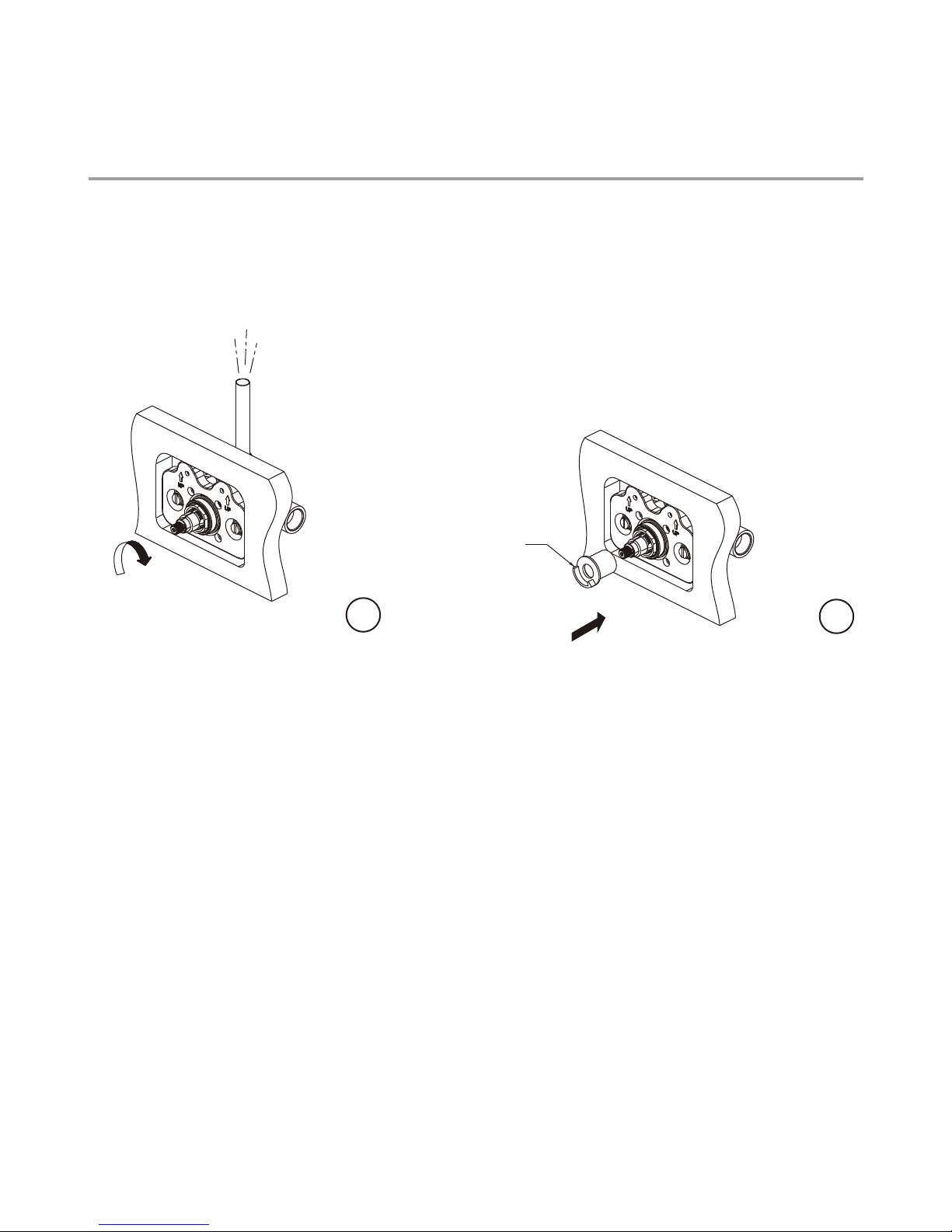

Steps 5-6

Installation Procedure

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

Turn on the flow controller. Turn the

thermostatic cartridge till you get the water

temperature at 38°.

Suggestion: attach a hose to the outlet and

guide water to basin or a receiver to get the

temperature and prevent it from wetting

the floor.

Fix the stopper and make sure its "A"

plane as mentioned is horizontal and on the

left side.

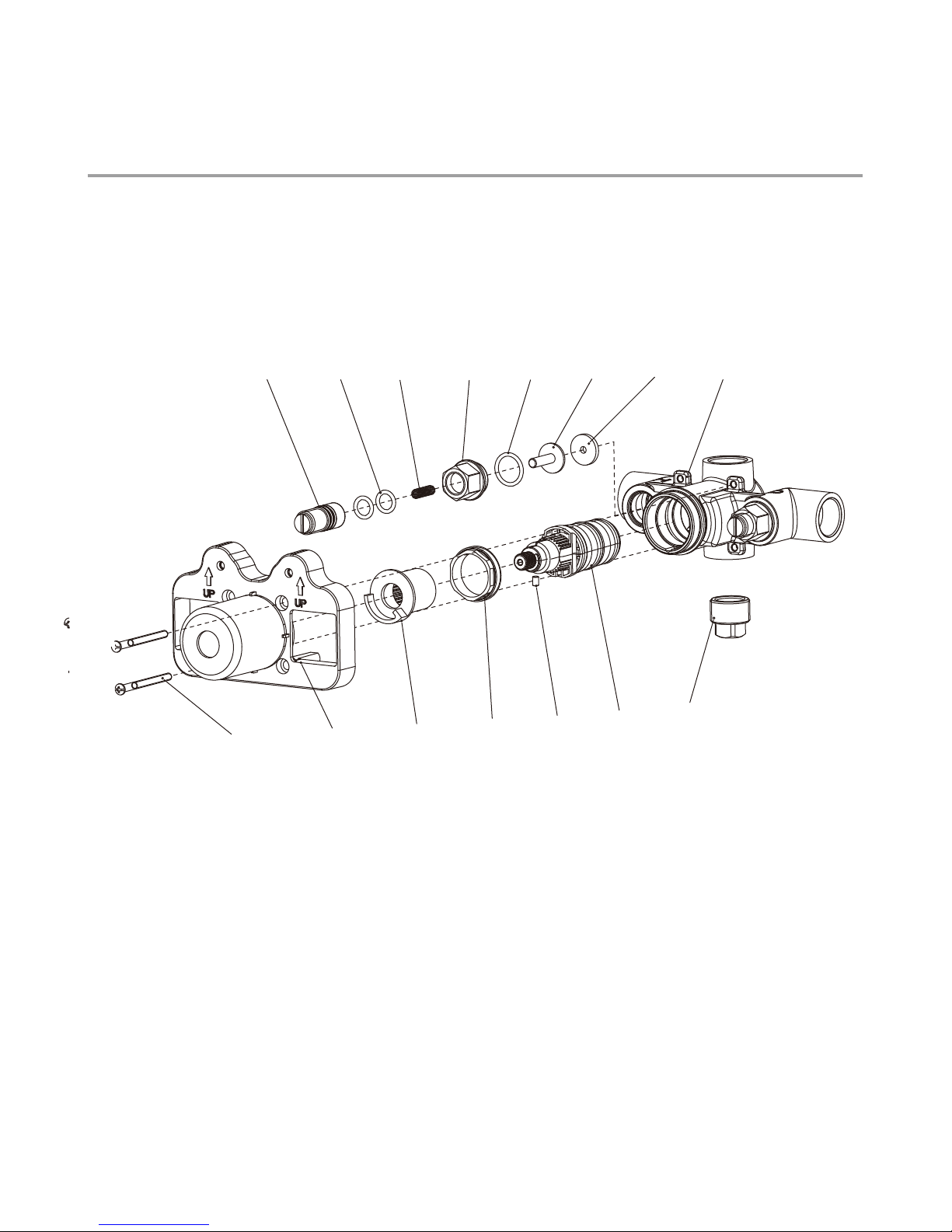

Exploded View

Parts List

1 Spindle (017119)

2 O-ring (048038)

3 Spring (005060)

4 Nut (009111)

5 O-ring (063060)

6 Cartridge (024092)

7 Oil-seal (010113)

8 Body (002552)

9 Thermostatic cartridge (507132)

10 Pin (003146)

11 Adjusting ring (104061)

12 Stopper (049108)

13 Plaster guard (127215)

14 Screw (008241)

15 Plug (028612)

84 51 2 3 76

14 12

For additional assistance or service call

718-302-5292

9am to 5pm EST Monday to Friday

LEFROY BROOKS INC, 1828 TROUTMAN STREET, RIDGEWOOD, NY, 11385

TELEPHONE: 718-302-5292. FAX: 718-302-4177

The use of trademarks, product design and artwork is subject to licence or agreement with LBIP Ltd. The design

registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.

The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).

www.lefroybrooks.com
