INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
M1-4530
FIXED RISER AND 8” ROSE
2
Contents
Dimensions 3
InstalLation Procedure 4
Parts List 7
Fault Finder 8
Safety Tips, Care and Maintenance 9
Guarantee 10
16 3/4"
(425.5mm)
35 7/16"~35 13/16"
(900~910mm)
41 7/8"~42 1/4"
(1064~1074mm)
3 1/4"~3 5/8"
(82.5~92.5mm)
3 1/4"~3 5/8"
(82.5~92.5mm)
36 1/2"~37 7/8"
(927~937mm)
7 11/16"
(Ø195.5mm)
2 3/8"
(60mm)
Ø11/16"
(Ø18mm)
3/4-14NPT
1/2-14NPT
3

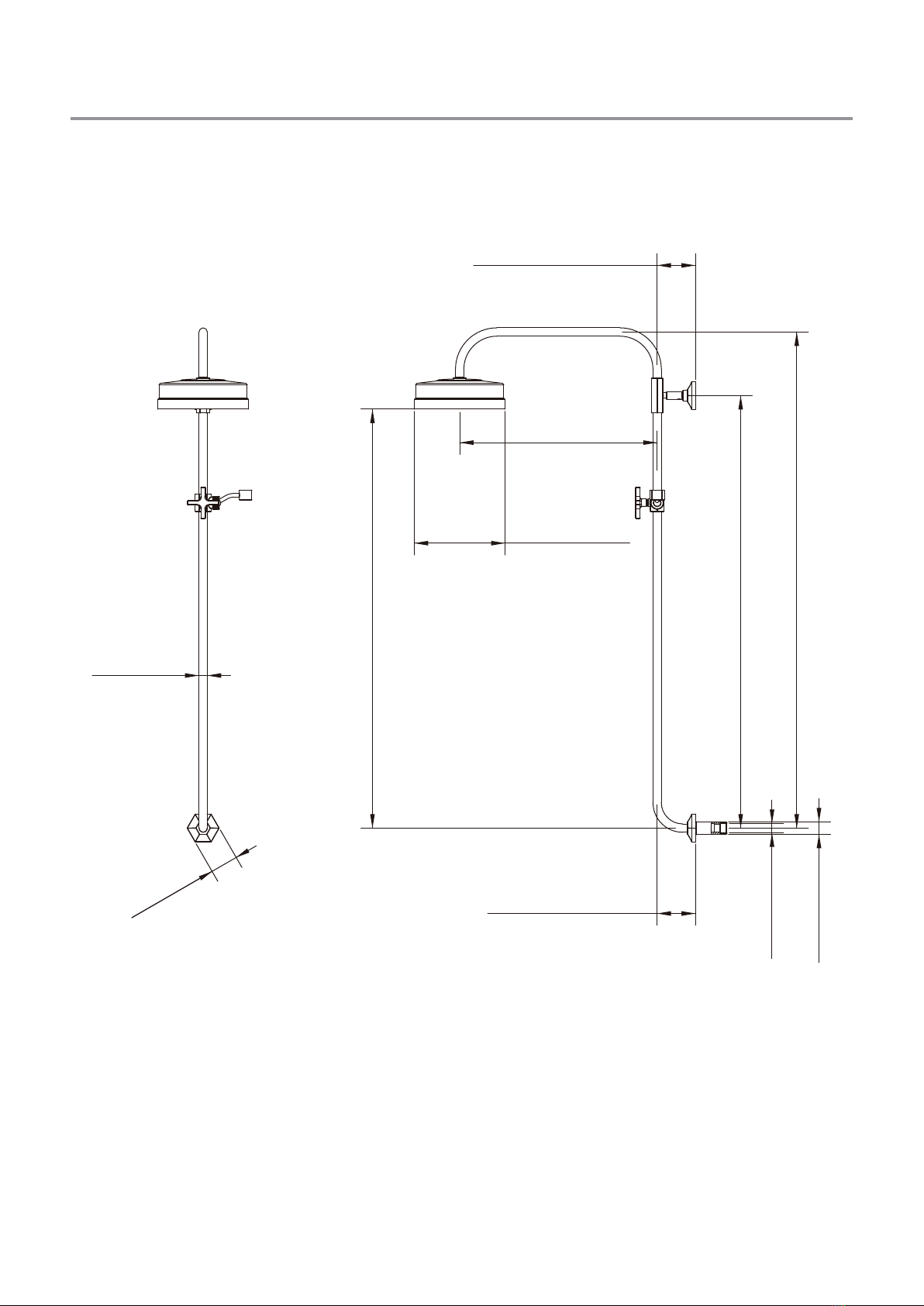

Dimensions in Inches (& Millimetres)
Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without
notice as part of the company’s product development process.
1
1:2
932±4
4
Step 1
InstallationProcedure
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

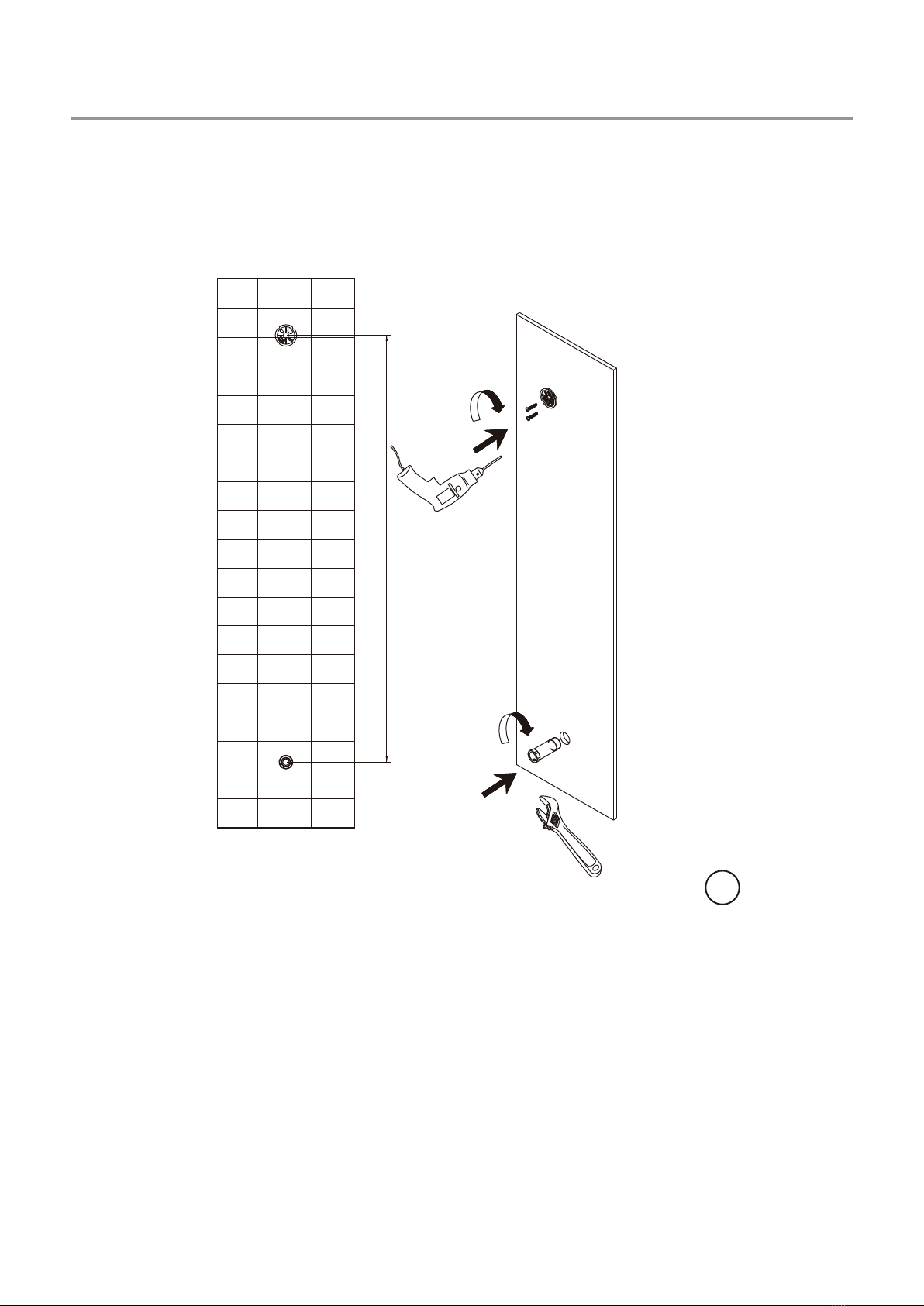

1Install the Inlet and locate the wall bracket. Make sure that the distance between the
inlet and the wall bracket is 36.55~36.85 inches (928~936mm).
2 3
5
InstallationProcedure Steps 2-3
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
2Slide the assembly of shower bracket over the pipe, and fix it in the desired position, by
tightening the handle of slider.
3Assemble shower arm and the brass pipe with O-rings attached. The position of the hexagonal
adaptor is an up-or-down 4mm adjustment.
Tighten the shower arm and the brass pipe to the hexagonal adaptor with set screws supplied.
4 5
6
InstallationProcedure Steps 4-5
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
4Install the assembly of shower pipe to the Inlet and wall bracket, and tighten with set screws
supplied.
5Flush debris from the pipes and check for leaks. Finally install the showerhead to the shower arm.
1 Shower arm (020979)
2 O-ring (004074N)
3 Fixing bolt (017969)
4 Adaptor (126096)
5 Set screw (292505)
6 O-ring (048038)
7 Brass tube (020981)
8 Seat (126098)
9 Fixer (126099)
10 Screw (008674)
11 Handle (029685)
12 Adaptor (067445)
13 Set screw (292598)
14 8" Shower head (S1110819)
15 Spring (005156)
16 Washer (013614)
17 Washer (060023)
18 Ball joint (067444)
19 Nut (009317)
20 Shower bracket (117003)
21 Allen key (031000)
22 Fixing kit (290411)
23 Mounting bracket (293190)
24 Base (019337)
25 Set screw (075039)
26 Adaptor (067446)
27 Adaptor (126097)
28 Set screw (075052)
29 Base (019338)
30 O-ring (004035N)
31 Inlet (014617)
14
10
11
12
13
3
9
4
2
1
7
5
6
8
20
19
18
15 16
21
17
24
25
26
28
22
23
27
29
30
31
7

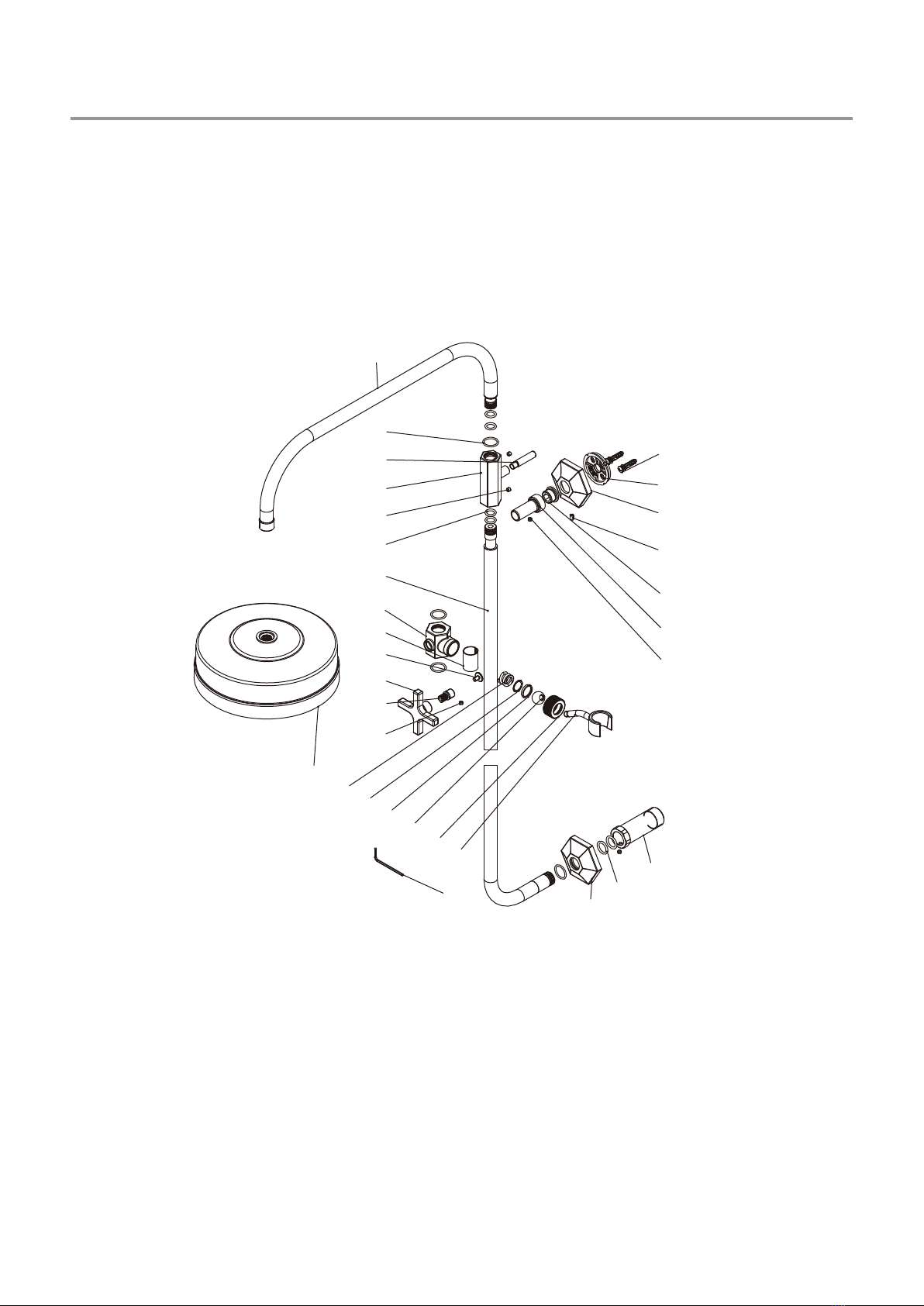

PartsList Exploded view
8
FaultFinder
Fault Cause Rectification
Too low flow. Showerheads clogged. Remove and clean showerheads
regularly.
Leaks around the connection
between leg and faucet.
Gasket is misfitted or damaged. Check for gasket placement.
Loose slider. The handle is not tightened well. Check and tighten the handle.
9
SafetyTips,CareandMaintenance
Safety Tips
If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to
applying flame, otherwise you will void the warranty.
Cover drain openings to avoid losing small parts.
When cutting or soldering pipe, use safety glasses to protect your eyes.
Important Points
Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release
built-up pressure.
Overtightening nuts may cause damage.
Wrap all threaded connections with pipe tape available at your local plumbing supply store.
Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber.
Please note:
When there is a difference in water pressure between hot and cold supplies to the mixing valve, the
pressures should be equalized by a plumber in accordance with best practice and legislation.
Maintenance
Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as
these will dull the finish and void your warranty.
Routine Maintenance
The frequency and extent of attention required will vary according to prevailing site and operational
conditions, however a 12 monthly maintenance schedule is recommended.
If the product has operated satisfactorily for some time, but performance has been degraded, please
check the Fault Finder section to identify the problem.
Maintenance Check List
s 7ORNORDAMAGEDSEALSANDWASHERS
s $AMAGEDSEALFACES
s 4HREADWEAR
s )NCORRECTADJUSTMENT
s #OMPONENTFAILURE
s $EBRISORLIMESCALEBUILDUP
10
Guarantee
Guarantee of Quality
This product is guaranteed against faulty materials and workmanship for 12 months from date
of purchase. For the guarantee to be valid, the unit must be installed by a competent person, in
accordance with the instruction booklet.
Any part found to be defective during the guarantee period, will (at our option) be repaired or
replaced, free of charge, provided the unit has been installed, and properly used in
accordance with the instruction booklet.
Our products correspond to the valid technical and water supply standards as well as the relevant
approvals requirements. We guarantee them to be free of design and production faults at the time
of delivery and that with correct use and care in accordance with our printed instructions they will
function reliably.
Guarantee period
sThe guarantee is valid in private homes for 5 years from the purchase date. Proof of purchase
has to be provided when making a guarantee claim.
sBy use in commercial or institutional applications the guarantee is valid for 1 year after first use.
To make a guarantee claim, proof of purchase or, the beginning of use is required.
Not Covered by this Guarantee
Damage or defects arising from incorrect installation, improper use or lack of maintenance.
Installed product damaged in transit Consequential loss, damage or product removal and installation
costs.
Lefroy Brooks is not responsible for any on site labour charges.
