INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
M2-4302
FLEETWOOD CROSS HANDLE PRESSURE BALANCE WITH LEVER 2-WAY DIVERTER
TRIM ONLY, TO SUIT M1-4101 ROUGH
2
Contents
Dimensions 3
InstalLation Procedure 4
Parts List 7
Fault Finder 8
Safety Tips, Care and Maintenance 9
Guarantee 10

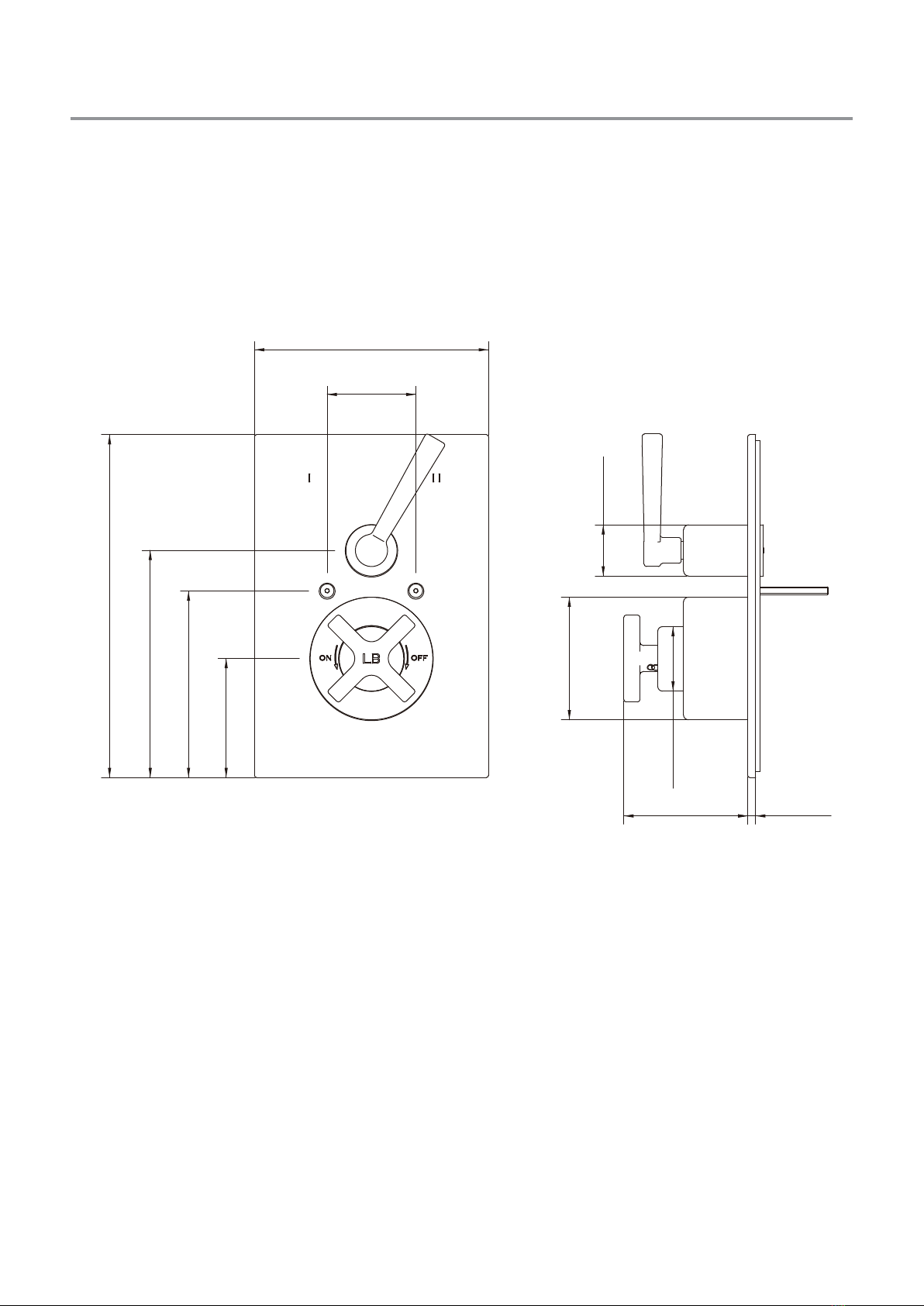

5 11/16"
(145mm)
8 3/8"
(212.5mm)
5 9/16"
(140.8mm)
Ø1 1/4"
(Ø32mm)
Ø3"
(Ø76mm)
Ø1 9/16"
(Ø40mm)
4 9/16"
(115.5mm)
2 7/8"
(73.8mm)
2 3/16"
(55mm)
3/16"
(5mm)
1 13/16"~3 1/16"
(46mm~77mm)
3
Dimensions in Inches (& Millimetres)
Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without
notice as part of the company’s product development process.
43
1 2
78mm~103mm
Water outlet
Water outlet
Hot water supply pipe
Cold water supply pipe
Stopper A (marked #049000)
Stopper B (marked #049001)
Washer C
4
Steps 1-4
InstallationProcedure
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

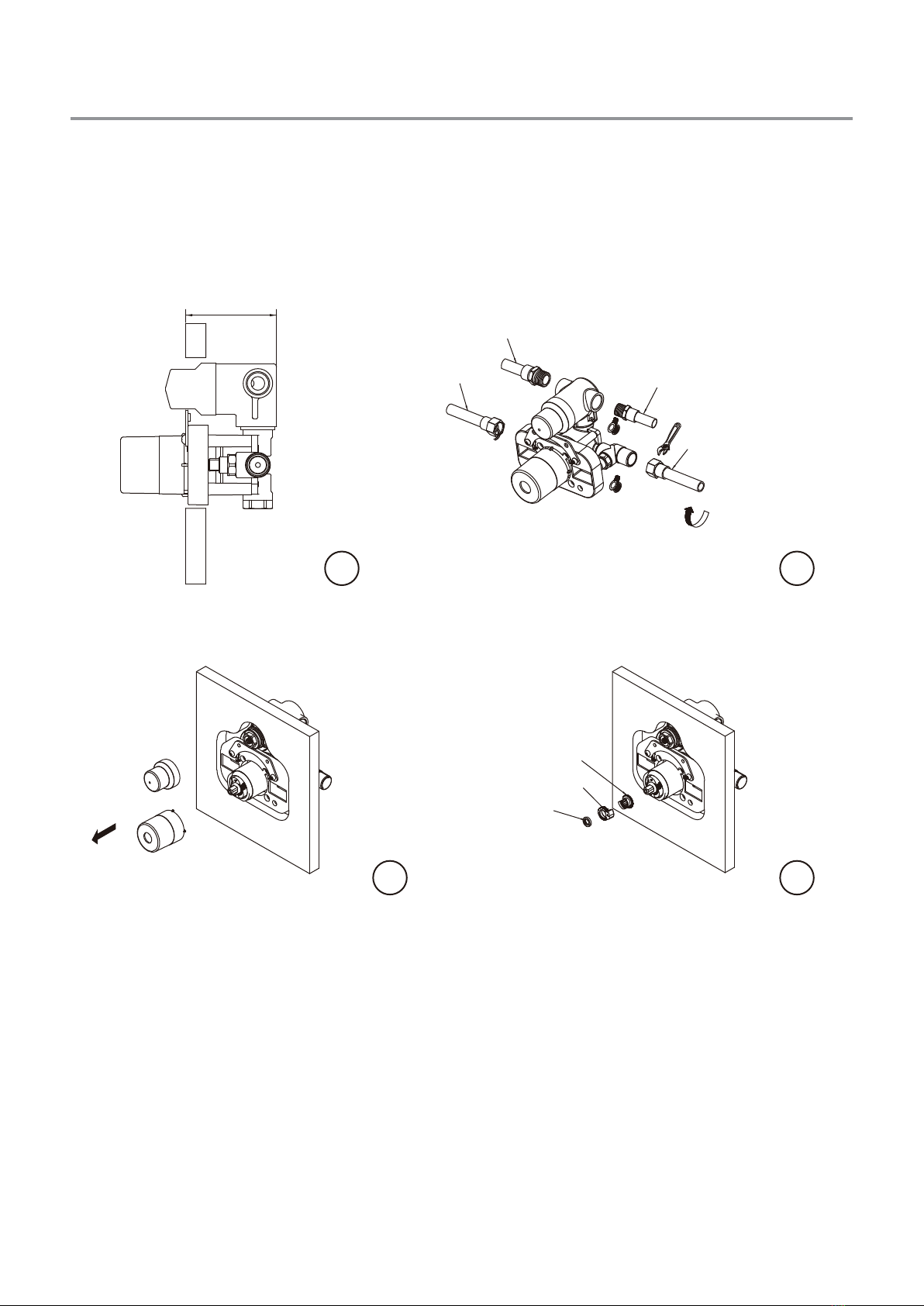

1While placing the valve into wall, make sure that the distance between the wall surface and the
back of the valve is between 75~103mm as the figure indicates.
2Connect the valve with water pipes.
3Throw away the protective cap just while the building construction is completed and you are
ready to fit the trim kit in.
REMOVE CAP ONLY, KEEP THE REST OF THE MUD GUARD AS IT IS NEEDED TO HOLD THE TRIM
FIXING SCREWS.
4Temperature Limiting Device: Remove washer C, then take off stopper A & B.
5 6
7 8
Dimple on valve stem Notch
Stopper A
(marked #049000)
Stopper A
(marked #049000) Stopper B
(marked #049001)
0 tooth
8 teeth
12 teeth
HIGHT TEMPERATURE SETTING
(with 150° operation range)
AVERAGE TEMPERATURE SETTING
(with 90° operation range)
LOW TEMPERATURE SETTING
(with 60° operation range)
Stopper B
(marked #049001)
5
InstallationProcedure Steps 5-8
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

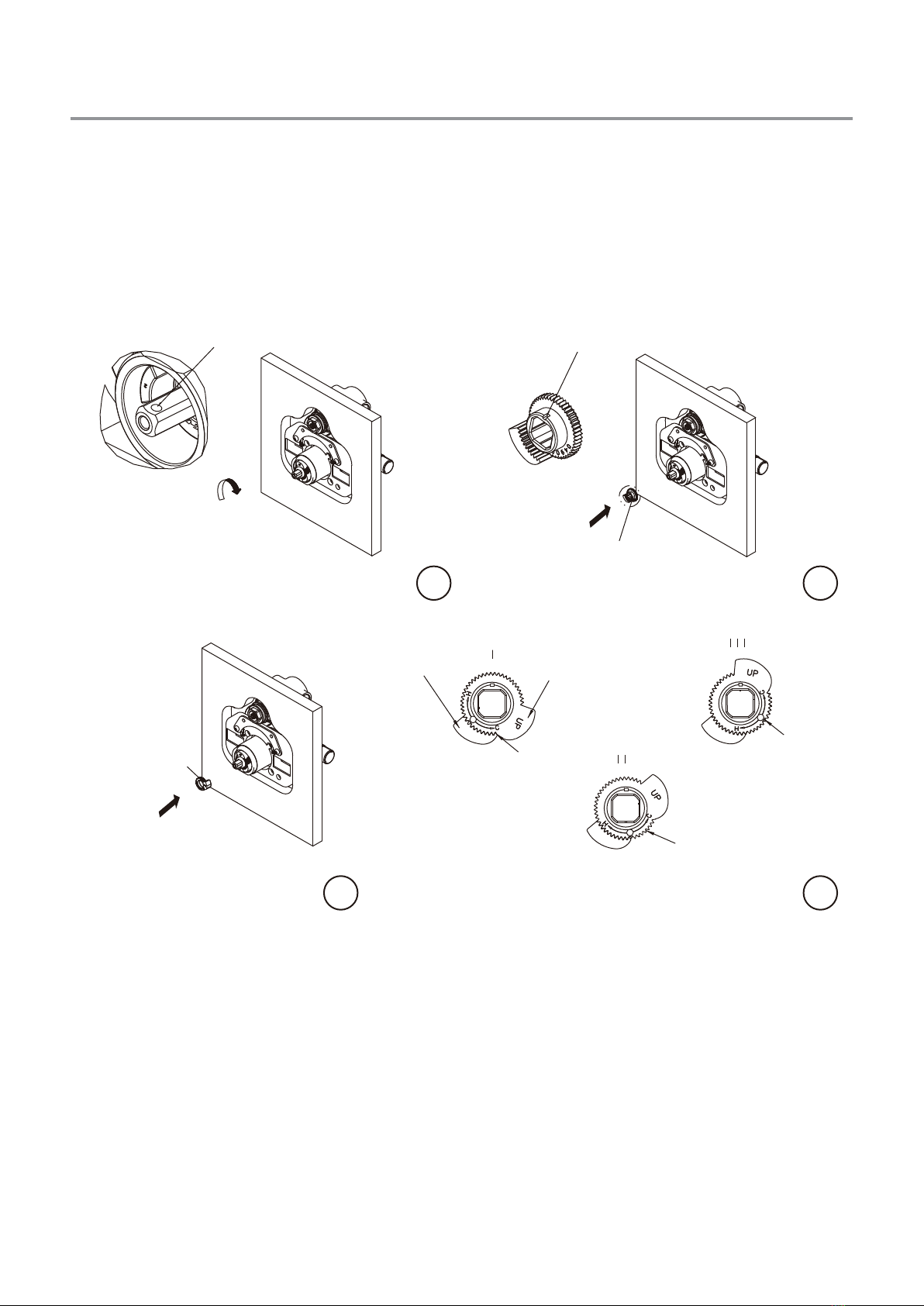

5Turn the valve stem so that the round dimple on the stem is at the top side.
6Install stopper A onto valve stem.
Notch on stopper A should point upward.
7Install stopper B. The word “up” should face out.
8See the figures I, II, III which are the instructions to adjust temperature limit stop.
Temperature limiting device opened at eight notches is recommended.
1110
12 13
9
6
InstallationProcedure Steps 9-13
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

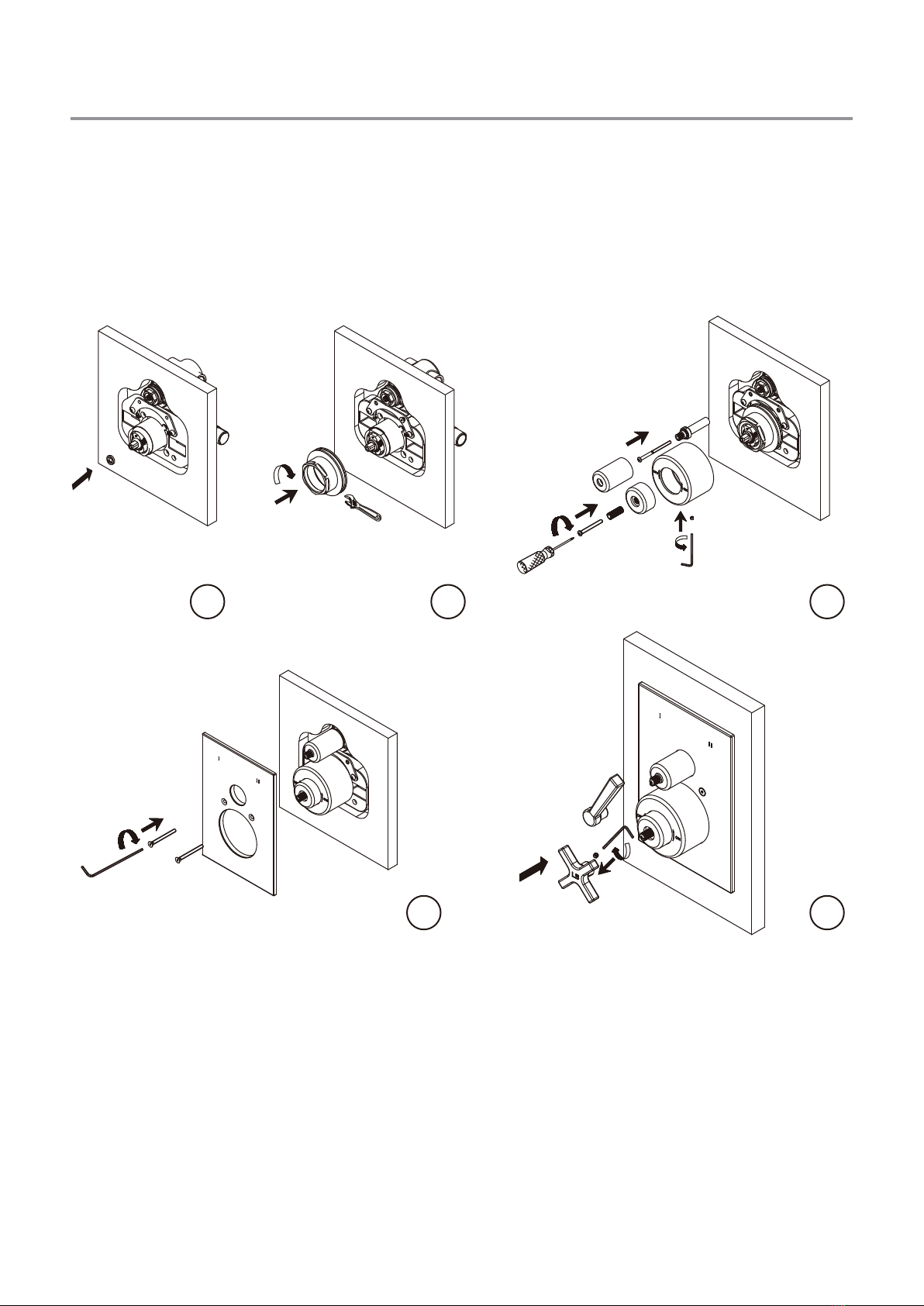

9Install washer.
10 Fix the adjusting ring.
11 Install the stem extension and canopies.
12 Fix the front plate with screws.
13 Install handle.

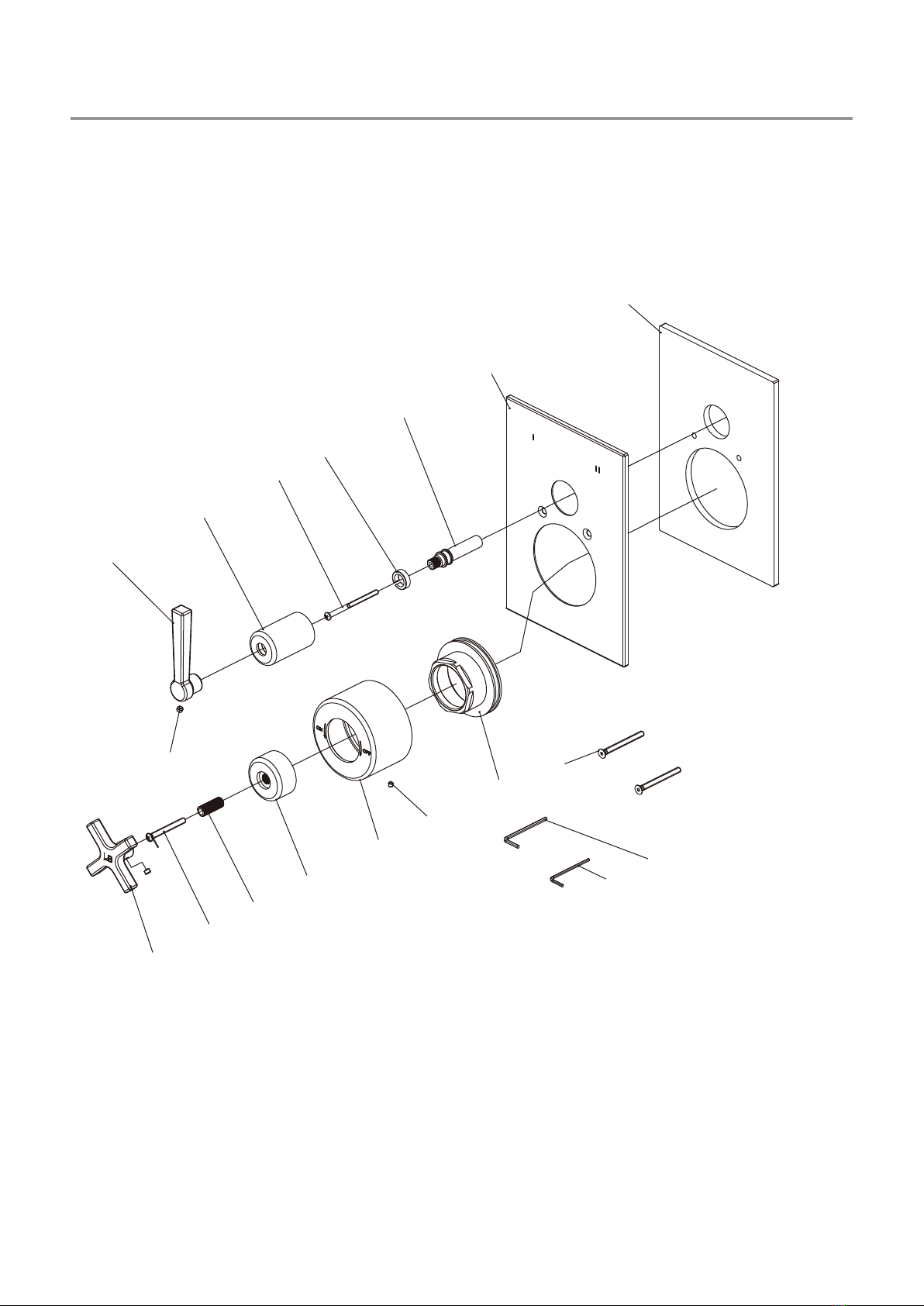

1 Spacer (013118)
2 Front plate (006142-50)
3 Stem extension (110388)
4 Clip (012242)
5 Screw (008256)
6 Canopy (018960)
7 Handle (029686)
8 Set screw (292598)
9 Handle (029685-51)
10 Screw (008115)
11 Stem extension (110389)
12 Canopy (018961)
13 Canopy (018959-54)
14 Set screw (065086)
15 Adjusting ring (104292)
16 Screw (008186)
17 Allen key (031000)
18 Allen key (031003)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
7
PartsList Exploded view
8
FaultFinder
Fault Cause Rectification
Wobbling of handle. The fixing screw comes loose. Check for fixing screw and
re-tighten it properly.
Wobbling of canopy. The canopy comes loose. Check and tighten the canopy.
9
SafetyTips,CareandMaintenance
Safety Tips
If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to
applying flame, otherwise you will void the warranty.
Cover drain openings to avoid losing small parts.
When cutting or soldering pipe, use safety glasses to protect your eyes.
Important Points
Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release
built-up pressure.
Overtightening nuts may cause damage.
Wrap all threaded connections with pipe tape available at your local plumbing supply store.
Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber.
Please note:
When there is a difference in water pressure between hot and cold supplies to the mixing valve, the
pressures should be equalized by a plumber in accordance with best practice and legislation.
Maintenance
Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as
these will dull the finish and void your warranty.
Routine Maintenance
The frequency and extent of attention required will vary according to prevailing site and operational
conditions, however a 12 monthly maintenance schedule is recommended.
If the product has operated satisfactorily for some time, but performance has been degraded, please
check the Fault Finder section to identify the problem.
Maintenance Check List
s 7ORNORDAMAGEDSEALSANDWASHERS
s $AMAGEDSEALFACES
s 4HREADWEAR
s )NCORRECTADJUSTMENT
s #OMPONENTFAILURE
s $EBRISORLIMESCALEBUILDUP
10
Guarantee
Guarantee of Quality
This product is guaranteed against faulty materials and workmanship for 12 months from date
of purchase. For the guarantee to be valid, the unit must be installed by a competent person, in
accordance with the instruction booklet.
Any part found to be defective during the guarantee period, will (at our option) be repaired or
replaced, free of charge, provided the unit has been installed, and properly used in
accordance with the instruction booklet.
Our products correspond to the valid technical and water supply standards as well as the relevant
approvals requirements. We guarantee them to be free of design and production faults at the time
of delivery and that with correct use and care in accordance with our printed instructions they will
function reliably.
Guarantee period
sThe guarantee is valid in private homes for 5 years from the purchase date. Proof of purchase
has to be provided when making a guarantee claim.
sBy use in commercial or institutional applications the guarantee is valid for 1 year after first use.
To make a guarantee claim, proof of purchase or, the beginning of use is required.
Not Covered by this Guarantee
Damage or defects arising from incorrect installation, improper use or lack of maintenance.
Installed product damaged in transit Consequential loss, damage or product removal and installation
costs.
Lefroy Brooks is not responsible for any on site labour charges.
