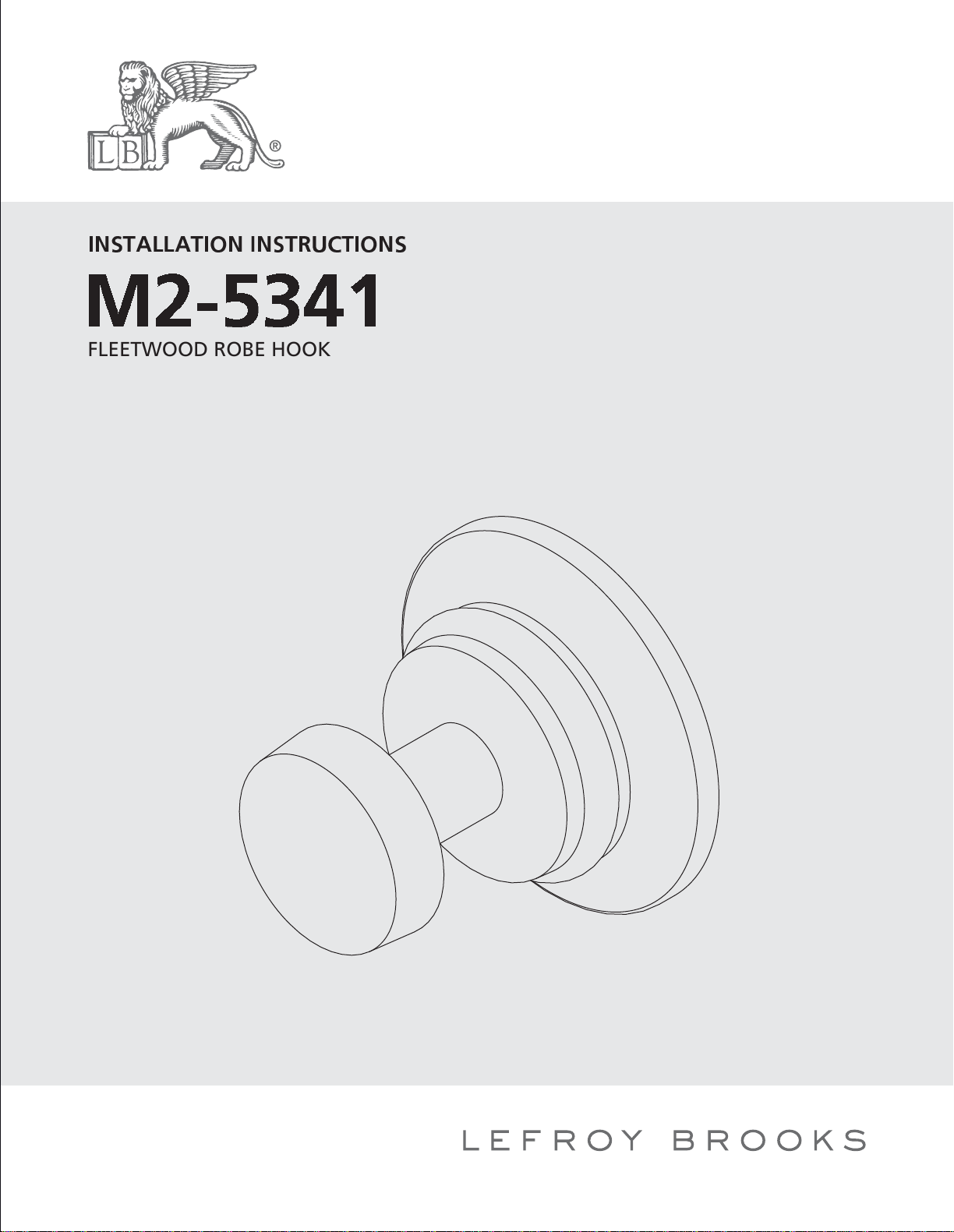

INSTALLATION INSTRUCTIONS

M2-5341

FLEETWOOD ROBE HOOK

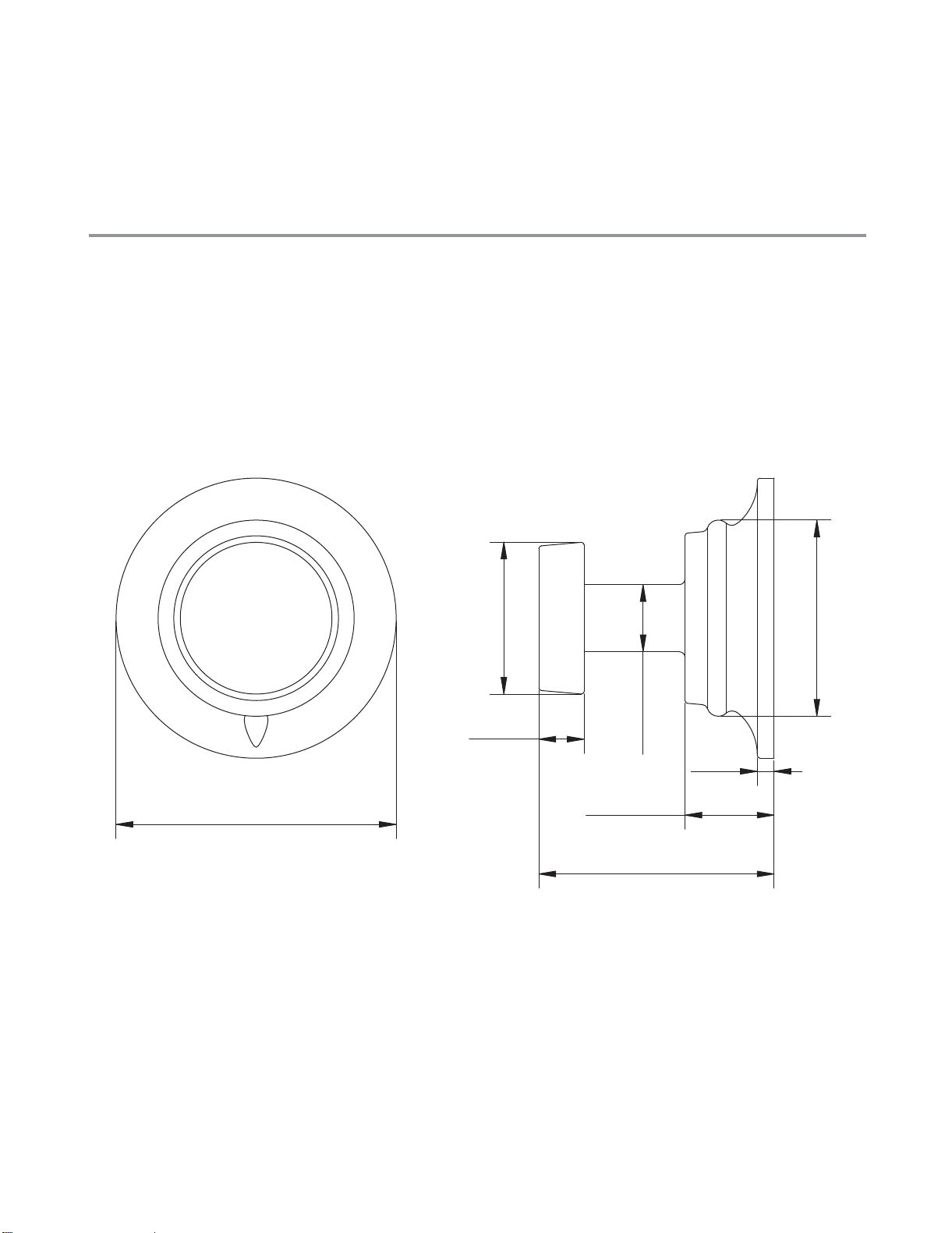

Dimensions in Inches (& Millimetres)

Whilst every effort is made to ensure accuracy, design and dimensions are subject to

change without notice as part of the company’s product development process.

Ø1 15/16"

Ø1 1/16"

Ø1/2"

Ø1 3/8"

5/8"

1 5/8"

1/8"

5/16"

(Ø50mm)

(Ø27mm)

(Ø12mm)

(Ø35mm)

(15.9mm)

(42mm)

(3mm)

(8mm)

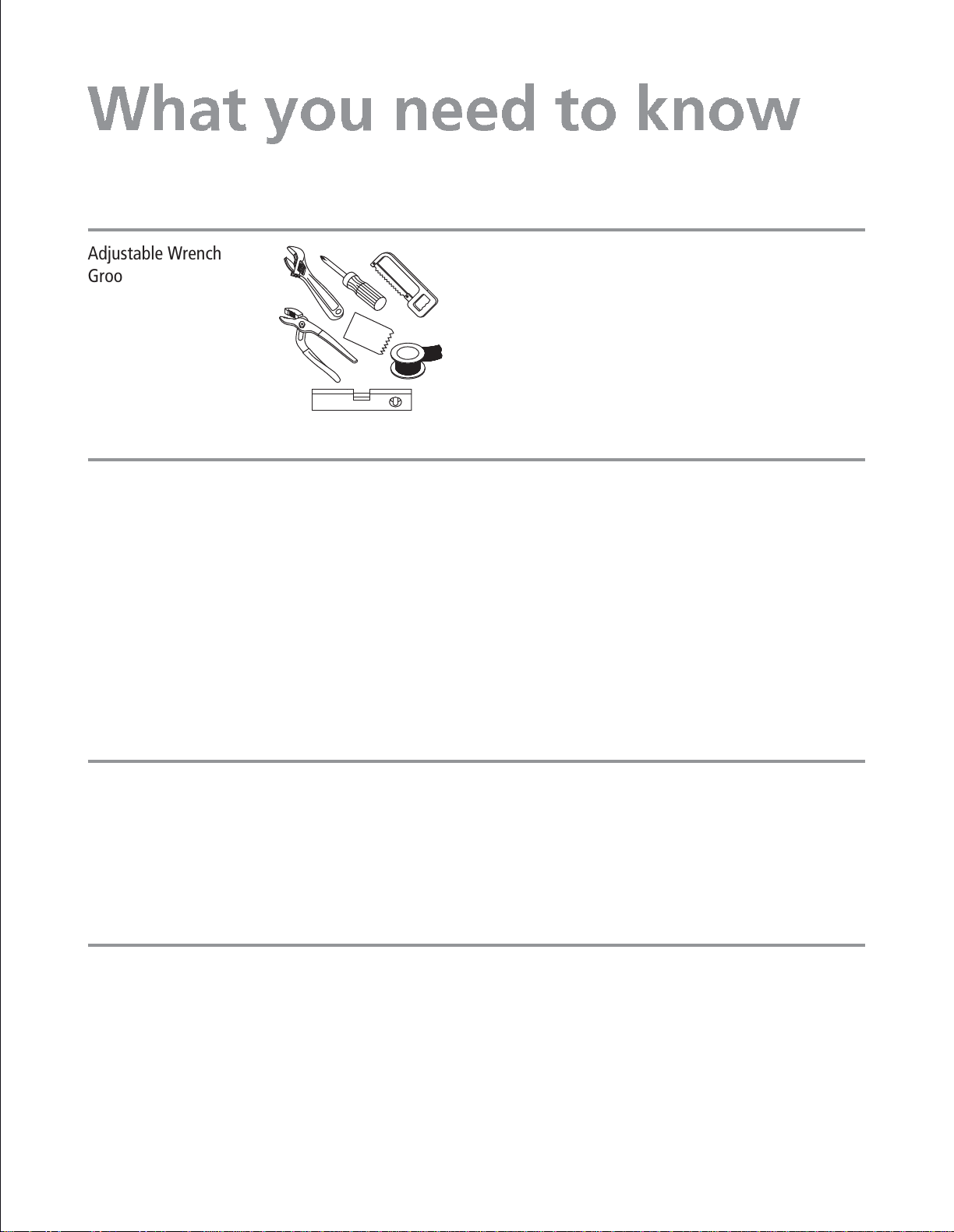

What you need to know

Adjustable Wrench

Groove Joint Pliers

Hacksaw

Phillips Screwdriver

Pipe Tape

Spatula

Spirit Level

Your new bathroom faucet is designed for years

of trouble-free performance.

Keep it looking new by cleaning it periodically with

a soft cloth. Avoid abrasive cleaners, wire wool and

harsh chemicals as these will dull the finish and

void your warranty.

If you are soldering during faucet installation,

remove cartridges, seats, gaskets and washers

prior to applying flame, otherwise you will void

the warranty.

Cover drain openings to avoid losing small parts.

When cutting or soldering pipe, use safety glasses

to protect your eyes.

Correct installation may vary depending on previous faucet installation. All necessary supplies required for

faucet installation are not included, but may be found where plumbing supplies are sold. It is suggested that

IAPMO and/or CSA approved plumbing supplies are used during installation.

Prior to beginning installation. turn off the cold and

hot water lines and open the old faucet to release

built-up pressure.

Overtightening nuts may cause damage.

Wrap all threaded connections with pipe tape

available at your local plumbing supply store.

Always wrap in a clockwise direction. The fittings

should be installed by a state-licenced plumber.

Tools: Maintenance

SafetyTips

ThingsYouMayNeed

ImportantPoints

Meets A112.18.1

Standards

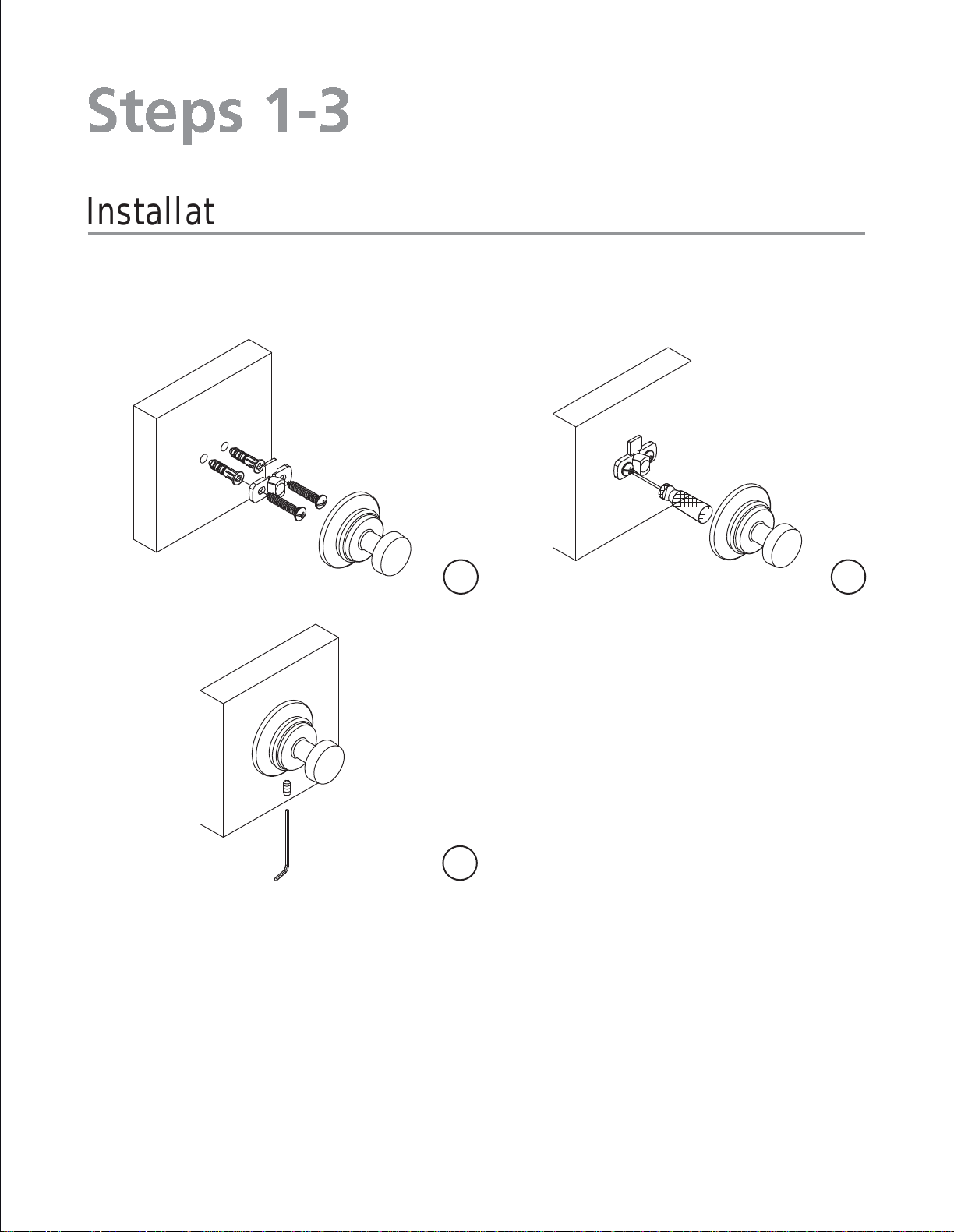

Steps 1-3

InstallationProcedure

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

3Place assembly over the mounting bracket

with set screws facing down. Tighten the

set screws.

1Position the mounting bracket on the wall

where required. Please note the direction of

the bracket should be as shown. Mark the

location of mounting screws. Drill holes in

the wall to fit the anchors. Tap the plastic

anchor into the hole with a hammer.

2Position the mounting bracket to be

mounted on the wall, then thread the fixing

screws through the mounting hole into the

plastic anchor. Turn the screws slowly until

they are tight.

E ploded View

PartsList

Decorative head (243056)

Bracket (245027)

Screw (008715)

Mounting bracket (293014-3)

Anchor bolt and screw (290411)

Set screw (292547)

Allen key (031003)

The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design

registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.

The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).

LEFROY BROOKS INC, 1828 TROUTMAN STREET, RIDGEWOOD, NY, 11385

TELEPHONE: 718-302-5292. FAX: 718-302-4177

©CHRISTO A. LEFROY BROOKS 2009

For additional assistance or service call

718-302-5292

9am to 5pm EST Monday to Friday

www.lefroybrooks.com
