Ledj STAR15 Manuel utilisateur

LEDJ Pro 3 x 2M Matrix Tri LED Cloth - STAR16

LEDJ 3 x 2M Matrix Tri LED Cloth - STAR15

USER MANUAL

www.prolight.co.uk

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

-Be competent

-Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is

necessary for the user to follow the safety instructions and warning notes written in this

manual.

Please note that damages caused by user modifications to this equipment are not

subject to warranty.

LEDJ MATRIX STARCLOTHS SAFETY

Please note that damages caused by user modifications and damage to the wiring

loom inside the cloth are not subject to warranty.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modification to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the

power-cable and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to flammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling

the power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment

and the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply imme

diately. Have a qualified engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature fluctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might dam

age the equipment. Leave the equipment switched off until it has reached room

temperature.

• If your product fails to function correctly, discontinue use immediately. Pack

the unit securely (preferably in the original packing material), and return it to your

Prolight dealer for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualified

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual, the

product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property!

LEDJ MATRIX STARCLOTHS SAFETY

You should find inside the carton the following items:

1, LED Matrix Starcloth 2, Instruction manual 3, Controller 4, SD card

Technical Specifications:

DMX channels: 2

DMX, sound active and auto run modes

187 Ultra Bright Tri colour LEDs - STAR15

726 Ultra Bright Tri colour LEDs - STAR16

Hanging tabs on 3 sides

Fire retardent material

Power consumption: 60W - STAR15

130W - STAR16

Power supply: 240V

Dimensions: 3000 x 2000mm (3 x 2M)

Weight: 8.5Kgs - STAR15

11.0Kgs - STAR16

Overview:

LEDJ MATRIX STARCLOTHS TECHNICAL SPECIFICATIONS

STAR15 Controller

STAR16 Controller

Identification:

1, DMX input

2, DMX output

3, Dip switches

4, SD card input

5, Signal output

6, Power output

7, Fuse

8, Power input

9, On/off switch

10, Microphone

11, Sensitivity/speed control

Operations:

There are three operating modes to choose from;

1, Auto run 2, Sound Active 3, DMX

NOTE: Before use, please insert the supplied SD card and follow the instructions below.

Auto run mode

To set the Matrix cloth in auto run mode, set all dip switches to the off position and use the

“SENSITIVITY/SPEED” control to set the desired running speed. The Matrix cloth will now run

through all of its in-built programmes.

Sound active mode

To set the Matrix cloth into sound active mode, set dip switch “10” to the ON position and all

others to the OFF position. Now use the “SENSITIVITY/SPEED” control to set the desired

sensitivity level.

DMX mode

DMX Control Mode

Operating in a DMX control mode environment gives the user the greatest flexibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of

the cloth and each cloth independently. The Matrix Cloths uses 2 channels of control.

Use dip switches 1 – 9 to address each cloth accordingly.

Setting the DMX address

The DMX mode enables the use of a universal DMX controller. Each cloth requires a “start

address” from 1- 511. A cloth requiring one or more channels for control begins to read the data on

the channel indicated by the start address. For example, a cloth that occupies or uses 7

channels of DMX and was addressed to start on DMX channel 100, would read data from

channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used

do not overlap. E.g. the next unit in the chain starts at 107.

DMX chart:

LEDJ MATRIX STARCLOTHS Operations

Channel

Value

0-9

10-255

Function

Blackout

Sound Active

Pattern group selector

0-9 Blackout

0-255 Speed (slow to fast)

Notes

CH1 0-9 Blackout

Further DMX cables can be purchased from all

good sound and lighting suppliers or Prolight

dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

DMX Control Mode

Operating in a DMX control mode environment gives the user the greatest flexibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of

the fixture and each fixture independently.

Setting the DMX address

The DMX mode enables the use of a universal DMX controller. Each fixture requires a

“start address” from 1- 511. A fixture requiring one or more channels for control begins to read the

data on the channel indicated by the start address. For example, a fixture that occupies or uses 7

channels of DMX and was addressed to start on DMX channel 100, would read data from

channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used

do not overlap. E.g. the next unit in the chain starts at 107.

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the

controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have

a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all fixtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX fixtures try to use the

shortest cable path possible. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The LEDJ Matrix cloths can be controlled via DMX-512 protocol. The DMX address is set on the

back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for

data input/output (figure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

LEDJ MATRIX STARCLOTHS DMX SET UP

Notice:

• Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

LEDJ MATRIX STARCLOTHS DMX SET UP

LEDJ MATRIX STARCLOTHS DIP SWITCH REFERENCE CHART

DMX Dip Switch Quick Reference Chart

Dip Switch Position

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ledj Équipement d'éclairage

Ledj

Ledj Spectra Batten LEDJ76 Manuel utilisateur

Ledj

Ledj HEX Par 9 LEDJ226 Manuel utilisateur

Ledj

Ledj LEDJ266 Manuel utilisateur

Ledj

Ledj STRATOS UV Manuel utilisateur

Ledj

Ledj Mini Pix 4 Batten Manuel utilisateur

Ledj

Ledj HBR 1D Manuel utilisateur

Ledj

Ledj Spectra QX40 Pixel MKII Exterior Fixture Manuel utilisateur

Ledj

Ledj LEDJ24 Manuel utilisateur

Ledj

Ledj Libretto Mini RGBAL Profile Manuel utilisateur

Ledj

Ledj LEDJ254 Manuel utilisateur

Ledj

Ledj LEDJ188 Manuel utilisateur

Ledj

Ledj TRI LED-56 CAN Manuel utilisateur

Ledj

Ledj FLEX30 Manuel utilisateur

Ledj

Ledj STAGE CLOUR QUAD Manuel utilisateur

Ledj

Ledj Slimline CW Series Manuel utilisateur

Ledj

Ledj S-1 Manuel utilisateur

Ledj

Ledj Artisan 1000 Manuel utilisateur

Ledj

Ledj Spectra Par 15Q8 PRO Manuel utilisateur

Ledj

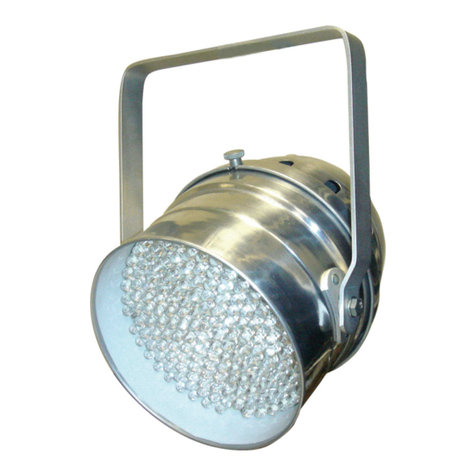

Ledj LED-56 Manuel utilisateur
