LED RGB 252

(order code: LEDJ50)

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

LED RGB 252 SAFETY

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

LED RGB 252 INTRODUCTION

Introduction

CONTROL FEATURES

• 4-channel DMX-RGB Flood

• Blackout/Dimmer/Strobe

• Individual control of Red, Green and Blue LED’s

Features

• 252 LED’s: - Red (81), Green (81), and Blue (90)

• Ultra bright 10mm LED’s

• Sound control via internal microphone

• Colour change speed and strobe effect adjustable via dip switches

• Multi-colour changes

• RGB Colour mixing

• Master/Slave functions

• Sound activated

• Rugged compact housing

• Consumption: 34w

• Beam 20 degrees

• Lamp life: 100,000 hours

OPTIONS

DMX Channel Summary

Channel

Function

RED

0-100%

Green

0-100%

Blue

0-100%

Shutter/Strobe/Dimmer

Blackout: 000

Intensity: 001<>189

Strobe: 190<>250

Full on: 251<>255

LED RGB 252 OVERVIEW

Product Overview

Setup

Operating Instructions

The RGB 252 is a DMX-512 controllable, full RGB colour mixing ood made up of high

efciency and super bright LED’s. There are three colour groups (red, green and blue) whose

intensity can be controlled individually allowing the creation of an unlimited range of colours.

The RGB 252 will operate in stand-alone, Master/Slave, sound activated and via DMX-512 control.

Note: When linking the RGB 252 with LEDJ 56 and LEDJ 64 Par Cans the RGB 252 unit

must be selected as the master unit.

Power Input

DMX In

DMX Out

Hanging Bracket Dip Switches

Fuse

LED RGB 252 MASTER/SLAVE

Master/Slave

The Master/Slave mode will allow you to link up as many units as you want in a daisy chain fash-

ion. In this mode, the rst unit in the daisy chain will control the following units.

1) Connect all units in a daisy chain as described in the section following.

2) For master unit in Auto mode: Set dip switch 8 to ON and all others to OFF

3) For master unit in Sound Activation mode: Set dip switch 8+9 to ON and all others to OFF

4) For Slave mode: set dip swiches 10+1 to ON and all others to OFF

Stand-Alone Mode

• You can run the xtures in an automatic stand-alone mode by simply setting all xtures

to run as master units. (set dip switch #8 to on and all others off).

Sound Activation

The RGB 252 has a built-in microphone which enables it to operate in Sound to Light mode. Set

the sensitivity control to the desired level, and the RGB 252 will change colour to the beat of the

music. Set dip switch 8+9 to ON to activate Sound Mode.

Daisy Chain Connection

1) Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin

connector of the rst xture

2) Connect the end of the cable coming from the rst xture which will have a (female) 3 pin

connector to the input connector of the next xture consisting of a (male) 3 pin connector.

Proceed to connect from the output as stated above to the input of the following xture

and so on.

Dipswitches 1-8

(programmes)

IN OUT IN OUT IN OUT IN OUT

INPUT FROM DMX CONTROLLER

(OPTIONAL)

LINE

Continue

DMX512

IN OUT

DMX512

IN OUT

MASTER SETTING SLAVE SETTING

LED RGB 252 CONTROL OPTIONS

Manual Control Options

Colour Selection

• With Dip Switch 1 only set to ON you obtain static RED

• With Dip Switch 2 only set to ON you obtain static GREEN

• With Dip Switch 3 only set to ON you obtain static BLUE

You can have any combination of switches 1,2,3 to obtain static colour mix.

Flashing Mode

Once you have selected a static colour you can make it ash by using Dip Switches 4,5,6, 4 is

slow ash, 4&5 is medium ash and 4,5 & 6 is fast ash.

For example if you wish to obtain a purple wash with a medium speed ash you would put

dipswitches 1 and 3 (red & blue) to ON to obtain purple, and the Dip switches 4 & 5 to ON to

obtain a medium speed ash.

With all the Dip switches set to off this activates an internal slow colour mixing change and fade

programme.

Blackout Mode

With only dipswitch #10 set to ON the RGB 252 will blackout.

DMX Control Mode

Operating in a DMX control mode environment gives the user the greatest exibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of

the xture and each xture independently. The RGB 252 uses 4 channels of control.

Enable the DMX control by setting dipswitch No: 10 to the ON position. Use dipswitches 1 – 9 to

address each xture accordingly.

Setting the DMX address

The DMX mode enables the use of a universal DMX controller. Each xture requires a “start

address” from 1- 511. A xture requiring one or more channels for control begins to read the data

on the channel indicated by the start address. For example, a xture that occupies or uses 7

channels of DMX and was addressed to start on DMX channel 100, would read data from

channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used

do not overlap. E.g. the next unit in the chain starts at 107.

LED RGB 252 CONTROL OPTIONS

Set the start address using the group of dip switches located usually on the back of the xture.

Each dipswitch has an associated value. Adding the value of each switch in the ON position will

provide the start address. Determining which switches to toggle ON given a specic start address

can be accomplished in the following manner. By subtracting the largest switch value possible

from the selected start address until zero is achieved.

EXAMPLE STARTING ADDRESS

Address 10

Pin NO: 4 = 8

Pin NO: 2 = 2

Total = 10

Address 24

Pin NO: 5 = 16

Pin NO: 4 = 8

Total = 24

DMX address using

simple maths

233 - (128 = 105,Turn on dip No: 8

105 - (64) = 41,Turn on dip No:7

41 - (32) = 9,Turn on dip No: 6

9 - (8) = 1,Turn on dip No: 4

1 - (1) = 0,Turn on dip No:1

You will most likely use the first available

number which maybe Number 1.This

number was selected for

example purposes

DIP SWITCH (DMX VALUE)

128

256

LED RGB 252 DMX SET UP

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent xtures and controllers. A DMX controller sends DMX data instructions form the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have

a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the

shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The RGB 252 can be controlled via DMX-512 protocol. The DMX address is set on the back of

the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/

output (gure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Further DMX cables can be purchased

from all good sound and lighting suppliers

or Prolight dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

Notice:

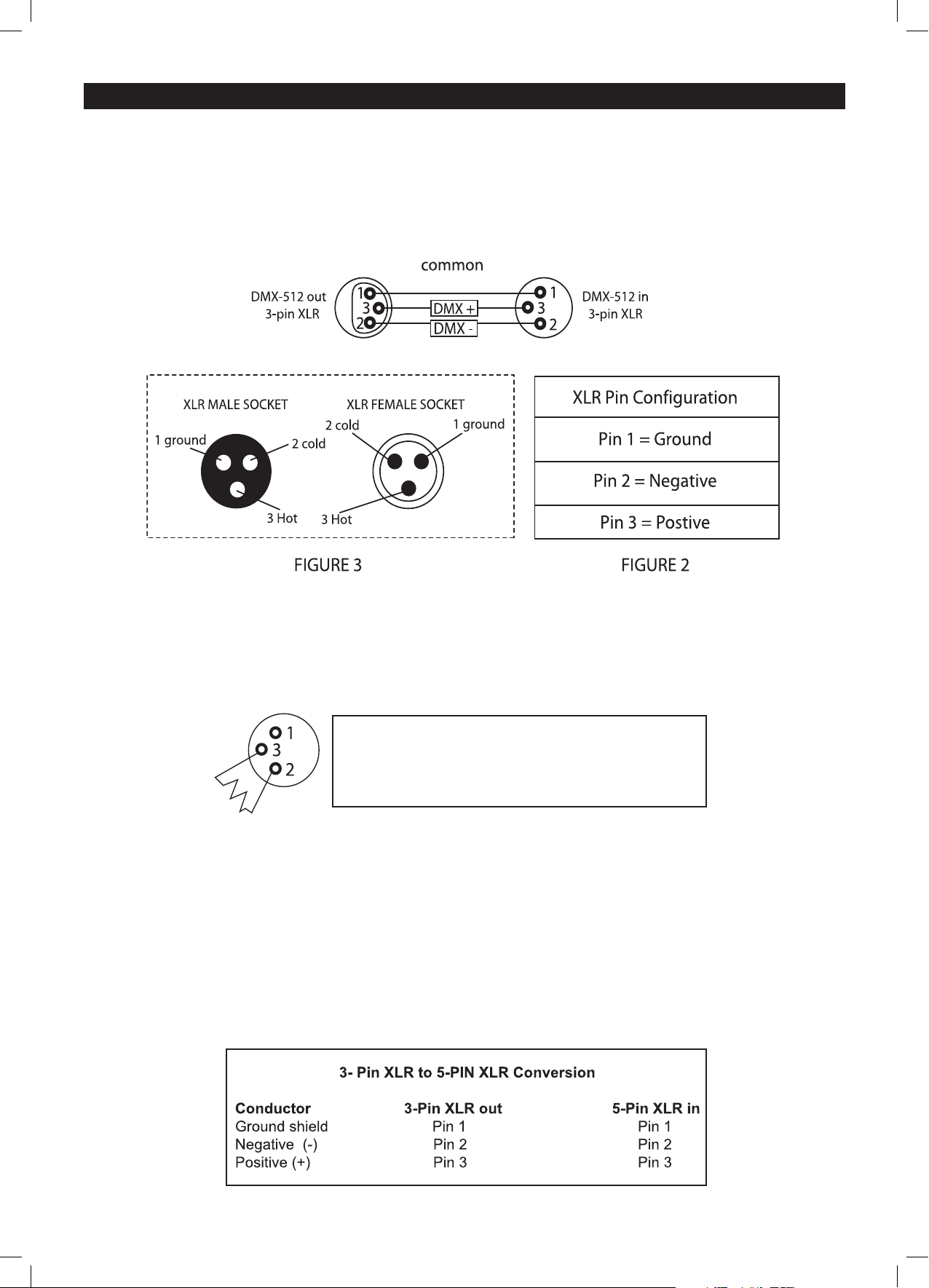

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

LED RGB 252 DMX SET UP

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ledj Équipement d'éclairage

Ledj

Ledj Intense 9P10 RGBWA LED Slim Panel Manuel utilisateur

Ledj

Ledj FLEX30 Manuel utilisateur

Ledj

Ledj STAGE PAR 64 Manuel utilisateur

Ledj

Ledj S-1 Manuel utilisateur

Ledj

Ledj Spectra QX40 Pixel MKII Exterior Fixture Manuel utilisateur

Ledj

Ledj Stage Par CZ200 Dual White Manuel utilisateur

Ledj

Ledj Slimline 12Q5 Series Manuel utilisateur

Ledj

Ledj Event Spot WW Triac Manuel utilisateur

Ledj

Ledj Aspect XL LEDJ302 Manuel utilisateur

Ledj

Ledj ECO LED Par 56 Manuel utilisateur

Ledj

Ledj minibar TC Manuel utilisateur

Ledj

Ledj Spectra Par 15Q8 PRO Manuel utilisateur

Ledj

Ledj LEDJ472 Manuel utilisateur

Ledj

Ledj Colour Storm Quad Manuel utilisateur

Ledj

Ledj Stage Par CZ200 3200K Manuel utilisateur

Ledj

Ledj Pixel Storm 6 Tri Batten Manuel utilisateur

Ledj

Ledj Spectra Flood 18HEX10 Manuel utilisateur

Ledj

Ledj LEDJ188 Manuel utilisateur

Ledj

Ledj Libretto Mini WW Profile Manuel utilisateur

Ledj

Ledj Event Spot Bar RGBW Manuel utilisateur

Ledj

Ledj SPECTRA PAR 7T3 Manuel utilisateur

Ledj

Ledj Razor Beam Manuel utilisateur

Ledj

Ledj SPECTRA BATTEN12T3 EXTERIOR Manuel utilisateur

Ledj

Ledj HEX Par 9 LEDJ226 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
