2008 Copyright © Lantronix is a trademark of Lantronix. All rights reserved. 900-457 Rev. C 03/08

SecureLinx Spider Quick Start Guide

SecureLinx Spider

SecureLinx Spider

QUICK START GUIDE CONTENTS

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

What’s In the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installation and Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

Spider Web Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9

Target Computer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10

Client System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connection to Target Computer and Basic Operation . . . . . . . . . . . . . . . . . .11-12

Exit and Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SecureLinx Spider

SecureLinx Spider

QUICK START GUIDE CONTENTS

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

What’s In the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installation and Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

Spider Web Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9

Target Computer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10

Client System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connection to Target Computer and Basic Operation . . . . . . . . . . . . . . . . . .11-12

Exit and Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SecureLinx Spider

Quick Start Guide

SecureLinx Spider

WHAT'S IN THE BOX

In addition to the Spider distributed KVM/IP module, the box contains the

following items:

•Null modem DB9F to RJ45 serial cable

•Mounting kit

•Quick Start Guide

•CD-ROM containing documentation and utilities

An optional external AC/DC power supply is available (part number 520-085-R).

INSTALLATION AND NETWORK SETTINGS

Serial and Auxiliary Power Port Serial RS-232 Pinouts

2WWW.LANTRONIX.COM 3

The SecureLinx Spider™(SLS) is a distributed KVM/IP device designed to remotely

and securely provide monitoring and control of one (target) computer system by

one or more remote users.The remote user (client) accesses the Spider over a local

or wide area network connection using a standard web browser.

There are two models: one with both PS/2 and USB keyboard/mouse interfaces

(software selectable), and one for USB-only systems.The color coded plugs on the

ends of the cables for the keyboard, mouse, USB port and video are designed to

plug directly into the target system’s corresponding connector. Hang the Spider

by the cables or secure it out of the way.

Typical Spider Configuration

This Quick Start Guide will step you through the hardware installation and

configuration in a typical environment.

Auxiliary Power Connector

(for optional power cable)

Serial Port

(RS-232)

Pin # Pin Name

1RTS (Out)

2DTR (Out)

3TX (Out)

4GND

5GND

6RX (In)

7DSR (In)

8CTS (In)

Quick Start Guide

SecureLinx Spider

WHAT'S IN THE BOX

In addition to the Spider distributed KVM/IP module, the box contains the

following items:

•Null modem DB9F to RJ45 serial cable

•Mounting kit

•Quick Start Guide

•CD-ROM containing documentation and utilities

An optional external AC/DC power supply is available (part number 520-085-R).

INSTALLATION AND NETWORK SETTINGS

Serial and Auxiliary Power Port Serial RS-232 Pinouts

2WWW.LANTRONIX.COM 3

The SecureLinx Spider™(SLS) is a distributed KVM/IP device designed to remotely

and securely provide monitoring and control of one (target) computer system by

one or more remote users.The remote user (client) accesses the Spider over a local

or wide area network connection using a standard web browser.

There are two models: one with both PS/2 and USB keyboard/mouse interfaces

(software selectable), and one for USB-only systems.The color coded plugs on the

ends of the cables for the keyboard, mouse, USB port and video are designed to

plug directly into the target system’s corresponding connector. Hang the Spider

by the cables or secure it out of the way.

Typical Spider Configuration

This Quick Start Guide will step you through the hardware installation and

configuration in a typical environment.

Auxiliary Power Connector

(for optional power cable)

Serial Port

(RS-232)

Pin # Pin Name

1RTS (Out)

2DTR (Out)

3TX (Out)

4GND

5GND

6RX (In)

7DSR (In)

8CTS (In)

4WWW.LANTRONIX.COM

INSTALLATION AND NETWORK SETTINGS CONTINUED…

1. Plug the RJ45 end of the included serial cable into the Spider’s serial port.

Plug the DB9F end into the serial (COM) port of a PC/laptop running a

terminal emulation (e.g. HyperTerminal). The default serial port settings are

9600 bits per second, 8 data bits, no parity, 1 stop bit, no flow control.

2. The Spider is typically powered by the attached server. Plug the Spider

video, USB, and PS/2 keyboard/mouse (if applicable) cables into the target

computer (this is required for the device to boot up). The two blue power

LEDs will illuminate and the green system OK LED flashes to indicate that it

is booting up. Bootup is complete within approximately one minute.The

system OK LED stops flashing and remains illuminated.

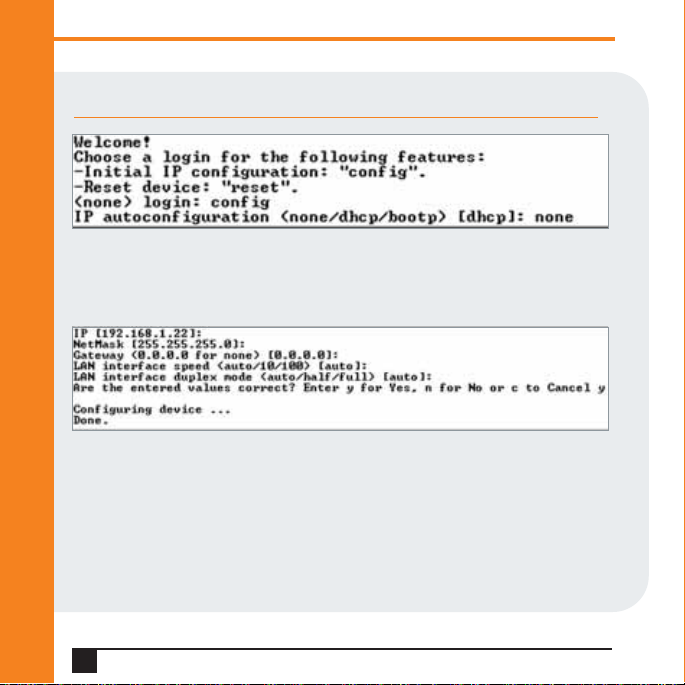

3. Upon bootup, the terminal window displays the login prompt.To change

the default IP auto configuration from DHCP to a static IP address, type

config and press Enter.

4. At the IP autoconfiguration prompt, type none and press Enter.

Quick Start Guide

SecureLinx Spider

5

INSTALLATION AND NETWORK SETTINGS CONTINUED…

Ethernet and Cascade Ports

Ethernet Port(RJ45)

Cascade Port

(RJ45)

LEDs Color Description

Pwr1 Blue Power Good indicates adequate power from source 1 (USB1)

Pwr2 Blue Power Good indicates adequate power from source 2 (USB2 or PS/2)

SysOK Green Blinks upon bootup.Steady when up and healthy

Video Green Video is coming from target server (Vsync present)

Unit ID Orange Optionally lit to assist in finding unit

4WWW.LANTRONIX.COM

INSTALLATION AND NETWORK SETTINGS CONTINUED…

1. Plug the RJ45 end of the included serial cable into the Spider’s serial port.

Plug the DB9F end into the serial (COM) port of a PC/laptop running a

terminal emulation (e.g. HyperTerminal). The default serial port settings are

9600 bits per second, 8 data bits, no parity, 1 stop bit, no flow control.

2. The Spider is typically powered by the attached server. Plug the Spider

video, USB, and PS/2 keyboard/mouse (if applicable) cables into the target

computer (this is required for the device to boot up). The two blue power

LEDs will illuminate and the green system OK LED flashes to indicate that it

is booting up. Bootup is complete within approximately one minute.The

system OK LED stops flashing and remains illuminated.

3. Upon bootup, the terminal window displays the login prompt.To change

the default IP auto configuration from DHCP to a static IP address, type

config and press Enter.

4. At the IP autoconfiguration prompt, type none and press Enter.

Quick Start Guide

SecureLinx Spider

5

INSTALLATION AND NETWORK SETTINGS CONTINUED…

Ethernet and Cascade Ports

Ethernet Port(RJ45)

Cascade Port

(RJ45)

LEDs Color Description

Pwr1 Blue Power Good indicates adequate power from source 1 (USB1)

Pwr2 Blue Power Good indicates adequate power from source 2 (USB2 or PS/2)

SysOK Green Blinks upon bootup.Steady when up and healthy

Video Green Video is coming from target server (Vsync present)

Unit ID Orange Optionally lit to assist in finding unit

SPIDER WEB CONFIGURATION

1. Access the Spider over the network using a favorite web browser by entering

https:// for a secure SSL connection or http:// for an insecure connection

and its IP address in the address bar.

2. Enter your user name (default is sysadmin) and password (default is PASS) at

the prompt.The Spider home page displays.

6WWW.LANTRONIX.COM

Quick Start Guide

SecureLinx Spider

7

INSTALLATION AND NETWORK SETTINGS CONTINUED

5. Follow the prompts to enter the unit’s IP address, subnet mask, default

gateway, and LAN interface information.

6. Type Y, following by Enter, to accept the changes.The system takes about 10

seconds to complete and display the updated IP address on the login prompt.

7. Plug an Ethernet cable connected to your network into the Ethernet port.

The Link LED illuminates.

SPIDER WEB CONFIGURATION

1. Access the Spider over the network using a favorite web browser by entering

https:// for a secure SSL connection or http:// for an insecure connection

and its IP address in the address bar.

2. Enter your user name (default is sysadmin) and password (default is PASS) at

the prompt.The Spider home page displays.

6WWW.LANTRONIX.COM

Quick Start Guide

SecureLinx Spider

7

INSTALLATION AND NETWORK SETTINGS CONTINUED

5. Follow the prompts to enter the unit’s IP address, subnet mask, default

gateway, and LAN interface information.

6. Type Y, following by Enter, to accept the changes.The system takes about 10

seconds to complete and display the updated IP address on the login prompt.

7. Plug an Ethernet cable connected to your network into the Ethernet port.

The Link LED illuminates.

8

Quick Start Guide

SecureLinx Spider

WWW.LANTRONIX.COM 9

SPIDER WEB CONFIGURATION CONTINUED

Performance:

a. Select Interfaces ➜KVM Console Settings from the web page.

b. If necessary, under Transmission Encoding, modify the video

compression levels and color depth for slower connections.

TARGET COMPUTER SETUP

The Spider recognizes several varieties of video display formats with resolutions

up to 1280 x 1024 @ 60Hz. (Refer to the User Guide for a list of supported

video formats).

Minimize bandwidth and power consumption by setting the target computer’s

video resolution to the minimum setting required for your remote monitoring

application. The following video modes are recommended:

800 x 600 @ 60Hz

1024 x 768 @ 60Hz

1280 x 1024 @ 60Hz

1. On a Windows target system, select Control Panel ➜Display ➜Settings.

Modify the screen resolution value as necessary.

2. Select Control Panel ➜Display ➜Settings ➜Advanced ➜ Monitor. Modify

the screen refresh rate (consult the appropriate documentation when using

a typical video card or another operating system on the target computer).

SPIDER WEB CONFIGURATION CONTINUED…

3. The following are a few key configurations:

Keyboard/Mouse:

a. Select Interfaces ➜Keyboard/Mouse from the web page.

b. To change the target interface keyboard/mouse settings from the

default (Auto) to force PS/2 or USB target interface, select the

appropriate option from the Host Interface drop-down menu.

c. To change the USB mouse type, select the appropriate operating

system option from the USB Mouse Type drop-down menu.

d. Click Apply to store your settings in nonvolatile memory.

Security:

a. Select Services ➜Security from the web page.

b. To require SSL encryption, select Force HTTPS for Web access.

c. Click Apply to store your settings in nonvolatile memory.

Network TCP Ports and Services:

a. Select Interfaces ➜Network from the web page.

b. Under Network Miscellaneous Settings, modify the TCP ports as necessary.

The client system requires the ability to access the Spider’s IP address as

well as have port 80 (HTTP) and 443 (HTTPS) open. Consult your system

administrator if your system’s firewalls and NAT device requires

reconfiguration or change to these values.
