L&W SC-600 ES Manuel utilisateur
C H A P T E R O V E R V I E W
Operating Instructions ...............................................................................................................
............................................................................................................................................................
Spare Parts Lists ..........................................................................................................................
............................................................................................................................................................
Attachment ....................................................................................................................................
A
B
C
D
E
Manufacturer in terms of 2014/68/EU
The full name and address of the manufacturer is:
Lenhardt & Wagner GmbH
An der Tuchbleiche 39
68623 Hüttenfeld / Germany
Phone: +49 (0) 62 56 - 85 88 0 - 0
Fax: +49 (0) 62 56 - 85 88 0 - 14
E-Mail: service@lw-compressors.com
Internet: www.lw-compressors.com
S E R V I C E I N F O R M A T I O N / W A R R A N T Y
Compressor information
Type designation
Serial number
Date of construction
Purchase information
Purchase date
First commissioned on
Warranty period
Dealer's stamp
Warranty
L&W will uphold warranty claims made during a period of 12 months from the invoice date.
If the compressor was purchased from an official L&W dealer, the date on the dealer's invoice is
valid. Warranty claims can only be made on presentation of the original invoice.
Should verifiably defective parts have been delivered, we will decide to either replace the parts or
repair them. The resulting transport and assembly costs will be invoiced.
No reduction of the purchase price or changes to the contract can be made. The parts for which a
claim is being made should be kept safe by the purchaser and, when requested, sent to us at their
cost. Replaced parts become the property of L&W. If maintenance work is carried out without our
knowledge or permission by the purchaser or a third party, we are absolved from any liability for
warranty claims. As a matter of principle, warranty claims can only be made by the initial purchaser.
A
Operating Instructions
Breathing Air Compressor
LW SC - 600 ES / LW SC-680 ES / LW SC-750 ES
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 2
A
T A B L E O F C O N T E N T S
eneral Information & Technical Data
General nformation / Description of Warning Symbols .................................................................... 4
Scope of Delivery .............................................................................................................................. 5
Technical Data .................................................................................................................................. 6
Unit Assembly ................................................................................................................................... 7
Switchboard ..................................................................................................................................... 8
Flow Chart ........................................................................................................................................ 9
Safety Precautions
ntended Use / Operators ................................................................................................................ 11
Safety nstructions on the Unit ....................................................................................................... 12
General Safety Precautions ............................................................................................................. 13
Unit Customised Safety Notices ...................................................................................................... 14
Maintenance nstructions ............................................................................................................... 15
Transportation nstructions / Safety Regulations ............................................................................. 16
Installation
nstallation in Closed Rooms ........................................................................................................... 18
Dimensions ...................................................................................................................................... 19
Minimum Distances ........................................................................................................................ 20
Ventilation ...................................................................................................................................... 21
Electrical nstallation ................................................................................................................ 22 - 23
Operation
mportant Operation nstructions ................................................................................................... 25
First Commissioning ................................................................................................................ 26 - 28
Daily Commissioning ...................................................................................................................... 29
Filling Procedure ............................................................................................................................. 30
Switch Off Compressor Unit ............................................................................................................ 31
Remedying Faults
............................................................................................................. 33 - 36
Maintenance & Service
Service, Repair and Maintenance .................................................................................................... 38
Maintenance Lists / Maintenance ntervals ............................................................................... 39 - 42
Check V-Belt Tension / Tension V-Belt .............................................................................................. 43
Compressor Lubrication / Check Oil Level ........................................................................................ 44
Oil Change ...................................................................................................................................... 45
Oil Sieve Change ............................................................................................................................. 46
Final Pressure Switch ...................................................................................................................... 47
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 3
A
T A B L E O F C O N T E N T S
Maintenance &Service
Automatic Condensation Dump System ......................................................................................... 48
Oil / Water Separators 1st, 2nd & 3rd Stage - Maintenance ............................................................ 49
Oil / water separator final stage - maintenance .............................................................................. 50
Pneumatic condensate valve - maintenance ................................................................................... 51
Filter housing / Filter cartridge ........................................................................................................ 52
Filter cartridge change ..................................................................................................................... 53
Filter housing - Maintenance ........................................................................................................... 54
nlet filters / nlet filter cartridge change ......................................................................................... 55
Cylinder heads and valves ............................................................................................................... 56
Replace inlet and outlet valves 1st and 2nd stage .................................................................... 57 - 58
Replace inlet and outlet valves 3rd and 4th stage ........................................................................... 59
Safety valves ................................................................................................................................... 60
Pressure maintaining / non return valve .......................................................................................... 61
Safety valve test .............................................................................................................................. 62
Leak test ......................................................................................................................................... 63
Pressure gas vessel test ................................................................................................................... 64
Maintenance records and Storage
Maintenance records ............................................................................................................... 66 - 70
Conservation / storage of the compressor / De-conservation, commissioning ................................. 71
Transportation instructions / Disposal ............................................................................................. 72
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 4
A
Warning
ndicates a potentially hazardous situation which, if not avoided, could result in physical
injury or damage to the product or environment.
Caution
ndicates an imminently hazardous situation which, if not avoided, could result in serious
injury, physical injury or death.
eneral Information
We strongly recommend reading this manual thoroughly prior to operation and follow all the safety
precautions precisely. Damage resulting from any deviation from these instructions is excluded from
warranty and liability for this product. Carry out other commissioning steps only if you have fully
understood the following contents.
Before commissioning and using the unit, carry out all the essential preliminary work and measures
concerning legal regulations and safety. These are described on the following pages of this
operation manual.
E N E R A L I N F O R M A T I O N
!
!
Note
ndicates additional information on how to use the unit.
i
Description of marks and warning signs
The following warning signs are used in this document to identify the corresponding warning notes
which require particular attention by the user. The warning signs are defined as follows:
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 5
A
D E S C R I P T I O N
• Auto start system
• Up to 6 additional hoses available
• 4- fold filling panel installed at front door
• 200 and 300 bar parallel filling pressures
• Phase monitoring c/w shut down at wrong
direction of rotation
• Ambient temperature monitoring
• ndicator light - service interval
• Oil pressure gauge
• ntermediate pressure gauges
• 2.3 ltr. Filter housing ( LW SC-600 ES)
• Oil pressure monitoring c/w auto shut down
• Cylinder head temperature monitoring with
auto shut down
• Oil temperature display with auto shut down
• Puracon filter monitoring
• Remote Tab Control - RTC
• Air Cooler connection kit
• Power cable and plug
• Special voltages / frequencies on request
Scope of Delivery
Compressors are provided in different equipped versions.
Versions
Filling pressure versions: - PN 225 bar
- PN 330 bar
- PN 225 / 330 bar
Ausstattung
Optionen
• Electro motor
• Powder coated steel housing (RAL 7016)
• Sound insulated housing
• Automatic condensate drain
• Automatic stop at final pressure
• Hour counter
• Operating panel with start/stop and
condensate test button, as well emergency
stop switch
• Motor protection switch
• Safety switch
• Pressure maintaining and non return valve
• All pistons c/w steel piston rings
• Low pressure oil pump and filter
• Oil- / Water separators after each stage
• Safety valves after each stage
• Maintenance doors on both sides
• Beidseitige Wartungsklappen
• 4 concentric suction/pressure valves
• High pressure outlet with 1500 mm hose
• Filling pressure of your choice (200 or 300
bar)
• Breathing air purification an accordance to EN
12021
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 6
A
D E S C R I P T I O N
Technical Data
Technical Data LW SC-600 ES
Charging Rate [l/min]: 600
Max. Operating Pressure [bar]: 350
RPM [min
-1
]: 940
Number of Pressure Stages: 4
Cylinder Bore 1st Stage [mm]: Ø 105
Cylinder Bore 2nd Stage [mm]: Ø 50
Cylinder Bore 3rd Stage [mm]: Ø 25
Cylinder Bore 4th Stage [mm]: Ø 14
Medium: Air / Breathing Air
ntake Pressure: atmospheric
Oil Pressure (at operating
temperature) [bar]: +12.0(±0,1)
Oil Capacity [l]: 2.9
ntake Temperature [°C]: 0 < +45
Ambient Temperature [°C]: +5 < +45
Cooling Air Volume [m³/h]: > 4500
Standard Voltage: 400 V / 3-phase /
50 Hz
Protection Class Drive Motor: P 54
Drive Power [kW]: 15
RPM Motor [min
-1
]: 2,890
Start: Star/Delta
Noise level [dB(A)]: 70 from a distance
of 1 m
Dimensions W x D x H [mm]: 840x1260x1800
Weight [kg]: ca. 542
Content Volume Filter housing [l]: 1.7
LW SC-680 ES
680
350
1060
4
Ø 105
Ø 50
Ø 25
Ø 14
Air / Breathing Air
atmospheric
+12.0(±0,1)
2.9
0 < +45
+5 < +45
> 4500
400 V / 3-phase / 50
Hz
P 54
15
2,890
Star/Delta
72 from a distance
of 1 m
840x1260x1800
ca. 552
2.3
LW SC-750 ES
750
350
1170
4
Ø 105
Ø 50
Ø 25
Ø 14
Air / Breathing Air
atmospheric
+12.0(±0,1)
2.9
0 < +45
+5 < +45
> 4500
400 V / 3-phase / 50
Hz
P 54
15
2,890
Star/Delta
75 from a distance
of 1 m
840x1260x1800
ca. 552
2.3
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 7
A

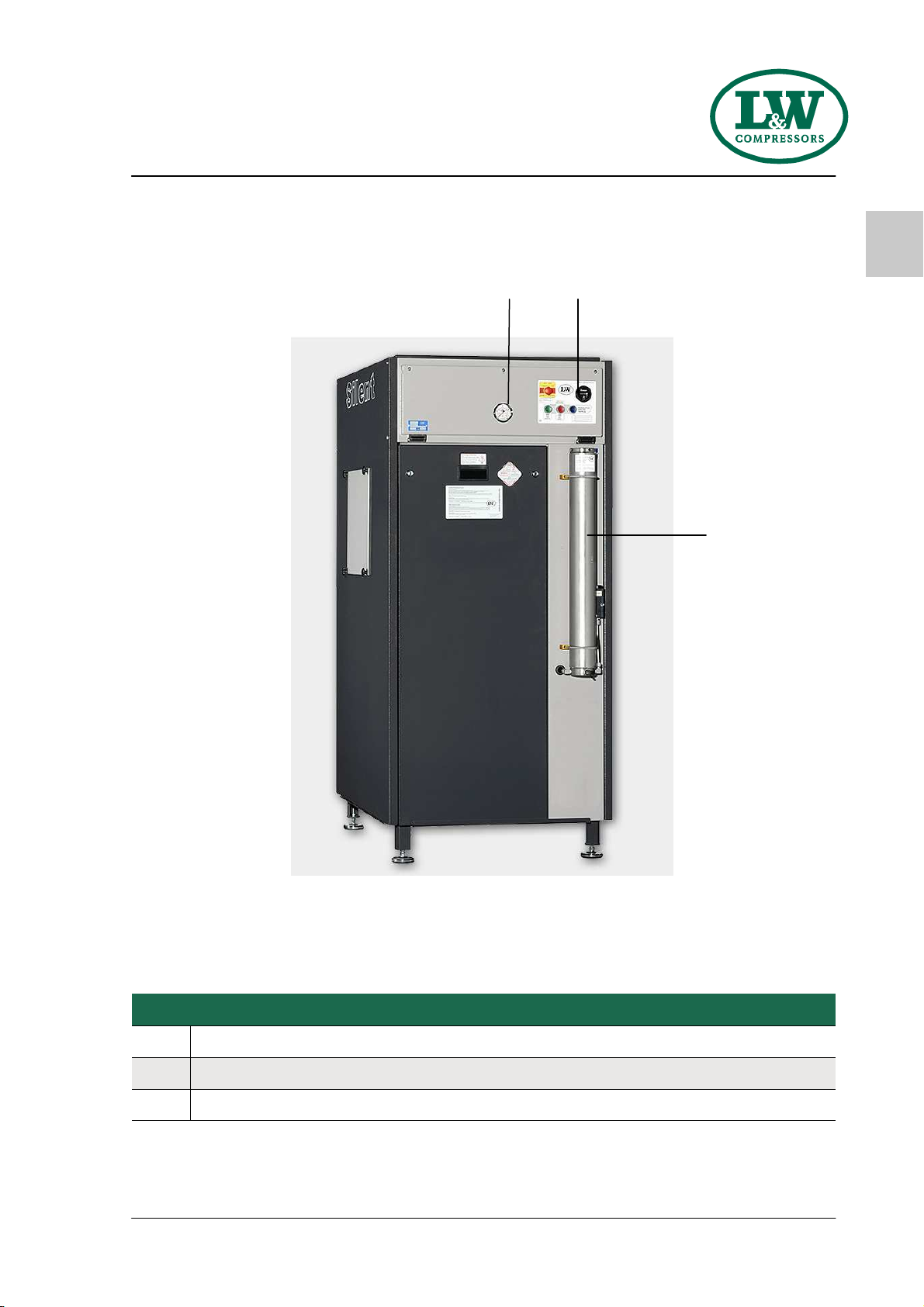

Unit Assembly
D E S C R I P T I O N
1 2
3
No. Designation
1 Filling pressure gauge
2 Switchboard
3 Filter housing
LW SC-600 ES / LW SC-680 ES / LW SC-750 ES
Version: 01.01.2023
Page A - 8
A
Switchboard
D E S C R I P T I O N
1 2
3 4 5
No. Designation
1 Emergency shut-off switch
2 Hour counter
3 ON button
4 OFF button
5 Drain test button
