CloudBox User Manual 1

CLOUDBOX USER MANUAL

CLICK HERE TO ACCESS AN UP-TO-DATE ONLINE VERSION

of this document. Online User Manuals feature easy navigation, expandable illustrations, and

search capability.

INTRODUCTION

The LaCie CloudBox is a great solution for storing and backing up data. As a

local network device with ample storage, you can keep your important files

on its disk drive. For added security, all data stored on the CloudBox is

automatically backed up to your Online Backup account each day. This

manual will help you to configure and administer the CloudBox on your

network.

CloudBox User Manual 2

WHAT IS A CLOUDBOX ONLINE BACKUP?

With local storage and online backup, your data is now secure on two fronts. Files stored on the LaCie CloudBox

are safe on your local network if you experience problems with your computer’s hard drive or operating system.

Since they are also backed up online, your files are kept secure outside of the home or office. This means that

your most critical data is protected against more grave concerns, such as theft, fire, or flood. Further, a

CloudBox Online Backup encrypts your data using 128-bit encryption before it is uploaded to your account.

After you have configured the CloudBox, your Online Backups will run daily at a scheduled time. When the

scheduled backup starts, the Online Backup will search the CloudBox for the data to upload to your Online

Backup account. The Online Backup account will retain all the data stored on the CloudBox at the time of the

scheduled backup.

For example, along with many other files, Text Document A is stored on your CloudBox. Each day, the Online

Backup understands to retain Text Document A since it is consistently stored on the CloudBox. After a month,

you delete Text Document A from your CloudBox. Text Document A will also be deleted from your Online

Backup account during the next scheduled Online Backup.

INITIAL BACKUP AND UNSUPPORTED FILES

Depending upon the amount of data stored on the CloudBox, your initial online backup may require some time.

Please do not be alarmed if the backup takes many hours or several days. All online backups occur in the

background, leaving you free to operate your computer or workstation.

Factors that may contribute to longer Online Backups:

The amount of data (tens of gigabytes at once will significantly increase the backup time)

■

Network bandwidth

■

Network activity

■

The amount of files being backed up at one time

■

CloudBox User Manual 3

Unsupported File Types

The following file and/or folder types are not supported by the CloudBox Online Backup:

Files and/or folders containing “\” or “/” in their names. For example, a file that is named “Business

■

Tasks/Shopping List” will not be accepted by the Online Backup.

Files greater than 8GB.

■

MINIMUM SYSTEM REQUIREMENTS

Computer with an Ethernet network adapter

■

Latest version of Windows® XP 32- or 64-bit / Mac® OS X 10.5 / Linux system based on a 2.6 kernel

■

Minimum free disk space: 100MB

■

Ethernet switch or router with DHCP

■

Internet connectivity

■

Web browsers: Internet Explorer® 7.0 and Safari® 3.0

■

Important note: In almost all instances, the use of the LaCie CloudBox should not incur additional fees

from an Internet Service Provider. Please note that under no circumstances will LaCie be held responsible for

any indirect or additional charges from an Internet Service Provider or any other company that provides a

portal to the Internet.

RECOMMENDED SYSTEM HARDWARE AND SOFTWARE

The following list of peripheral hardware and system software may improve your CloudBox’s performance:

Computer Hardware: a Gigabit Ethernet network adapter, 2 GB RAM or higher, and 2 GHz CPU or higher.

■

Latest version of Windows Vista® or Windows 7 / Mac OS X 10.6

■

Gigabit Ethernet switch or router with DHCP

■

Ethernet switch or router with DHCP

■

High-speed Internet connectivity

■

Web browsers: Internet Explorer 8.0, Firefox® 3.5, and Safari 5.0

■

CloudBox User Manual 4

BOX CONTENT

LaCie CloudBox1.

External power supply2.

Ethernet cable3.

Quick Install Guide4.

Utilities CD-ROM with LaCie Network Assistant, LaCie Backup Assistant, and the User Manual5.

Leaflet with the One Year Online Backup Contract and device ID numbers6.

Important info: Please save your packaging. In the event that the drive should need to be repaired or

serviced, it must be returned in its original packaging. Do not forget to keep the leaflet in a safe and

accessible location. It contains your contract number, which is mandatory for setting up your device and

keeping your account up to date. To maintain your security and prevent others from logging into your Online

Backup account, your contract number cannot be requested for recovery purposes.

CloudBox User Manual 5

VIEWS OF THE DRIVES

Front View

LED activity light1.

Rear View

Power button1.

Power supply2.

Gigabit Ethernet3.

CloudBox User Manual 6

CloudBox User Manual 7

LED BEHAVIOR

The front LED changes to indicate different drive behavior.

LED Behavior Indication

Off Device is off

Blue: Fast blinking Drive activity

Backup in progress

Blue: Static Ready

Blue: Slow blinking Startup

Shutdown

Red: Static The CloudBox is being restored to Factory Settings

Hardware failure

Red: Slow blinking

Backup or Restore failed

Red blinking will continue until the next backup completes successfully (scheduled or

manual)

Blinks for five seconds to start a Restore to Factory Settings

Red/Blue: blinking Firmware update in progress

Technical note: Even if you have turned off the front LED using the Dashboard administration page (see

Dashboard: General Settings), events triggering a red light will always cause the front LED to turn on.

POWER BUTTON FUNCTIONS

Switching on the drive: Turn on the drive by pressing the power button on the back of the drive for two

■

seconds. The front LED will blink.

Switching off the drive: To turn off the drive, press and hold the power button for five seconds until the LED

■

blinks. When the LED turns off, the drive has shut down.

Note: You may also power down the CloudBox via the Dashboard.

CONNECTING TO YOUR NETWORK

This chapter explains how to connect the CloudBox to your network. Please note that your network must have

access to the Internet for the CloudBox installation, setup, and general use.

CloudBox User Manual 8

ETHERNET

Ethernet is the most widely used local area network (LAN) technology. A Gigabit (Gb) Ethernet cable is included

with your LaCie device to connect it to a network. Please note that the images in the table below may not reflect

the precise cable or connector positions of your LaCie device or router. However, the ends of the Ethernet cable

are the same, allowing for easy connection to the LaCie product and your router.

Connector Face

(to router)

Cable End

(to computer)

Cable End

(to product)

Connector Face

(to router)

CloudBox User Manual 9

SETUP

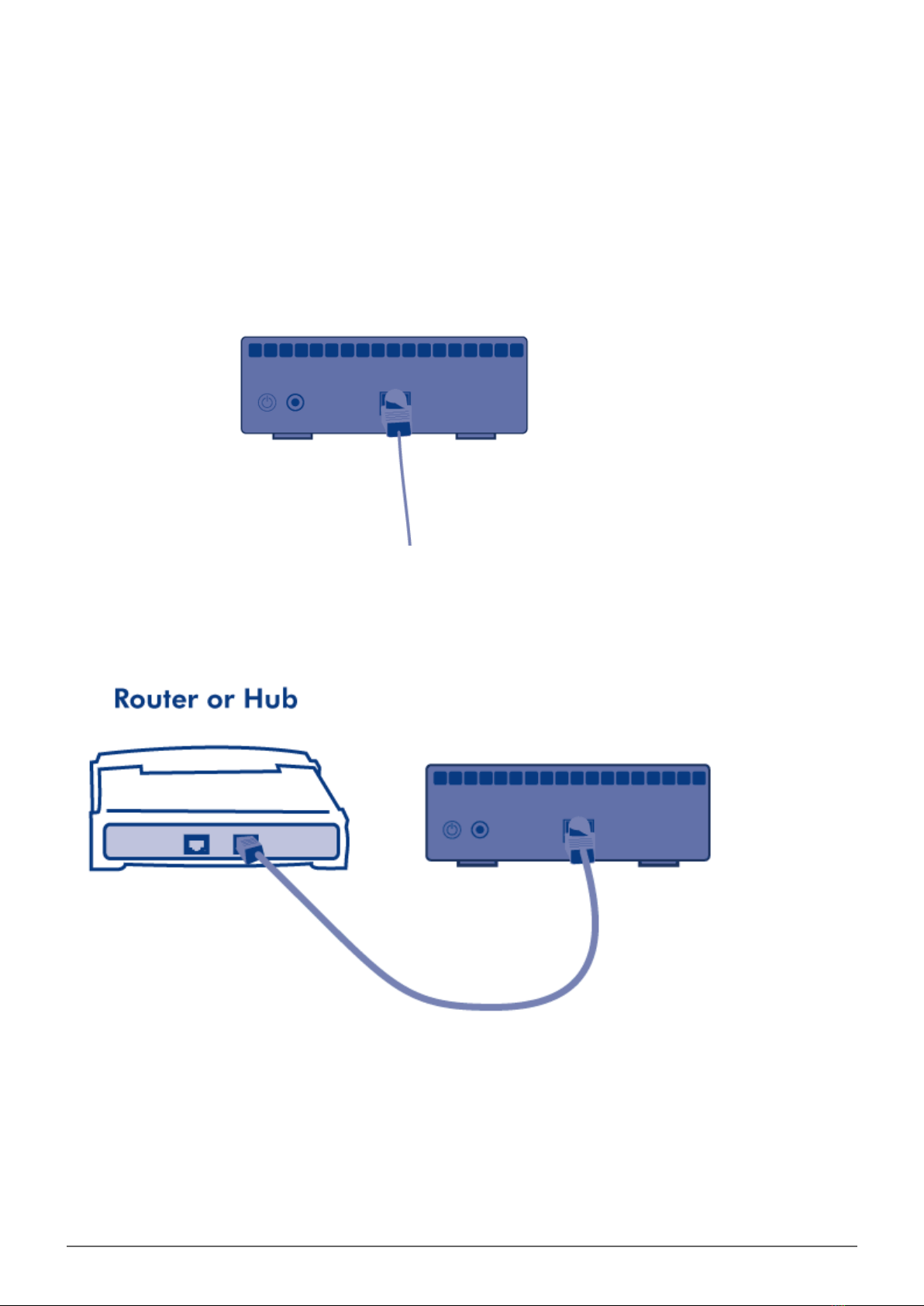

STEP 1 - Ethernet and Power

Connect the Ethernet cable to the Ethernet port on the back of the LaCie CloudBox.1.

Connect the other end of the Ethernet cable into an available Ethernet port on your router, switch, or hub.2.

Your network router or switch must support DHCP to run the Setup Wizard. Most consumer and business

networks include a DHCP router.

Connect the power supply to a wall outlet and to the LaCie CloudBox.3.

CloudBox User Manual 10

Press the power button on the back of the CloudBox. The drive is ready to be accessed once the blue LED has4.

stopped blinking. Please be patient while the CloudBox starts for the first time.
