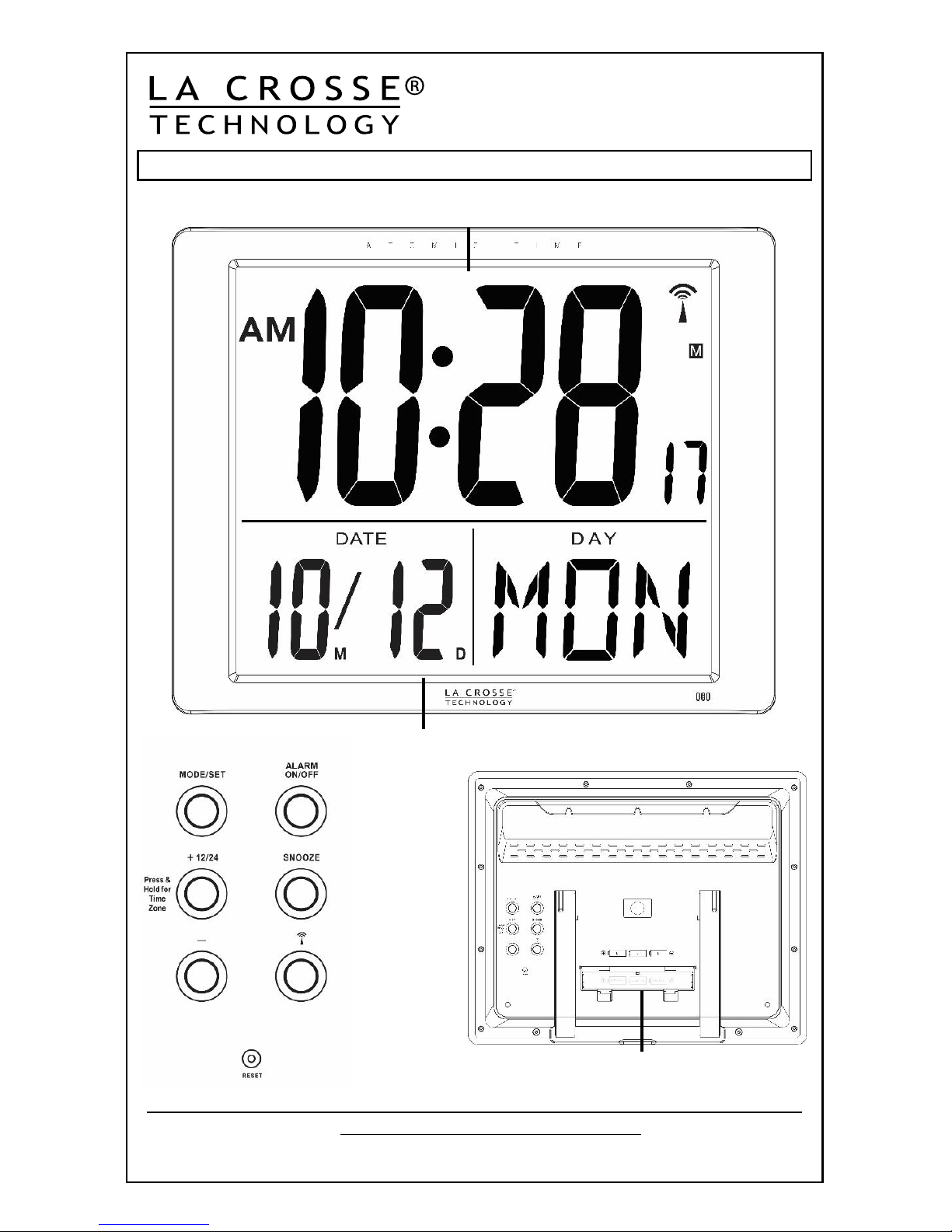

ATOMIC DIGITAL CLOCK

Model: 515-1316

Instruction Manual

DC: 052015

Time and Alarm

Month, Date, & Weekday

3 “C” Batteries

Buttons

Model: 515-1316 www.lacrossetechnology.com/support Page | 2

Get Started

Step 1: Insert three new “C” batteries according to polarity markings.

Step 2: Do not press any buttons for four minutes. The clock will search

for a WWVB time signal. The tower icon will flash.

Restart: Remove batteries from the clock. Press any button on the clock

20 times. After 15 minutes, return to Step 1 above.

WWVB Radio-controlled Time

Hold the button to search for the WWVB time

signal.

WWVB Icon will flash when searching.

If only the bottom of the tower icon is showing and the top of

the icon is not there or partially there, reposition the atomic

digital clock for better signal reception.

When WWVB signal reception occurs, the time and date will set and

the tower icon will show solid above the seconds

For information about WWVB visit:

www.nist.gov/pml/div688/grp40/wwvb.cfm

Atomic Time Signal Search:

The atomic clock will search for 1 hour between midnight and 6am until

the WWVB time signal is received. After reception, the atomic clock will

only search for the atomic signal after midnight.

Set Time, Calendar, DST Indicator

Hold the MODE/SET button to enter the

setting mode.

Press the + or – buttons to adjust a value.

Press the MODE/SET button to confirm

adjustment and move to the next item.

Setting order:

1.Hour, 2. Minutes, 3. Seconds, 4. Year, 5. Month/Date format (M/D or

D/M), 6. Month, 7. Date, 8. DST indicator

Note: The clock will default back to time display if no buttons are pressed

for 30 seconds.

MODE/SET + 12/24 -

WWVB

Atomic Icon

Model: 515-1316 www.lacrossetechnology.com/support Page | 3

Time Zone Selection/12/24 Hour time Format

Press the + 12/24 button to select 12 hour or 24 hour time

format. Default is 12 hour time.

Hold the +12/24 button to select the time zone.

There are four time zones:

oP = Pacific

oM = Mountain

oC = Central

oE = Eastern

Alarm Set

Press the MODE/SET button to enter Alarm

Mode. “AL” will show on the display.

Hold the MODE/SET button to enter alarm

set mode.

Press the + or – buttons to adjust a value.

Press the MODE/SET button to confirm adjustment and move to the

next item

Setting Order:

1. Hour

2. Minutes

Activate/Deactivate Alarm

Press the ALARM ON/OFF button to activate the alarm.

The bell icon will appears when alarm is active.

Press the ALARM ON/OFF button to deactivate the alarm.

The bell icon will disappear.

Snooze

When the alarm sounds, press the SNOOZE button to

trigger snooze alarm for 5 minutes.

The snooze icon Zz will flash above the time.

Reset Button

If the clock display appears distorted or is not responding to

buttons, use a pen or paperclip to press RESET one time.

This will reset the clock to default settings.

SNOOZE

MODE/SET + 12/24 -

+ 12/24

ALARM

ON/OFF

Model: 515-1316 www.lacrossetechnology.com/support Page | 4

Position Clock

When positioning the atomic digital clock it is always best to have the

front or the back facing Ft. Collins, Colorado for best WWVB signal

reception.

Wall Mount:

Insert three screws (not included) into the desired wall, about 3.9 inches

(10 cm) apart. Leave the head of the screws extended out by about 0.2”

(5mm). Carefully hang the atomic digital clock on the screws, using the

hanging holes on the back of the atomic digital clock.

Note: Always ensure that the clock locks onto the screws.

Table stand:

Pull out the table-stand from the rear of the atomic digital clock. Pull out

from the bottom. Place on table or desk as desired.

Specifications

Power Requirements:

Atomic Clock:

Requires three “C” IEC LR14 alkaline

batteries (not included).

Battery Life:

Atomic Clock:

Battery life is over 12 months when using

reputable battery brands

Dimensions:

Atomic clock:

15.65” H x 19.25” W x 1.57” D

(39.75 cm H x 48.89 cm W x 3.99 cm D)

Wall Hanging

Holes

Base Stand

Model: 515-1316 www.lacrossetechnology.com/support Page | 5

Care and Maintenance

Do not mix old and new batteries

Do not mix Alkaline, Standard, Lithium or Rechargeable

Batteries

Always purchase the correct size and grade of battery most suitable

for the intended use.

Replace all batteries of a set at the same time.

Clean the battery contacts and also those of the device prior to

battery installation.

Ensure the batteries are installed correctly with regard to polarity

(+and -).

Remove batteries from equipment when is not to be used for an

extended period of time.

Remove expired batteries promptly.

Do not expose to extreme temperature, vibration or shock.

Clean with a soft damp cloth. Do not use solvents or scouring

agents.

The product is not a toy. Keep it out of reach of children.

The product is not to be used for medical purpose or for public

information. It is intended for home use only.

The specs of this product may change without prior notice.

Improper use or unauthorized opening of housing voids warranty.

If the product is not working properly, change the batteries.

Warranty and Support Information

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of

purchase) on this product relating to manufacturing defects in materials &

workmanship.

Before returning a product, please contact our friendly customer support

with questions or visit our online help (manuals and FAQS):

Phone: 1-608-782-1610

Online Product Support: www.lacrossetechnology.com/support

Product Registration:

www.lacrossetechnology.com/support/register

View full warranty details online at:

www.lacrossetechnology.com/warranty_info.pdf

Warranty Address:

La Crosse Technology, Ltd

2830 S. 26th St.

La Crosse, WI 54601

Model: 515-1316 www.lacrossetechnology.com/support Page | 6

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other

antenna or transmitter. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the

user authority to operate the equipment.

or duplicated or processed using electronic, mechanical or chemical process

without the written permission of the publisher.

This booklet may contain errors or misprints. The information it contains is

regularly checked and corrections are included in subsequent editions. We

disclaim any responsibility for any technical error or printing error, or their

consequences.
