WS6207 User Manual

Features:

 DCF Radio controlled clock function

 Radio control function can be switched ON and OFF

 Time in optional 12/24 hour format

 Perpetual Calendar Up to Year 2099

 Day of week in 7 languages user selectable: English, German, Italian, French, Spanish, Netherlands and Danish

 Dual Alarm clock can be set on weekdays / weekends and daily

 Snooze time setting (1~30Minute or OFF)

 Low battery indicate

 Indoor comfort indictor

 Weather forecasting and air pressure detect

 Ice alert

 Moon phase

 Window opening and closing prompt

 Remote sensor temperature alert range set

 Change trend display

 Humidity measurable range: 20%RH ~ 95%RH

 Temperature:

— Indoor temperature measurement ranges: -9.9°C (14.2°F) ~ 50°C (122°F)

— Outdoor temperature measurement ranges: -40°C (-40°F) ~ 70°C (158°F)

— Temperature alternatively in °C or °F

 Maximum /minimum value record of temperature and humidity

 Wireless Outdoor Sensor:

—3 Channels selectable

— 433.92MHz RF transmitting frequency

— 60 meter transmission range in an open area

 Barometric pressure:

— Barometric pressure measurement ranges: 850～1100 mB/hPa (25.10～32.48inHg)

— Pressure alternatively in mB/hPa or inHg

 Power Supply:

Weather Station:

Battery: 2 x LR03 AAA

Remote Sensor:

Battery:2 x LR03 AAA

WS6207 User Manual

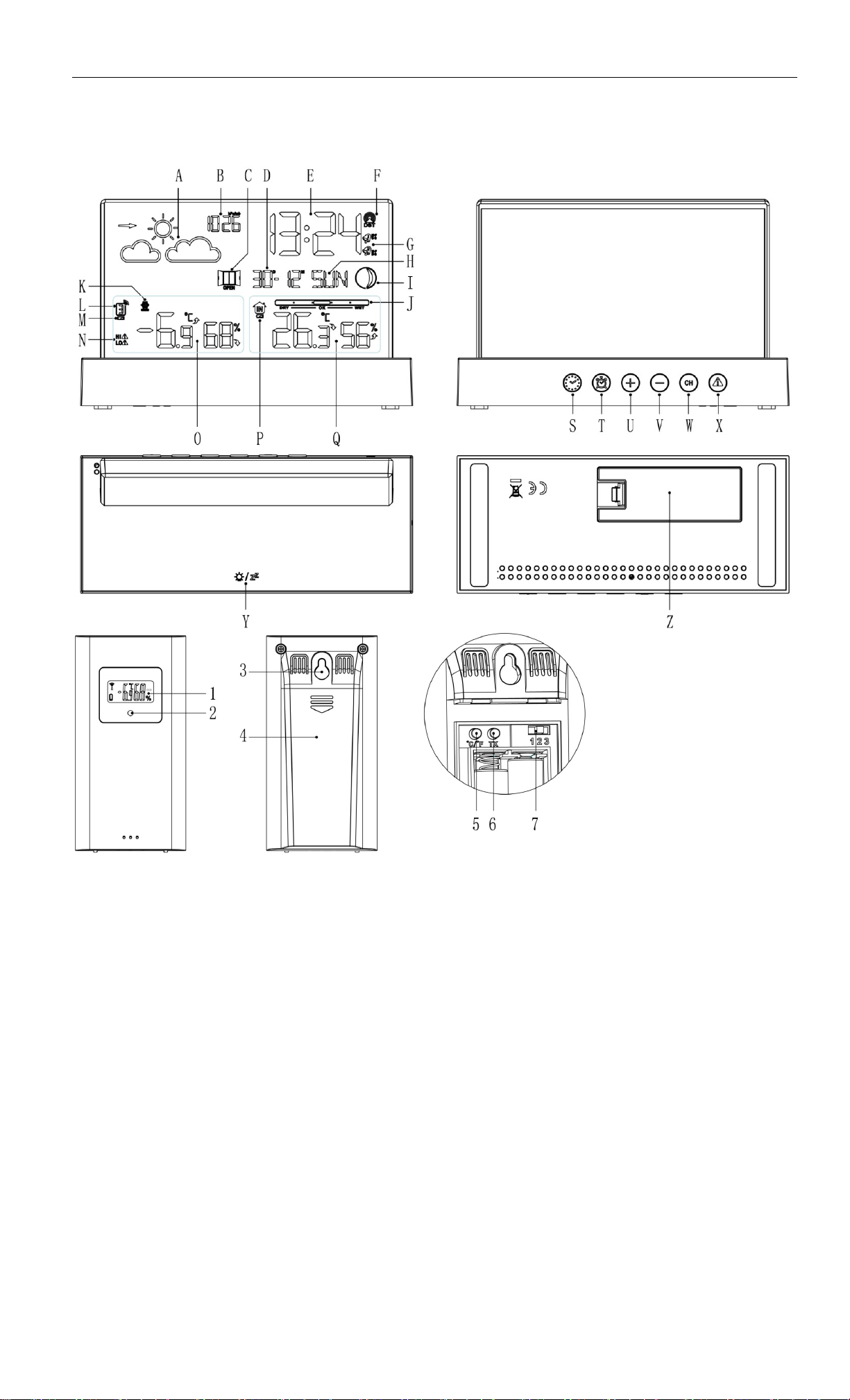

Appearance description:

A：Weather forecast N：Remote sensor temperature alert status symbol

B：Air pressure value O：Remote sensor temperature and humidity value

C：Window opening and closing prompt P：Main unit low battery

D：Date Q：INDOOR temperature and humidity value

E：Time

F：Radio wave receiving status symbol S：General setting button

G：Alarm status indicator T：Alarm setting button

H：Day of week U：+/Memory button

I：Moon phase V：-/Alarm ON or OFF button

J：Indoor comfort indicator W：Channel button

WS6207 User Manual

K：Ice alert X：Alert setting button

L：Channel number Y：Light and snooze button

M：Remote sensor low battery indicator Z：Battery compartment cover

1: LCD 5: Temperature unit switching button

2: Transmit indicating lamp 6: Manual pairing transmit button

3: Wall mounting hole 7: Channel switch

4: Battery compartment cover

WS6207 User Manual

Initial operation:

 Open the main unit battery compartment cover

 Insert 2 x AAA batteries observing polarity [ “+” and “ –“ marks]

 When you insert the batteries, all icons on the LCD will light up for 3 seconds, and you will hear a beep tone,

then detect indoor temperature & humidity.

 The main unit will now start to make a connection to the outdoor remote sensor. This process lasts for a

maximum of 3 minutes and will displayed by a flashing reception antenna symbol In the upper right

corner of the number of channels.

 This moment, Open the remote Sensor battery compartment cover, push the channel switch to select the

number of channels to use, Insert 2 x AAA batteries according to the correct polarity 【Reference “+” and “–”

marks】, Press the “℃/°F” button to select the temperature unit you want, close the battery cover.

 After receiver has created a connection to the outdoor remote sensor, after up to 3 minutes it will enter the

DCF Radio control time receive mode.

Reception of the Radio signal:

 Press and hold the【】 button to manually enter the DCF radio control receiving function.

 Enters DCF receiving mode, the symbol will flashing, when a valid signal is detected the symbol

no flashing and switch to is flashing, after about a few minutes, the receiving process will end.

：Received successfully

：The previous reception was successful, but the last reception failed

 At 1:00 /2:00 / 3:00 AM, the clock automatically carries out the synchronization procedure with the DCF

signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful, the system

will automatically attempt another synchronization at the next full one hour. This procedure is repeated

automatically up to total 5 times.

 During RC reception，to stop searching radio signal, press the【】 button once.

F.Y.I.:

 We recommend the product be placed at a minimum distance of 2.5 meters (8.2Feet) to all sources of

interference, such as televisions or computer monitors or switching power adapter.

 Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme

circumstances, place the system close to the window.

 During the RC receive mode, only the 【Light/Snooze】 and 【】buttons have a function, other buttons

are not functional, If you want to carry out other functions of operation, please press 【】 button to exit the

RC receiving mode.

Manual time setting:

 Press and hold the button for 2 seconds, the “ ON/OFF ” starts to flash, and press 【】 and 【】

buttons to set the radio control function ON or OFF.

 Press button to confirm the item has been set and go to the next one, the sequence of setting items is

as follows:

WS6207 User Manual

RCC ON/OFFDST ON/OFFTime zone 12/24HR HOUR  MINUTE  Format of DATE (D/M or M/D)

 YEAR  MONTH  DATE  Language of WEEK  Temperature Unit (°C/°F) Pressure unit(hPa/mb

or inHg) Current standard air pressure Current weather

 When adjusting the value, press and hold the【】 or 【】 button to adjust quickly.

 Press button to confirm the last item to end the setting procedures, then it will return to the normal

mode.

 When choosing the 12Hr format, if “PM” is displayed before the hours, it means that the hour is post

meridiem.

 The 7 languages that show week abbreviations are listed below:

F.Y.I.:

 If there is no valid operation within 20 seconds, it will automatically return to normal time mode from the set

mode.

Setting the daily alarms:

 Press【】 button, you can set Alarm1 and Alarm2 ON or OFF, symbol appear means that ALARM1 is

ON, symbol appear means that ALARM2 is ON, symbol or disappear means that Corresponding

ALARM is OFF.

 Press once button , LCD display Alarm1 time (5 seconds), press button again when Alarm1 time is

displayed, LCD display Alarm2 time (5 seconds), press button again when Alarm2 time is displayed,

return to current time display.

 When Alarm1 time is displayed, press and hold button for 2 seconds until Hour of the Alarm1 time

starts to flash, press the【】 or【】 buttons to set the required Hour.

 Press button to confirm the item has been set and go to the next one, the sequence of setting items is

as follows:

Hour of Alarm1  Minute of Alarm1  repeat period of Alarm1  Snooze time of Alarm1

 When setting the repeat period, comply with the following rules:

M-F: From Monday to Friday

S-S: From Saturday to Sunday

: From Monday to Sunday

WS6207 User Manual

 The snooze time can be set to 1-30 minutes or OFF, if “OFF” is selected, it means that the snooze function

is turned off.

 The Alarm2 time can be set according to the same method above

F.Y.I.:

 If there is no valid operation within 20 seconds, it will automatically return to normal time mode from the

alarm time set mode.

 When adjusting the value, press and hold the 【】or 【】button to adjust continuously and quickly

 The Alarm will sound for 2 minutes if you do not deactivate it by pressing any button.

Turn OFF the alarm sound

 When it's ringing, press any button except the【SNOOZE】 button to stop the Alarm sound.

 When it's ringing, touch and hold the 【SNOOZE】button for 2 seconds to stop the Alarm sound.

Snooze function

 When it's ringing, touch the 【SNOOZE】button once the alarm sounds to get to snooze mode, when the set

snooze time is over, it will ring again.

RF Transmission Procedure

 The main unit automatically starts receiving transmission from remote sensor for temperature & humidity

after batteries inserted.

 The remote sensor will automatically transmit temperature and humidity data to the main unit after batteries

inserted.

 If the main unit failed to receive transmission from remote sensor (“- -.-”and “--” display on the LCD), Press

and hold the 【CH】 button for 2 seconds, RF icon will be flashing，the main unit will rescan the launch

signal of the channel.

 The main unit receive remote signals of up to 3 channels, press 【CH】 button to switch and display data of

different channels, when the symbol appears, the data of different channels will be displayed

automatically every 5 seconds.

Maximum / Minimum numerical value of memory

 When the temperature and humidity are shown in the LCD, the main unit began to record temperature/

humidity maximum and minimum numerical value.

 Press once 【】 button, the LCD will display maximum value of temperature/ humidity, The LCD will

display the minimum value of temperature / humidity if press once 【】 button again when the maximum

value is displayed.

 at the same time, there are “MAX” or “MIN” displayed on the LCD.

 The maximum / minimum value will RE records after press and hold 【】 button 3 seconds.

 The memory value of the day will be automatically cleared at 0:00 every night.

Weather forecasting function

WS6207 User Manual

Warning: Please take the weather forecast from your local weather forecasting service into account as well

as the forecast from your weather station. If there are discrepancies between the information from your

device and from the local weather forecasting service, please take the advice of the latter as authoritative.

 The weather forecast is calculated from evaluation of fluctuations in the barometric pressure and may

deviate from the actual weather conditions.

 The weather station displays the following weather symbols:

Moon phase

 The weather station automatically displays the current lunar phase

New

moon

Waxing

half-moon

Half-moon

Waxing full

moon

Full

moon

Waning full

moon Half-moon

Waning

half-moon

Ice alert

 The ice Alert symbol appears and flashing when the remote sensor temperature at –1.0 ~ 2.9℃

(30.2~37.3℉).

Outdoor temperature Alert

 Press button , you can set the Outdoor temperature alert function ON or OFF, this operation is only valid

for the currently displayed channel, if you want to set other channels, press the 【CH】 button to switch to the

channel display you want to set. When the symbol appear means that over upper limit alert function is

ON, symbol appear means that over lower limit alert function is ON, symbol or disappear

means that Outdoor temperature alert function is OFF.

 Press and hold button for 2 seconds, enter the outdoor temperature upper limit or lower limit value

setting mode, the set item will flash, press the【】 or【】 buttons to set the value, press button to

confirm the item has been set and go to the next one, press the【CH】button to set the value of other channels.

 When the outdoor temperature exceeds the limit set by the channel，the temperature value and

corresponding icon will be flash, and when the temperature is refreshed, as long as the temperature still

WS6207 User Manual

exceeds the set limit, there will be a beep reminder.

Comfort level

Different levels of display are calculated according to the formula:

Window opening and closing prompt

 After complex calculation and comparison of indoor and outdoor absolute humidity, the system will use

symbols to remind users whether they need to open or close windows.

------ It is recommended to open the window

------ It is recommended to close the window

Trend displaying

 The current temperature/humidity/barometric pressure and the temperature/humidity/barometric pressure

trend are shown in the LCD display.

 After successfully connecting with the remote sensor, the main unit can display the outdoor temperature/

humidity and the change trend.

Background lighting

 Touch the 【SNOOZE/LIGHT】 button once to turn on the backlight for 15 seconds.

LIABILITY DISCLAIMER：

•The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild

country and/or in unauthorized grounds strongly damages the environment.

•Please contact your local or/and regional authorities to retrieve the addresses of legal dumping grounds with

selective collection.

•All electronic instruments must from now on be recycled. User shall take an active part in the reuse, recycling

and recovery of the electrical and electronic waste.

•The unrestricted disposal of electronic waste may do harm on public health and the quality of environment.

•As stated on the gift box and labeled on the product, reading the “User manual” is highly recommended for

the benefit of the user. This product must however not be thrown in general rubbish collection points.

•The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any

consequences that occur should an inaccurate reading take place.

WS6207 User Manual

•This product is designed for use in the home only as indication of the temperature.

•The plug on the power adapter (if included) is intended to serve as the disconnect device, the socket-outlet

shall be installed near the equipment and shall be easily accessible.

•This product is not to be used for medical purposes or for public information.

•The specifications of this product may change without prior notice.

•This product is not a toy. Keep out of the reach of children.

•No part of this manual may be reproduced without written authorization of the manufacturer.

RED DIRECTIVE 2014/53/EU

Summary of the Declaration of Conformity: We hereby declare that this wireless transmission device does

comply with the essential requirements of RED Directive 2014/53/EU.

LA CROSSE TECHNOLOGY

6 A RUE DU COMMERCE

67118 GEISPOLSHEIM

FRANCE

Autres manuels La Crosse Technology Station météorologique

La Crosse Technology

La Crosse Technology WS6210 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1425B Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9035TWC Manuel utilisateur

La Crosse Technology

La Crosse Technology 328-2314 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology 308-179OR Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7075UF Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9760U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology Wireless Weather Station Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1414MBv2 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology WS-9046U Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7078TWC Manuel utilisateur

La Crosse Technology

La Crosse Technology WS9132 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7208U Manuel utilisateur

La Crosse Technology

La Crosse Technology S88907V2 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1417V2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS9611 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9626U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9016U Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7208TWC Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-2814U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7213U Manuel utilisateur

La Crosse Technology

La Crosse Technology C85845v4 Manuel utilisateur

La Crosse Technology

La Crosse Technology Tomorrow's Weather Today TX25U Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9037U-IT Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur

TFA

TFA 30.3013.IT Manuel utilisateur

Alecto

Alecto WS-1200 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR966PA Manuel utilisateur
