WS-7025TWC

Wireless 433 MHz

Radio-controlled Weather Station

Instruction Manual



Topic Page

Inventory of Contents/Additional Equipment 3

About WWVB 4

Quick Set-Up Guide 5

Detailed Set-Up Guide

Battery Installation 6-7

Program Mode

Function Keys 7

12/24 Hour Time Setting 7

Time Zone Setting 7-8

Daylight Saving Time Setting 8-9

Time Setting (WWVB & Manual) 9-10

Setting Day, Date and Year 10-11

Selecting °F or °C 11

Setting the LCD Contrast 11

Features

Back Light 12

Weather Forecast 12-13

Indoor Temperature, Humidity & Comfort

Level Indicator

Outdoor Temperatures 14

Minimum & Maximum Records (Indoor,

Outdoor & Resetting)

14-15

Alarm (Setting, Snoozing & Stopping) 16

Additional Remote Temperature Sensor

Units (Set-Up, Viewing & Operation)

17-18

Mounting 18-20

Troubleshooting 21

Maintenance & Care 22

Specifications 23

Warranty Information 24-25

Table Of Contents

INVENTORY OF CONTENTS

1. The weather station (Figure 1).

2. One TX6U remote temperature sensor with mounting bracket

(Figure 2).

3. Three each, ½” Philips screws.

4. One strip double-sided adhesive tape.

5. Instruction Manual and Warranty Card.



ADDITIONAL EQUIPMENT (not included)

1. Two, fresh AA 1.5V batteries for indoor weather station.

2. Two, fresh AA 1.5V batteries for remoter temperature sensor.

3. One, Philips screwdriver for mounting.

Time LCD

Date LCD

Forecast LCD

Indoor LCD

Outdoor LCD

ure 1

Mounting

Bracket

Figure 2

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency

Division) WWVB radio station is located in Ft. Collins, Colorado and transmits the

exact time signal continuously throughout the United States at 60 kHz. The signal

can be received up to 2, 000 miles away through the internal antenna in the weather

station. However, due to the nature of the earth’s ionosphere, reception is very

limited during daylight hours. The weather station will search for a signal every

night when reception is best. The WWVB radio station derives its signal from the

NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is

continually measuring every second, of every day, to an accuracy of ten billionths of

a second per day. These physicists have created an international standard measuring

a second as 9,192,631,770 vibrations of a Cesium-133 atom in a vacuum.

QUICK SET-UP GUIDE

Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.

1. Have the indoor weather station and remote temperature sensor 3 to 5

apart.

2. Batteries should be out of both units for 10 minutes.

3. Place the batteries into the remote temperature sensor first then into

the indoor weather station.

(All remote temperature sensors must be started before the indoor

weather station)

4. DO NOT PRESS ANY BUTTONS FOR 10 MINUTES.

In this time the indoor weather station and remote temperature sensor will start to

talk to each other and the indoor weather station will show both the indoor

temperature and an outdoor temperature. If the indoor weather station does not

display both temperatures after the 10 minutes please retry the set up as stated above.

After both indoor and outdoor temperatures are displayed for 10 minutes you can

place your remote temperature sensor outdoors and set your time.

The remote temperature sensor should be placed in a dry, shaded area. The remote

temperature sensor has a range of 80 feet. Any walls that the signal will have to pass

through will reduce distance. An outdoor wall or window will have 20 to 30 feet of

resistance and an interior wall will have 10 to 20 feet of resistance. Your distance

plus resistance should not exceed 80 ft. in a straight line.

NOTE: Fog and mist will not harm your remote temperature sensor but direct rain

must be avoided.

To complete the set up of your indoor weather station after the 10 minutes have

passed please follow the steps on pages 8 and 9.

Note: The remote temperature sensor transmits a signal every 3 minutes;

after the batteries have been installed, the indoor weather station will

search for the signal for a duration of 5 minutes. If there is no temperature

reading in the OUTDOOR LCD after 5 minutes, make sure the units are

within range of each other or repeat the battery installation procedure.

DETAILED SET-UP GUIDE

I. BATTERY INSTALLATION

A. REMOTE TEMPERATURE SENSOR

1. Remove the mounting bracket. The

bracket snaps on and off easily.

2. Remove the battery cover, by sliding the

cover down.

3. Observing the correct polarity install 2

AA batteries. The batteries will fit

tightly (to avoid start-up problems make

sure they do not spring free).

4. Replace the battery cover by sliding

upwards. Be sure battery cover is on

securely.

B. INDOOR WEATHER STATION

1. Remove the battery cover. To

do this, insert a solid object in

the space provided at the

lower-central position of the

battery cover, then push up and

pull out on the battery cover.

2. Observe the correct polarity,

and install 2 AA batteries.

3. Replace the battery cover.

Note: Immediately after the batteries have been installed, each

LCD (Liquid Crystal Display) will flash and a tone will sound.

Within a few seconds the indoor temperature, indoor relative

humidity and the weather icons (sun and clouds) will be displayed.

If not, then remove batteries for 10 seconds and reinstall. If the

outdoor temperature is not displayed within four minutes, remove

batteries from both units, wait 10 seconds, and reinstall. The time

will show -:-- and start searching for the signal. If it successfully

Battery

Cover

receives the time signal (usually at night), it will display the

correct time (default is Eastern).

PROGRAM MODE

Programming Note: If 30 seconds are allowed to pass or either the IN or

the OUT button is pressed during programming modes, the unit will set the

last information entered—the display will stop flashing and return to

normal time-date readings. If you don’t leave the program mode during the

programming of sections III through VIII, you can advance to step 3 of the

next program setting. If you do leave the program setting (or want to

program a specific setting) follow each instructional step to program that

setting.

I. FUNCTION KEYS

The function keys are operated by pressing the top

or bottom of the key corresponding to the

operation that you want to perform.

II. 12 OR 24 HOUR TIME SETTING

1. Press and hold the “SET” button for 3 seconds or until “12 h”

flashes in the DATE LCD.

2. Press and release the “CH” button to toggle between 12 and

24-hour time.

3. Press and release the “SET” button to confirm the 12/24-hour

setting and to advance to Time Zone Setting.

III. TIME ZONE SETTING

The default time zone is EST, “-5hr” (Eastern Standard Time), to

change this setting:

1. Press and hold the “SET” button for 3 seconds or until “12 h”

OR “24 h” flashes in the DATE LCD.

2. Press and release the “SET” button 1 more time to enter the

Time Zone setting mode. The default Time Zone “-5” will

flash in the DATE LCD.

3. Select your appropriate time zone using the CH button.

During selection of the Time Zone, the 3 letter abbreviations

for the time zones found in North America will flash across

the top of the TIME LCD. Observe the chart below, showing

the corresponding abbreviations, time zones, and codes.

TIME ZONES

GMT 0

Atlantic -4

EST; Eastern -5

CST; Central -6

MST; Mountain -7

PST; Pacific -8

ALA; Alaska -9

HAW; Hawaii -10

Note: There are more time zones represented by numbers than there are

represented by 3 letter abbreviations. If you live in North America you

need only be concerned with the ones in the chart above.

4. Press and release the “SET” button to confirm and advance to

the Daylight Saving Time setting.

IV. DAYLIGHT SAVING TIME (DST) SETTING

1. Press and hold the “SET” button for 3 seconds or until “12 h”

or “24 h” flashes in the DATE LCD.

2. Press and release the “SET” button 2 more times to reach the

DST selection mode. “DST 1” is the default setting and will

be flashing in the DATE LCD.

3. Press and release the “CH” button to select “DST 0” or “DST

1.”

4. “DST 0” indicates that the feature is off and the WWVB will

not change times automatically. “DST 1” indicates that the

feature is on and the WWVB will change times automatically.

Note: Some locations (Arizona and parts of Indiana) do not

follow Daylight Saving Time and should select “DST 0.”

5. Press and release the “SET” button to confirm and advance to

the Time setting mode.

V. TIME

There are two methods by which the time can be set:

A) Automatically via WWVB reception or

B) Manually.

A. WWVB (Remote Control Time)

This method requires you to do nothing except wait for the signal

to be received and to select a time zone. Reception usually takes

approximately 6-10 minutes during optimal conditions. The best

conditions for reception is at night, between midnight and 6:00

AM—when there is less atmospheric interference. To keep your

time as accurate as possible, the weather station conducts a

WWVB search every night between these hours and overrides any

manually set time. The WWVB tower icon (appearing in the TIME

LCD) will flash when a signal-search is in progress, will remain

steady when the signal has been received and nothing will be

displayed in all other situations. If the WWVB time has not been

received after 10 minutes of battery installation, you may manually

set the time or leave the time function alone (reception will occur

regardless).

B. MANUAL TIME SETTING

1. Press and hold the “SET” button for 3 seconds or until “12h”

flashes in the DATE LCD.

2. Press and release the “SET” button 3 more times (until the

hour digit flashes in the TIME LCD).

3. Press and release the “CH” button to change the hour. Press

the “CH” button once and the hour will increase by one,

twice and the hour will increase by two, etc.

4. Press and release the “SET” button to confirm the hour

setting and to advance to the minute setting mode.

5. The minute digits should be flashing. Press and release the

"CH” button to change the minutes—increasing the minutes

by increments of 1 with each press of the “CH” button.

6. Press and release the “SET” button to confirm the minutes

and to advance to the Day, Date, and Year setting mode.

Note: In 12h mode, “PM” will appear to the left of the time

during PM hours. If the time is not within the PM hours, nothing

will be displayed. Be sure to set the time to the correct AM/PM

time to ensure automatic reception at optimal times.

VI. SETTING THE DAY, DATE, AND YEAR

1. Press and hold the “SET” button for 3 seconds, or until “12 h”

or “24 h” flashes in the DATE LCD.

2. Press and release the “SET” button 5 more times to reach the

Weekday setting mode.

Note: “MO” (representing Monday) is the default setting for the

weekday, “1.1” is the default setting for the numeric month and

day, and “1999” is the default setting for the year. The day, date,

and year will be automatically set once the WWVB signal is

received. However, the day, date, and year can be manually set

and will flash respectively in the DATE LCD during manual

programming.

3. The weekday will be flashing in the DATE LCD, press and

release the “CH” button to change the weekday.

4. Press and release the “SET” button to confirm, and to enter

the numeric-month setting mode.

5. The numeric-month will be flashing in the DATE LCD. Press

and release the “CH” button to select to the current month.

6. Press and release the “SET” button to confirm the numeric-

month, and to enter the numeric-day setting mode.

7. The numeric-day will be flashing, press and release the “CH”

button to select the current day.

8. Press and release the “SET” button to confirm and to enter the

year setting mode.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Station météorologique

La Crosse Technology

La Crosse Technology WD-3210 Manuel utilisateur

La Crosse Technology

La Crosse Technology S84107 Manuel utilisateur

La Crosse Technology

La Crosse Technology V21V3 Dimensions

La Crosse Technology

La Crosse Technology 308-1425B Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1417V2 Manuel utilisateur

La Crosse Technology

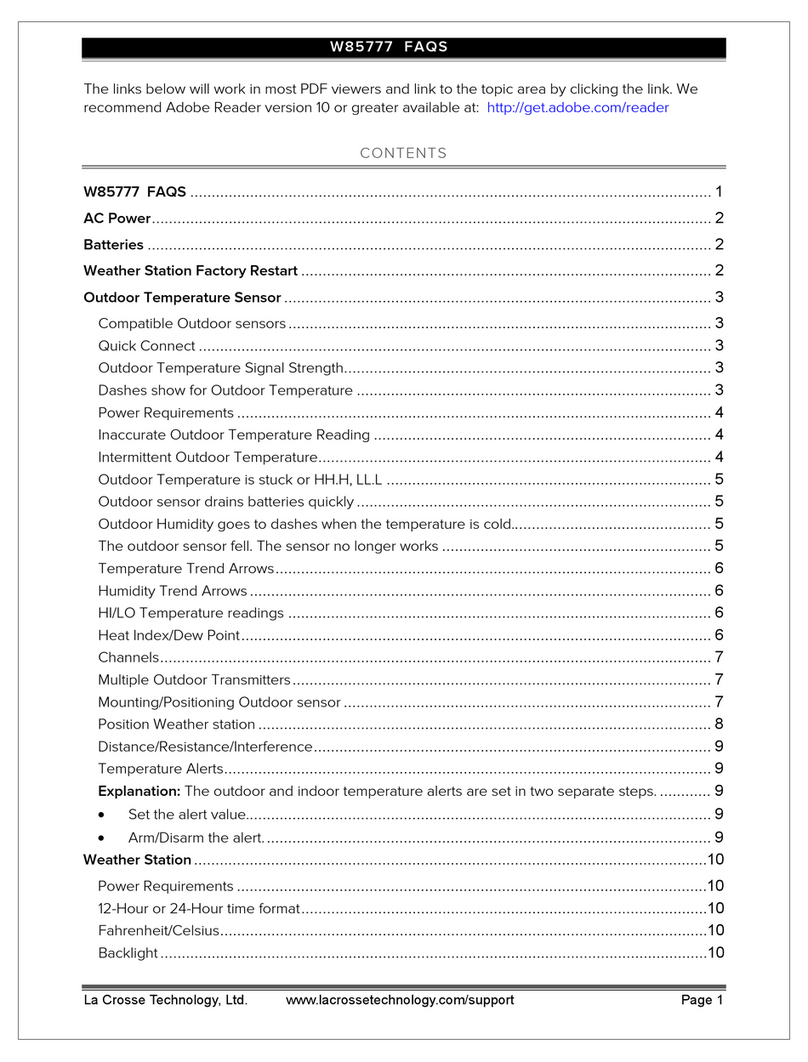

La Crosse Technology W85777 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7014CH-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-3512 Manuel utilisateur

La Crosse Technology

La Crosse Technology 512-807 Fiche technique

La Crosse Technology

La Crosse Technology V10-TH Manuel utilisateur

La Crosse Technology

La Crosse Technology S77925 Manuel utilisateur

La Crosse Technology

La Crosse Technology 724-1710 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9005TWC-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9060U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1711BLV2 Dimensions

La Crosse Technology

La Crosse Technology CA76669 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1451v2 Manuel utilisateur

La Crosse Technology

La Crosse Technology 060414 Manuel utilisateur

La Crosse Technology

La Crosse Technology 327-1414W Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology S77925 Dimensions

La Crosse Technology

La Crosse Technology C85845v4 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1425B Dimensions

La Crosse Technology

La Crosse Technology WS-9611U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology C87030 Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur

TFA

TFA 30.3013.IT Manuel utilisateur

Alecto

Alecto WS-1200 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR966PA Manuel utilisateur
