PROFESSIONAL WEATHER CENTER

1610

TWC

Quick Set up Manual

Quick Set Up Manual – Professional Weather Center

Using 915MHz wireless transmission of weather data, this unique weather station can

be powered using batteries for all your weather needs in the home or office.

Carefully open and check that the following contents are complete:

Item: Consisting of: ittings: Illustration:

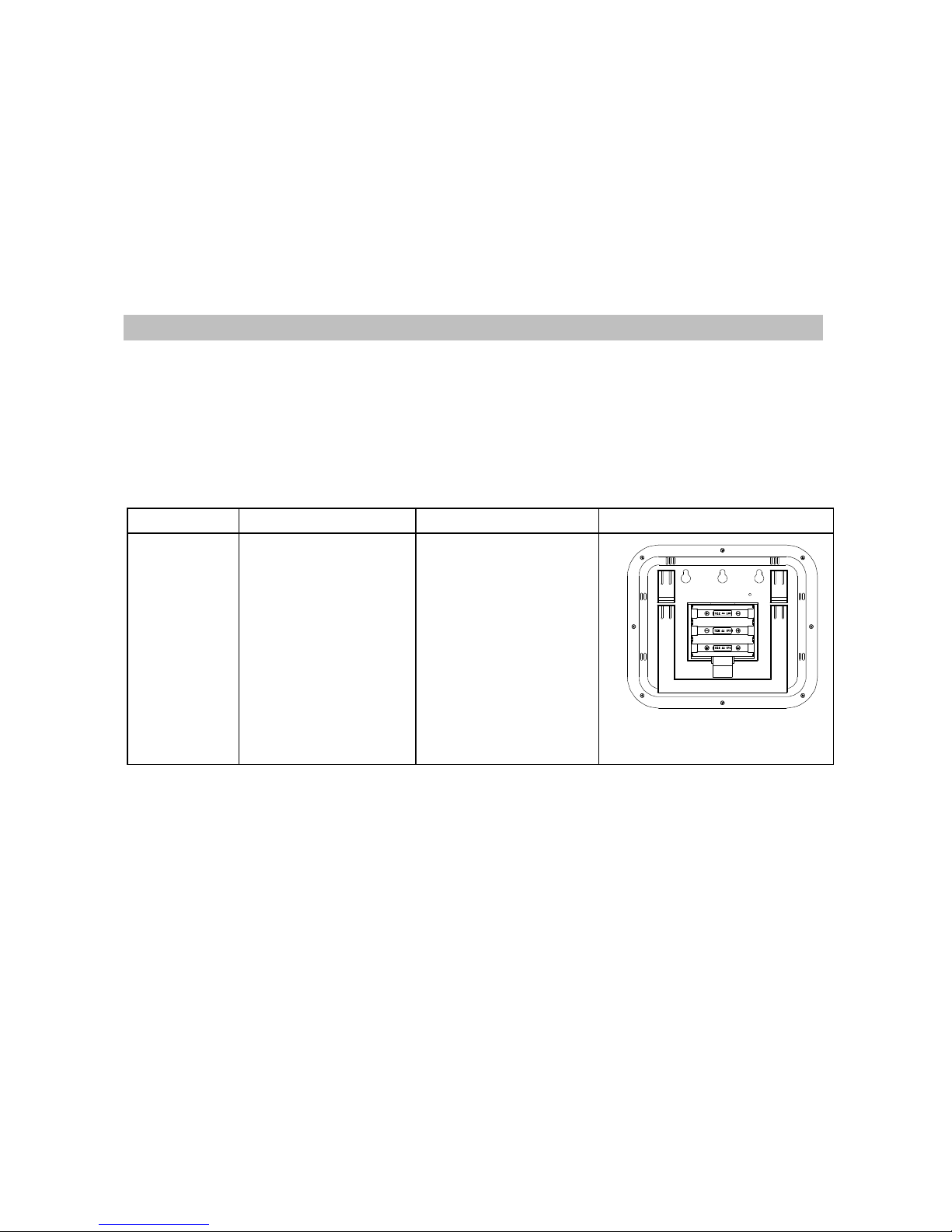

Base

Station

1 Main unit

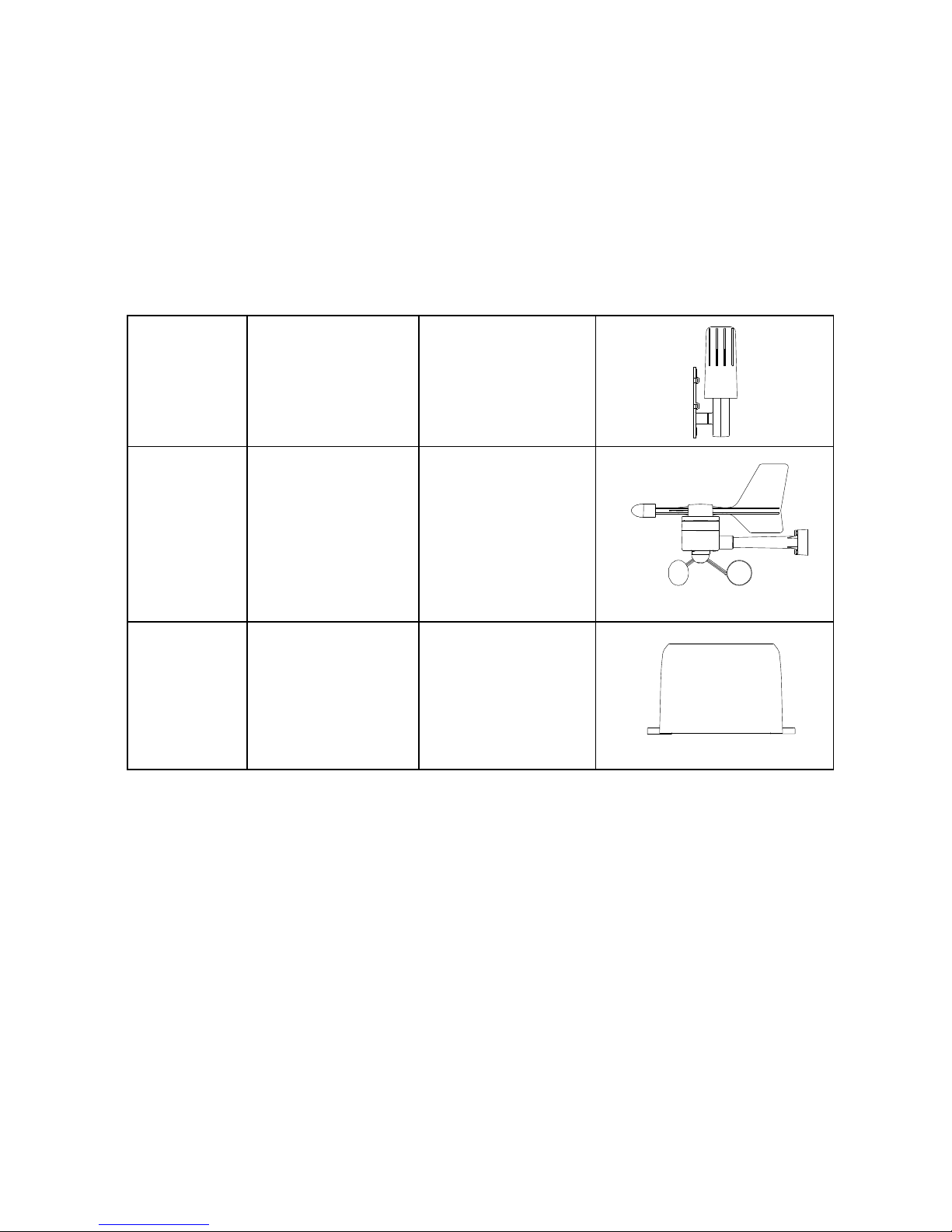

Thermo-

Hygro

Sensor

1 Main unit

2 Rain

protection

cover

1 Wall mounting

screws

2 Plastic

anchors for

screws

3 2 x cable ties

Wind

Sensor

1 Main unit with

wind vane

2 32ft cable

(already

attached the

main unit

3 Mast holder

1 1 x U-bolts for

mast holder

2 2 x Washers

3 2 x Nuts

2 x cable ties

Rain

Sensor

1 Base and

funnel

2 32ft cable

(already

attached the

main unit

1 2 x Screws

and Plastic

anchors

Setting Up:

Important: Operating power is supplied to both the wind and rain sensors by the

thermo-hygro sensor

Setting up using batteries:

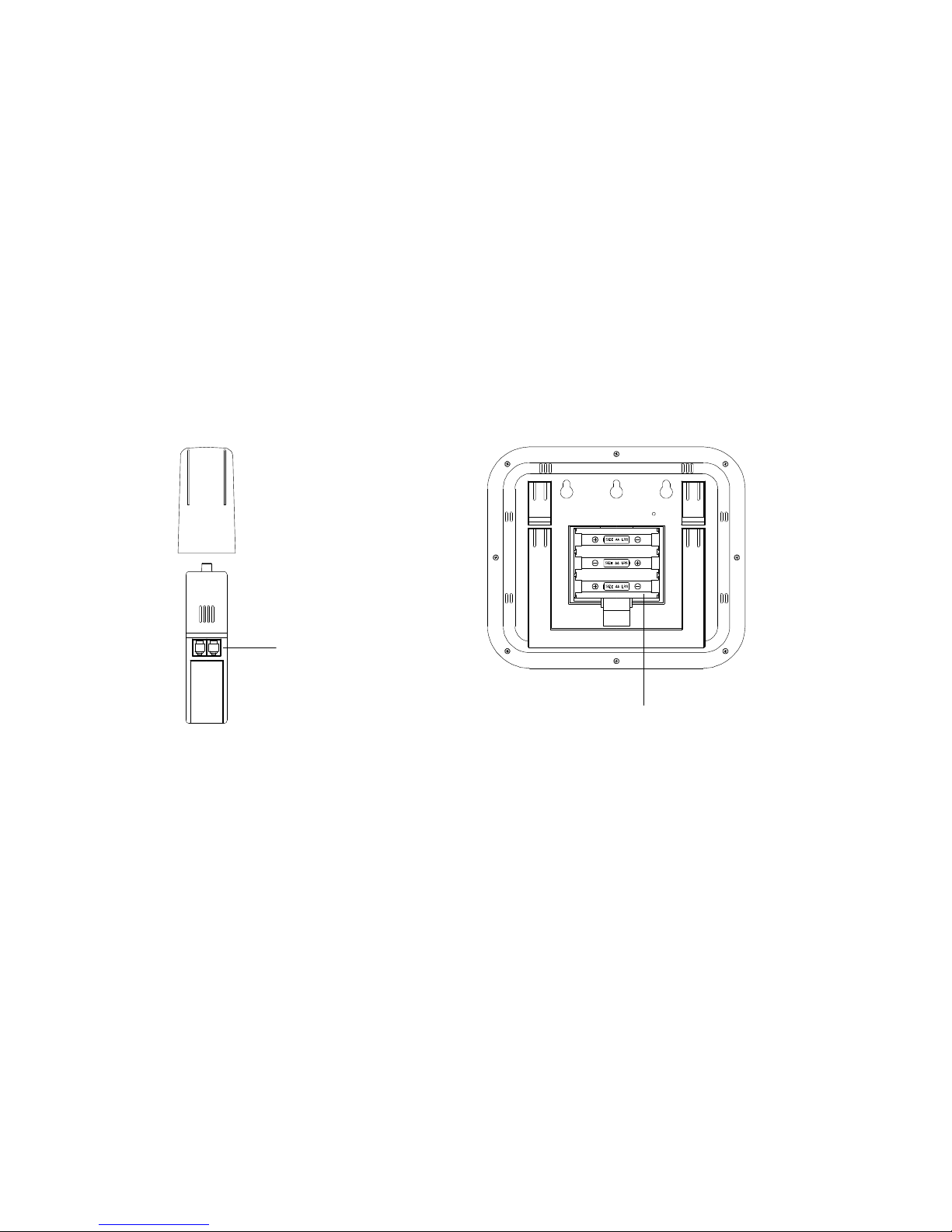

1 Sensors: Pull and remove the protective rain cover of the Thermo-Hygro

Sensor to reveal 2 socket ports and the battery cover. Insert the cables of the

wind and rain sensors in the correctly marked sockets. Slide open the battery

Thermo-Hygro Sensor Weather center

Battery compartment

Sockets for wind

and rain sensor

compartment and checking the correct polarity insert 2 x AA IEC, LR6 1.5V

batteries and replace the cover and rain cover

2 Base Station: Now open the battery cover at the back of the unit and checking

the correct polarity insert 3 x AA IEC, LR6 1.5V batteries and replace the battery

cover

Performing a function test and Setting time manually:

1. After powering up the units, the base station has to synchronize to the sensors

before the weather data can be received.

2. Afterwards, the Weather Station will start receiving data from the transmitter.

The outdoor temperature, humidity, windchill and wind speed should then be

displayed on the Weather Station. If this does not happen after 30 seconds, the

batteries will need to be removed from both units. You will have to start again

from the beginning.

3. You may then check all cables for correct connection and all components for

correct function by manually turning the wind-gauge, moving the weather-vane,

tilting the rain sensor to hear the impact of the internally moving seesaw, etc.

4. Time and date shall be manually set.

5. After the Weather Station has been checked for correct function with regard to

the above points and found fit, the initial set up of the weather station system is

finished and the mounting of the system components can take place. It must be

ensured however that all components work properly together at their chosen

mounting or standing locations. If e.g. there appear to be problems with the 915

MHz radio transmission, they can mostly be overcome by slightly changing the

mounting locations.

Note:

•

Should any outdoor data not be received from the sensors (when “- - -“ is

displayed , check all cables are correctly installed. Then user shall remove the

batteries from all units and redo the set-up procedures after about 5 minutes.

•

Wind speeds that read zero does not mean reception failure, it simply means

that there was no wind at the time of reading the data.

Mounting the units:

Users must take their surroundings into consideration before deciding which method

is best suited for them. Connection by cable is advantageous in that data from the

sensors to the base station is interference free. Using 915MHz wireless transmission

gives users little restriction on placement as that all units can be positioned virtually

anywhere to within a 330 ft radius of the base station. You must decide which method

is best suited to you. For cable connecting, please ensure that the cable included in

this set meets with your distance requirements (see accessories in the main user

manual for adding extension cables .

Important: Ensure all signals can be received and/or all cable distances meet with

your requirements at the point of fixing particularly before you start drilling any

mounting holes.

Wind sensor

Secure the main unit to the shaft of the mast holder using the single screw provided

with the front of the sensor (marked E facing in the East-West direction otherwise

wind direction will not be accurate. Now fix the entire unit to a suitable mast using the

U-bolt, washers and nuts found in this set.

Note: For best results mount the wind sensor onto a mast to allow the wind to freely

travel from all directions to enable an accurate reading (ideal mast size should be

from Ø 5/8” to 11/4” . Ensure that the cable of the wind sensor meets your distance

requirements

Rain sensor

The rain sensor should be mounted horizontally about 2-3ft off from the ground in an

open area away from trees or other coverings to allow rain to fall naturally for an

accurate reading.

Note: For best results ensure the base is horizontal to allow maximum drainage of

any collected rain

Thermo-hygro Sensor

To wall mount the thermo-hygro sensor, fix the wall holder onto the desired wall (2

screws are supplied , plug the sensor firmly into the wall holder and then carefully

replace the rain cover back over the thermo-hygro sensor.

Note: After mounting the units, should the weather data not be received, user may

need to remove the batteries from all units and redo the set-up procedures after about

5 minutes.

WARRANTY

For warranty work, technical support, or information contact:

La Crosse Technology, Ltd

2809 Losey Blvd. South

La Crosse, WI 54601

Phone: 608.782.1610

Fax: 608.796.1020

Springfield / Lacrosse Canada.

1-800-661-6721

5151 Thimens Rd.

Montreal, Quebec

H4R 2C8

e-mail:

support@lacrossetechnology.com

(warranty work

sales@lacrossetechnology.com

(information on other products

web:

www.lacrossetechnology.com

For more information, please visit:

www.lacrossetechnology.com/1610itc

duplicated or processed using electronic, mechanical or chemical procedures without written

permission of the publisher.

This handbook may contain mistakes and printing errors. The information in this handbook

is regularly checked and corrections made in the next issue. We accept no liability for

technical mistakes or printing errors, or their consequences.

All trademarks and patents are acknowledged.

Montage rapide – Centre Météo Professionnel

Ce poste météo unique, qui utilise la transmission sans fil 915MHz des données

météo, peut être alimenté par piles pour remplir tous vos besoins chez vous ou au

bureau.

Ouvrir et vérifier soigneusement que l’ensemble comprend toutes les parties

suivantes:

Article: Consiste en: Accessoires: Illustration:

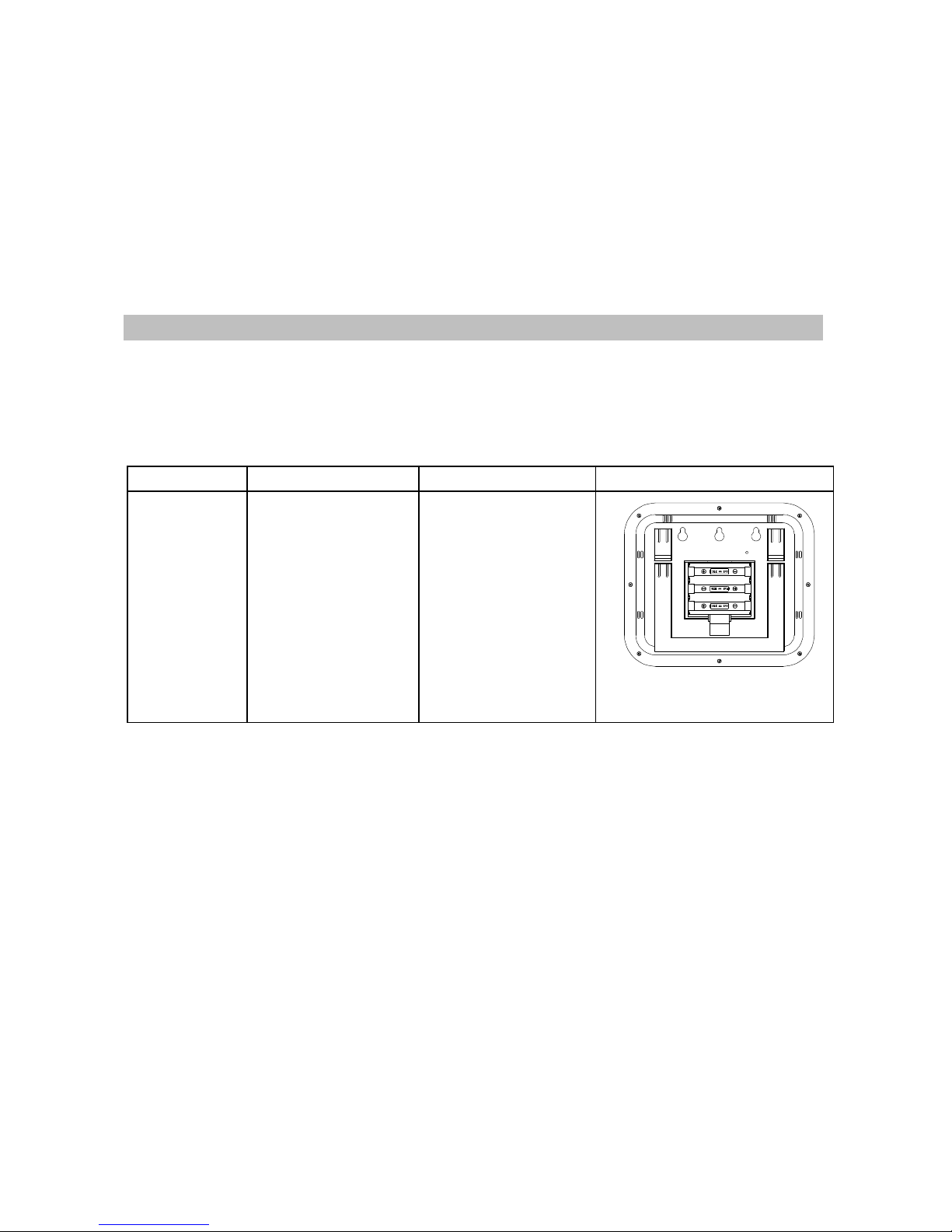

Poste de

base

1 Appareil

principal

Table des matières
