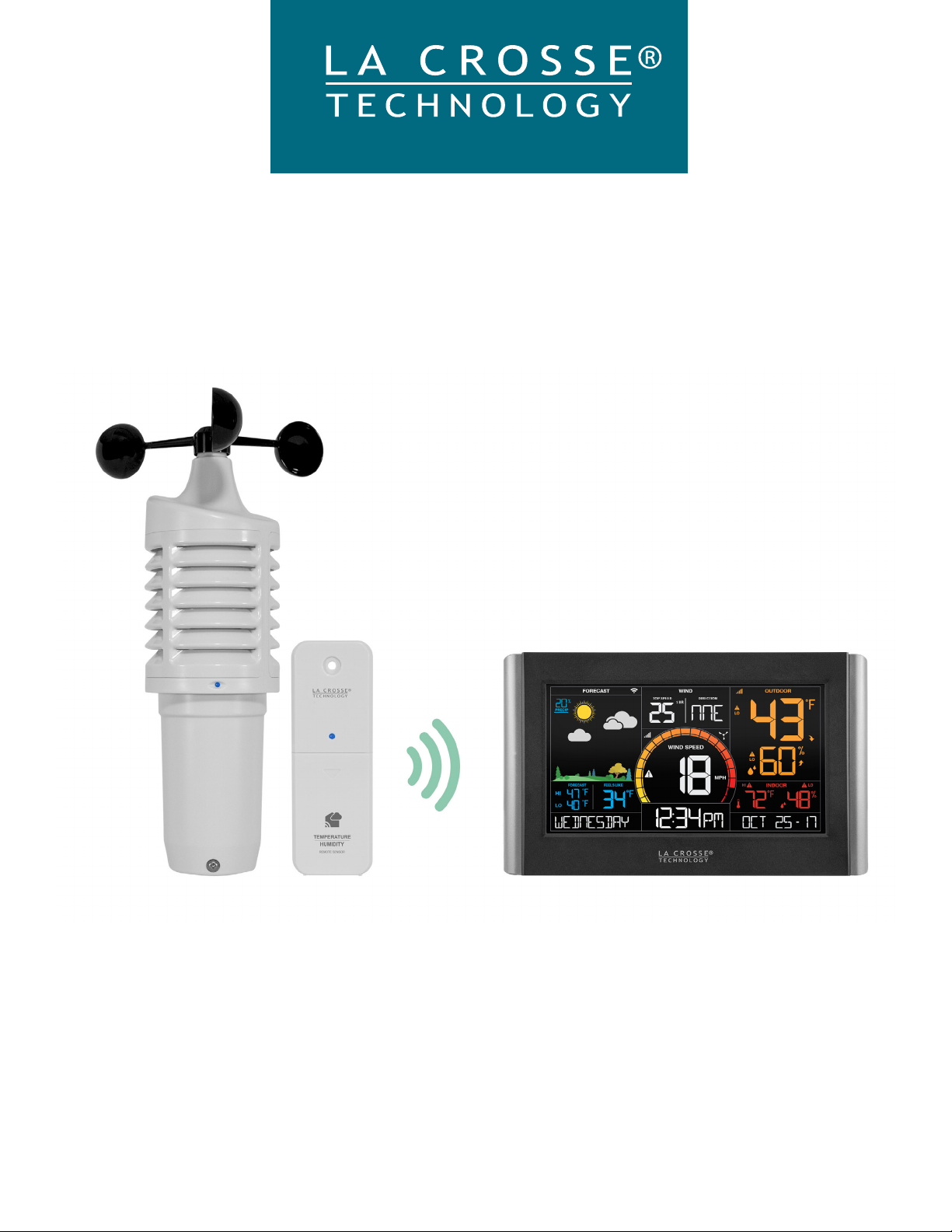

La Crosse Technology V21-WTHv2 Manuel utilisateur

Page | 1Wi-Fi Wind Station

Welcome!

Congratulations on your new Professional Weather Station and welcome to the

La Crosse Technology family! This product was designed with you in mind by our

hometown team of weather enthusiasts based in La Crosse, Wisconsin.

Model: V21-WTHv2

DC: 022120

WIRELESS

REMOTE MONITORING WIND STATION

Page | 2Wi-Fi Wind Station

TABLE OF CONTENTS

Temperature/Humidity Readings & HI/LO

Records

Temperature Trend Arrows

Alerts: Wind/Temperature/Humidity

Arm/Disarm Alerts

Active Alert

Sensor Reception Indicators

Sensor ID and Search

Delete Sensors

Low Battery Indicators

Factory Restart Station

Detailed Sensor Setup and Mounting

Help Us, Help You

Stay in Touch

Care and Maintenance

Warranty and Support

Speciﬁcations

FCC Statement

Quick Setup

Quick Mounting Tips

Button Functions

Weather Station Icons

Connect to La Crosse View™App

Beneﬁts of Connecting to La Crosse View™

Enhanced Weather Forecasts w/La Crosse

View™

Advanced Forecast & Chance Precipitation

AccuWeather HI/LO Temperatures

Feels Like Temperature

Custom Data Streams

Additional Sensors can read to your app

Status Messages when Connected

Features of Your Weather Station

Adjustable Backlight

Settings Menu

Wind Speed Readings & History

Page | 3Wi-Fi Wind Station

1. Insert 2 - C batteries into your LTV-W1 Wind Sensor.

2. Insert 2 - AA batteries into your LTV-TH1 Thermo-Hygro Sensor.

3. 5 volt power cord (required) into V21-WTHv2 station

*3-AA batteries for optional backup of your time and date

4. Download the La Crosse View™ App (App Store or Google Play)

5. Follow along with our instructional videos to connect your station to the app:

http://bit.ly/LaCrosseView_Support_Vid_01_1

http://bit.ly/LaCrosseView_Support_Vid_01_2

4. Mount your sensors in appropriate locations.

*Battery operation only, station will not update sensor or Wi-Fi data. Power cord is required.

QUICK SETUP

THERMO-HYGRO

Keep out of direct sunlight & ensure the sensor is well-ventilated.

• We recommend mounting it on a north-facing wall under an eave or deck for best results.

WIND SPEED

Ensure the sensor is mounted vertically  an unobstructed rooftop is ideal.

• Your wind sensor should be the tallest object in the area to avoid educed wind speed values.

QUICK MOUNTING TIPS

BUTTON FUNCTIONS

Buttons located on top of your Wind Station

ALERTS Hold to set alerts. Press to confirm setting and move to next alert.

WIND, TEMP Press to view history.

+ or  Use + or – to adjust values in settings. Hold to adjust quickly.

+ &  Hold both buttons to search for Wi-Fi.

SET Press to view Wi-Fi Status. Hold for basic settings.

SENSOR Press to view sensor ID numbers, then hold PLUS (+) to search, or hold

MINUS (–) to remove.

LIGHT Press to adjust brightness.

ALERTS & LIGHT Hold both to Factory Reset Station.

All sensor ID’s, History, and Wi-Fi settings will be reset.

Page | 4Wi-Fi Wind Station

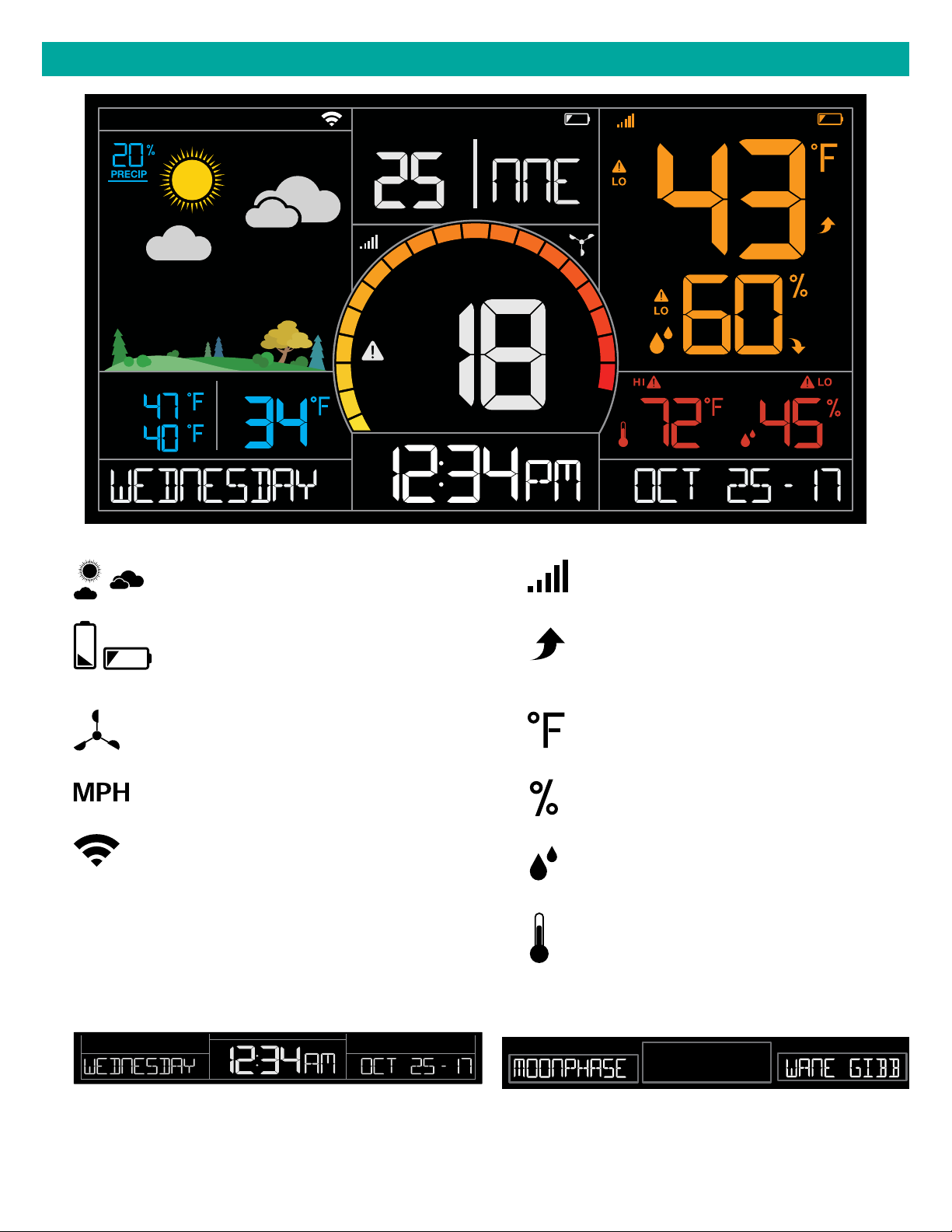

WEATHER STATION ICONS

Weather Forecast Icons

Low Battery Icons

Wind Speed Icon

Miles or Kilometers - Wind Speed

Wi-Fi Connection Icon

Sensor Reception Icon

Trend Arrows

Fahrenheit or Celsius - Temperature

Percentage

Relative Humidity Icon

Temperature Icon

Connected stations oer the ability to display custom

data, controlled with the La Crosse View™app

Standalone stations can only display

time and date information as shown here

FORECAST

FEELS LIKE

OUTDOOR

INDOOR

TOP SPEED

1 HR

WIND

WIND SPEED

MPH

DIRECTION

Page | 5Wi-Fi Wind Station

MOBILE DEVICE REQUIREMENTS

iOS Requirements:

Mobile device with iOS with cellular or Wi-Fi service

Android Requirements:

Mobile device with Android OS with cellular or Wi-Fi service

GET YOUR STATION READY

Ensure your station’s Wi-Fi Indicator is ﬂashing. If it is not, press and hold the Plus (+) and Minus (–)

buttons down together until it begins ﬂashing. This tells you that your station is ready to connect.

DOWNLOAD

Visit the App Store or Google Play Store to download the free LaCrosse View™ app onto your mobile

device.

LAUNCH & FOLLOW

Open the LaCrosse View™ app and follow the on-screen instructions.

HAVING TROUBLES CONNECTING?

Make sure your mobile device is connected to your router’s 2.4GHz Wi-Fi network, and that you’ve

correctly entered your Wi-Fi password.

For more troubleshooting tips and support visit: www.lacrossetechnology.com/lacrosseviewsupport

CONNECT TO LA CROSSE VIEW™APP

• Your device ID can be found on the back of the

station.

• Within 15 minutes after your station connects

to the La Crosse View app, you should receive

notiﬁcations to add your sensors. These will display

in your app’s Notiﬁcation Center.

Station Device ID

Page | 6Wi-Fi Wind Station

When your sensors are ready to be added, you’ll see your app’s cloud turn red. Press this Cloud Icon to

begin adding your sensors.

Wind Speed

Internet Wind Direction

Indoor & Outdoor Temperature

“Feels Like” Temperature

Indoor & Outdoor Humidity

12-Hour Forecast

Internet Time and Calendar

Advance Forecast Icons

Daily Forecast HIs & LOs

% Chance of Precipitation

Data Stream Technology

Remote Monitoring

Set Alerts

View Graphs

FEATURES CONNECTEDSTANDALONE

BENEFITS OF CONNECTING TO LA CROSSE VIEW™

Page | 7Wi-Fi Wind Station

SUNNY

• Advanced Forecast Icons & Chance of Precipitation (12 Hour Forecast)

• AccuWeather HI/LO Temperatures

• AccuWeather Wind Direction

• Custom Data Streams

CLOUDSPARTLY SUNNY LIGHT RAIN

T-STORMRAIN LIGHT SNOW

WINTRY MIX

SNOW

WIND ICEFOG

ENHANCED LACROSSE VIEW CONNECTED FEATURES.

ADVANCED FORECAST & CHANCE OF PRECIPITATION

FORECAST FORECAST FORECAST

FORECAST

FORECAST FORECAST FORECAST

FORECAST FORECAST FORECASTFORECAST

IMPORTANT:

There may be small discrepancies between data displayed on your station and data shown through other

AccuWeather services, such as their website and/or mobile app. This is common, as there are dierences

in the timing in which forecast data is fetched by these items. Our connected weather stations will receive

forecast updates at least 4 times daily.

Page | 8Wi-Fi Wind Station

• When connected, your daily AccuWeather HI/LO Temperature predictions will display in this section.

• If unconnected, this section will display your Outdoor Temperature Records registered daily by your

Thermo-Hygro Sensor. These will automatically reset at Midnight everyday.

ACCUWEATHER HI/LO TEMPERATURES

Your “Feels Like” temperature is a combination of outdoor temperature, humidity and wind speed.

• When outdoor temperature is higher than 80˚F, Heat Index will show as the Feels Like Temperature.

• When outdoor temperature is lower than 50˚F, Wind Chill will show as the Feels Like Temperature.

• When outdoor temperature is between 51˚F and 79˚F, will show Current Outdoor Temperature as the

Feels Like Temperature.

Note: When you have a high humidity reading, but the temperature is not over 80°F the Feels Like

temperature will remain the same as the current outdoor temperature.

FEELS LIKE TEMPERATURE

FORECAST

FEELS LIKE

Use the Data Stream Menu in the La Crosse View™ app to select up to 3 items to stream on your station.

1. Open the La Crosse View™ app and swipe until you ﬁnd your station’s device page.

2. Scroll down to the Data Stream section and press the blue stream icon in the upper right.

3. Follow the app’s instructions to customize your “Data Stream” to display on your station

Note: Allow up to 10 minutes for new Data Stream selections to appear on your station.

CUSTOM DATA STREAMS

FORECAST

FEELS LIKE

OUTDOOR

INDOOR

TOP SPEED

1 HR

WIND

WIND SPEED

MPH

DIRECTION

Custom Data Stream

Page | 9Wi-Fi Wind Station

Data Stream Items:

Customizable Data Streams to enhance your in-home display:

Wind Speed  Wind Direction  Wind Gust  UV Index  Visibility  Dew Point  Percentage of Clouds 

Sunrise Time  Sunset Time  Hours of Sunlight  Moon Rise Time  Moon Set Time  Temperature/Humidity 

and more!

Personal Messages

Enter up to 20 characters for special events or reminders, such as:

 SOCCER TONIGHT  ICE CREAM IN FREEZER  GREAT JOB MATH TEST or anything you can think of!

Note: Allow up to 10 minutes for new Data Stream selections to appear on your station.

How to add Sensors to your La Crosse View App only:

1. Install batteries in the sensor, and if the sensor has a TX button, press the TX button to force a signal.

2.Scan sensor bar code ID so it will read in the La Crosse View app.

Details: Open your La Crosse View app to add sensors. Watch the video for adding devices to the

La Crosse View app: http://bit.ly/LaCrosseView_Support_Vid_10

1. From Main Menu - select “Devices” under “Add/Edit”

2. On Edit Devices page - select “ADD DEVICE”

3. Scan Device ID - Scan the bar code on your sensor or choose “ADD MANUALLY” to type in the number

on the bar code. Select “CONTINUE”.

4. On Conﬁrm Device page - Conﬁrm the sensor image and select “YES”

5. On Enter Device and Location Name page - enter Device Name and select a location or enter a Location

Name for your sensor. Select “DONE”.

Repeat steps 1-5 for any additional sensors you wish to add.

Purchase Additional Sensors: www.lacrossetechnology.com/sensor-ﬁnder/

ADDITIONAL SENSORS CAN READ TO YOUR APP

Page | 10Wi-Fi Wind Station

LOST WIFI

• Check your power cord connection (power cord

required to connect)

• When trying to reestablish your station’s Wi-Fi

connection, be sure your mobile device is on the

same 2.4GHz network you want your station to

use.

• Check your network connection.

• Hold the + and – buttons together for 3 seconds

to search for Wi-Fi.

NO WEATHER SERVICE

• Wi-Fi, and App are ﬁne.

• Weather/Time service not connecting. This will be

resolved at the Weather Server. Please be patient.

• Weather Forecast, Precipitation and Weather

HI/LO temperature will not be displayed.

ALL OK CONNECTED

• Station is connected all the way through to the

La Crosse View app.

Status Messages on you station will let you know if there are issues. Press and release the SET button to

view the status of your station.

Quick Tip:

• The Wi-Fi Icon indicates Wi-Fi connection- not necessarily app connection.

• The Internet Icons by your Forecast, Wind Direction and HI/LO Temperatures will indicate connection to

the La Crosse View App and Weather Server.

STATUS MESSAGES WHEN CONNECTED

FORECAST

FEELS LIKE

OUTDOOR

INDOOR

TOP SPEED

1 HR

WIND

WIND SPEED

MPH

DIRECTION

FORECAST

FEELS LIKE

OUTDOOR

INDOOR

TOP SPEED

1 HR

WIND

WIND SPEED

MPH

24 HR

FORECAST

FEELS LIKE

OUTDOOR

INDOOR

TOP SPEED

1 HR

WIND

WIND SPEED

MPH

24 HR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Station météorologique

La Crosse Technology

La Crosse Technology V30 Dimensions

La Crosse Technology

La Crosse Technology 302-604B Dimensions

La Crosse Technology

La Crosse Technology 308-1414WBV2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8120U-IT Guide d'installation

La Crosse Technology

La Crosse Technology Tomorrow's Weather Today WS-7394U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9049U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1415FCTv2 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-179OR Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1417V2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS6206 Manuel utilisateur

La Crosse Technology

La Crosse Technology S82967 Manuel utilisateur

La Crosse Technology

La Crosse Technology 724-1710 Dimensions

La Crosse Technology

La Crosse Technology Tomorrow's Weather Today WS-7394U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-2315AL Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7048U Manuel utilisateur

La Crosse Technology

La Crosse Technology V42 Manuel utilisateur

La Crosse Technology

La Crosse Technology 327-1414Wv2 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology 308-1414M Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7078TWC Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9153U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology 328-10618 Manuel utilisateur

La Crosse Technology

La Crosse Technology SW403 Manuel utilisateur

La Crosse Technology

La Crosse Technology KCombo3 WS-9080U-IT WS-9640U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9520U Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur

TFA

TFA 30.3013.IT Manuel utilisateur

Alecto

Alecto WS-1200 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR966PA Manuel utilisateur
