Model: 308-1414M www.lacrossetechnology.com/support Page | 1

Model: 308-1414M

Instruction Manual

DC: 103015

WIRELESS COLOR WEATHER STATION

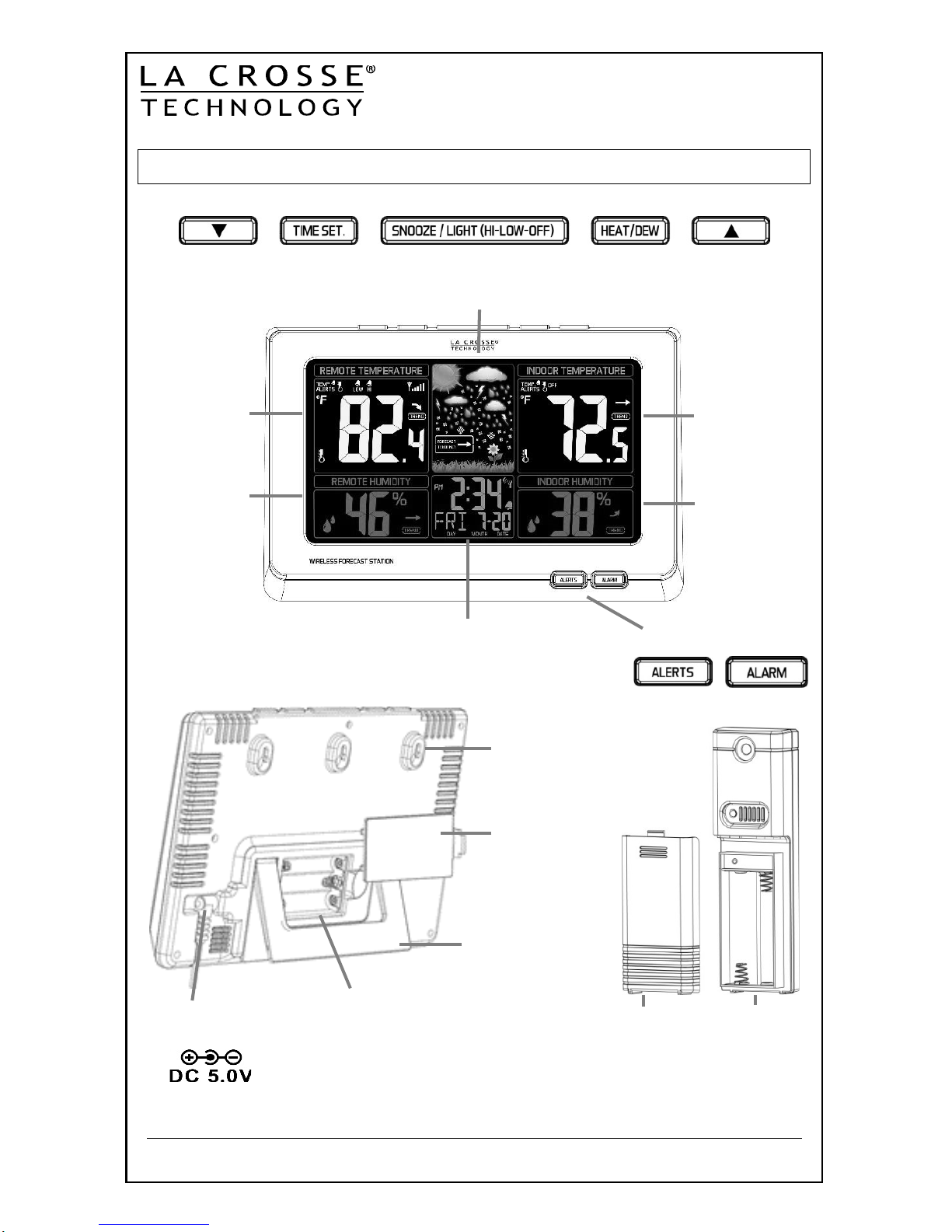

FRONT

VIEW

TOP BUTTONS

Color Animated Forecast with Tendency

(All icons shown here)

SENSOR

TX141TH-Bv2

LED

BACK

VIEW

Time, Calendar +

Alarm

Pullout

Stand

Sensor

Battery Cover

Sensor Battery

Compartment

2 “AA”

Indoor

Temperature

with Trend &

Temperature

Alerts

Battery

Compartment

3 “AAA”

Battery

Cover

Remote Humidity

& Trends

Button Press

for Mold Risk

Indicator When

Using Remote

Sensor Indoors

AC Power Jack

GPU280500150WD00

Indoor Humidity

& Trend

Button Press for

Mold Risk

Indicator for

Weather Station

FRONT BUTTONS

Remote

Temperature

with Trend &

Temperature

Alerts

Wall Hanging Holes

Model: 308-1414M www.lacrossetechnology.com/support Page | 2

GET STARTED

Step 1: Insert the included 5-volt AC power adapter into the

weather station and then into wall outlet.

Step 2 (Optional): Insert 3 new “AAA” batteries (not included)

into the weather station. Observe the correct polarity.

Step 3: Insert 2 new “AA” batteries (not included) into

TX141TH-Bv2 sensor. Observe the correct polarity.

The red LED will flash when transmitting.

Step 4: After 5 minutes, place the sensor in a shaded outdoor

location.

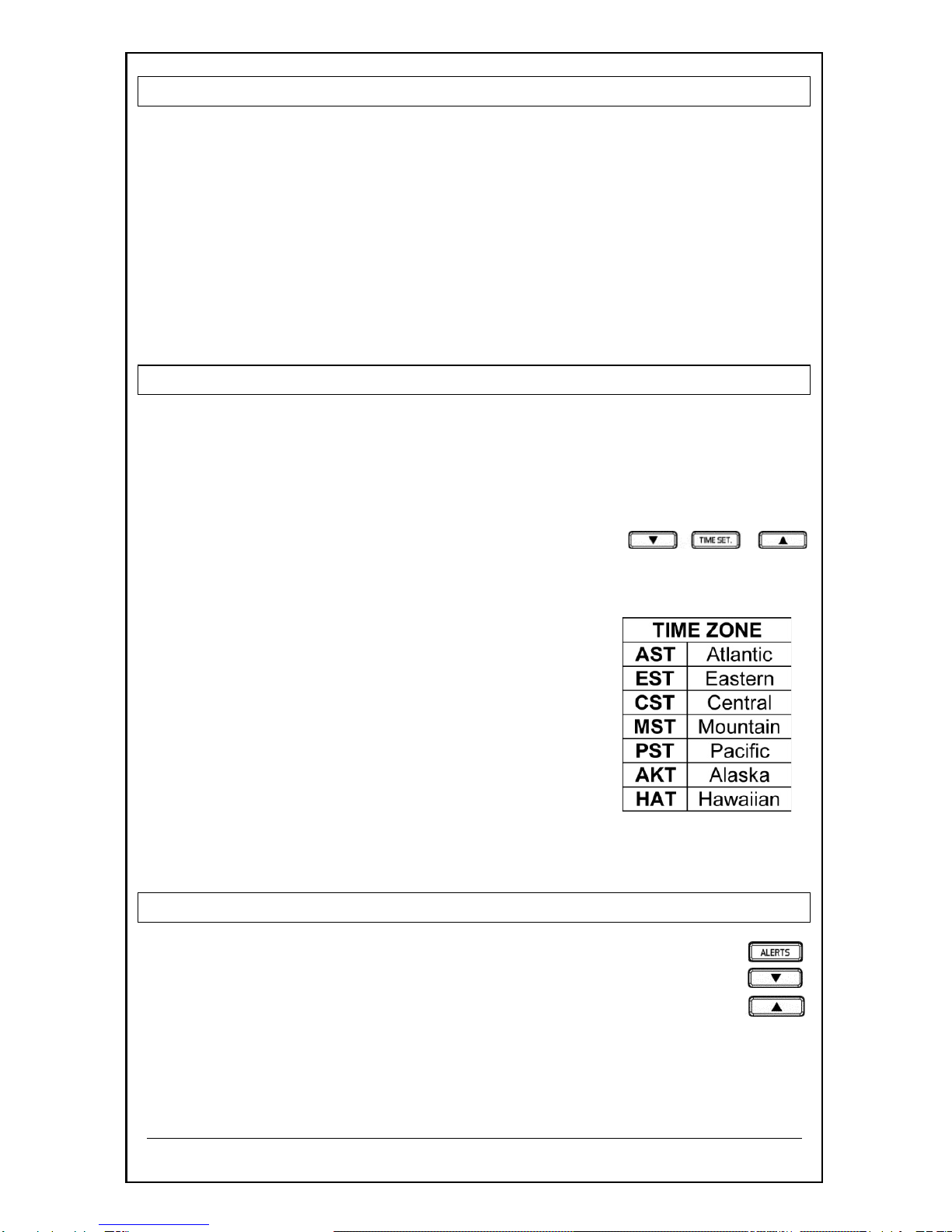

SET TIME, DATE AND TEMPERATURE UNITS

1. Hold the TIME SET button to enter time set mode.

2. Press the ▼or ▲buttons to adjust the values. Hold for fast

adjustment.

3. Press the TIME SET button to confirm adjustments and

move to the next item.

Settings order:

1. WWVB ON/OFF

2. Time Zone

3. Daylight Saving Indicator ON/OFF

4. 12/24 Hour Time Format

5. Hour

6. Minutes

7. Year

8. Month

9. Date

10.Fahrenheit/Celsius

Press the TIME SET button to exit, or wait 20 seconds without

pressing buttons to return to the normal time display.

SET TEMPERATURE ALERTS

1. Hold the ALERTS button until the station beeps.

2. The temperature alert value will blink in set mode.

3. Press the ▼or ▲buttons to adjust the temperature

alert value.

4. Press the ALERTS button to confirm. Next, arm the

temperature alerts (see below)

Model: 308-1414M www.lacrossetechnology.com/support Page | 3

The temperature alert order:

1. Remote High, 2. Remote Low, 3. Indoor High, 4. Indoor Low

Press the ALERTS button to exit, or wait 20 seconds without

pressing buttons to return to normal time display

ARMS/DISARMS TEMPERATURE ALERTS

Press & release the ALERTS button to toggle between the

alerts Remote HI / Remote LOW / Indoor HI / Indoor LOW

•Press the ▲button to arm the alert.

•Press the ▼button to disarm the alert.

•ALERT BELL ICON appears when armed.

ACTIVE TEMPERATURE ALERT

•Beeps once per minute with flashing alert bell icon.

•Press any button to stop the alert.

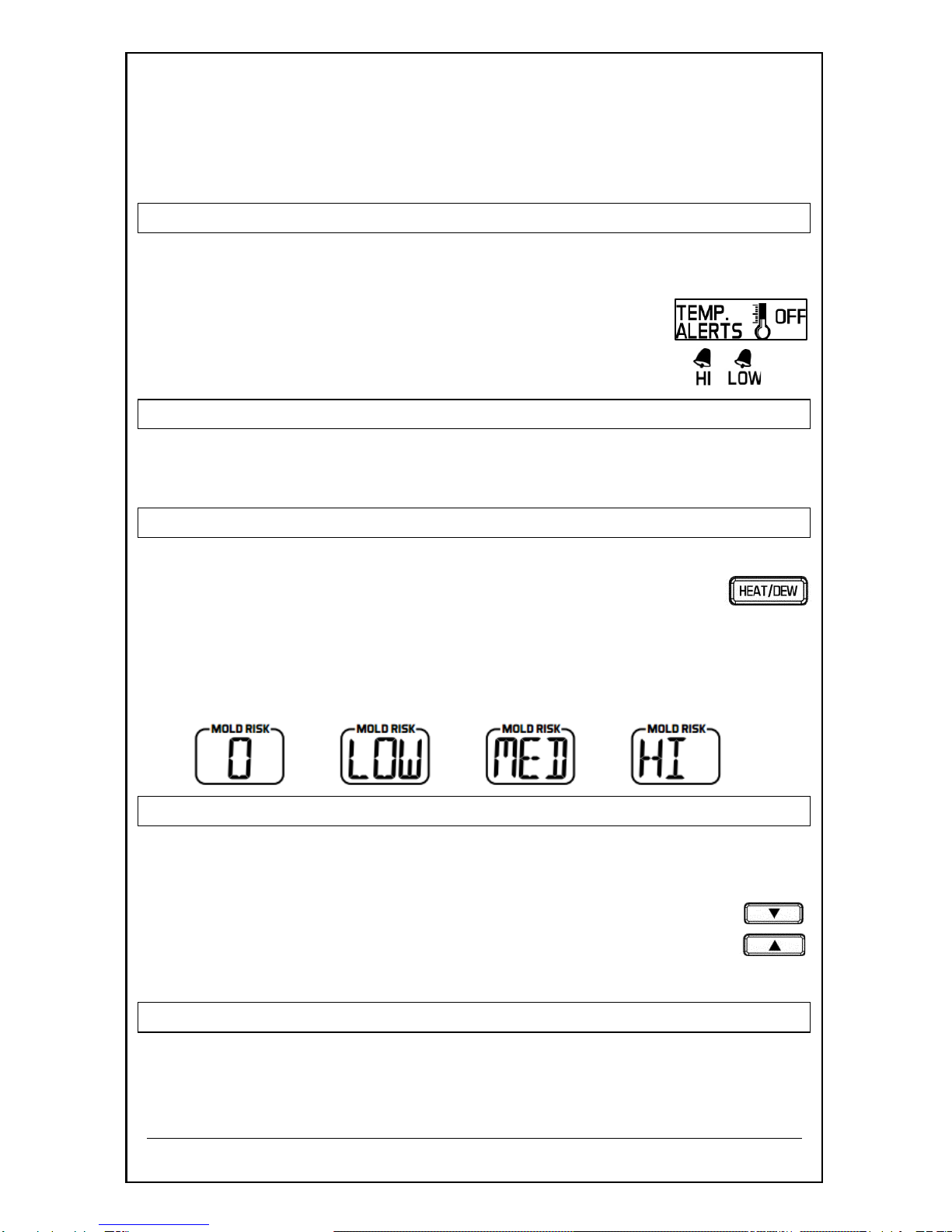

HEAT INDEX/DEW POINT/MOLD RISK

•Press the HEAT/DEW button once to view remote

Heat Index.

•Press the HEAT/DEW button twice to view remote

Dew Point.

•Press the HEAT/DEW button a third time to view indoor

and remote Mold Risk.

VIEW/RESET MIN/MAX VALUES

The station automatically resets minimum and maximum values

daily at midnight (12:00 AM).

•Press the ▼button to view minimum values.

•Hold the ▼button to reset minimum values.

•Press the ▲button to view maximum values.

•Hold the ▲button to reset maximum values.

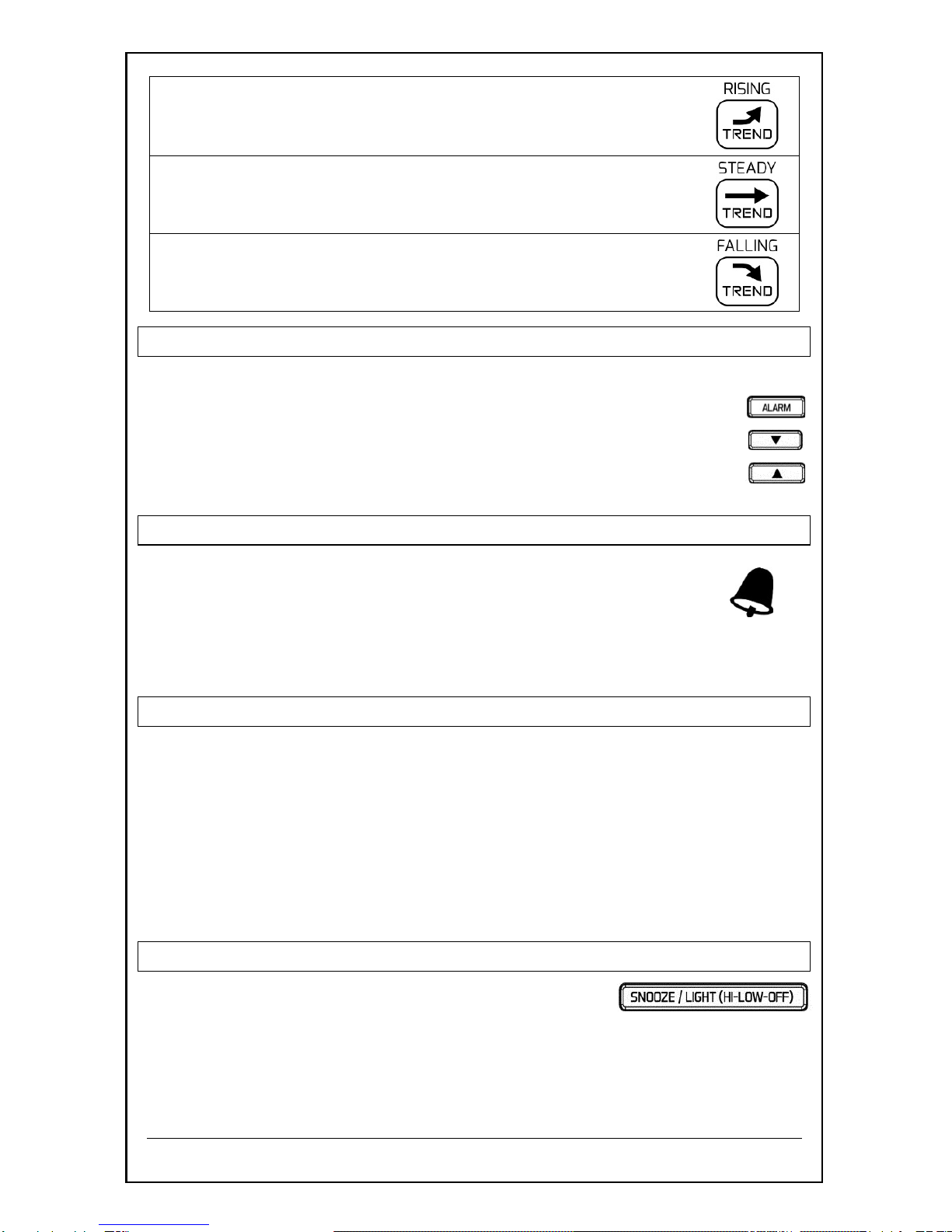

TEMPERATURE/HUMIDITY TREND INDICATORS

The temperature (2°F/1°C) and humidity (3% RH) trend

indicators update every 30 minutes or less.

Model: 308-1414M www.lacrossetechnology.com/support Page | 4

Alarm

Bell Icon

•Temperature has risen in the past 3 hours.

•Humidity has risen in the past 3 hours.

•Temperature has not changed in the past 3

hours.

•

Humidity has not changed in the past 3 hours.

•Temperature has fallen in the past 3 hours.

•Humidity has fallen in the past 3 hours.

SET TIME ALARM

1. Hold the ALARM button to enter alarm time set mode.

2. Press the ▼or ▲buttons to adjust the Alarm Time.

3. Press the ALARM button to confirm adjustments and

move to the next item.

Alarm Time setting order: 1. Hours, 2. Minutes

ACTIVATE/DEACTIVATE TIME ALARM

•Press the ALARM button once to view alarm time.

•Press the ALARM button again to activate the alarm.

Once activated the bell icon appears.

•Press the ALARM button again to deactivate the

alarm. The bell icon will disappear.

SNOOZE (SILENCES ALARM TEMPORARILY)

•When alarm sounds, the SNOOZE/LIGHT button to silence

the alarm for 10 minutes.

•The alarm icon will flash.

•In snooze mode, press any button, except SNOOZE/LIGHT

to stop alarm for one day.

Note: The alarm is crescendo sound. The alarm will sound for 2

minutes and then shut off completely.

ADJUST BACKLIGHT

When using A/C power:

•Press the HI/LOW/OFF button to adjust the backlight:

When using Battery power only:

•Press the HI/LOW/OFF button for 10 second backlight.

Model: 308-1414M www.lacrossetechnology.com/support Page | 5

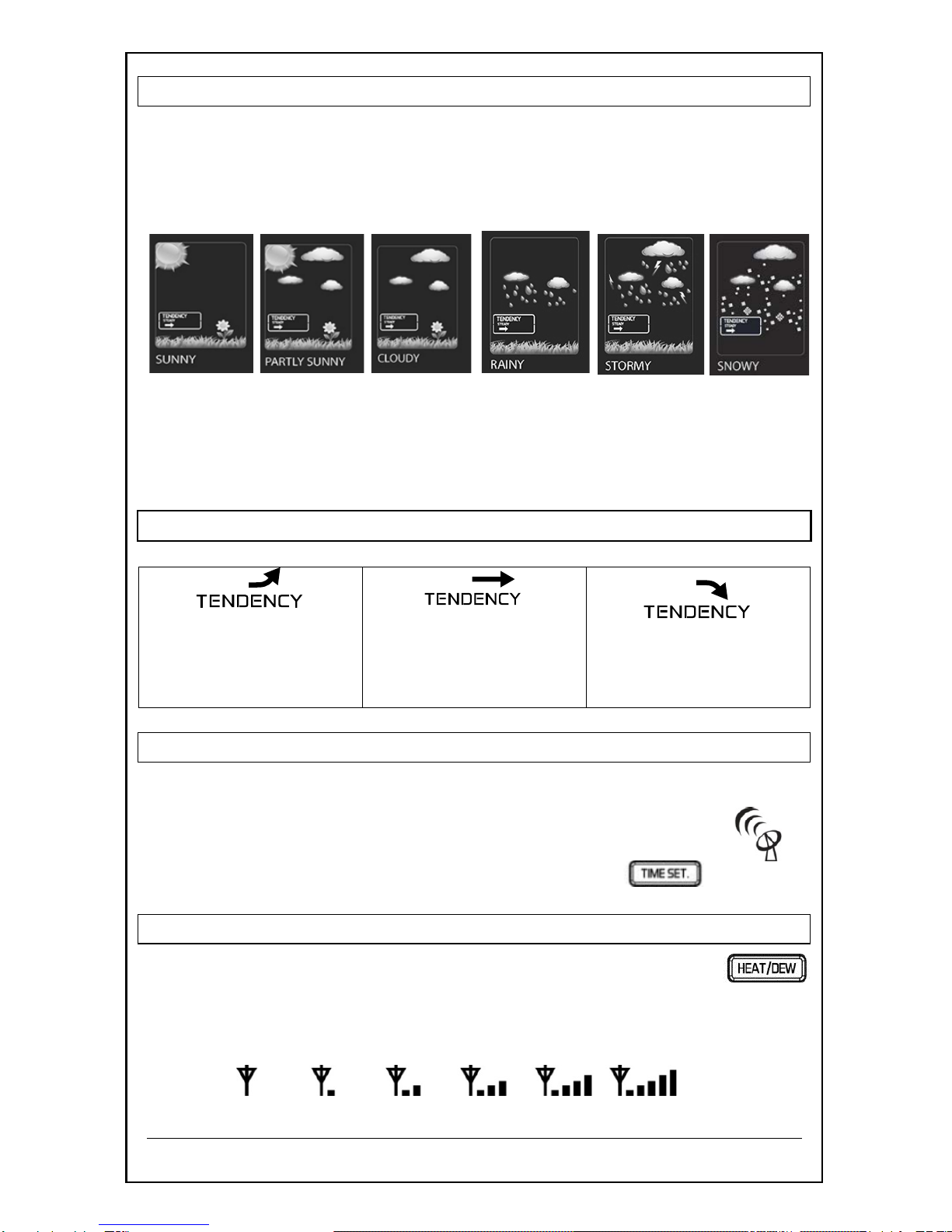

Animated Forecast Icons

Animated forecast icons use changing atmospheric pressure to

predict weather conditions for the next 12-hours with 70-75%

accuracy.

INTELLIGENT WEATHER FORECAST

This station learns. Please allow 7 days for barometric

calibration. This will ensure an accurate personal forecast for

your location.

FORECAST TREND INDICATORS

Rising Pressure

Weather is

Expected to

Improve

Steady Pressure

Weather is

Expected to Stay

the Same

Falling Pressure

Weather is

Expected to Worsen

MANUAL WWVB RADIO-CONTROLLED TIME SEARCH

•Press the TIME SET button to start or stop a manual signal

search. WWVB Icon will flash

For information about WWVB visit:

www.nist.gov/pml/div688/grp40/wwvb.cfm

SEARCH FOR REMOTE SENSOR

•Hold the HEAT/DEW button to search for the

remote sensor.

•The strength signal icon will animate until the sensor signal

is received or for 3 minutes if no signal available.

WWVB

Icon

SUNNY PARTLY SUNNY CLOUDY RAINY STORMY SNOWY

Model: 308-1414M www.lacrossetechnology.com/support Page | 6

LOW BATTERY ICON

Low battery icon indicates low battery for station or sensor.

•If the icon is displayed in Remote Temperature section, replace

batteries in the remote sensor.

•If the icon is displayed in Indoor Temperature section, replace

batteries in the weather station

POSITION REMOTE SENSOR

Outdoor use: Mount the Remote Sensor on a north-facing wall or in

any well shaded area. Under an eave or deck rail is preferred.

Indoor use: Mount the Remote Sensor indoors to monitor high mold

risk areas like in a crawl space or basement.

•The maximum wireless transmission range to the weather station

is over 300 feet (91 meters) in open air.

•Walls or floors decrease the transmision range.

•Be sure the remote sensor is mounted vertically.

WEATHER STATION CARE AND MAINTENANCE

•Do not mix old and new batteries

•Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries

•Always purchase the correct size and grade of battery suitable for

the intended use.

•Replace all batteries of a set at the same time.

•Clean the battery contacts and also those of the device prior to

battery installation.

•Ensure the batteries are installed correctly with regard to polarity

(+and -).

•Remove batteries from equipment with is not to be used for an

extended period.

•Remove expired batteries promptly.

•The specs of this product may change without prior notice.

•If the product is not working properly, change the batteries and/or

check the A/C cord connection.

SPECIFICATIONS

Indoor:

Temperature Range:

+32°F to +122°F (0°C to 50°C)

Humidity Range:

1%-99% (RH)

Interval:

About every 30 seconds

Remote:

Temperature Range:

-40°F to 140°F (-40°C to 60°C)

Alkaline Batteries:

-20°F to 140°F (-28.8°C to 60°C)

Low

Battery

Icon

Model: 308-1414M www.lacrossetechnology.com/support Page | 7

Lithium Batteries:

-40°F to 140°F (-40°C to 60°C)

NOTE:

Temperatures below - 20°F (-28.8°C)

require Lithium batteries in the remote

sensor.

Humidity Range:

1%-99% (RH)

Distance:

Over 300 ft. (91 meters)

RF 433MHz (open air)

Interval:

About every 50 seconds

Power:

Forecast Station

Primary Power:

AC#: GPU280500150WD00 5-volt AC power adapter (included)

Optional/Battery Backup

Optional 3-AAA, IEC, LR3 batteries (not

included)

TX141TH-Bv2 Sensor:

2-AA, IEC, LR6 batteries (not included)

Battery Life:

Forecast Station

Battery Backup:

Battery life is over 24 months when using

the AC adapter for primary power

TX141TH-Bv2 Sensor:

Battery life is over 12 months when using

reputable battery brands for both Alkaline

and Lithium batteries

Dimensions:

Forecast Station:

8.34” L x 1.03” W x 5.48” H

(211.836 x 26.162 x 139.192mm)

TX141TH-Bv2 Sensor:

1.57" x 0.79" x 5.12" (40 x 20 x 130mm)

WARRANTY AND SUPPORT INFORMATION

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of

purchase) on this product relating to manufacturing defects in materials &

workmanship.

Before returning a product, please contact our friendly customer support

with questions or visit our online help (manuals and FAQS):

Phone: 1-608-782-1610

Online Product Support: www.lacrossetechnology.com/support

Product Registration:

www.lacrossetechnology.com/support/register

View full warranty details online at:

www.lacrossetechnology.com/warranty_info.pdf

Warranty Address:

La Crosse Technology, Ltd

2830 S. 26th St.

La Crosse, WI 54601

Protected under U.S. Patents:

5,978,738 | 6,076,044 |RE43903

Model: 308-1414M www.lacrossetechnology.com/support Page | 8

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized changes or modifications to this equipment. Such changes or

modifications could void the user authority to operate the equipment.

part, or duplicated or processed using electronic, mechanical or chemical

process without the written permission of the publisher.

This booklet may contain errors or misprints. The information it contains is

regularly checked and corrections are included in subsequent editions. We

disclaim any responsibility for any technical error or printing error, or their

consequences.

All trademarks and patents are recognized.

CANADA STATEMENT

This device complies with Industry Canada’s license-exempt RSSs. Operation is

subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Autres manuels pour 308-1414M

Table des matières

Autres manuels La Crosse Technology Station météorologique

La Crosse Technology

La Crosse Technology S84060 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-2408FR Dimensions

La Crosse Technology

La Crosse Technology SW402 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9001U Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9625U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9009-IT Manuel du propriétaire

La Crosse Technology

La Crosse Technology 724-2310 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology 327-1418BW Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7047TWC Manuel utilisateur

La Crosse Technology

La Crosse Technology 308A-146 Manuel utilisateur

La Crosse Technology

La Crosse Technology CA84688 Dimensions

La Crosse Technology

La Crosse Technology 308-1451v2 Manuel utilisateur

La Crosse Technology

La Crosse Technology CA73453B Manuel utilisateur

La Crosse Technology

La Crosse Technology WS9029UITCA Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-811561 Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1425B Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7048U Manuel utilisateur

La Crosse Technology

La Crosse Technology TX231RW Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9077U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8025AL Manuel utilisateur

La Crosse Technology

La Crosse Technology 724-1415BL Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-450B Manuel utilisateur

La Crosse Technology

La Crosse Technology 308-1409BTV2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8158U-IT Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur

TFA

TFA 30.3013.IT Manuel utilisateur

Alecto

Alecto WS-1200 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR966PA Manuel utilisateur
