La Crosse Technology, Ltd.  Page 1

817-2410 / 817-83957FAQS
The links below will work in most PDF viewers and link to the topic area by clicking the
link. We recommend Adobe Reader version 10 or greater available at:
http://get.adobe.com/reader

CONTENTS
817-2410 / 817-83957FAQS ................................................................................................ 1
Power ....................................................................................................................................... 1
Clock Factory Restart............................................................................................................. 1
Adjustable Backlight.............................................................................................................. 1
Mood Light............................................................................................................................... 2
12-Hour Time Format ............................................................................................................. 2
Set Time Alarm ....................................................................................................................... 2
Manually Set Time: Program Menu ........................................................................................ 3
Projection ................................................................................................................................ 3
FM Radio .................................................................................................................................. 4
USB Charge Port ..................................................................................................................... 5
Backup Battery ....................................................................................................................... 5
Clock Has Distorted Display .................................................................................................... 5

Power

•This clocks powered by a 5.0 volt AC power adapter
•1 CR2032 battery backup,(not included).

 Clock Factory Restart

1. Remove battery and AC power from the clock.
2. Press one of the buttons on the clock at least 20 times to clear all memory. Verify
that the clock is blank before proceeding.
3. Let the clock sit without power out for at least 10 minutes.
4. Insert the AC power cord in the clock.

Adjustable Backlight

Select High or Low:
Press the button to select High or Low backlight.


La Crosse Technology, Ltd. Page 2

Adjust Low Brightness:

Rotate the Dimmer Wheel on the side of your clock to adjust the brightness of the Low

setting.

Mood Light

The Mood Light is below the clock, offering a gentle amber glow.

Press the button to turn this light on or off.

12-Hour Time Format

•This clock only displays in 12 hour time format.

Set Time Alarm

This Projection Clock has a dual time alarm function. Use the following instructions to

set your alarm times, choose your wake up sound (buzzer or radio), and alarm volume

if you choose the radio option.

Set Alarms:

1. Hold the button to enter the Alarm Settings.

2. Press the or button to adjust the values. Hold to adjust quickly.

3. Press and release the button to confirm and move to the

next item.

4. Press the SET/MEM button anytime to exit.

Alarm Settings Order:

• Alarm 1 Hour

• Alarm 1 Minutes

• Alarm 1 Wake sound: bu (buzzer) or rd (Radio)

• When rd (Radio) is selected: Alarm 1 HI/LO (volume)

• Alarm 2 Hour

• Alarm 2 Minutes

• Alarm 2 Wake sound: bu (buzzer) or rd (Radio)

• When rd (Radio) is selected: Alarm 1 HI/LO (volume)

La Crosse Technology, Ltd. Page 3

Activate/Deactivate Alarm 1 & 2:

1. Press the button to activate or deactivate Alarm 1 and/or Alarm 2.

2. The Amber LED Light next to the 1 or 2 indicates alarm is active.

Turn Off Sounding Alarm:

When alarm sounds. press the button once to stop the alarm for 24 hours.

Snooze:

When an alarm is sounding, press once, the alarm will be silenced and come

on again after the snooze duration selected.

Note: if your second alarm activates while the first alarm is sounding or it is in the

snooze mode, the second alarm overrides the first alarm (the first alarm is reset to

come on the next day).

Manually Set Time: Program Menu

TIP: Press only one button at a time while setting the clock.

1. Press SET/MEM again, the hour digits flash. Press the or button to set the

current hour (hold to advance rapidly). The “PM” LED will appear on the lower

middle time display to indicate the afternoon time; there is no AM indicator.

2. Press SET/MEM again, the minute digits flash. Press the or button to set

minutes. (hold to advance rapidly).

3. Press SET/MEM again, the display shows “05” and flashes. Press the or

button to select your snooze time from 5 to 60 minutes.

4. Press SET/MEM again (or if no key is pressed for approx. 10 seconds) to store the

settings and return to normal time display mode.

Projection

Projection ON/OFF:

The Projection will be on when you power up the clock. Press the button to turn

the projection Off, Dim or ON again.

La Crosse Technology, Ltd. Page 4

Projection Image Rotation:

1. Hold the button to turn the image 180 degrees.

2. Turn the Projection Wheel on the back of the Projection Arm to adjust projected

image 90 degrees.

FM Radio

1. Extend the antenna for best reception.

2. Press the button to listen to the radio. ON will show briefly.

3. Press the or button to select station. Hold to search for next clear station.

4. Press to view Volume Setting. Press the or button to adjust Volume (1-

16).

5. Press to turn radio off.

Auto Scan and Store Preset Stations:

1. Press to listen to the radio

2. Hold to automatically scan and set 20 stations.

Manually Store Preset Stations:

1. Press the button to listen to the radio. ON will show briefly.

2. Press the or button to select station.

3. Hold SET/MEM until P01 flashes to store as Preset 1.

4. Repeat steps 2 and 3 to set up to 20 Preset Stations.

Note: You can change preset stations with the above instructions.

Listen to Preset Stations:

1. Press the button to listen to the radio.

2. Press SET/MEM then or to select Preset Stations.

Radio Sleep Timer:

1. When the radio is on, hold the sleep time “05” (5 minutes) will show.

2. Press repeatedly to select minutes from 05, 10,15, 30, 45, 60, 75, 90 or OFF.

3. The clock radio reverts to the time display automatically in a few seconds. Hold

to see the sleep time remaining.

4. Press to deactivate the radio and the sleep function before the sleep time has

elapsed.

La Crosse Technology, Ltd. Page 5

USB Charge Port

Tip: This is a power-output charging port. It does not provide power to the alarm clock.

Charge a smart phone, camera or other devices when the alarm clock is plugged into a

power outlet with the included 5V adapter.

•Connect your external device’s USB charging cable (not included) to

•the USB charging port.

•Charging times will vary.

•USB Power Output: 2A maximum current.

•Charge 2A devices or devices that are self- regulating.

Remark: USB charging will shortly turn off when the clock searches for the atomic time

signal. Charging will resume after WWVB reception is completed.

Backup Battery

•The backup battery does not power the alarm or display the time.

•The backup battery will keep the time and settings in the event of a power

outage.

•A fresh CR2032 battery could backup your clock for around 1 week.

Clock Has Distorted Display

•On a brand new clock check for thin plastic films of printed scratch guard that

may be on the upper and lower screen of the clock. This thin piece of plastic has

printed numbers for store displays.

•This film will be easy to peel off the LCD.

•With all power removed the clock should be blank.

•If numbers still appear, please check for scratch guard.

Autres manuels pour 817-2410

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Horloge

La Crosse Technology

La Crosse Technology 513-1918S Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8112U Manuel utilisateur

La Crosse Technology

La Crosse Technology 433-3256A Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3141b Manuel

La Crosse Technology

La Crosse Technology WT-3161WHx1 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8008U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8112U Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB85654 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161BK Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB86088 Manuel utilisateur

La Crosse Technology

La Crosse Technology T84220 Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB87733 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology WT-8002U Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8011UM Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-6118 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-1410 Manuel utilisateur

La Crosse Technology

La Crosse Technology C86279 Dimensions

La Crosse Technology

La Crosse Technology WS-7038U Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB87740 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8011UM-TWC Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1417v4 Manuel utilisateur

La Crosse Technology

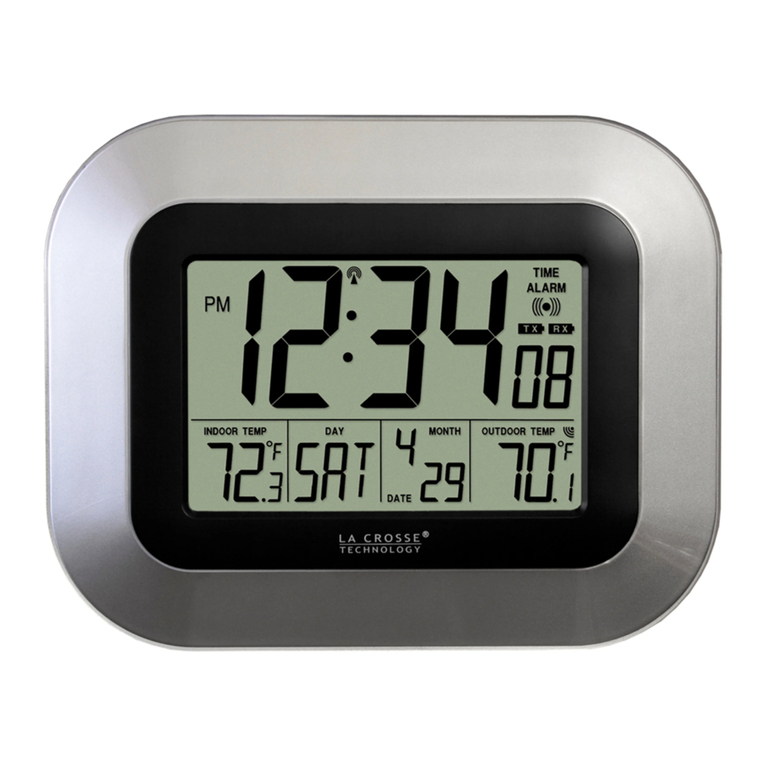

La Crosse Technology WS-8115U Manuel utilisateur
