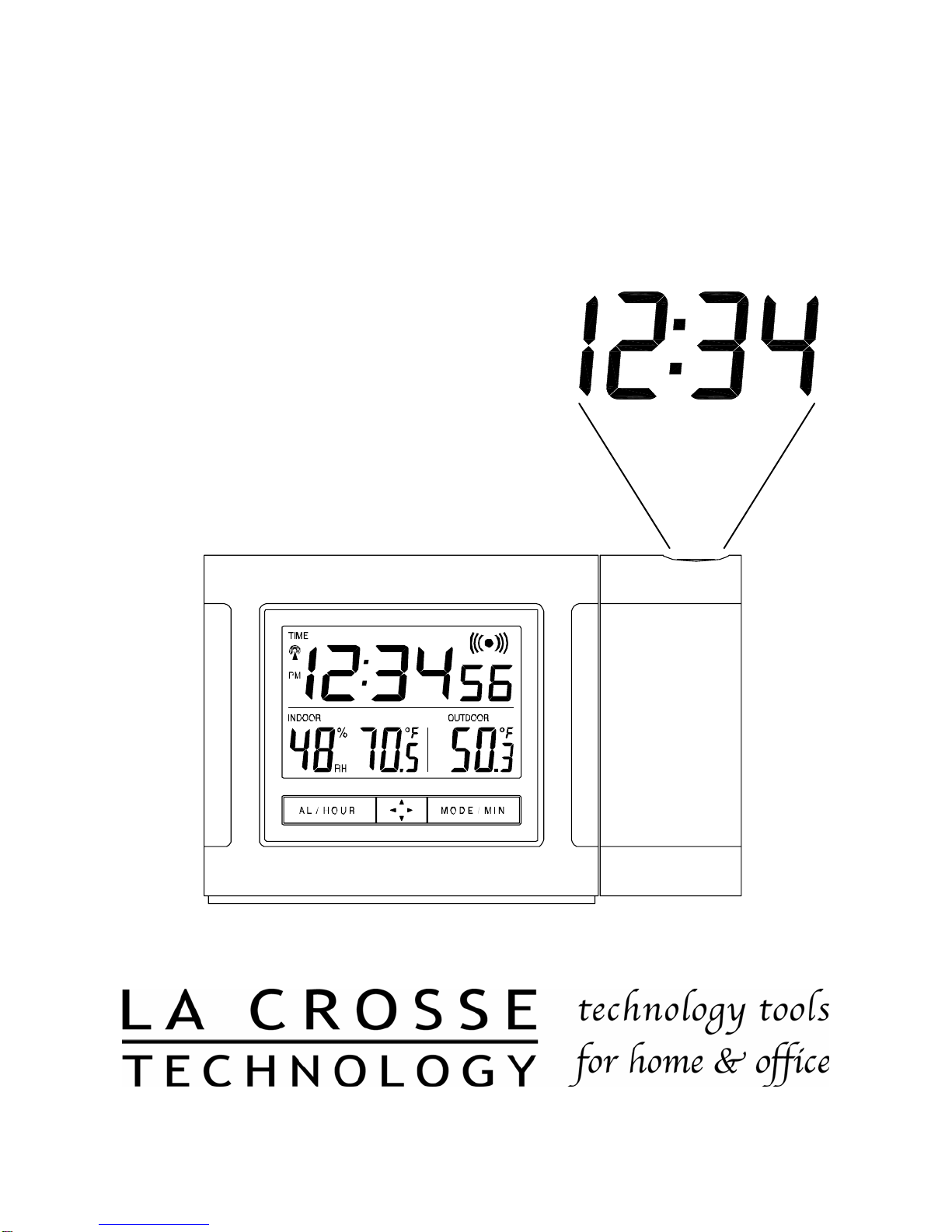

WT-5120

433 MHz

Radio Controlled Projection Alarm

Instruction Manual

TABLE OF CONTENTS

Topic Page

Inventory of Contents/ Additional Equipment 3

About WWVB 3

Quick Set-Up Guide 4

Detailed Set-Up Guide

Battery Installation 5

Program Mode

Programming Sequence 6

Function Buttons 6

Manual Time Setting 6

Time Zone Setting 6-7

Daylight Saving Time (DST) Setting 7

Features & Operations

Features 8

Radio-Controlled Time 8

Projection 8

EL Backlight 9

Indoor Temperature 9

Indoor Humidity 9

Remote Temperature 9

Time Alarm 10

Changing Display Mode 10

Mounting 11

Maintenance & Care 11

Troubleshooting 12

Specifications 13

Warranty and Contact Information 14-15

INVENTORY OF CONTENTS

1) WT-5120 Alarm Clock

2) TX6U Remote temperature sensor

3) AC adapter/transformer

4) Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

1) Two fresh 1.5V AA batteries (optional for projection alarm clock)

2) Two fresh 1.5V AA batteries (for remote temperature sensor)

FEATURES OF PROJECTION ALARM

Operation of these features is in section III

1. Radio-controlled time

2. Projection of time and/or remote temperature

3. EL backlight

4. Display of indoor temperature/humidity or alarm time

5. Indoor temperature and humidity

6. Remote outdoor temperature

7. Time alarm

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB

radio station is located in Ft. Collins, Colorado, and transmits the exact time signal continuously

throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through

the internal antenna in the projection alarm. However, due to the nature of the Earth’s Ionosphere,

reception is very limited during daylight hours. The projection alarm will search for a signal every

night when reception is best.

The WWVB radio station receives the time data from the NIST Atomic clock in Boulder, Colorado. A

team of atomic physicists is continually measuring every second, of every day, to an accuracy of ten

billionths of a second per day. These physicists have created an international standard, measuring a

second as 9,192,631,770 vibrations of a Cesium-133 atom in a vacuum. For more detail, visit

http://www.boulder.nist.gov/timefreq.htm. To listen to the NIST time, call (303)499-7111. This number

will connect you to an automated time, announced at the top of the minute in “Coordinated Universal

Time”, which is also known as Greenwich Mean Time (GMT). This time does not follow Daylight

Saving Time changes. After the top of the minute, a tone will sound for every second. It is possible

that your projection alarm may not be exactly on the second due to the variance in the quartz.

However, the clock will adjust the quartz timing over the course of several days to be very accurate;

under 0.10 seconds per day.

QUICK SET-UP GUIDE

Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.

1. Have the projection alarm and remote temperature sensor 3 to 5

apart.

2. Batteries should be out of both units for 10 minutes.

3. Place the batteries into the remote temperature sensor first then

into the projection alarm.

4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

In this time the display and sensor will start to talk to each other and the display

will show both the indoor temperature/humidity and an outdoor temperature. If

the station does not display both temperatures and indoor humidity after the 15

minutes please retry the set up as stated above. After both indoor and outdoor

temperatures are displayed for 15 minutes you can place your sensor outdoors

and set your time.

The remote sensor should be placed in a dry, shaded area. The remote sensor

has a range of 80 feet. Any walls that the signal will have to pass through will

reduce distance. An outdoor wall or window will have up to 20 feet of resistance

and an interior wall will have up to 10 feet of resistance. Your distance plus

resistance should not exceed 80 ft. in a straight line.

NOTE: Fog and mist will not harm your remote sensor but direct rain must be

avoided.

To complete the set up of your temperature station after the 15 minutes have

passed please follow the steps beginning on page 6.

Battery

Cover

DETAILED SET-UP GUIDE

II. BATTERY INSTALLATION

A. REMOTE TEMPERATURE SENSOR

1. Remove the battery cover.

2. Observing the correct polarity, install 2 AA batteries. The

batteries will fit tightly (to avoid start-up problems make

sure that they do not spring free during installation).

3. Replace the battery cover.

B. PROJECTION ALARM

1. Remove the battery cover.

2. Observe the correct polarity, and install 2 AA batteries.

3. In addition or instead of inserting batteries, the AC adapter can be used. Simply plug

the adapter into the receptacle on the

underneath of the alarm clock and then plug

in adapter.

4. Replace the battery cover.

5. The projector will activate and remain on if

the alarm clock is plugged in. If only batteries

are used, the projector will only be activated

when a button is pressed. The projection is a

red light, not harmful under normal usage,

although care should be taken to not look

directly into the light.

Notes:

•After the batteries have been installed a tone will sound, and the LCD (Liquid

Crystal Display) will activate.

•The indoor temperature/humidity and the remote temperature will be displayed.

Also, the time will appear as “-:--”.

•The WWVB search is automatically initiated, and a tower icon appears and

flashes with the time colon (no tower icon will appear if the WWVB is too weak to

be detected, and the time display will remain on “-:--”).

•While the WWVB search is being conducted various numbers will appear in the

time display.

•After 15 minutes, the projection alarm will either display the WWVB time, or

discontinue the search if the time is not found. If the search is cancelled “-:--” will

remain in the time LCD.

•The projection alarm will conduct a WWVB search every hour until the first signal

is found.

•Once the WWVB time is found, a search is automatically conducted nightly at

midnight.

•If the signal is found at midnight, the tower icon will remain, if not, another search

will take place every hour (until 6:00 am) until the signal is found successfully.

•If no signal is found during this period, the tower icon will not appear and the

clock will search again at 12:00 am the next night.

•The radio-controlled time receiver is located on the bottom side of the projection

alarm. When using the AC adaptor be sure to keep the adapter cord away from

the bottom side of the unit as if the wire is too close it can cause weakened

reception sensitivity.

AC adapter

receptacle

III. PROGRAM MODE

To enter the Program Mode hold down the “MODE/MIN” button for 3 seconds, until the time

flashes in the top of the display. The Program Mode Guide is laid out in a manner that allows

you to program each function separately, or you can follow the instructions entirely to program

the projection alarm. Complete programming is usually done for the initial set-up, and will

require you to skip step 1 and 2 of programming sections D and E. To exit the setting mode

simply wait approximately 10 seconds for the projection alarm to automatically return to normal

operation.

A. PROGRAMMING SEQUENCE

1. Manual Time Display

2. Time Zone Setting

3. Daylight Saving Time On/Off

B. FUNCTION BUTTONS

There are 3 function buttons located on the front of the projection alarm and one on the top.

The function buttons are labeled: AL/HOUR, light direction icon, MODE/MIN, and SNOOZE

(the top bar).

C. MANUAL TIME SETTING

1. Hold down the “MODE/MIN” button for 3 seconds, the time will flash in the Time LCD.

2. Press and release the “AL/HOUR” button to advance the hours and press and release

the “MODE/MIN” button to advance the minutes.

NOTE: “A.M.” or “P.M.” will be displayed to the left of the time to help identify the time.

3. Press and release the “SNOOZE” button to confirm the time setting and to advance to

DST (Daylight Saving Time) setting.

D. TIME ZONE SETTING

1. Hold down the “MODE/MIN” button for 3 seconds, the time will flash in the Time LCD.

2. Press and release the “SNOOZE” button to advance to the time zone selection.

3. In the indoor temperature/humidity section of the LCD the time zone will flash.

Mode Button (toggles between

indoor temp/hum and alarm

time. Also adjusts minutes in

time setting mode

Alarm Button (also adjusts

the hours in time setting

mode

)

Display Direction

4. Press and release the “MODE/MIN” button to select the appropriate time zone. There

are 24 time zones to choose from (based relative to the international time standard of

GMT (“Greenwich Mean Time).

NOTE: The U.S. time zones will show abbreviations as opposed to the numerical time

zone indicator. For example Eastern Time will display “ET” when the Eastern Time

Zone is selected

5. Press and release the “SET” button to confirm the time zone setting and to advance to

the DST (Daylight Saving Time) setting.

E. DST (DAYLIGHT SAVING TIME) SETTING

Note: The DST default is “On”, meaning that the WWVB will automatically change the time

according to Daylight Saving Time in the spring and fall. For areas that do not recognize

DST changes (Arizona and parts of Indiana) turn the DST “OFF”.

1. Hold down the “MODE/MIN” button for 3 seconds, the time will flash in the Time LCD.

2. Press and release the “SNOOZE” button twice to advance to the DST setting.

3. “DST” will appear in the indoor temperature/humidity LCD and “ON” or “OFF” will flash

in the time LCD.

4. Press and release the “MODE/MIN” button to toggle between DST ON and OFF..

5. Press and release the “SNOOZE” button to confirm the DST setting and complete the

set-up sequence.

-4h Atlantic Time

-5h Eastern Time (default setting)

-6h Central Time

-7h Mountain Time

-8h Pacific Time

-9h Alaskan Time

-10h Hawaiian Time

-11h, -12h Next two time zones West of HAW

0h Greenwich Mean Time

-1h, -2h, -3h Three time zones West of GMT

IV. FEATURES & OPERATIONS

A. FEATURES

1. Radio-controlled time

2. Projection of time and/or remote temperature

3. LED backlight

4. Display of indoor temperature/humidity or alarm time

5. Indoor temperature and humidity

6. Remote outdoor temperature

7. Time alarm

B. RADIO-CONTROLLED TIME

1. The projection alarm will automatically search for the time signal upon initial set-up

and every night.

2. When the signal is being received, there will be a “tower” icon flashing to the left of the

time display.

3. When the time signal has been received successfully, the tower icon will remain

steady until midnight.

4. The NIST (National Institute of Standards and Technology—Time and Frequency

Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the

exact time signal continuously throughout the United States at 60 kHz. The signal can

be received up to 2,000 miles away through the internal antenna in the projection

alarm.

5. Due to the nature of the Earth’s Ionosphere, reception is very limited during daylight

hours. The projection alarm will search for a signal every night when reception is best.

6. The WWVB radio station receives the time data from the NIST Atomic clock in

Boulder, Colorado. A team of atomic physicists is continually measuring every

second, of every day, to an accuracy of ten billionths of a second per day. These

physicists have created an international standard, measuring a second as

9,192,631,770 vibrations of a Cesium-133 atom in a vacuum.

7. For more detail, visit http://www.boulder.nist.gov/timefreq.htm. To listen to the NIST

time, call (303) 499-7111. This number will connect you to an automated time,

announced at the top of the minute in “Coordinated Universal Time”, which is also

known as Greenwich Mean Time (GMT). This time does not follow Daylight Saving

Time changes. After the top of the minute, a tone will sound for every second.

8. It is possible that your projection alarm may not be exactly on the second due to the

variance in the quartz. However, the clock will adjust the quartz timing over the course

of several days to be very accurate; under 0.10 seconds per day.

C. PROJECTION OF TIME AND REMOTE TEMPERATURE

1. When plugged into an AC outlet, the projection alarm will continuously project the time

and remote temperature.

2. When operating on batteries alone, the projection alarm will only project when the

snooze button is pressed or the alarm is sounding.

3. The projection will auto-focus for display from three to six feet away. A dark

surrounding will be necessary to clearly see the projection.

4. The projection alarm will automatically toggle between the time and outdoor

temperature when projecting; either when the “SNOOZE” button is pressed or

continuously when using the AC adaptor.

5. The direction of the display can also be rotated 360°in 90°increments by pressing the

directional button. There is no display on the LCD that signifies the direction.

6. The projector case can be rotated 180°to further help orient the projected display.

D. EL BACKLIGHT

1. The projection alarm has an EL backlight designed for night-viewing. This will light up

for 4 seconds whenever the snooze button is pressed.

2. The EL backlight cannot be turned on constantly; this would drain the batteries.

E. INDOOR TEMPERATURE

1. The projection alarm measures indoor temperature with an internal sensor.

2. This temperature is displayed in °F.

3. The indoor temperature will take time to adjust to the surrounding temperature as the

sensor is inside the case.

4. If the remote temperature is placed next to the projection alarm, more often than not

the temperature will not be exact with one another. This is not a defect, but simply

reflects the difference in measuring methods. The remote temperature is designed for

changing temperature at a wide range.

F. INDOOR HUMIDITY

1. The projection alarm measures indoor humidity with an internal sensor.

2. This humidity is displayed as a percentage (%).

3. The indoor humidity will take time to adjust to the surrounding humidity as the sensor

is inside the case.

G. REMOTE TEMPERATURE

1. The projection alarm comes with a remote temperature sensor. When set up properly,

the projection alarm will receive and display the remote temperature.

2. It is important to power up the sensor first, then the projection alarm. If batteries are

removed in the remote, the projection alarm MUST be re-set by removing power

sources and re-starting.

3. The remote temperature is measured within the remote temperature and transmitted

to the projection alarm. If outdoor temperature is desired, simply mount the remote

sensor outside. It is recommended to mount the sensor on the North side of the house

away from sources of heat or cold (away from direct sunlight, windows, vents, etc.).

4. The range of the sensor is 80 feet in open space. While the signal is able to penetrate

walls, it will decrease the range. Concrete and metal structures offer the most

resistance.

5. The sensor should not be mounted on a metal surface.

6. The sensor and projection alarm should be kept away from other sources of possible

interference including cordless appliances (telephones, baby monitors), microwave

ovens, and other strong electrical appliances.

7. The remote temperature is displayed in °F.

H. TIME ALARM

1. SETTING THE ALARM

a. Press and hold “AL/HOUR” button for three seconds until the alarm time is

flashing.

b. Press and release “AL/HOUR” to advance the hour, and “MODE/MIN” to

advance the minute. The time will display “PM” if set to PM, and nothing if set to

AM.

c. The projection alarm will revert to normal operation when no buttons are pressed

for 15 seconds. The alarm is now set and activated.

2. ACTIVATING/DEACTIVATING THE

ALARM

a. After entering the alarm setting mode,

the alarm is activated.

b. To toggle between activating and

deactivating the alarm, press the

“AL/HOUR” button briefly. “(((○)))”will

be displayed above the time display

when the alarm is activated.

3. TURNING ALARM OFF (WHILE SOUNDING)

a. While the alarm is sounding, press and release the “SNOOZE” bar to disable the

alarm for 10 minutes.

b. After the SNOOZE bar is pressed the alarm icon will flash.

c. To disable the alarm for 24 hours, press and release any button other than

SNOOZE or display direction buttons.

NOTE: The alarm will sound for 84 seconds if the “SNOOZE” button is not pressed.

The alarm speeds up twice, once after 20 seconds and again after 50 seconds.

I. CHANGING DISPLAY MODE (INDOOR TEMPERATURE/HUMIDITY OR ALARM TIME)

There are two possible display modes in the indoor temperature/humidity section of the

LCD (lower left). To change the display press and release the “MODE/MIN” button to toggle

between the two modes.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Horloge

La Crosse Technology

La Crosse Technology WS-8120U Manuel utilisateur

La Crosse Technology

La Crosse Technology W80000 Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB86118v3 Manuel utilisateur

La Crosse Technology

La Crosse Technology 512-1422 Series Dimensions

La Crosse Technology

La Crosse Technology 404-3624BL Manuel utilisateur

La Crosse Technology

La Crosse Technology Sagebrook 404-3015CC Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8115U Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-1410B Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8005U Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology 513-148 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3102B Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1918S Manuel utilisateur

La Crosse Technology

La Crosse Technology 515-1419 Manuel utilisateur

La Crosse Technology

La Crosse Technology W86111V2 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1417v3 Manuel utilisateur

La Crosse Technology

La Crosse Technology 817-2410 Dimensions

La Crosse Technology

La Crosse Technology C86279V4 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-4450 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-6002U Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3122A Manuel utilisateur

La Crosse Technology

La Crosse Technology 515-1912 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-9412 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8256-AL Manuel utilisateur

La Crosse Technology

La Crosse Technology KWS-8140U-IT Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

Sharp

Sharp SPC900 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur

IKEA

IKEA ROTBLÖTA Manuel utilisateur

U-Line

U-Line Н-2811 Manuel utilisateur

Digiview

Digiview RC305EL Manuel utilisateur
