WT-5600

Radio Controlled Projection Alarm

Instruction Manual

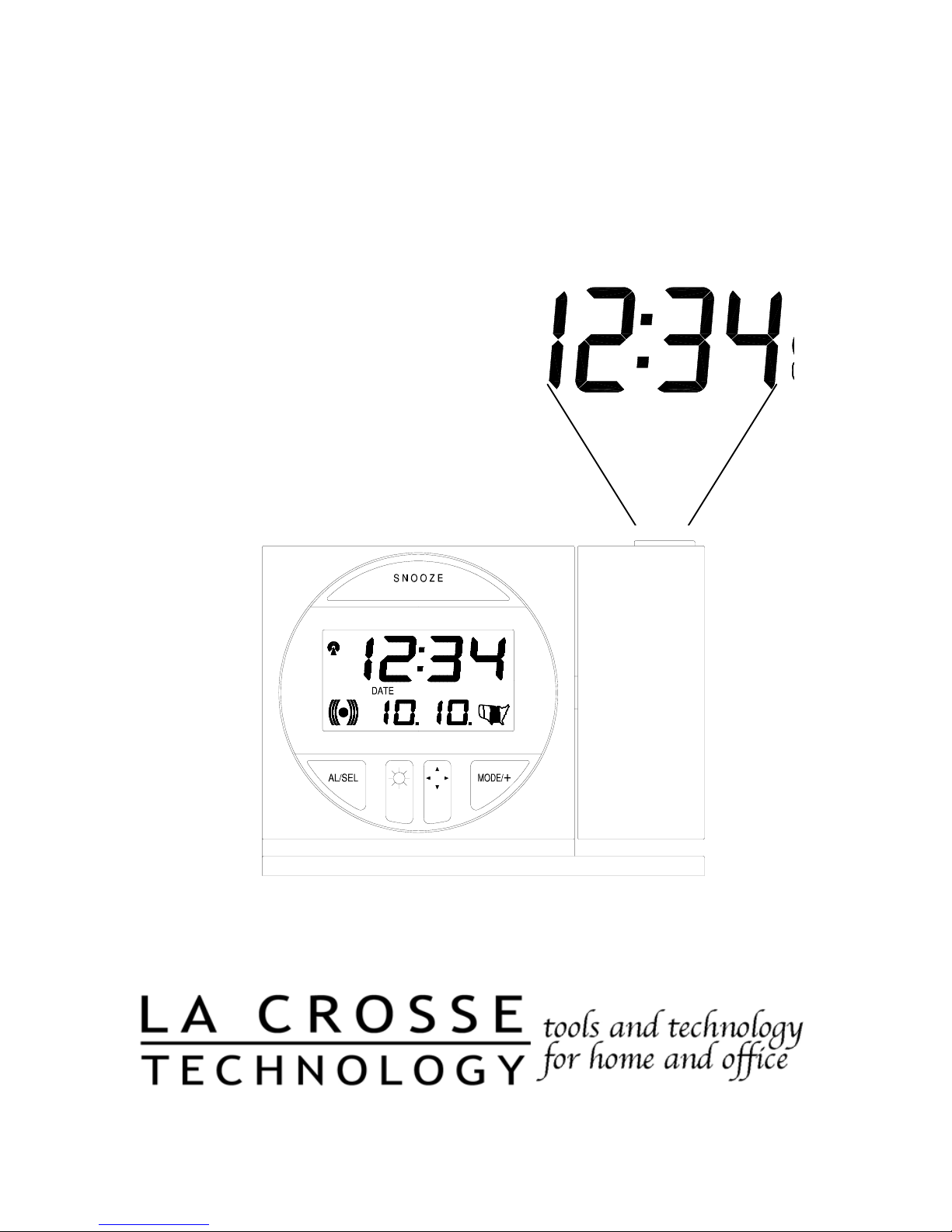

PROJECTION

TABLE OF CONTENTS

Topic Page

Inventory of Contents 3

About WWVB 3

Quick Set-Up Guide 4

Detailed Set-Up Guide

Battery Installation 5

Program Mode

Programming Sequence 6

Function Buttons 6

Time Zone Setting 6-7

Time Setting 7

Date Setting 8

12/24-Hour Mode 8

DST (Daylight Saving Time) Setting 8

Features & Operations

Features 8-9

Radio-Controlled Time 9

Projection 10

LCD light 10

Time Alarm 10-11

Changing Display Mode 12

Maintenance & Care 12

Troubleshooting 13

Specifications 13

Warranty and Contact Information 14

INVENTORY OF CONTENTS

1) WT-5600 Alarm Clock

2) AC adapter/transformer

3) Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

1) Two fresh 1.5V AA batteries (optional for alarm clock)

FEATURES OF PROJECTION ALARM

1. Radio-controlled time and date

2. Projection of time

3. LCD light

4. Three modes of date/second display

5. Alarm

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency

Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact

time signal continuously throughout the United States at 60 kHz. The signal can be

received up to 2,000 miles away through the internal antenna in the Projection alarm.

However, due to the nature of the Earth’s Ionosphere, reception is very limited during

daylight hours. The Projection alarm will search for a signal every night when reception

is best.

The WWVB radio station receives the time data from the NIST Atomic clock in Boulder,

Colorado. A team of atomic physicists is continually measuring every second, of every

day, to an accuracy of ten billionths of a second per day. These physicists have created

an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium-

133 atom in a vacuum. For more detail, visit http://www.boulder.nist.gov/timefreq.htm.

To listen to the NIST time, call (303)499-7111. This number will connect you to an

automated time, announced at the top of the minute in “Coordinated Universal Time”,

which is also known as Greenwich Mean Time (GMT). This time does not follow

Daylight Saving Time changes. After the top of the minute, a tone will sound for every

second. It is possible that your Projection Alarm may not be exactly on the second due to

the variance in the quartz. However, the clock will adjust the quartz timing over the

course of several days to be very accurate; under .10 seconds per day.

QUICK SET-UP GUIDE

1) Insert two AA batteries into the Projection alarm and/or plug into wall

2) Wait 10 minutes for WWVB reception.

3) If there is no WWVB reception, manually set the time and date (instructions

in the Program Mode).

4) Program the settings.

5) Mount the WT-5600 in a suitable location, where WWVB signal can be

received.

6) The projector will activate and remain on if the alarm clock is plugged in. If

only batteries are used, the projector will only be activated when a button is

pressed.

7) See the “Features” section for instructions on projection direction, etc.

AC adapter

receptacle

DETAILED SET-UP GUIDE

BATTERY INSTALLATION

1. Remove the battery cover.

2. Observe the correct polarity and install 2 AA batteries.

3. In addition or instead of

inserting batteries, the AC

adapter can be used. Simply

plug the adapter into the

receptacle on the bottom of

the alarm clock and then

plug in adapter.

4. Replace the battery cover.

5. The projector will activate and remain on if the alarm clock is plugged in. If

only batteries are used, the projector will only be activated when a button is

pressed. The projection is a red light, not harmful under normal usage,

although care should be taken to not look directly into the light.

Note:After the batteries have been installed a tone will sound and the LCD

(Liquid Crystal Display) will activate. The date and U.S. map will be

displayed and the time will appear as “-:--”. The WWVB search is

automatically initiated and a tower icon appears and flashes with the time

colon (no tower icon will appear if the WWVB is too weak to be detected

and the time display will remain on “-:--”). While the WWVB search is

being conducted various numbers will appear in the time display. After 10

minutes, the Projection Alarm will either display the WWVB time, or

discontinue the search if the time is not found. If the search is cancelled “-:-

-” will remain in the time LCD. The Projection Alarm will conduct a

WWVB search every hour until the first signal is found. Once the WWVB

time is found, a search is automatically conducted nightly at midnight. If the

signal is found at midnight, the tower icon will appear. If not, another

search will take place every hour (until 6:00 am) until the signal is received

successfully. If no signal is found during this period, the tower icon will not

appear and the clock will search again at 12:00 am the next night.

PROJECTION

PROGRAM MODE

To enter the Program Mode, hold down the “MODE+” button for 2 seconds, until the

time zone (“-5” default) flashes in the lower right. The Program Mode Guide is laid out

in a manner that allows you to program each function separately, or you can follow the

instructions entirely to program the Projection Alarm. Complete programming is usually

done for the initial set-up and will require you to skip step 1 of programming sections III

through VIII. Press the “SNOOZE” button at any time to exit the Program Mode or wait

approximately 15 seconds for the Projection Alarm to automatically return to normal

operation.

A. PROGRAMMING SEQUENCE

1. Time Zone Setting

2. Hour Setting

3. Minute Setting

4. Year Setting

5. Month Setting

6. Day Setting

7. 12/24-hour Mode

8. Daylight Saving Time On/Off

B. FUNCTION BUTTONS

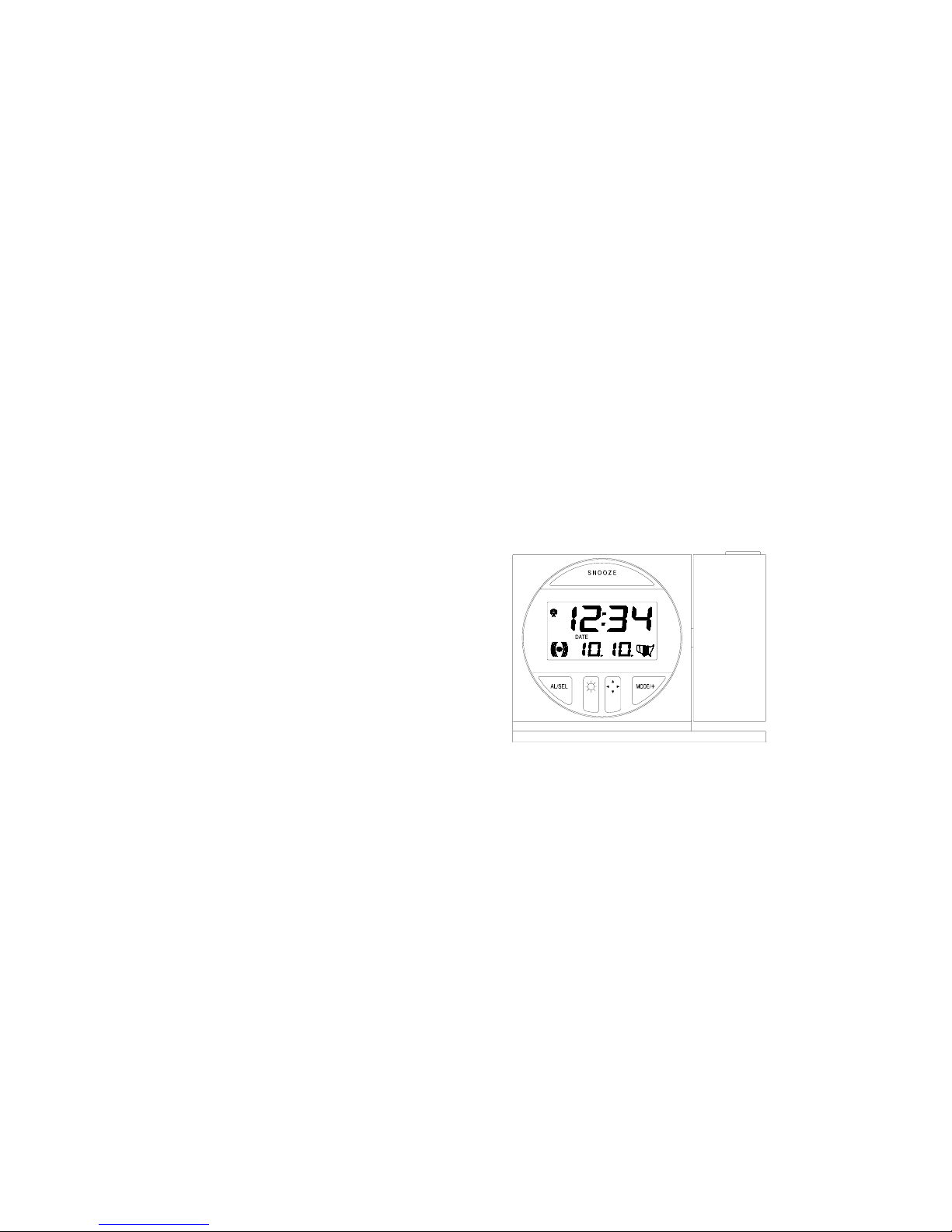

There are 5 function buttons

located on the front of the

Projection Alarm. The function

buttons are labeled: AL, light

intensity icon, light direction icon,

MODE/+, and SNOOZE (the top

bar).

C. TIME ZONE SETTING

1. Hold down the “MODE/+” button for 2 seconds, the time zone (“-5”

default) will flash in the Date LCD.

2. Press the “MODE/+” button to select the appropriate time zone. There are

13 time zones to choose from (based relative to the international time

standard of GMT (“Greenwich Mean Time”).

3. From –5h to –8h, a US map with the highlighted time zone will also be

displayed to the right of the time display.

4. Press the “AL” button to move to the hour setting or press the “SNOOZE”

button to confirm the time zone and return to the display mode.

D. TIME SETTING

Note: When the WWVB signal is found, that time will over-ride the manually set

time.

1. Hold down the “MODE/+” button for 2 seconds (the selected time zone

will flash), press the “AL” button once until the hour flashes in the time

LCD.

2. Press the “MODE/+” button to select the hour.

3. Press the “AL” button to move to the minute setting.

a. Note: When setting the hour, “PM” will appear to the left of the hour

display, if it is “AM” nothing will appear.

4. Press the “MODE/+” button to select the minutes.

5. Press the “AL” button to confirm the time setting and advance to manually

set the date or press the “SNOOZE” button to confirm the time and return

to the display mode.

-4h Atlantic Time

-5h Eastern Time (default setting)

-6h Central Time

-7h Mountain Time

-8h Pacific Time

-9h Alaskan Time

-10h Hawaiian Time

-11h, -12h Next two time zones West of HAW

0h Greenwich Mean Time

-1h, -2h, -3h Three time zones West of GMT

E. DATE SETTING

Note: When the WWVB signal is found, that date will over-ride the manually set

date.

1. Hold down the “MODE/+” button for 2 seconds (the selected time zone

will flash), press the “AL” button three times until the year flashes.

2. Press the “MODE/+” button to select the year.

3. Press the “AL” button to confirm the year and move to the month setting.

4. Press the “MODE/+” button to select the month.

5. Press the “AL” button to confirm the month and move to the day setting.

6. Press the “MODE/+” button to select the day.

7. Press the “AL” button to confirm the day and move to the 12/24 Hour

display setting, or press the “SNOOZE” button to confirm the date and

return to the display mode.

F. 12/24-HOUR MODE

1. Hold down the “MODE/+” button for 2 seconds (the selected time zone

will flash), press the “AL” button six times until “ :12” flashes in the time

display.

2. Press the “MODE/+” button to toggle between 12 and 24-hour time

display.

3. Press the “AL” button to confirm the time display setting and move to the

Daylight Saving Time setting, or press the “SNOOZE” button to confirm

the time display setting and return to the display mode.

G. DAYLIGHT SAVINGS TIME

Note: The DST default is “On”, meaning that the WWVB will

automatically change the time according to Daylight Saving Time in the

spring and fall. For areas that do not recognize DST changes (Arizona and

parts of Indiana) turn the DST to “OFF”.

1. Hold down the “MODE/+” button for 2 seconds (the selected time zone

will flash), press the “AL” button seven times until “ON” flashes in the date

display area and “DST” flashes above the U.S. map.

2. Press the “MODE/+” button to toggle between “ON” and “OFF” modes.

3. Press the “AL” button to confirm the DST setting and complete the set-up.

FEATURES & OPERATIONS

A. FEATURES

1. Radio-controlled time and date

2. Projection of time

3. LCD light

4. Three modes of date/seconds display

5. Time alarm

B. RADIO-CONTROLLED TIME AND DATE

1. The projection alarm will automatically search for the time signal upon

initial set-up and every night.

2. When the signal is being received, there will be a “tower” icon flashing to

the right of the time display.

3. When the time signal has been received successfully, the tower icon will

remain steady until midnight.

4. The NIST (National Institute of Standards and Technology—Time and

Frequency Division) WWVB radio station is located in Ft. Collins,

Colorado, and transmits the exact time signal continuously throughout the

United States at 60 kHz. The signal can be received up to 2,000 miles away

through the internal antenna in the Projection Alarm.

5. Due to the nature of the Earth’s Ionosphere, reception is very limited during

daylight hours. The Projection alarm will search for a signal every night

when reception is best.

6. The WWVB radio station receives the time data from the NIST Atomic

clock in Boulder, Colorado. A team of atomic physicists is continually

measuring every second, of every day, to an accuracy of ten billionths of a

second per day. These physicists have created an international standard,

measuring a second as 9,192,631,770 vibrations of a Cesium-133 atom in a

vacuum.

7. For more detail visit http://www.boulder.nist.gov/timefreq.htm. To listen to

the NIST time call (303) 499-7111. This number will connect you to an

automated time, announced at the top of the minute in “Coordinated

Universal Time”, which is also known as Greenwich Mean Time (GMT).

This time does not follow Daylight Saving Time changes. After the top of

the minute a tone will sound for every second.

8. It is possible that your Projection Alarm may not be exactly on the second

due to the variance in the quartz. However, the clock will adjust the quartz

timing over the course of several days to be very accurate; under 0.10

seconds per day.

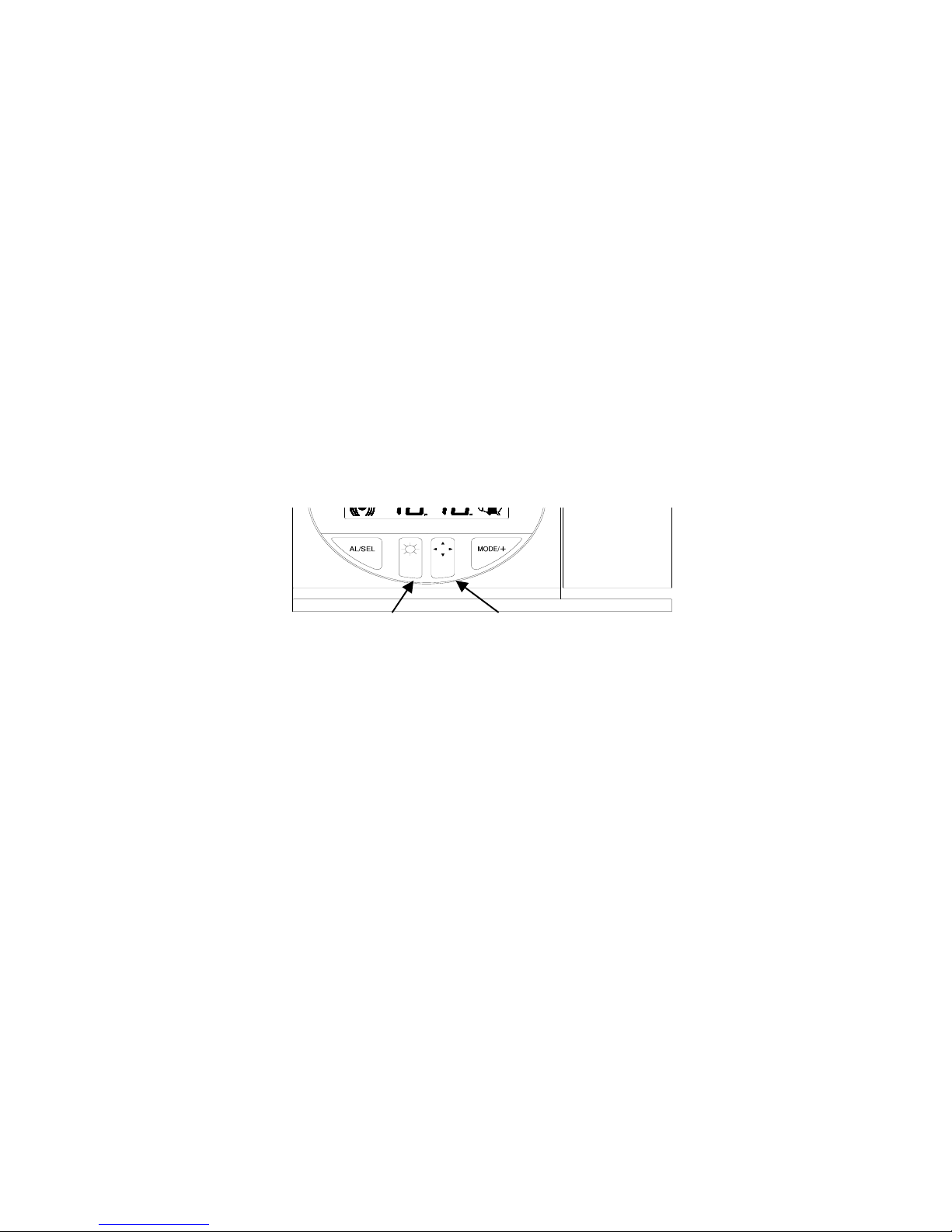

ht Intensit

Projection

Direction

C. PROJECTION OF TIME

1. When plugged into an AC outlet, the projection alarm can continuously

project the time.

2. When operating on batteries alone, the Projection Alarm will only project

when a button is pressed.

3. The projection will auto-focus for display from three to six feet away. A

dark surrounding will be necessary to clearly see the projection.

4. The direction of the display can be rotated 360°in 90°increments by

pressing the directional button. There is no display on the LCD that

signifies the direction.

5. The projector case can be rotated 180°to further help orient the projected

display.

6. The intensity of the projection can be adjusted to three different settings as

well as turned “off” by pressing the Light Intensity button. When turned off,

the projection will only come on when a button is pressed. The intensity

cannot be set for the projected display when set to “off”. When only

batteries are used, the intensity setting is set to “off” with no other options.

D. LCD LIGHT

1. The Projection Alarm has an LCD light designed for night viewing. This

will light up for 2 seconds whenever a button is pressed.

2. The LCD light cannot be turned on constantly; this would drain the batteries

and burn out the light.

E. TIME ALARM.

1. SETTING THE ALARM

a. Press and hold “AL” for two seconds until the alarm time is flashing.

b. Press the “MODE/+” button to select the hour.

NOTE: When setting the hour, “PM” will appear to the left of the alarm

time display. If it is set for “AM” nothing will appear.

c. Press the “AL” button to advance to the minute setting.

d. Press the “MODE/+” button to select the minutes.

e. Press the “AL” button to confirm the alarm setting and return to the

display mode.

Table des matières

Autres manuels La Crosse Technology Réveil

La Crosse Technology

La Crosse Technology SOLUNA C79141-MX Manuel utilisateur

La Crosse Technology

La Crosse Technology C85135 Dimensions

La Crosse Technology

La Crosse Technology K85236 Dimensions

La Crosse Technology

La Crosse Technology WS-8115U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology W85923V4 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-143V2 Dimensions

La Crosse Technology

La Crosse Technology WT-2192 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8056U Manuel utilisateur

La Crosse Technology

La Crosse Technology RADIO CONTROLLED ALARM CLOCK WITH SOLAR... Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146Av3 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-1412v3 Manuel utilisateur

La Crosse Technology

La Crosse Technology 617-1485Bv2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-5431 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-9300 Manuel utilisateur

La Crosse Technology

La Crosse Technology RADIO CONTROLLED PROJECTION CLOCK WITH DIGITAL... Manuel utilisateur

La Crosse Technology

La Crosse Technology RADIO CONTROLLED PROJECTION ALARM CLOCK Manuel utilisateur

La Crosse Technology

La Crosse Technology W88723 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-1950 Dimensions

La Crosse Technology

La Crosse Technology WT-2171 Manuel utilisateur

La Crosse Technology

La Crosse Technology VA1 Manuel utilisateur

La Crosse Technology

La Crosse Technology W85923V2 Dimensions

La Crosse Technology

La Crosse Technology 617-2410V2 Dimensions

La Crosse Technology

La Crosse Technology 617-1485W Manuel utilisateur

Manuels Réveil populaires d'autres marques

Steren

Steren CLK-210 Manuel utilisateur

COP-USA

COP-USA ALCDVR32-SL Manuel utilisateur

Philips

Philips HF3505/70 Manuel technique

Casio

Casio PQ-70 Manuel utilisateur

iHome

iHome IA63 Manuel utilisateur

Coopers

Coopers 9765 Manuel utilisateur

ANJANK

ANJANK AC-190 Mode d’emploi

TFA

TFA 98.1075 Manuel utilisateur

Sharper Image

Sharper Image 204050 Manuel utilisateur

Lumie

Lumie Zest Manuel utilisateur

Dexford

Dexford RCT200 Manuel utilisateur

Philips

Philips AJL303/37B Manuel utilisateur

RST

RST Q754 Manuel utilisateur

iHome

iHome iKT50 Manuel utilisateur

Sony

Sony dash HID-B7 Manuel utilisateur

SVINZ

SVINZ SCC009 Manuel utilisateur

Clas Ohlson

Clas Ohlson 918863 Manuel utilisateur

IKEA

IKEA FNURRA Manuel utilisateur
