La Crosse Technology WT-5360U Manuel utilisateur

WT-5360U

433 MHz

Radio Controlled Alarm Clock

With Projection Time

Instruction Manual

TABLE OF CONTENTS

Topic Page

Inventory of Contents/ Additional Equipment 3

Glossary of Common Terms 3

QUICK SET-UP GUIDE 4

DETAILED SET-UP GUIDE

Battery Installation 5

PROGRAM MODE

Programming Sequence 6

Function Buttons 6

Time Zone Setting 6-7

Manual Time Setting 7

Year and Date Setting 7

12/24-Hour Clock Setting 8

Indoor Temperature Setting 8

Daylight Saving Time (DST) Setting 8

FEATURES & OPERATIONS

Features 8

Radio Controlled Time 8-9

Time Projection 9

LED Backlight 9

Indoor Temperature 9

Time Alarm 9-10

Calendar 10

Second Display 10

MAINTENANCE & CARE 10-11

TROUBLESHOOTING 11

SPECIFICATIONS 11

Warranty 12

Contact Information 13

INVENTORY OF CONTENTS

1. WT-5360 Alarm Clock

2. AC adapter/transformer

3. Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

Two fresh 1.5V AA alkaline batteries (optional when using AC adapter)

FEATURES OF PROJECTION ALARM CLOCK

Operation of these features is in section III.

1. Time Zone Setting

2. Manual Time Display

3. Year Setting

4. Calendar Display

5. Time Display in 12/24 Hour Mode

6. Indoor Temperature Display

7. Daylight Saving Time (DST) On/Off

GLOSSARY OF COMMON TERMS

LCD

“LCD” is an acronym for ”Liquid Crystal Display”. This is a common type of display screen used in

televisions, computers, watches, and digital clocks.

LED

“LED” is an acronym for “Light-Emitting Diode”. This type of light is used to illuminate a variety of

displays such as a digital clock or watch.

NIST

The National Institute of Standards and Technology (Time and Frequency division) maintains the

primary frequency standard for the United States. The NIST also coordinates the United States time

and frequency standards with other world standards. The NIST provides time and frequency services

for United States clientele.

WWVB

The WWVB is an AM radio station in Ft. Collins, Colorado, managed by the NIST. The WWVB’s

function is to broadcast time-of-day information derived from the NIST atomic clock, located in

Boulder, Colorado.

ATOMIC CLOCK

An atomic clock is an extremely accurate time device measuring time by the movements of electrons

in cesium atoms. The NIST atomic clock is one of the most precise clocks in the world, accurate to

10 billionths of one second. The NIST’s atomic clock contributes to the international group of clocks

calculating the Coordinated Universal Time (UTC)—the official world time.

RADIO CONTROLLED TIME

A radio controlled time device is often confused with an atomic clock. However, a radio controlled

time device receives its time information from the atomic clock each day through an internal antenna.

The radio controlled time device searches for an exact time signal every night when the signal from

the WWVB is the strongest. The signal can be received up to 2,000 miles away through a radio

controlled time device.

For more information regarding the NIST, WWVB, atomic clock, and radio controlled time, please visit

the NIST official website: http://www.boulder.nist.gov/timefreq/stations/wwvb.htm

I. QUICK SET-UP GUIDE

Hint: Use good quality alkaline batteries and avoid rechargeable batteries.

1. We recommend beginning the set-up procedure at night when the

WWVB signal is easiest to receive.

2. It is also highly recommended to set the projection alarm in a window

or other area free of interference in the area of your home that is

closest to Colorado (the source of the WWVB signal).

NOTE: The above steps are not required but can help the projection

alarm receive the signal faster.

3. Install the batteries in the projection alarm clock.

4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

NOTE: It is important to not press any buttons after inserting batteries as

this will interrupt the WWVB search sequence.

In this time the display will show the indoor temperature. If the station does not

display the indoor temperature after the 15 minutes please retry the set-up as

stated above. After the indoor temperature displays for 15 minutes you may

place the projection alarm in your desired location.

To complete the set-up of your temperature station after the 15 minutes have

passed, please follow the steps beginning on page 6.

II.

DETAILED SET-UP GUIDE

A. BATTERY INSTALLATION

1. Remove the battery cover on the backside of

the projection alarm.

2. Observe the correct polarity, and install 2 AA

batteries.

3. In addition to or instead of installing batteries,

the AC adapter can be used. Simply plug the

adapter into the receptacle on the underneath

side of the alarm clock, and then plug in the

adapter.

4. Replace the battery cover.

5. The projector will activate and remain on if the alarm clock is plugged in. If only

batteries are used, the projector will only be activated when a button is pressed. The

projection is a red light, not harmful under normal usage, although care should be

taken to not look directly into the light.

Notes:

•After the batteries have been installed, the LCD will activate, and you will hear a

beep.

•The indoor temperature will be displayed, and the time will appear as “12:00 AM”.

•The WWVB search is automatically initiated, and a tower icon appears and

flashes with the time colon (no tower icon will appear if the WWVB is too weak to

be detected, and the time display will start from 12:00 AM).

•While the WWVB search is being conducted various numbers will appear in the

time display.

•After 15 minutes, the projection alarm will either display the WWVB time, or

discontinue the search if the time is not found. If the search is cancelled the time

will continue from 12:00 AM.

•The projection alarm will conduct a WWVB search every hour until the first signal

is found.

•Once the WWVB time is found, a search is automatically conducted nightly at

midnight.

•If the signal is found at midnight, the tower icon will remain, if not, another search

will take place every hour (until 6:00 AM) until the signal is found successfully.

•If no signal is found during this period, the tower icon will not appear, and the

clock will search again at midnight the next night.

•The radio-controlled time receiver is located on the bottom side of the projection

alarm. When using the AC adaptor be sure to keep the adapter cord away from

the bottom side of the unit; as it can cause weakened reception of the radio

controlled signal.

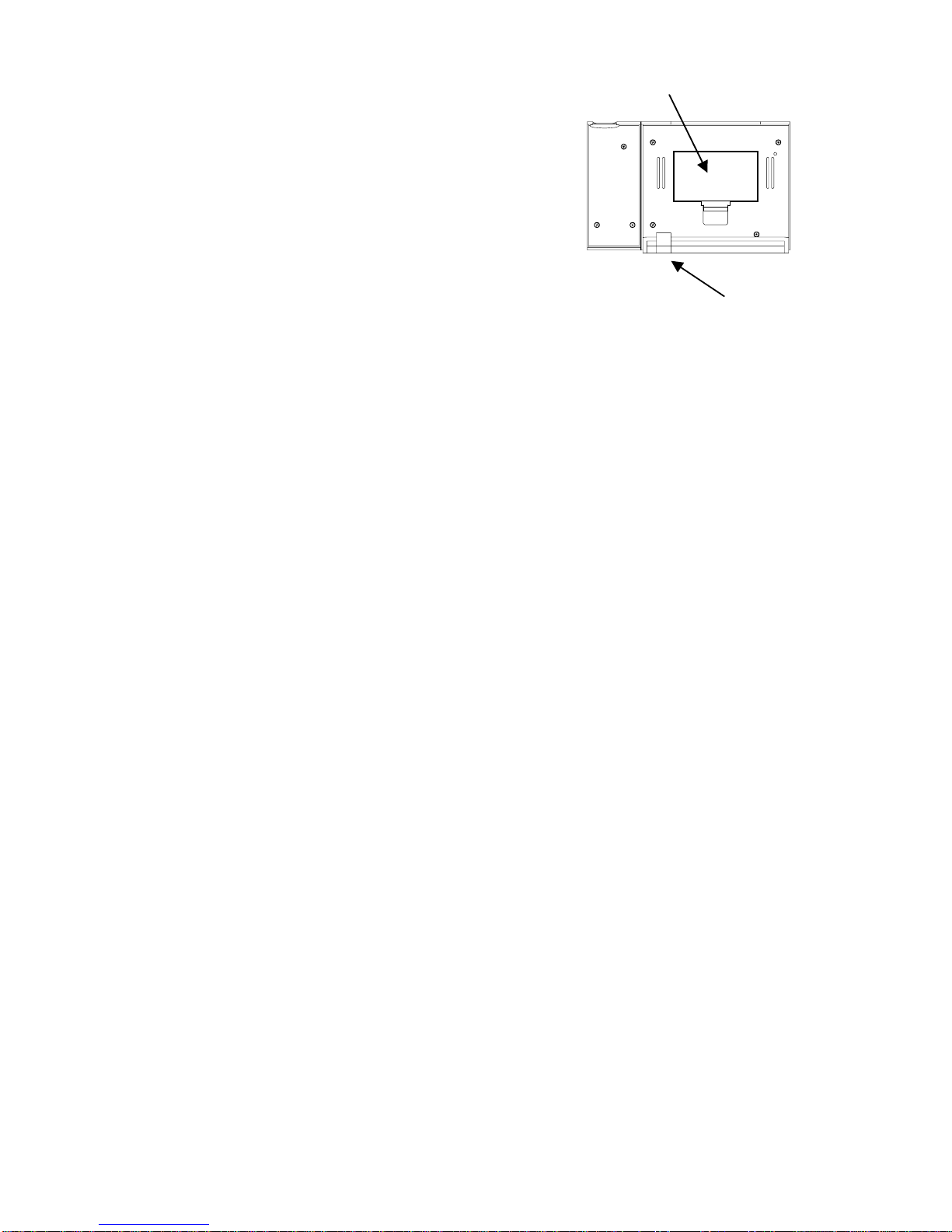

AC adapter

receptacle

battery cover

III.

PROGRAM MODE

To enter the Program Mode, hold down the “MODE/MIN” button for 3 seconds, until the time zone

flashes at the bottom of the display. The Program Mode Guide is laid out in a manner that allows you

to program each function separately, or you can follow the instructions entirely to program the

projection alarm. Complete programming is usually done for the initial set-up, and will require you to

skip step 1 and 2 of programming sections D-H. To exit the setting mode simply wait approximately

10 seconds for the projection alarm to automatically return to normal operation.

A. PROGRAMMING SEQUENCE

1. Time Zone Setting

2. Manual Time Display

3. Year Setting

4. Calendar Display

5. Time Display in 12/24 hour Mode

6. Indoor Temperature Display

7. Daylight Saving Time On/Off

B. FUNCTION BUTTONS

There are 4 function buttons located on the front of the projection alarm and one on the top.

The function buttons are labeled (from left to right): AL/HOUR, light intensity, light direction,

MODE/MIN, and SNOOZE (the top bar).

C. TIME ZONE SETTING

1. Hold down the “MODE/MIN” button for 3 seconds; the time zone will appear and begin

to flash in the bottom section of the LCD.

2. Use the “MODE/MIN” button to toggle through the time zones and select the

appropriate zone. There are 24 time zones to choose from (based relative to the

international time standard of GMT (Greenwich Mean Time).

3. Press and release the “SNOOZE” bar to confirm selection and advance to the next

section of the set-up.

Light Intensity Icon Light Direction Icon

NOTE: The U.S. time zones will show abbreviations as opposed to the numerical time

zone indicator. For example Eastern Time will display “ET” when the Eastern Time

Zone is selected

5. Press and release the “SNOOZE” bar to confirm the time zone setting and advance to

the Manual Time Setting.

D. MANUAL TIME SETTING

1. Hold down the “MODE/MIN” button for 3 seconds, the time zone will appear flashing at

the bottom of the LCD.

2. Press the “SNOOZE” bar once to advance to set correct time (time will begin to flash).

3. Press and release the “AL/HOUR” button to advance the hours, and press and release

the “MODE/MIN” button to advance the minutes.

NOTE: “AM” or “PM” will be displayed to the left of the time to help identify the time.

4. Press and release the “SNOOZE” bar to confirm the time setting and to advance to the

Year Setting.

E. YEAR AND DATE SETTING

1. Hold down the “MODE/MIN” button for 3 seconds; the time zone will appear flashing at

the bottom of the LCD.

2. Press the “SNOOZE” bar 2 times to advance to the year setting. Press and release

the “MODE/MIN” button to advance to the appropriate year.

3. Press and release the “SNOOZE’ bar to confirm the year setting and to advance to the

Date Setting.

NOTE: The year display will appear in set-up mode only and has a range from the

years 2000 to 2049.

4. Press and release the “MODE/MIN” button to advance to the correct month, and press

and release the “AL/HR” button to advance to the correct day.

5. Press and release the “SNOOZE” bar to confirm the date setting and to advance to

the day of the week setting.

6. Press and release the “MODE/MIN” button to advance to the correct day of the week

(MO=Monday, TU=Tuesday, WE=Wednesday, TH=Thursday, FR=Friday,

SA=Saturday, SU=Sunday).

7. Press and release “SNOOZE” bar to confirm selection and advance to the 12/24-Hour

Clock Setting.

-4h Atlantic Time

-5h Eastern Time (default setting)

-6h Central Time

-7h Mountain Time

-8h Pacific Time

-9h Alaskan Time

-10h Hawaiian Time

-11h, -12h Next two time zones West of HAW

0h Greenwich Mean Time

-1h, -2h, -3h Three time zones West of GMT

F. 12/24-HOUR CLOCK SETTING

1. Hold down the “MODE/MIN” button for 3 seconds; the time zone will appear flashing at

the bottom of the LCD.

2. Press and release the “SNOOZE” bar 5 times to advance to the 12/24-hour clock

setting.

3. Press and release the “MODE/MIN” button to select either a 12-hour clock or a 24-

hour clock.

4. Press and release the “SNOOZE” bar to confirm selection and advance to the Indoor

Temperature Display.

G. INDOOR TEMPERATURE DISPLAY

1. Hold down the “MODE/MIN” button for 3 seconds; the time zone will appear flashing at

the bottom of the LCD.

2. Press and release the “SNOOZE” bar 6 times to advance to the indoor temperature

display setting.

3. Press and release the “MODE/MIN” button to select either Fahrenheit or Celsius

(Fahrenheit is the default).

4. Press and release the “SNOOZE” bar to confirm selection and advance to Daylight

Saving Time setting.

H. DST (DAYLIGHT SAVING TIME) SETTING

Note: The DST default is “On”, meaning that the WWVB will automatically change the time

according to Daylight Saving Time in the spring and fall. For areas that do not recognize DST

changes (Arizona and parts of Indiana) turn the DST “OFF”.

1. Hold down the “MODE/MIN” button for 3 seconds, the time zone will appear flashing at

the bottom of the LCD.

2. Press and release the “SNOOZE” bar 7 times to advance to the DST setting.

3. “DST” will appear in the indoor temperature section of the LCD, and “ON” or “OFF” will

flash in the time section.

4. Press and release the “MODE/MIN” button to toggle between DST ON and OFF.

5. Press and release the “SNOOZE” bar to confirm the DST setting and complete the

set-up sequence.

IV.

FEATURES & OPERATIONS

A. FEATURES

1. Radio Controlled Time

2. Time Projection

3. LED Backlight

4. Indoor Temperature

5. Time Alarm

6. Calendar

7. Second Display

B. RADIO CONTROLLED TIME

1. The projection alarm will automatically search for the time signal upon initial set-up

and every night.

2. When the signal is being received, there will be a “tower” icon flashing to the left of the

time display.

3. When the time signal has been received successfully, the tower icon will remain

steady until midnight.

4. The projection alarm will search for a signal every night when reception is best.

5. It is possible that your projection alarm may not be exactly on the second due to the

variance in the quartz. However, the clock will adjust the quartz timing over the course

of several days to be very accurate--under 0.10 seconds per day.

C. TIME PROJECTION

1. When plugged into an AC outlet, the projection alarm can continuously project the

time.

2. When operating on batteries alone, the projection alarm will only project when the

snooze button is pressed or the alarm is sounding.

3. The projection will auto-focus for optimal display from 5.5 to 6.5 feet (1.7 to 2.0 m)

away. A dark surrounding will be necessary to clearly see the projection.

4. The direction of the display can also be rotated 360°in 90°increments by pressing the

directional button. There is no display on the LCD that signifies the direction.

5. The projector case can be rotated 180°to further help orient the projected display.

D. LED BACKLIGHT

1. The projection alarm has an LED light designed for night viewing. This will light up for

2 seconds whenever a button is pressed.

2. The LED light cannot be turned on constantly; this would drain the batteries and burn

out the light.

E. INDOOR TEMPERATURE

1. The projection alarm measures indoor temperature with an internal sensor.

2. This temperature is displayed in °F.

3. The indoor temperature will take time to adjust to the surrounding temperature as the

sensor is inside the case.

4. The indoor temperature will display upon initial set-up at the bottom of the LCD.

F. TIME ALARM

1. SETTING THE ALARM

a. Press and hold “AL/HOUR” button for 3 seconds until the alarm time is flashing.

b. Press and release the “AL/HOUR” button to advance the hour, and the

“MODE/MIN” button to advance the minute.

c. The projection alarm will revert to normal

operation when no buttons are pressed for 15

seconds. The alarm is now set and activated.

2. ACTIVATING/DEACTIVATING THE ALARM

a. After entering the alarm-setting mode, the alarm

is activated.

b. To toggle between activating and deactivating

the alarm, press the “AL/HOUR” button briefly.

“(((●)))” will be displayed above the alarm display

when the alarm is activated.

3. TURNING ALARM OFF (WHILE SOUNDING)

a. While the alarm is sounding, press and release

the “SNOOZE” bar to disable the alarm for 5 minutes.

b. After the “SNOOZE” bar is pressed the alarm icon will flash.

c. To disable the alarm for 24 hours, press and release any button other than the

“SNOOZE” bar or display direction buttons.

NOTE: The alarm will sound in a 3-step crescendo for 80 seconds if the “SNOOZE”

bar is not pressed.

4. VIEWING TIME ALARM

a. To momentarily view the time the alarm is set for, press and hold down the

“SNOOZE” bar for 2 seconds, and the alarm time will appear for 2 seconds. The

clock will automatically return to normal operations after the 2 seconds.

b. To set the LCD to display alarm time, press the “MODE/MIN” button and toggle

through display choices until a time with “AL” appears.

G. CALENDAR

To set the bottom of the LCD to display the day and date press the “MODE/MIN” button

and toggle through display choices until the day of the week and the date appear.

H. SECOND DISPLAY

To set the bottom of the LCD to display the seconds, press the “MODE/MIN” button and

toggle through the display choices until the seconds appear.

MAINTENANCE & CARE

A. Avoid extreme temperatures, vibrations, and shock to prevent damage to the units.

B. Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents—

they may mark and damage the displays and casings.

C. Do not submerge in water.

D. Remove all low powered batteries immediately to avoid leakage and damage.

E. Replace with new batteries only--and of recommended size.

F. Opening the casings invalidates the warranty. Do not try to repair the units. Contact

La Crosse Technology for Repairs.

VI.

TROUBLESHOOTING

Problem: The Projection is faint

Solution:

1) Change intensity setting

2) Use AC adapter

3) Darken surroundings

4) Use fresh batteries (if AC is not used)

Problem: The LCD is faint.

Solution: Replace the batteries.

Problem: “OFL” appears in the indoor temperature LCD.

Solution: 1) Move unit to an area with warmer or cooler surrounding

temperature.

2) Current surrounding temperatures are outside measuring range.

Problem: No reception of WWVB signal.

Solution: 1) It may help reception to face the front of the projection alarm in the

general direction of Ft. Collins, Colorado.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Réveil

La Crosse Technology

La Crosse Technology C85183 Manuel utilisateur

La Crosse Technology

La Crosse Technology W85923V3 Dimensions

La Crosse Technology

La Crosse Technology 616A-1413 Manuel utilisateur

La Crosse Technology

La Crosse Technology C8929 Manuel utilisateur

La Crosse Technology

La Crosse Technology 617-89577 Dimensions

La Crosse Technology

La Crosse Technology 617-1485v2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8056U Manuel utilisateur

La Crosse Technology

La Crosse Technology C89201 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-1412V2 Dimensions

La Crosse Technology

La Crosse Technology WT-2192 Manuel utilisateur

La Crosse Technology

La Crosse Technology 602-249 Dimensions

La Crosse Technology

La Crosse Technology Radio-Controlled Travel Alarm Clock WT-2160 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146v2 Dimensions

La Crosse Technology

La Crosse Technology 616-1412v2 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology 433 MHz RADIO CONTROLLED PROJECTIONALARM... Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8157 Manuel utilisateur

La Crosse Technology

La Crosse Technology W85923V2 Dimensions

La Crosse Technology

La Crosse Technology 602-249V2 Dimensions

La Crosse Technology

La Crosse Technology DCF-77 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146 Manuel utilisateur

La Crosse Technology

La Crosse Technology Soluna C79141 Dimensions

La Crosse Technology

La Crosse Technology C86224 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology C82929V2 Dimensions

Manuels Réveil populaires d'autres marques

Steren

Steren CLK-210 Manuel utilisateur

COP-USA

COP-USA ALCDVR32-SL Manuel utilisateur

Philips

Philips HF3505/70 Manuel technique

Casio

Casio PQ-70 Manuel utilisateur

iHome

iHome IA63 Manuel utilisateur

Coopers

Coopers 9765 Manuel utilisateur

ANJANK

ANJANK AC-190 Mode d’emploi

TFA

TFA 98.1075 Manuel utilisateur

Sharper Image

Sharper Image 204050 Manuel utilisateur

Lumie

Lumie Zest Manuel utilisateur

Dexford

Dexford RCT200 Manuel utilisateur

Philips

Philips AJL303/37B Manuel utilisateur

RST

RST Q754 Manuel utilisateur

iHome

iHome iKT50 Manuel utilisateur

Sony

Sony dash HID-B7 Manuel utilisateur

SVINZ

SVINZ SCC009 Manuel utilisateur

Clas Ohlson

Clas Ohlson 918863 Manuel utilisateur

IKEA

IKEA FNURRA Manuel utilisateur
