La Crosse Technology 616-146v3 Manuel utilisateur

Model: 616-146v3

Instruction Manual

DC: 092418

Atomic Projection Alarm with

Indoor & Outdoor Temperature

Table of Contents

Lets Get Started

Let’s Get Started

Atomic Time

Buttons

Basic Settings

Select Fahrenheit | Celsius

Set Alarm Time

Activate | Deactivate Alarm

Snooze Alarm

Projection: Intensity, Rotation

Projection Modes:

Time, Temperature

Backlight

USB Charging Port

1. Insert 2-AA batteries into your outdoor sensor.

2. Insert the 5 volt power cord into a wall outlet, then into the

clock. Install 2-AAA batteries for backup time and date.

3. After 5 minutes, place the sensor outside in a shaded

location. Conﬁgure basic settings.

Welcome to the La Crosse Technology® family!

We hope you enjoy your new Projection Alarm.

• The backlight and USB charging port will momentarily turn o

while the clock searches for the atomic signal.

• After the initial search, your clock will only search for the

atomic signal after midnight.

• The atomic time signal icon (tower) will ﬂash while searching,

and be solid when connected.

• Press -/TIME button anytime, to manually search for the

Atomic time signal.

• For information about WWVB visit: http://bit.ly/AtomicTime

Page | 1 www.lacrossetechnology.com/support 616-146v3 616-146v3 www.lacrossetechnology.com/support Page | 2

AAA

Atomic Time

Temperature Trend Arrows

Search for Outdoor Sensor

Restart

Position TX141v2 Sensor

Low Battery Icon

Help Us, Help You

Let’s Get Social

Care and Maintenance

Warranty and Support

Speciﬁcations

FCC Statement

Basic Settings

• Hold the SET/°F/°C button to enter time set mode.

• Press the +/TEMP or -/TIME button to adjust values.

• Press SET/°F/°C button to conﬁrm adjustments and move to

next item.

Settings order:

1. WWVB Atomic Time (ON/OFF)

2. Time Zone

3. DST Daylight Saving Time (ON/OFF)

4. 12/24 Hour Time Format

5. Hour

6. Minutes

7. Year

8. Month

9. Date

Note: Day of the week sets automatically.

Press the SET/°F/°C button to exit, or wait 20 seconds and

clock will return to default display.

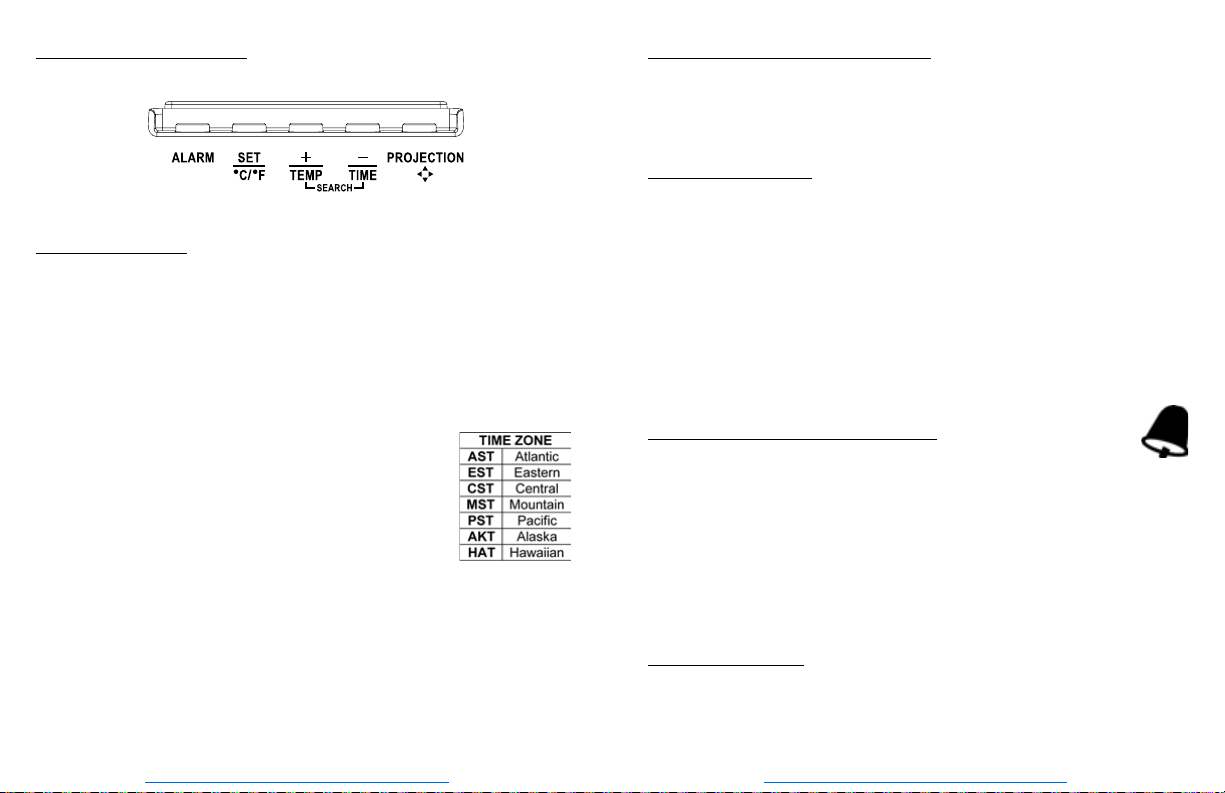

Buttons (Back view) Select Fahrenheit | Celsius

SNOOZE/LIGHT • Press the SET/°F/°C button to select Fahrenheit or Celsius

temperature display.

Set Alarm Time

1. Hold the ALARM button to enter alarm time set mode.

2. Use the +/TEMP or -/TIME buttons to adjust values.

3. Press the ALARM button to conﬁrm adjustments and move

to the next item. The alarm is active when set.

Alarm Time setting order:

1. Hours

2. Minutes

Activate | Deactivate Alarm

• Press the ALARM button once to view alarm time.

• While viewing alarm time press ALARM button to activate or

deactivate alarm.

• When active the alarm bell will show.

• Press the ALARM button to stop the alarm for 24 hours.

• Deactivate an alarm to stop it permanently. Bell icon will

disappear.

Snooze Alarm

• Press the SNOOZE/LIGHT button to silence alarm for 9

minutes. Zz will show.

• Press the ALARM button to stop the alarm for 24 hours.

Page | 3 www.lacrossetechnology.com/support 616-146v3 616-146v3 www.lacrossetechnology.com/support Page | 4

Projection: Intensity, Rotation Backlight

Projection Intensity:

• Power cord is required for constant projection.

• Press and release the SNOOZE/LIGHT button to adjust the

projection HI-LOW-OFF.

Note: This will adjust the backlight at the same time.

• If operating on battery power, press the SNOOZE/LIGHT

button to activate the projection for 10 seconds.

Projection Rotation:

• Press the PROJECTION button to rotate

the projection image 90 degrees.

• Press the PROJECTION button again to

rotate another 90 degrees.

Projection: Modes Time, Temperature

1. Hold, then release the PROJECTION button to switch

projection modes.

2. Watch the projection image to view the changes.

Projection Modes:

• Time and Outdoor Temperature: alternates every 5 seconds

(default)

• Time only

• Outdoor Temperature only

• Power cord is required for constant backlight.

• Press and release the SNOOZE/LIGHT button to adjust the

backlight HI-LOW-OFF.

Note: This will adjust the projection at the same time.

• If operating on battery power, press the SNOOZE/LIGHT

button to activate the backlight for 10 seconds.

There is a 1 Amp USB charging port on the back of your clock.

The included power adapter must be in use to charge a

device with your own cable.

• Connect your external device’s USB charging cable (not

included) to the USB charging port.

• Charging times will vary.

• USB Power Output: 1A maximum current.

• Charge 1A devices or devices that are self-regulating.

USB Charging Port

• The UP and DOWN arrows indicate changes in temperature

and humidity over the past three hours.

• They update every 30 minutes and compare data from

three hours prior.

Temperature: arrow changes every 2°F (1°C).

Temperature Trend Arrows

Page | 5 www.lacrossetechnology.com/support 616-146v3 616-146v3 www.lacrossetechnology.com/support Page | 6

Search for Outdoor Sensor

Restart

• If your signal is lost, your station will display its LAST DATA

recorded from your sensor for 10 minutes.

• After that 10 minutes if the signal does not come back,

dashes will show.

• Hold the +/TEMP button for three seconds to search for your

outdoor sensor.

If your outdoor temperature is displaying dashes, and

searching for it does not work, try a restart following these

steps:

1. Remove the power cord and batteries from the alarm, as

well as the outdoor sensor.

2. Once the power is removed, press a button on the alarm at

least 20 times.

3. Wait 15 minutes, then insert power cord and fresh batteries

into your clock and sensor. Your temperature reading should

appear in the ﬁrst minute.

Position TX141v3 Sensor

• To mount the sensor, use the hole at the top to either hang it

from the back using a nail, or insert one mounting screw

through the front of your sensor.

• Mount the TX141v3 sensor on a north-facing wall or in any

shaded area. Under an eave or deck rail is preferred.

• The maximum wireless transmission range to your weather

station is over 330 feet (100 meters) in open air, not including

walls or ﬂoors.

• Be sure the sensor is mounted vertically, to allow moisture to

drain out properly.

• Watch sensor mounting video:

http://bit.ly/TH_SensorMounting

Page | 7 www.lacrossetechnology.com/support 616-146v3 616-146v3 www.lacrossetechnology.com/support Page | 8

• If the icon is displayed in the Outdoor Temperature section, replace

batteries in the outdoor sensor.

• If the icon is displayed in the Indoor Temperature section, replace

batteries in the projection clock.

Low Battery Icon

Let’s Get Social

JOIN THE CONVERSATION

Ask questions, watch detailed setup videos, and provide feedback on

our social media channels!

If you have ideas for features or support solutions you’d like to see us

make, please let us know! We truly want to make owning a La Crosse

Technology product not only a practical experience, but also a fun

one. So email us at: store@lacrossetechnology.com

Help Us, Help You!

• Do not mix old and new batteries.

• Do not mix Alkaline, Standard, Lithium, or Rechargeable Batteries.

• Always purchase the correct size and grade of battery most suitable for

intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery

installation.

• Ensure the batteries are installed with correct polarity (+ and -).

• Remove batteries from equipment when it is not used for an extended

period of time.

• Promptly remove expired batteries.

Care and Maintenance

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date

of purchase) on this product relating to manufacturing defects in materials &

workmanship.

Before returning a product, please contact our friendly customer support with

questions or visit our online help:

Phone: 1-608-782-1610

Online Product Support and Registration:

www.lacrossetechnology.com/support

Warranty and Support

Page | 9 www.lacrossetechnology.com/support 616-146v3 616-146v3 www.lacrossetechnology.com/support Page | 10

Speciﬁcations

Indoor

Temperature 32°F to 122°F (0°C to 50°C)

Outdoor

Temperature:

Note:

Transmission:

-40°F to 140°F (-40°C to 60°C)

Temperatures below - 20°F (-28.8°C) require Lithium

batteries in the outdoor sensor.

Over 330 ft (100 meters) open air 433MHz RF

Power

Clock:

TX141v3 Sensor:

5 volt Power cord AC6: HX09-0501500-AU

2-AAA LR3, IEC, batteries for backup

2-AA LR6, IEC batteries

Note: Batteries are not included.

USB Charging Port

USB Output 1 Amp maximum

Dimensions

Clock:

TX141v3 Sensor:

5.23” L x 1.96” W x 4.33” H

(13.3 L x 5.0 W x 11.0 H cm)

1.57” L x 0.79” W x 5.12” H

(4.0cm L x 2.0cm W x 13.0cm H)

Battery Life

Clock:

TX141v3 Sensor:

Battery life is over 24 months when using the power

cord for primary power

Battery life is over 24 months when using reputa-

ble battery brands for both Alkaline and Lithium

batteries

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized changes or modiﬁcations to this equipment. Such changes or

modiﬁcations could void the user authority to operate the equipment.

duplicated or processed using electronic, mechanical or chemical process without

the written permission of the publisher. This booklet may contain errors or misprints.

The information it contains is regularly checked and corrections are included in

subsequent editions. We disclaim any responsibility for any technical error or

printing error, or their consequences. All trademarks and patents are recognized.

FCC Statement

Page | 11 www.lacrossetechnology.com/support 616-146v3

Autres manuels pour 616-146v3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Réveil

La Crosse Technology

La Crosse Technology W85923 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology WT-5600 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-5220U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology Soluna C79141 Manuel utilisateur

La Crosse Technology

La Crosse Technology W88723V2 Dimensions

La Crosse Technology

La Crosse Technology C8929 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-5220U-ITv2 Manuel utilisateur

La Crosse Technology

La Crosse Technology 617-2410V3 Manuel utilisateur

La Crosse Technology

La Crosse Technology C80765 Dimensions

La Crosse Technology

La Crosse Technology C86224 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology C79141-UK Dimensions

La Crosse Technology

La Crosse Technology K85236 Dimensions

La Crosse Technology

La Crosse Technology 616A-1413 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-9300 Manuel utilisateur

La Crosse Technology

La Crosse Technology C75785-AU Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146v2 Dimensions

La Crosse Technology

La Crosse Technology 616-1412V2 Dimensions

La Crosse Technology

La Crosse Technology DCF-77 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-146A Manuel utilisateur

La Crosse Technology

La Crosse Technology 617-1485v2 Manuel utilisateur

La Crosse Technology

La Crosse Technology 616-1950V2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8248 Manuel utilisateur

La Crosse Technology

La Crosse Technology W88723v2 Manuel utilisateur

La Crosse Technology

La Crosse Technology Radio-Controlled Travel Alarm Clock WT-2160 Manuel utilisateur

Manuels Réveil populaires d'autres marques

Steren

Steren CLK-210 Manuel utilisateur

COP-USA

COP-USA ALCDVR32-SL Manuel utilisateur

Philips

Philips HF3505/70 Manuel technique

Casio

Casio PQ-70 Manuel utilisateur

iHome

iHome IA63 Manuel utilisateur

Coopers

Coopers 9765 Manuel utilisateur

ANJANK

ANJANK AC-190 Mode d’emploi

TFA

TFA 98.1075 Manuel utilisateur

Sharper Image

Sharper Image 204050 Manuel utilisateur

Lumie

Lumie Zest Manuel utilisateur

Dexford

Dexford RCT200 Manuel utilisateur

Philips

Philips AJL303/37B Manuel utilisateur

RST

RST Q754 Manuel utilisateur

iHome

iHome iKT50 Manuel utilisateur

Sony

Sony dash HID-B7 Manuel utilisateur

SVINZ

SVINZ SCC009 Manuel utilisateur

Clas Ohlson

Clas Ohlson 918863 Manuel utilisateur

IKEA

IKEA FNURRA Manuel utilisateur
