Kyocera EP 510DN Manuel utilisateur

Note

Be sure to provide enough space around the printer. Prolonged use without

sufficient clearance may cause heat to build up inside the printer, resulting in

fire.

WARNING

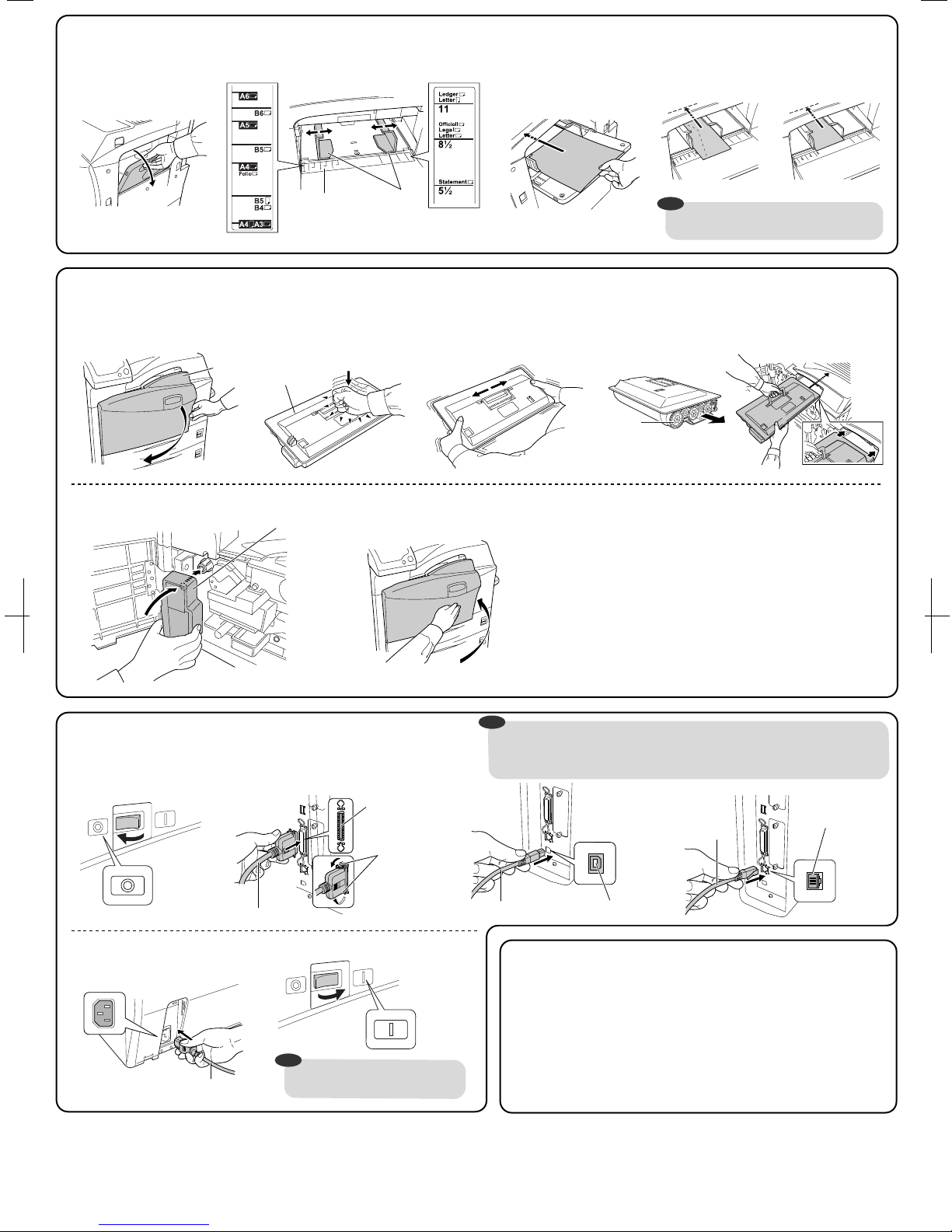

1.Checking Shipped Components

3.Loading Paper in the Paper Cassettes

For details on paper usable with this machine, refer to the

Operation Guide(CD-ROM).

1Unpacking2Shipped components

1Pull the paper cassette out.

5Set the supplied paper size plate at the

front of the paper cassette.

6Push the paper cassette back until

it stops.

2Remove the lift plate stopper

and attach it to the storage

location.

3Adjust the paper stopper to fit

the paper size.

2Adjust the paper guides to fit the

paper size.

Paper Size Plates (4)

Printer

Toner Container

Waste Toner Box

Power Cord

Installation Guide

(This sheet)

CD-ROM

Front Cover MP Tray

Paper Cassette

1Pull the paper cassette out.

Paper Cassette

Lift Plate Stopper

4Load paper.

Paper Size Adjusting Tab

Paper Guides

Paper Stopper

7Remove the tapes.

2.Removing the lift

plate stoppers

Paper Size Plate

1 2

3 4

5 6

EP 510DN Installation Guide

Clearance Environment

 Temperature: 10 to 32.5°C (50 to 90.5°F)

 Humidity: 15 to 80%RH

Left: 300 mm

(12 inches)

Right: 300 mm

(12 inches)

Rear: 100 mm

(4 inches)

Front: 1,000 mm

(40 inches)

When lifting or moving the printer, pull up the 4 handles on both sides of the printer, then ALWAYS carry the printer with at least 4 people,

and another person to coordinate.

The paper cassette will hold approximately 500 sheets of

pape r wit h 7 5 g/m 2(2 0 lb. ) to 80 g/m 2(2 1 lb. ) basi s

weight.

Note

5.Installing the Toner Container and Waste Toner Box

4.Loading Paper in the MP Tray

6.Connecting Cables and Turning on the Machine

1Open the front cover.

2Connect the power cord and

plug it into a wall socket.

3Turn the power switch on.

5Install the waste toner box.

Front

Cover Toner Container

Waste Toner Box

Gear Side

To the Printer

Power Cord

Do not print on envelopes with flap adhesive

exposed. This can cause printer malfunction.

2Adjust the paper guides on the MP tray.1Open the MP tray

on the right side of

the printer.

3Load paper. Envelope and Postcard

Paper Guides

Paper Size Label

Refer to the Operation Guide (CD-ROM) to install the printer driver and utilities.

Position the envelope and postcard against the insert guides

with the print side facing upward, and insert it as far as it will

go.

Parallel Interface

Connector

Parallel Printer CableUSB Cable

Network Cable

Network Interface

Connector

USB Interface

Connector

Clip

7.Printing a Status Page

1Press [MENU].

2Press ror srepeatedly until Print Status Page appears.

3Press [OK]. A blinking question mark (?) appears.

4Press [OK] again. The printer prints a status page.

Note

Use a parallel printer cable that complies with IEEE 1284 standards. For optimum performance,

install the printer close to the PC.

The connection cable should be shielded and no longer than 3 meters (10 feet) long. The cable

is sold separately.

Note

The printer will begin adding toner; this

will take approximately 8 minutes.

Printed in China 302G156070 Rev. 1.0 2007.72-28, 1-Chome, Tamatsukuri, Chuo-ku Osaka 540-8585, Japan

2Lightly tap the top of the

toner container five to

six times.

3Thoroughly shake the

toner container ten times

or more.

4Gently push the toner container into the

machine along the rails.

6Close the front cover.

1Connect the printer to the computer.
