KWorld DVB-S 100 Guide d'installation

Page 1 of 18

FAQ of DVB-S 100

October 24, 2007

Page 2 of 18

(1)I had just received my product, I don’t know how to set up everything!..........3

(2)If my software installation was not successful, what should I do? .....................4

(3)How do I set up the satellite setting on my computer?........................................5

(4)I want to change the LNB setting, what should I do?........................................10

(5)I want to change the frequency and symbol rate setting, what should I do?...11

(6)How do I know which driver version I am currently using?.............................12

(7)I have lost my installation CD, what should I do? .............................................13

(8)If I want to capture video clips from my video camera, what should I do?.....15

(9)If I only the the West longitude number for Satellite, during setup, what

should I do? ................................................................................................................16

(10)Why can I not record files that are over 4GB?.................................................16

Page 3 of 18

(1)I had just received my product, I don’t know how to set up everything!

There are a few ways of setting up this product: from multiple satellite

sources to your computer, from one satellite source to your computer.

i. You may have more than 1 satellite dish at home, therefore, you would

have to connect the receiver coaxial cable from your satellite dishes to a

DiSEqC, then you have two choices:

A. Connect the output from DiSEqC to your Setup Box, and then you

may connect its output to the DVB-S TV tuner card.

B. Connect the output from DiSEqC directly to your DVB-S TV tuner

card.

Page 4 of 18

ii. If you have only 1 satellite dish at home, the setup would be much simpler.

From the satellite dish, either connect the coaxial cable to your Setup Box,

then to the DVB-S TV tuner card, or directly to the DVB-S TV tuner card.

(2)If my software installation was not successful, what should I do?

Before you reinstall the software, please follow the steps below:

i. Please uninstall the software completely and restart your computer.

ii. Since there might be some software compatibility issues, you may have

to close applications and devices such as Norton, Webcam, or Beyond

TV…etc. These are probably shown on the task bar, please make sure

all are shut down before reinstallation.

Please follow the quick guide included in the package to reinstall your

software.

Page 5 of 18

(3)How do I set up the satellite setting on my computer?

iii. When you enter the DVB-S Plus or HyperMedia 2 software applications,

you may right-click on the display window or the control panel for the

pop-up menu (which may also be achieved by pressing F12 on your

keyboard.) Please select Setup.

iv. You will then enter the Setup Menu, please select Auto Scan.

Page 6 of 18

v. If you have more than 1 satellite source and has connected your TV tuner

card to a DiSEqC, please select the number of sources you are using.

(1 to 4 ports).

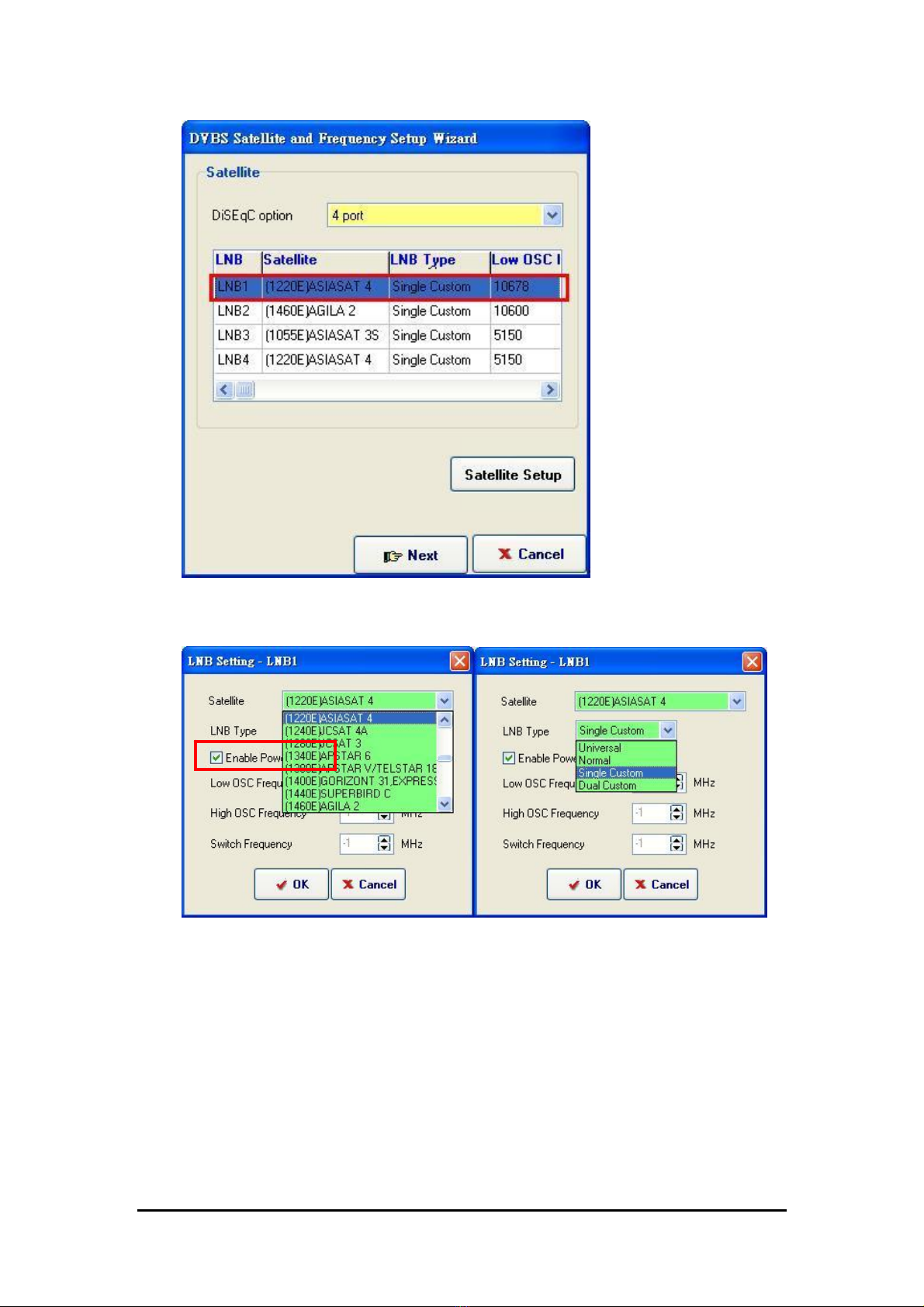

vi. Please double-click on each of the LNB setting to input your satellite

source.

Page 7 of 18

For example, as shown below, please click V to Enable Power, and input

the Satellite and LNB Type information.

vii. After you have input all setting for all of your satellite sources, please

select Next.

Page 8 of 18

viii. Please select the satellite sources you would like to watch TV from, and

select Next.

ix. Click-on Start to scan channels.

Page 9 of 18

After the channel scan, if the signal strength cannot be detected, please

press Back until you have reach the menu shown below.

Please use the link provided below to search for the correct Frequency and

Symbol Rate. After you have done so, please select Next and Start to

scan channels again.

http://www.satcodx.com/

Page 10 of 18

(4)I want to change the LNB setting, what should I do?

x. When you enter the DVB-S Plus or HyperMedia 2 software applications,

you may right-click on the display window or the control panel for the

pop-up menu (which may also be achieved by pressing F12 on your

keyboard.) Please select Setup.

xi. After you have entered the Setup menu, please select Auto Scan or LNB

button under the Channel Tab.

xii. You would have entered the DVB-S Satellite and Frequency Setup

Wizard.
