KTI Networks KS-2601 Manuel utilisateur

Managed Switch

User's Manual

KS-2601

DOC.061214

We make no warranties with respect to this documentation and disclaim any

implied warranties of merchantability, quality, or fitness for any particular

purpose. The information in this document is subject to change without notice.

We reserve the right to make revisions to this publication without obligation to

notify any person or entity of any such changes.

Trademarks or brand names mentioned herein are trademarks or registered

trademarks of their respective companies.

About this manual …

This manual is a general user’s manual for the managed switch:

24+2G fully-modularized model

It has three 8-port module slots at front panel. These 8-port modules can be 8*

10/100M TX ports or 8* 100M FX ports. It has flexible design for hardware

configuration.

There are two Gigabit module slots at rear panel for gigabit extension.

Front Side

Modules (8-port)

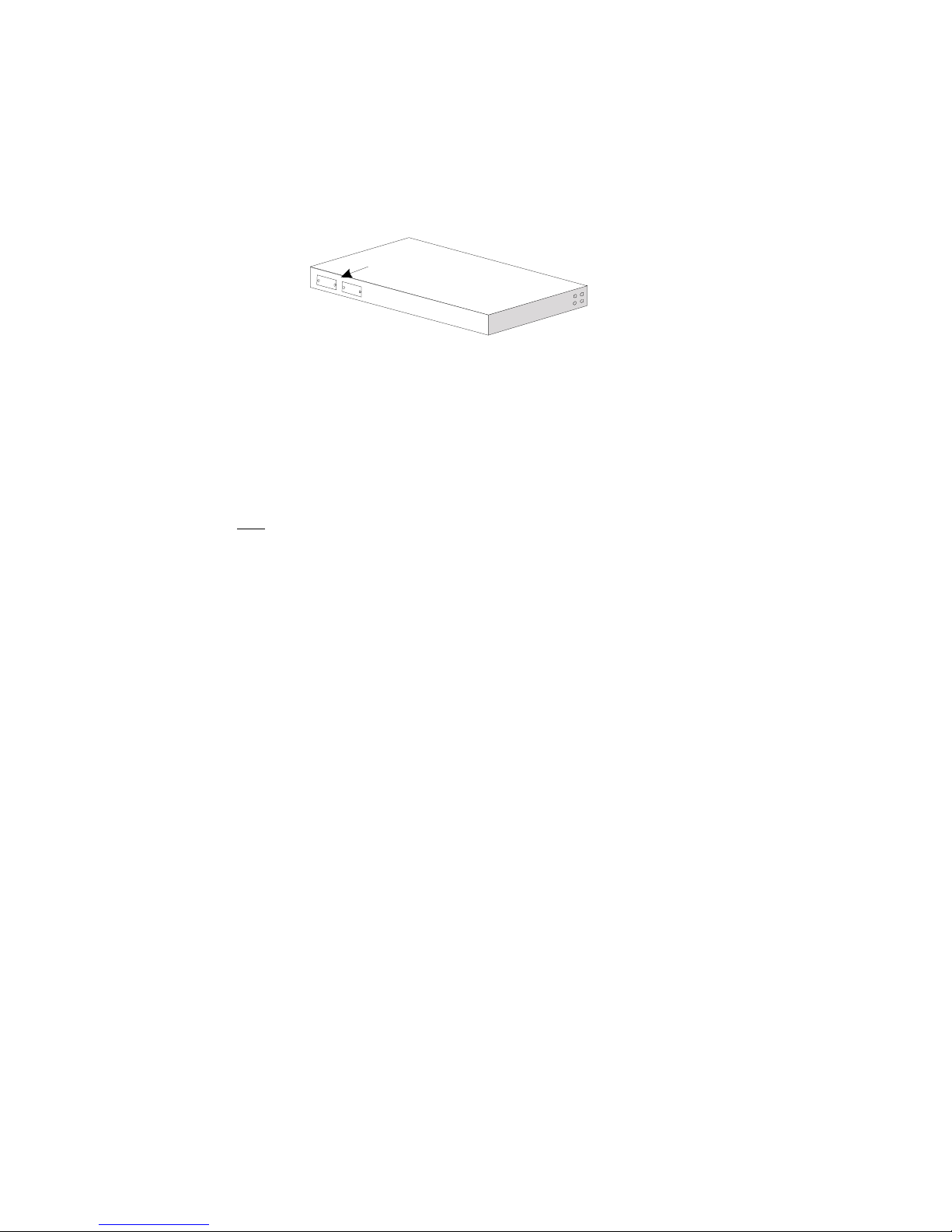

Rear Side

Module Slot

Contents

1. INTRODUCTION---------------------------------------------------------1

1.1 PACKAGE CONTENTS------------------------------------------------------------1

2. WHERE TO PLACE THE MANAGED SWITCH -----------------1

3. CONFIGURE NETWORK CONNECTION -------------------------2

3.1 CONNECTING DEVICES TO THE INTELLIGENT SWITCH ------------2

3.2 CONNECTING TO ANOTHER ETHERNET SWITCH/HUB---------------2

3.3 APPLICATION------------------------------------------------------------------------3

4. ADD/REMOVE MODULE ----------------------------------------------4

4.1 ADD/REMOVE MODULE----------------------------------------------------------4

5. LEDS CONDITIONS DEFINITION-----------------------------------6

5.1 LEDS DEFINED ----------------------------------------------------------------------6

6. MANAGE / CONFIGURE THE SWITCH----------------------------7

6.1 INTRODUCTION OF THE MANAGEMENT FUNCTIONS ----------------7

6.2 MANAGEMENT WITH CONSOLE CONNECTION -----------------------10

6.3 MANAGEMENT WITH HTTP CONNECTION------------------------------39

6.4 ABOUT TELNET INTERFACE -------------------------------------------------70

6.5 ABOUT SNMP INTERFACE-----------------------------------------------------70

7. SOFTWARE UPDATE AND BACKUP---------------------------- 71

A. PRODUCT SPECIFICATIONS------------------------------------- 72

B. COMPLIANCES------------------------------------------------------- 73

1. Introduction

This managed switch is a Layer2 management switch with lots of advanced

network functions including VLAN, trunking, spanning tree, mirror port, IP

multicast, rate limit and port configuration. It supports console, telnet, http and

SNMP interface for switch management. IEEE 802.1x is supported for port

security application. These functions can meet most of the management request

for current network.

1.1 Package Contents

 One Intelligent Switch

 One AC power cord (* for AC power model)

 One console cable

 Two rack-mount kits and screws (* for 24+2G model only)

 This user's manual

2. Where To Place the Managed Switch

This switch can be placed on a flat surface (your desk, shelf or table).

Place the Intelligent Switch at a location with these connection considerations in

mind:

 The switch configuration does not break the rules as specified in Section 3.

 The switch is accessible and cables can be connected easily to it.

 The cables connected to the switch are away from sources of electrical

interference such as radio, computer monitor, and light fixtures.

 There is sufficient space surrounding the switch to allow for proper ventilation.

You can also install the 24+2G models Intelligent switch on a 19" rack with the

rack-mount kits.

3. Configure Network Connection

3.1 Connecting Devices to the Intelligent Switch

[ Connection Guidelines: ]

 For 10BaseT connection: Category 3 or 5 twisted-pair Ethernet cable

 For 100BaseTX connection: Category 5 twisted-pair Ethernet cable

 For 1000BaseTX connection: Category 5e or 6 twisted-pair Ethernet cable

 For UTP cable connection, always limit the cable distance to 100 meters (328

ft) as defined by IEEE specification

 If your switch has 100BaseFX/1000BaseSX/1000BaseLX ports, you can

connect long distance fiber optic cable to the switch.

 Because this switch supports Auto MDI/MDI-X detection on each UTP port,

you can use normal straight through cable for both workstation connection

and hub/switch cascading.

3.2 Connecting to Another Ethernet Switch/Hub

This Intelligent Switch can be connected to existing 10Mbps / 100Mbps /

1000Mbps hubs/switches. Because all UTP ports on the Intelligent Switch

support Auto MDI/MDI-X function, you can connect from any UTP port of the

Intelligent Switch to the MDI or MDI-X port of another hub/switch with Straight

Through or Crossover cables. If the switches have fiber-optic ports, you can

cascade them with fiber optic cable.

3.3 Application

A switch can be used to overcome the hub-to-hub connectivity limitations as well

as improve overall network performance. Switches make intelligent decisions

about where to send network traffic based on the destination address of the

packet. As a result, the switch can significantly reduce unnecessary traffic.

The example below demonstrates the switch ability to segment the network. The

number of nodes on each segment is reduced thereby minimizing network

contention (collisions) and boosting the available bandwidth per port.

With management function of the switch, network administrator is easy to

monitor network status and configure for different applications.

4. Add/Remove Module

4.1 Add/Remove Module

[ For 24+2G Fully Modulized Model ]

This model supports three 8-port 10/100Mbps TX/FX modules at front panel and

two 1-port gigabit TX/SX/LX modules at rear panel.

Note: This switch does not support hot-swap function. Turn off the switch

first before adding or removing module. Otherwise, the switch and module

could be damaged.

-- Modules at Front Side --

[ Adding Modules to the Switch at Front Panel ]

1. Power OFF the switch first.

2. If the switch is rack-mounted, you have to remove the switch from rack first.

3. Loosen the screws of the cover on the module slot with screwdriver. Two at

the front side, one at bottom side.

4. Remove the cover of the module slot.

5. Follow the rails on both sides of the module slot to slide in the module

slowly.

6. Push the module firmly to make the module connecting well with the

connector in the switch.

7. Drive the screws to fix the module to the switch firmly with screwdriver. Two

at the front side, one at bottom side.

8. If the switch is rack-mounted, you can put the switch back to rack.

9. Power ON the switch.

10. If 100FX module is added, please configure these FX ports to 100/Full with

“set port” command.

11. Connect network cables to the connectors on the module. If the connected

devices are working, the Link/Act LED will be ON.

Note: We suggest you to keep these removed module slot covers. It can be use

when these modules are removed in the future.

[ Remove Modules from the Switch at Front Panel ]

1.Power OFF the switch first.

Front Side

Modules (8-port)

2.If the switch is rack-mounted, you have to remove the switch from rack first.

3.Loosen the screws of the module with screwdriver. Two at the front side, one

at bottom side.

4.Remove the module slowly from the module slot.

5.Put on the module cover and fix it to the switch by driving its screws with

screwdriver. Two at the front side, one at bottom side.

6.If the switch is rack-mounted, you can put the switch back to rack.

7.Power ON the switch.

-- Modules at Rear Side --

[ Adding Module to the Switch at Rear Panel ]

1. Power OFF the switch first.

2. Loosen the screws of the cover on the module slot.

3. Remove the cover of the module slot.

4. Follow the rails on both sides of the module slot to slide in the module slowly.

5. Push the module firmly to make the module connecting well with the

connector in the switch.

6. Drive the screws to fix the module to the switch firmly.

7. Power ON the switch.

8. Connect network cables to the connectors on the module. If the connected

devices are working, the Link/Act LED will be ON.

Note: We suggest you to keep these removed module slot covers. It can be use

when these modules are removed in the future.

[ Remove Module from the Switch at Rear Panel ]

1. Power OFF the switch first.

2. Loosen the screws of the module.

3. Remove the module slowly from the module slot.

4. Put on the module cover and fix it to the switch by driving its screws.

5. Power ON the switch.

Rear Side

Module Slot

5. LEDs Conditions Definition

5.1 LEDs Defined

The LEDs provide useful information about the switch and the status of all individual ports.

[ For 24+2G fully modulized model ]

LED STATUS CONDITION

Power ON Switch is receiving power.

ON Port has established a valid link.

Link / Act

Flashing Data packets being received or sent.

ON The connection is Full Duplex.

OFF The connection is Half Duplex.

FDX / Col

Flashing Collisions happen for half duplex connection
