KTI Networks KCD-303P-A Series Manuel utilisateur

1/18

Industrial 3-Port Fast Ethernet POF

Media Converter Switches

KCD-303P-A series

KCD-303P-B series

Installation Guide

DOC.081022

2/18

any form or by any means or used to make any directive work (such as translation or transformation)

without permission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to make changes in content from

time to time without obligation on the part of KTI Networks Inc. to provide notification of such

revision or change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008

Houston, Texas 77263-1008

Phone: 713-2663891

Fax: 713-2663893

E-mail: k[email protected]

URL: http://www.ktinet.com/

International Fax: 886-2-26983873

E-mail: k[email protected].tw

URL: http://www.ktinet.com.tw/

3/18

The information contained in this document is subject to change without prior notice. Copyright (C)

TRADEMARKS

Ethernet is a registered trademark of Xerox Corp.

OptoLockTM is a registered trademark of Firecomms Ltd.

FCC NOTICE

This device complies with Class B Part 15 the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received including the interference that may cause.

CE NOTICE

Marking by the symbol indicates compliance of this equipment to the EMC directive of the European

Community. Such marking is indicative that this equipment meets or exceeds the following technical

standards:

EMC Class B

EN 50081-1/1992 :EN55022:1994/A1:1995/A2:1997 Class B

EN61000-3-2:2000

EN61000-3-3:1995/A1:2001

EN 55024:1998/A1:2001

IEC 61000-4-2:1995

IEC 61000-4-3:1995

IEC 61000-4-4:1995

IEC 61000-4-5:1995

IEC 61000-4-6:1996

IEC 61000-4-8:1993

IEC 61000-4-11:1994

4/18

Table of Contents

1. Introduction................................................................................................................................ 5

1.1 Features ...........................................................................................................6

1.2 Product Panels .................................................................................................6

1.3 Specifications....................................................................................................7

2. Installation..................................................................................................................................9

2.1 Unpacking.........................................................................................................9

2.2 Safety Cautions ................................................................................................9

2.3 Mounting on a Wall.........................................................................................10

2.4 Panel Mounting...............................................................................................11

2.5 Din-Rail Mounting...........................................................................................12

2.6 Applying Power with Power Adapter...............................................................13

2.7 Applying Power via USB.................................................................................14

3. Making LAN Connections.......................................................................................................15

3.1 Making Copper Port (RJ-45) Connections.......................................................15

3.2 Making POF Connections...............................................................................16

3.3 LED Indication ................................................................................................17

4. Applications.............................................................................................................................18

4.1 Application in Industrial Networks ...................................................................18

4.2 Application For Home Network .......................................................................18

4.3 Copper to POF Media Converter Application ..................................................18

5/18

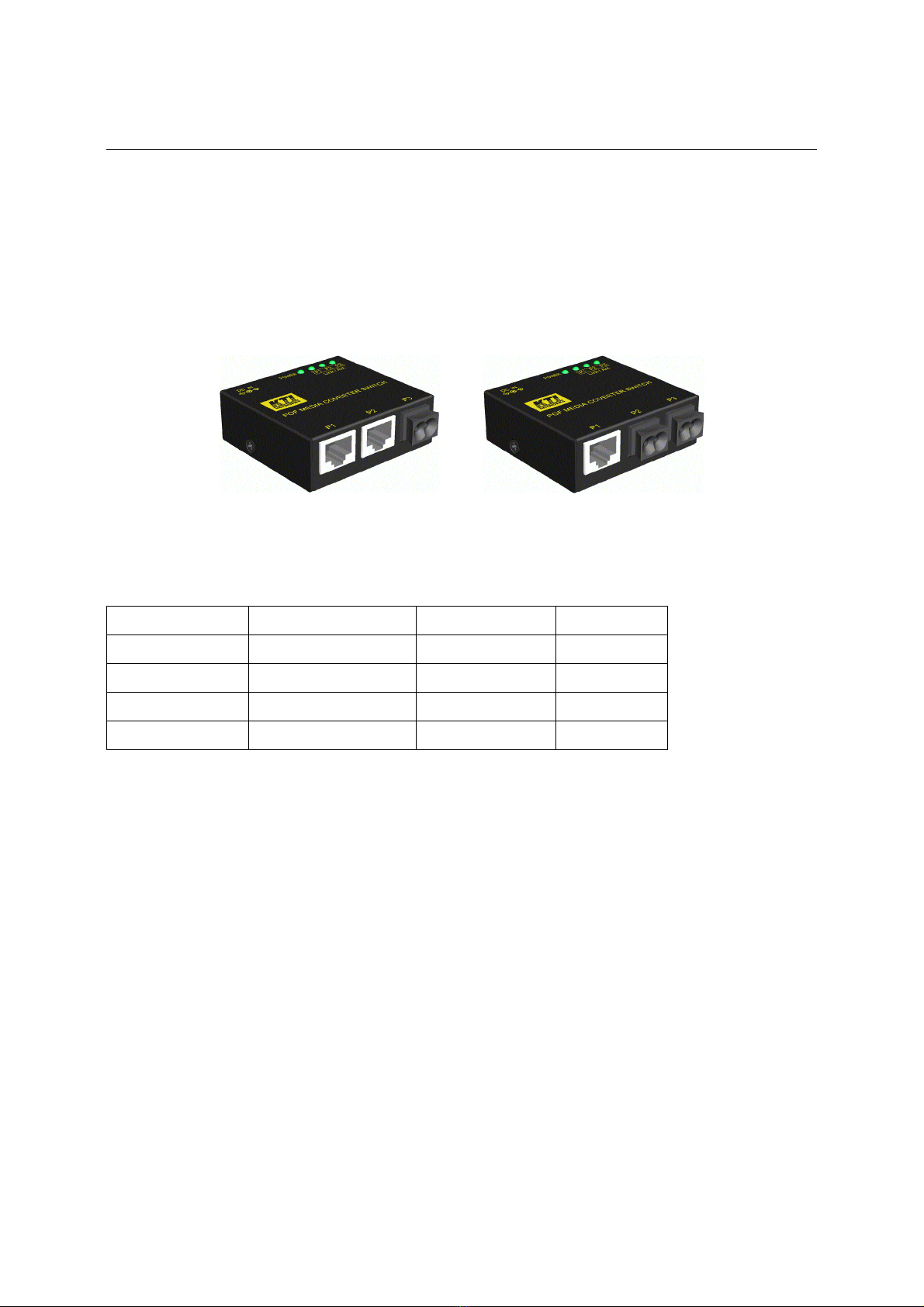

1. Introduction

The industrial rated KCD-303P series supports three switched connections including copper and fiber

for networks over POF (Plastic Optical Fiber). The copper ports support 10/100Mbps auto-negotiation

and auto-MDI/MDIX for Cat.5 plug-and-play. The fiber ports support plug-less connections of high

bandwidth 100Mbps data rate over POF cables. POF technology offers a complementary solution to

UTP copper wire for industrial, office and home networks because it is low cost, weight little, thin,

easy and safe to install and electronic noise immunity.

Depending on the types of the network ports and the supported POF cables, several different models

are defined as follows:

Model Copper Port (RJ-45) Fiber Port (POF) POF Support

KCD-303P-A1 2 ports 1 port 1.5mm

KCD-303P-A2 2 ports 1 port 2.2mm

KCD-303P-B1 1 port 2 ports 1.5mm

KCD-303P-B2 1 port 2 ports 2.2mm

The switch also provide the following advantages:

Plug and Play

No configuration is required in using the switches. With the featured auto-negotiation function, the

switches can detect and configure the connection speed and duplex automatically for the copper ports.

The switches also provide auto MDI/MDI-X function, which can detect the connected cable and switch

the transmission wire pair and receiving pair automatically. This auto-crossover function can simplify

the type of network cables used.

POF Connectivity

The switches support plug-less POF connection. Both model series offer an ideal solution for POF

deployment in home and industrial networks. For the application need, 1.5mm POF and 2.2mm POF

are supported in different models.

Industrial Features

For industrial environment, the main devices are designed with the following enhanced features

exceeding that of commercial Ethernet switches:

 High and wide operating temperature

6/18



Screw panel-mounting support for industrial enclosure

 Optional AC-DC power adapters with extended operating temperature

 Industrial-rated Emission and Immunity performance

1.1 Features

 Supports 3 switching-base network segments – [2 x Copper, 1 x POF] and [1 x Copper, 2 x POF]

 Auto MDI/MDI-X crossover function on the UTP copper port

 Supports IEEE 802.3x flow control for full-duplex operation

 Supports Back-pressure flow control for half-duplex operation

 Wide operating temperature range for temperature critical environment

 Supports desktop mounting, panel mounting, and optional Din-rail mounting

 Industrial-rated Emission and Immunity performance

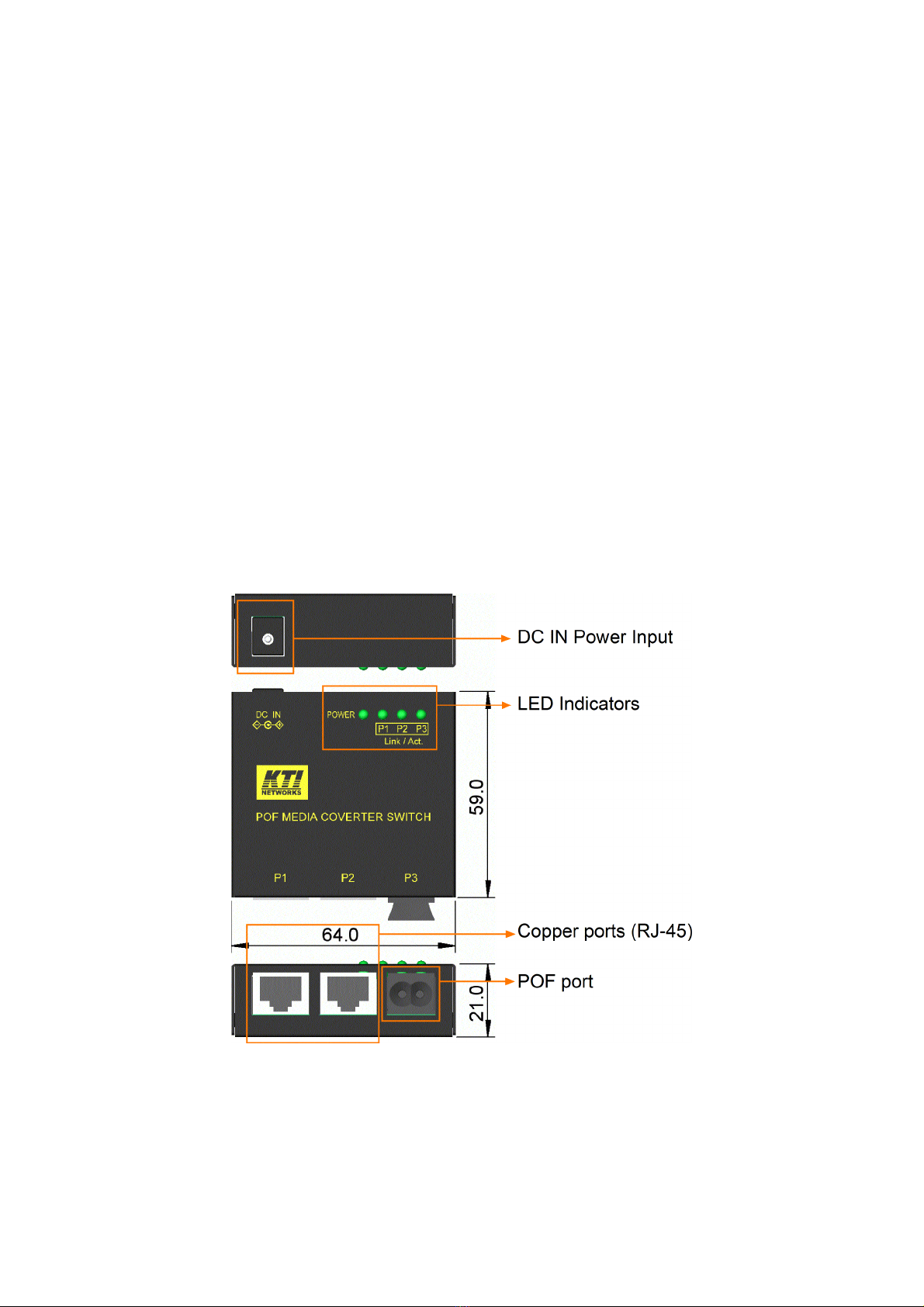

1.2 Product Panels

The following figure illustrates the faces of the switches:

KCD-303P-A

7/18

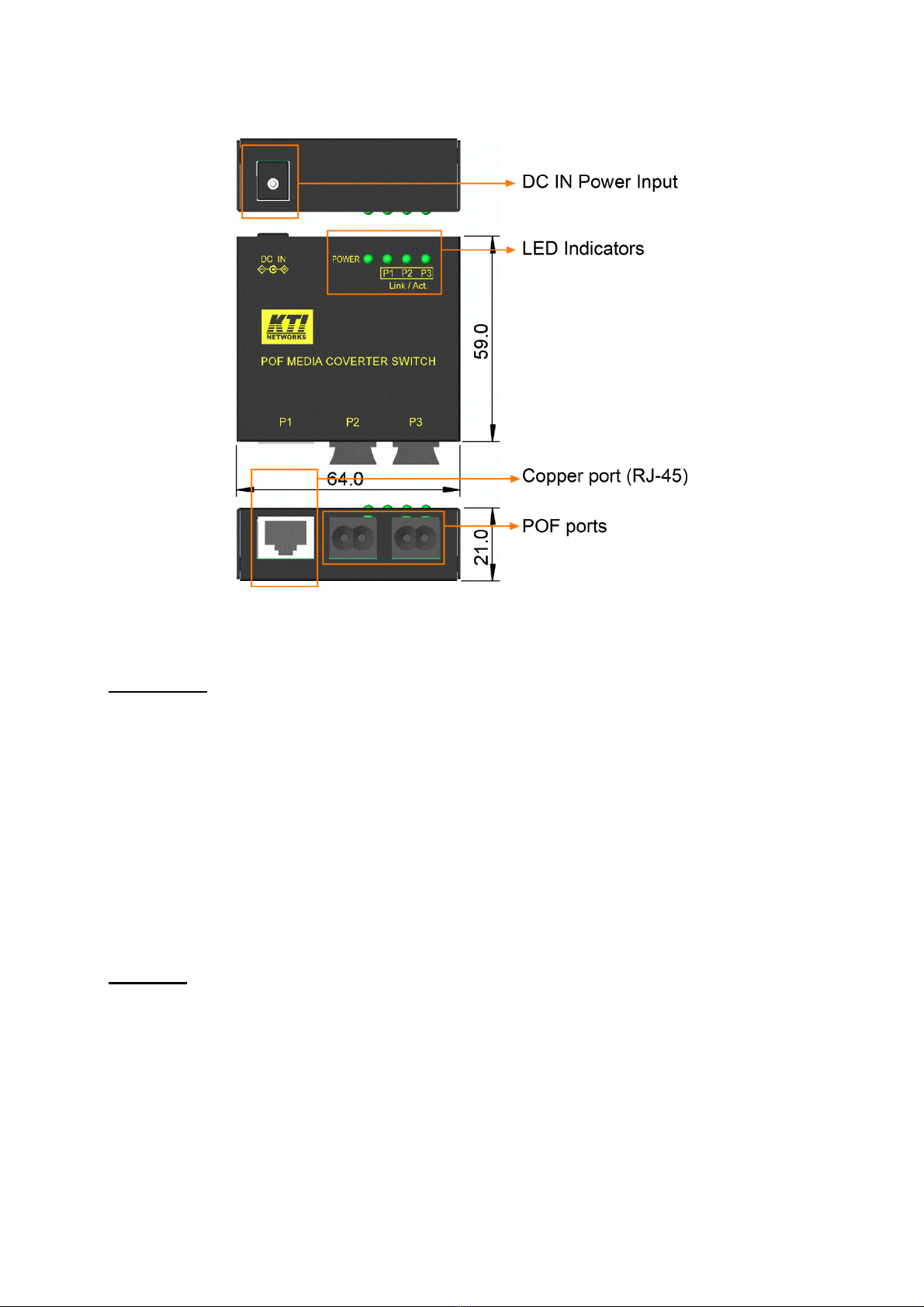

KCD-303P-B

1.3 Specifications

Copper Ports

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Connectors Shielded RJ-45 jacks

Pin assignments Auto MDI/MDI-X detection

Configuration Auto-negotiation

Transmission rate 10Mbps, 100Mbps

Duplex support Full/Half duplex

Network cable Cat.5 UTP up to 100 meters

POF Ports

Connectors OptoLockTM connector

Optical RCLED 650nm

Configuration 100Mbps, Full duplex

Network cables 1.5mm or 2.2mm POF (model dependent)

Distance 50 meters typical. The different numeric aperture of POF might result in

different transmit distance. Distance of 100 meters tested with 0.3NA

Mitsubishi Rayon Eska Mega POF

8/18

Far End Fault Support Enabled

Switch Functions

MAC Addresses Table 1K entries

Forwarding & filtering Non-blocking, full wire speed

Switching technology Store and forward

Maximum packet length 1552 bytes max.

Flow control IEEE 802.3x pause frame base for full duplex operation

Back pressure for half duplex operation

Broadcast Storm Protection design

DC IN Power Input

Interfaces DC IN Jack ( -D 6.3mm / + D 2.0mm)

Operating Voltages +4.75 ~ 12.6VDC

Power Consumption 2W max.

Mechanical

Dimension (base) 64 x 59 x 21 mm

Housing Enclosed metal with no fan

Mounting Support Panel mounting, Wall mounting, Desktop mounting

Environmental

Operating Temperature Main body 0oC ~ 70oC

Storage Temperature -20oC ~ 85oC

Relative Humidity 10% ~ 90%

Electrical Approvals

FCC Part 15 rule Class B

CE EMC, CISPR22 Class B

Safety IEC60950-1 / EN60950

9/18

2. Installation

2.1 Unpacking

The product package contains:

 The switch unit

 One AC-DC power adapter

 One product CD-ROM

2.2 Safety Cautions

To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the

following precautions.

 Do not service any product except as explained in your system documentation.

 Opening or removing covers may expose you to electrical shock.

 Only a trained service technician should service components inside these compartments.

 If any of the following conditions occur, unplug the product from the electrical outlet and replace

the part or contact your trained service provider:

- The power cable, extension cable, or plug is damaged.

- An object has fallen into the product.

- The product has been exposed to water.

- The product has been dropped or damaged.

- The product does not operate correctly when you follow the operating instructions.

 Do not push any objects into the openings of your system. Doing so can cause fire or electric shock

by shorting out interior components.

 Operate the product only from the type of external power source indicated on the electrical ratings

label. If you are not sure of the type of power source required, consult your service provider or

local power company.

10/18

2.3 Mounting on a Wall

The device can be mounted on a desktop or shelf. Make sure that there is proper heat dissipation from

and adequate ventilation around the device. Do not place heavy objects on the device.

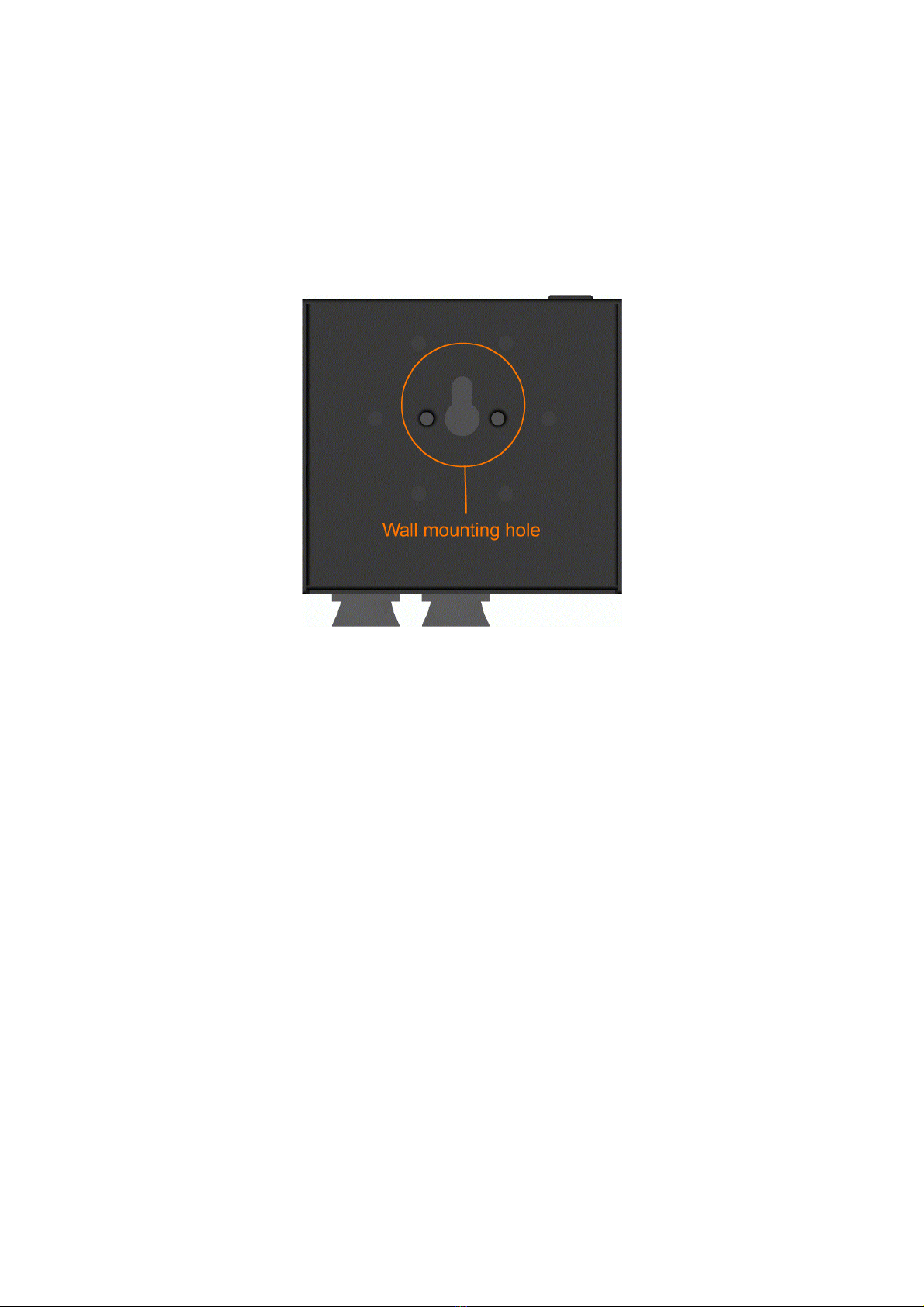

To mount the device on a wall, one wall mounting hole is provided on the bottom of the device. Hang

the device on the wall reliably. The following figure illustrates example of a device bottom face:
